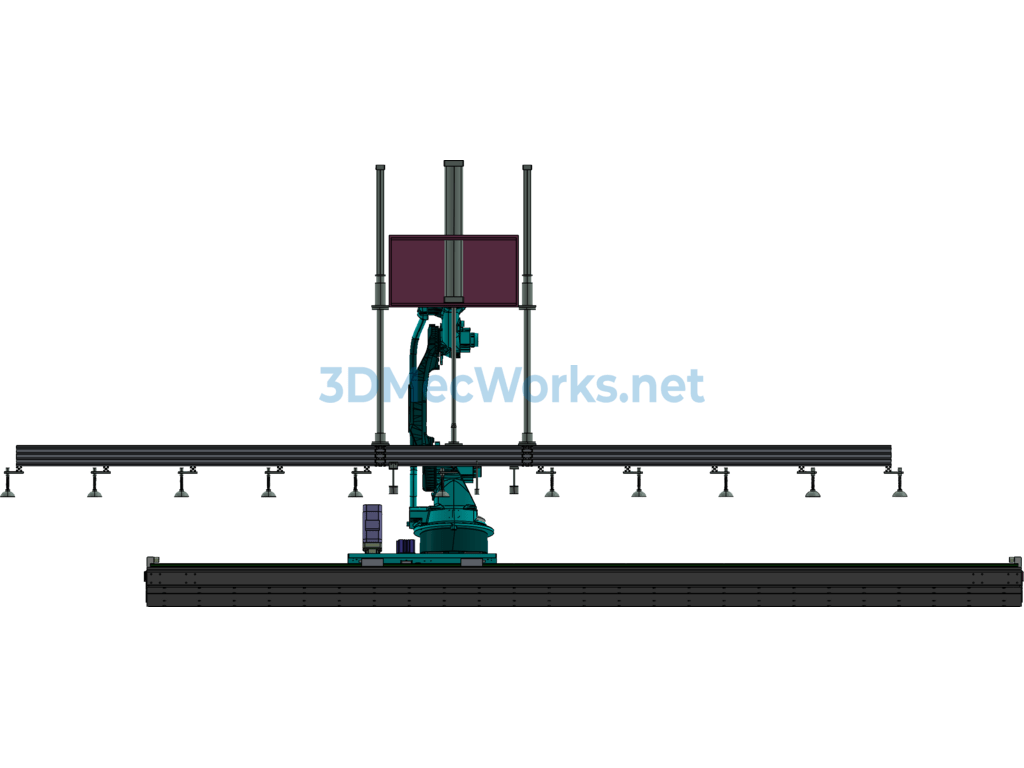

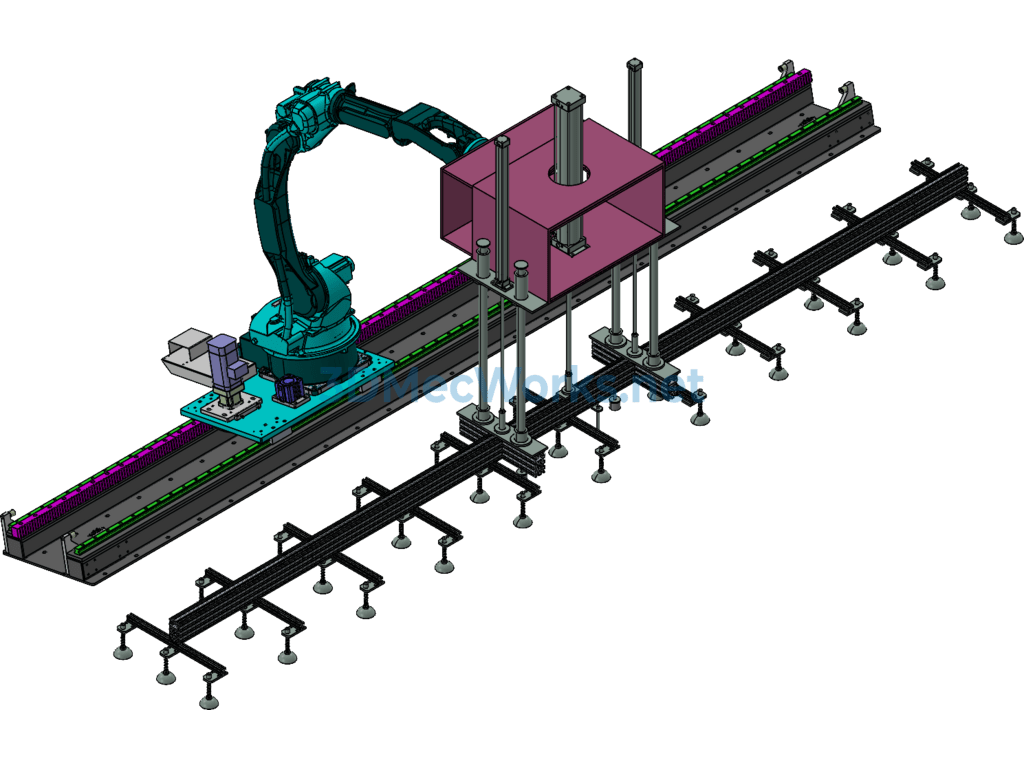

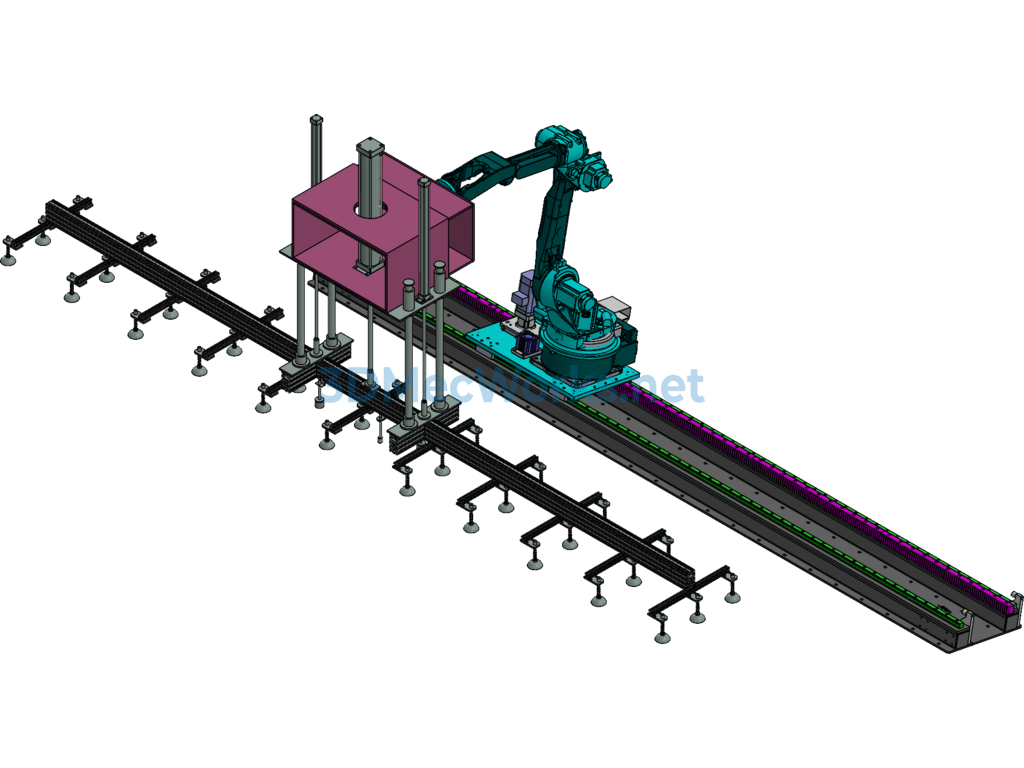

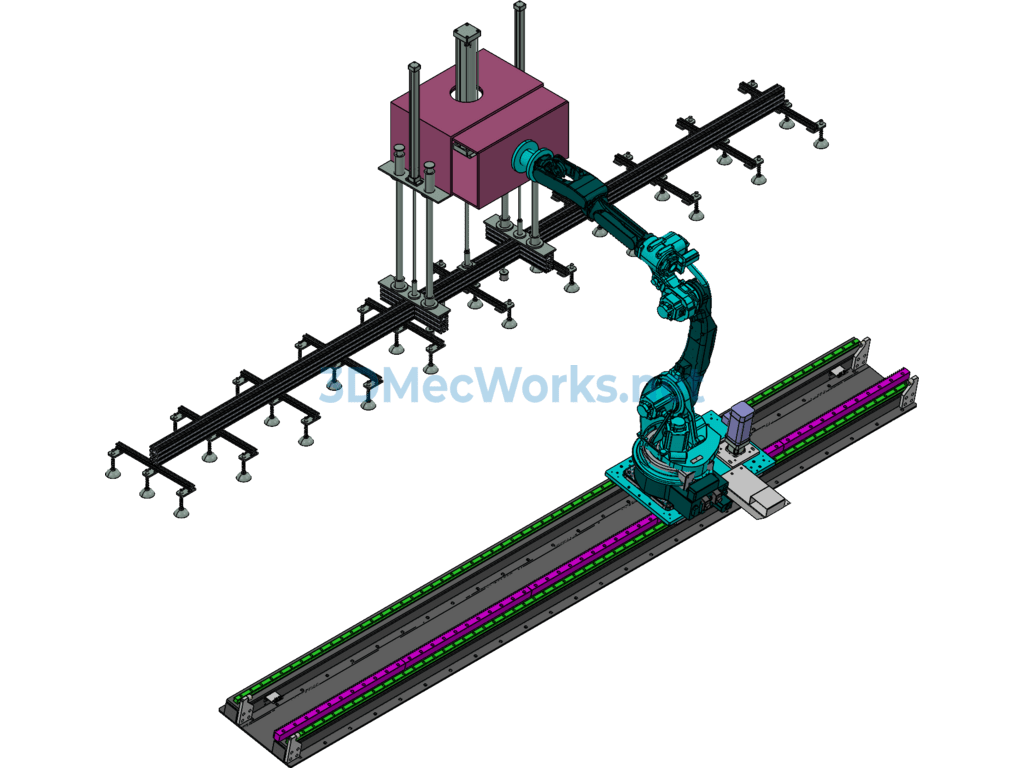

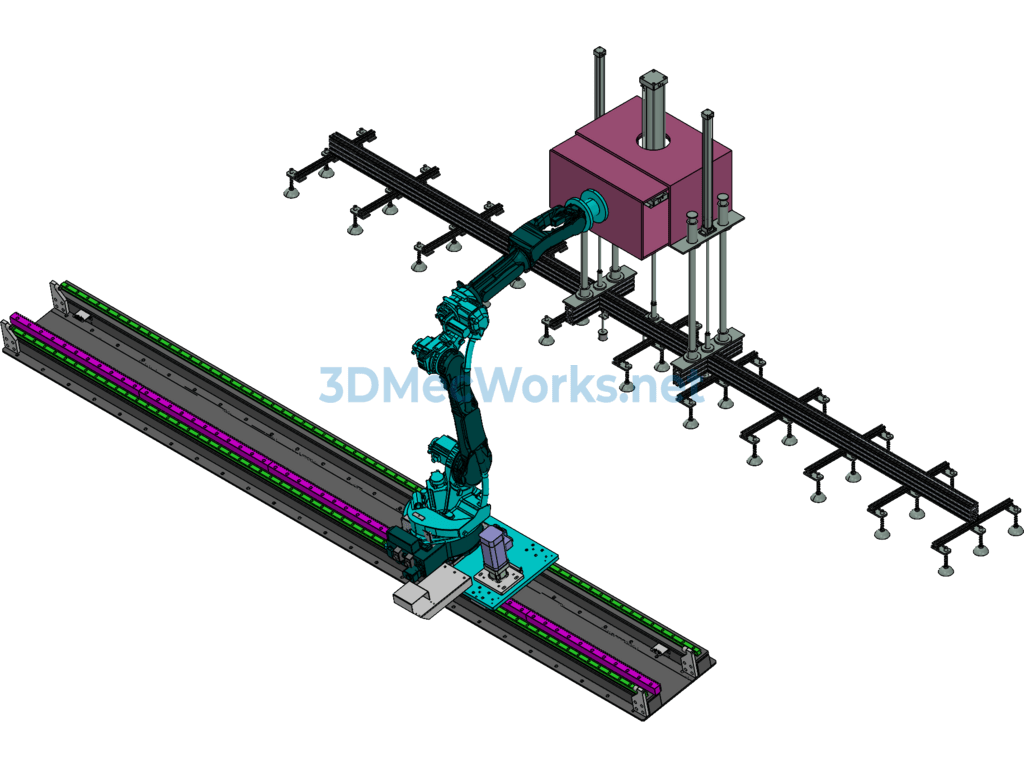

Design of a Vacuum Glass Robot Gripper with a Seventh Axis:
This model is an integrated design of a robotic vacuum glass gripper with a seventh robotic axis. The gripper is constructed using aluminum profiles and powered by a cylinder. The seventh axis of the robot is driven by a servo motor and a rack-and-pinion linear guide transmission system. The file is uploaded in XT format and is available for download as a reference design.
Specification: Design of the Seventh Axis for Vacuum Glass Robot Grippers
|
