Design of Robot Chassis

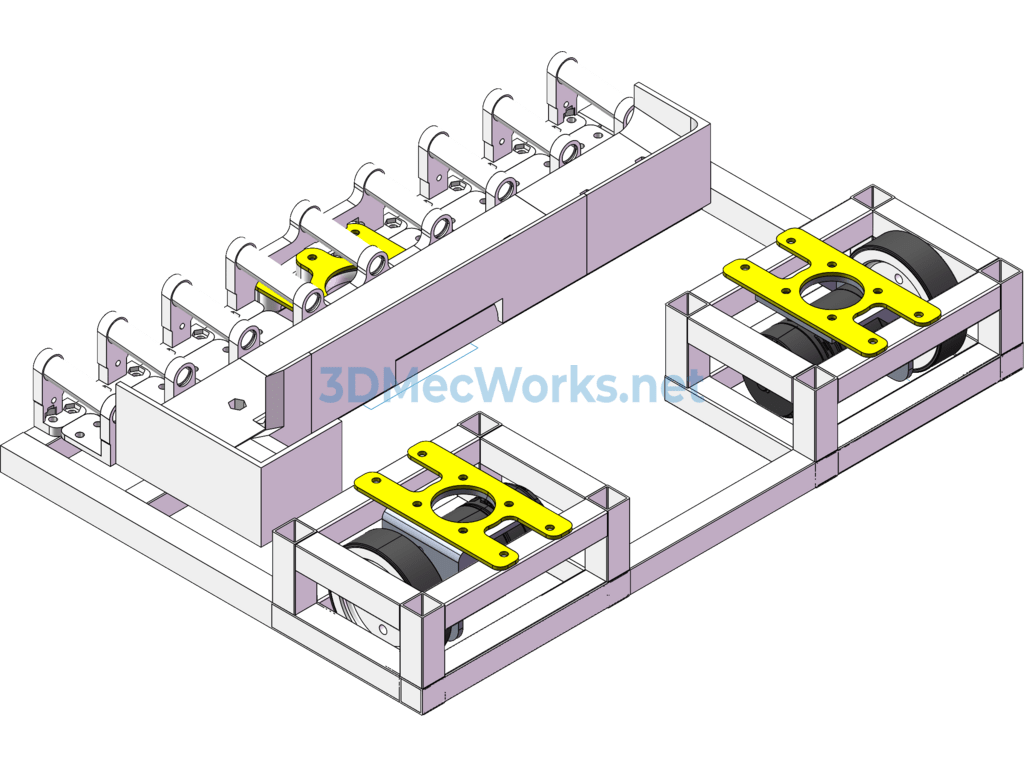

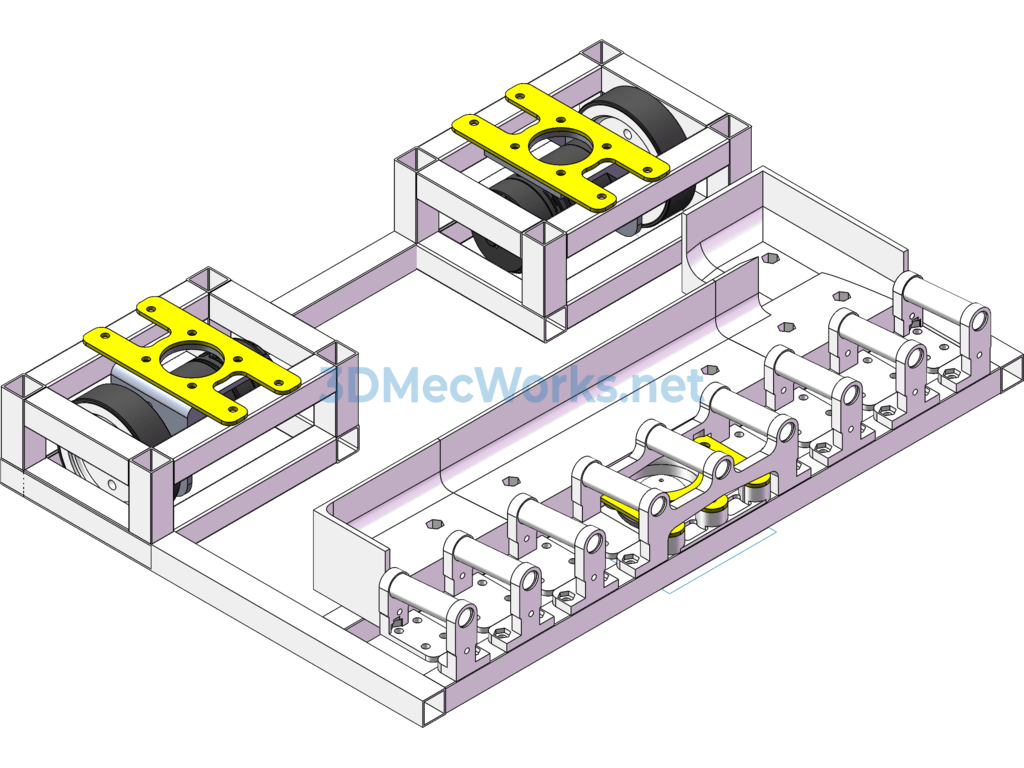

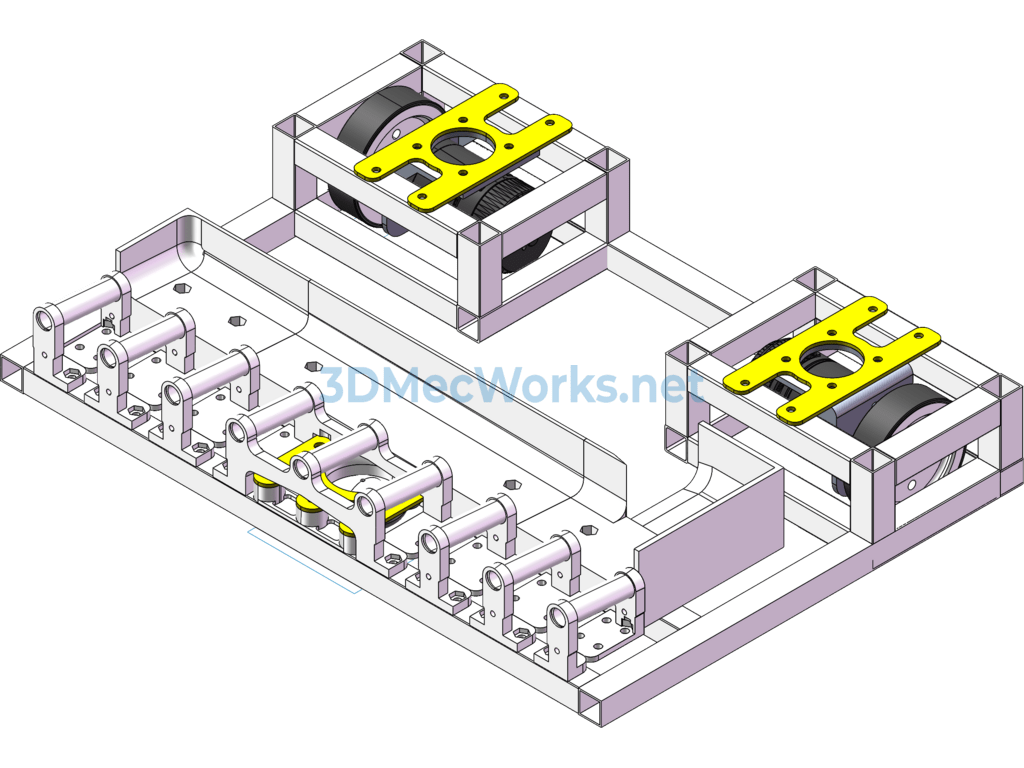

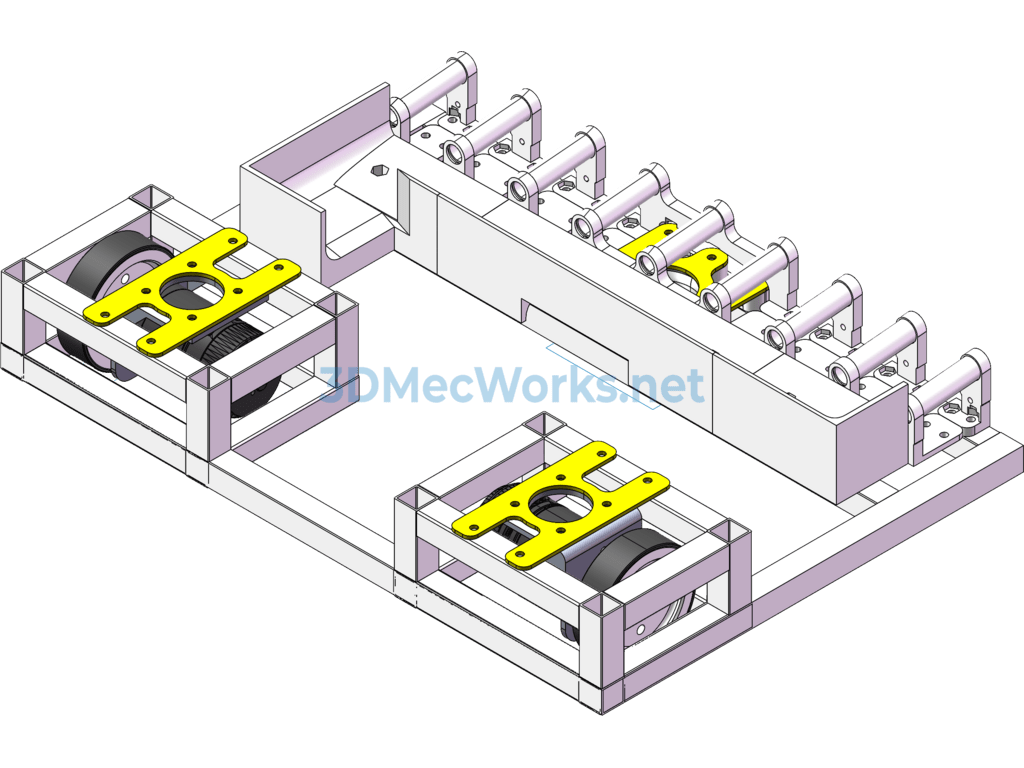

This is a design model for a robot chassis. The chassis uses aluminum square tubes to construct the framework, with epoxy resin plates used at the joints for connection. A 3508 motor drives the friction wheels for differential movement. A caster wheel at the front provides support and omnidirectional movement. The compressed package includes the parts drawings and assembly diagrams of the model, and the illustrations shown are also included in the package. The drawings are in correct format, containing feature parameters and are editable. You are welcome to download.
