Design of Non-Standard Vision Inspection Equipment Outer Framework

Design of the External Frame for Non-Standard Vision Inspection Equipment:
When designing non-standard equipment, it’s important to consider external factors that may interfere with the internal structure of the equipment. Therefore, an external frame needs to be designed to protect and isolate the internal structure.

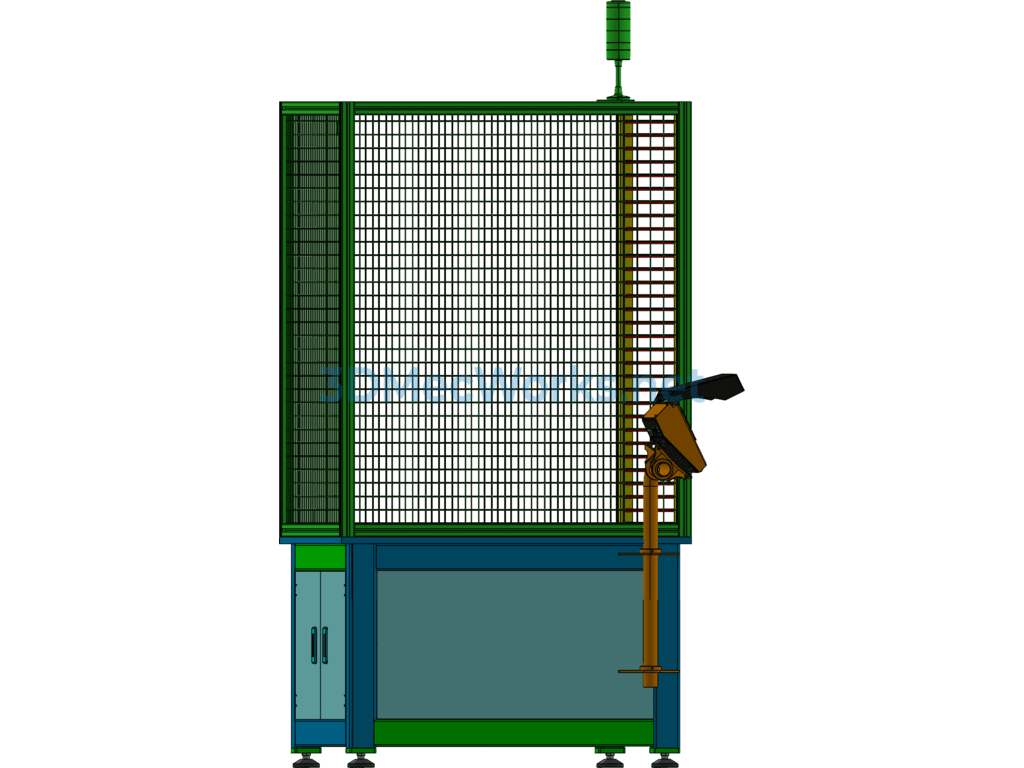

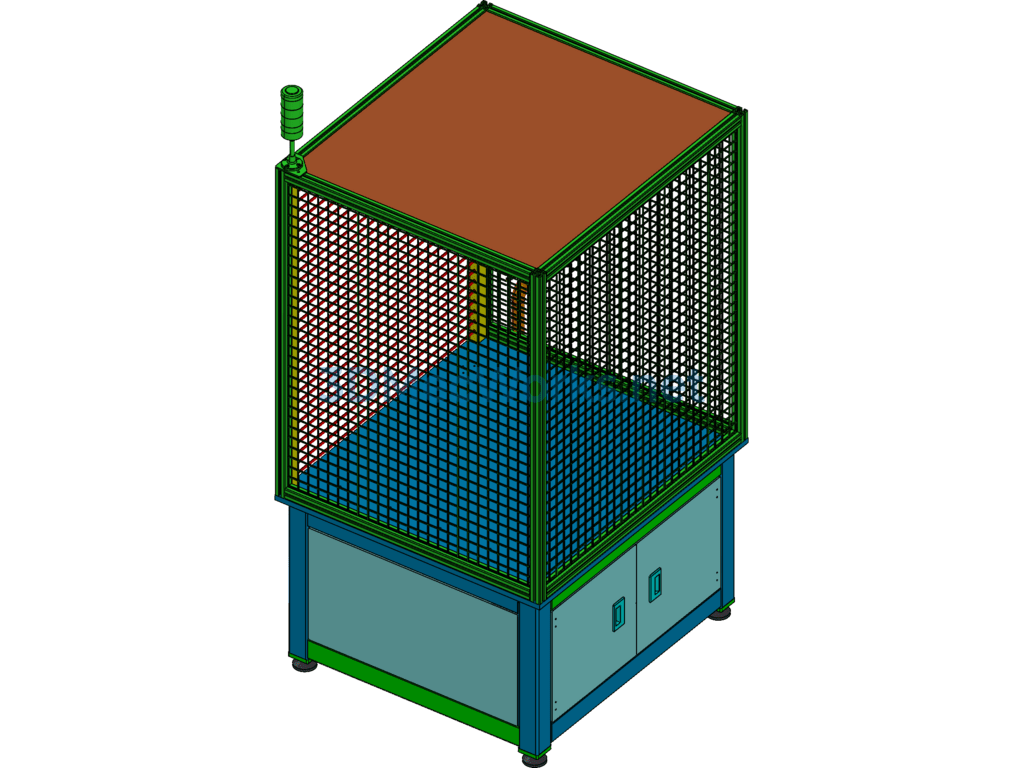

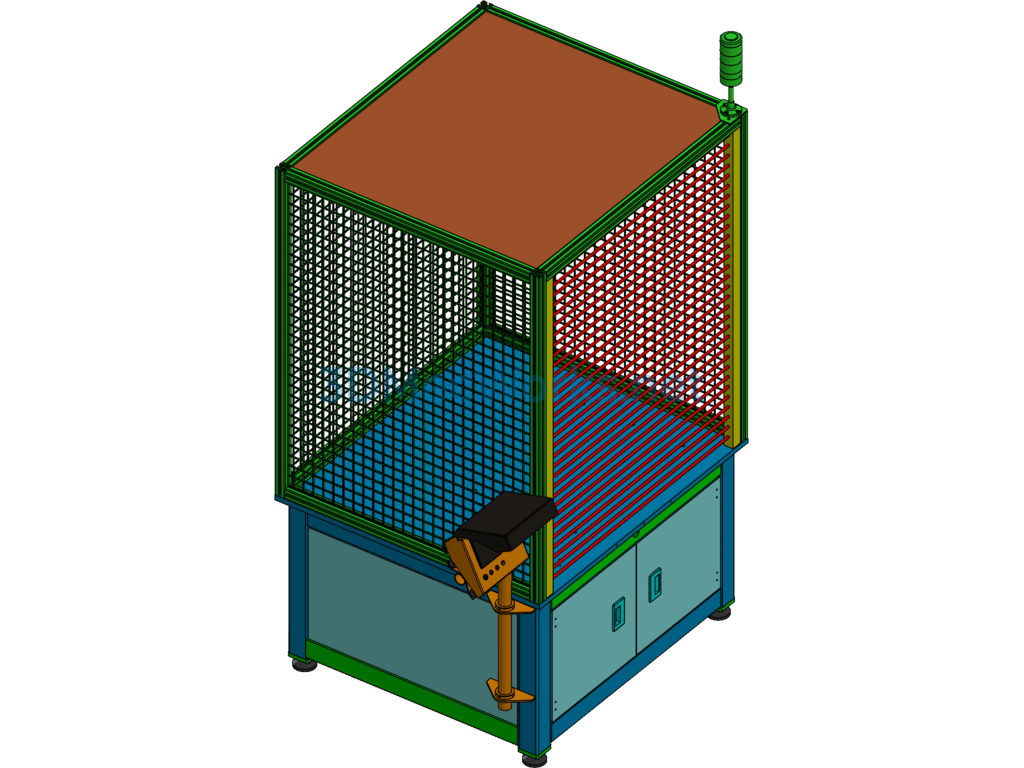

The lower part of this frame is entirely welded from square tubes, while the upper part is constructed from profiles with grid filling.

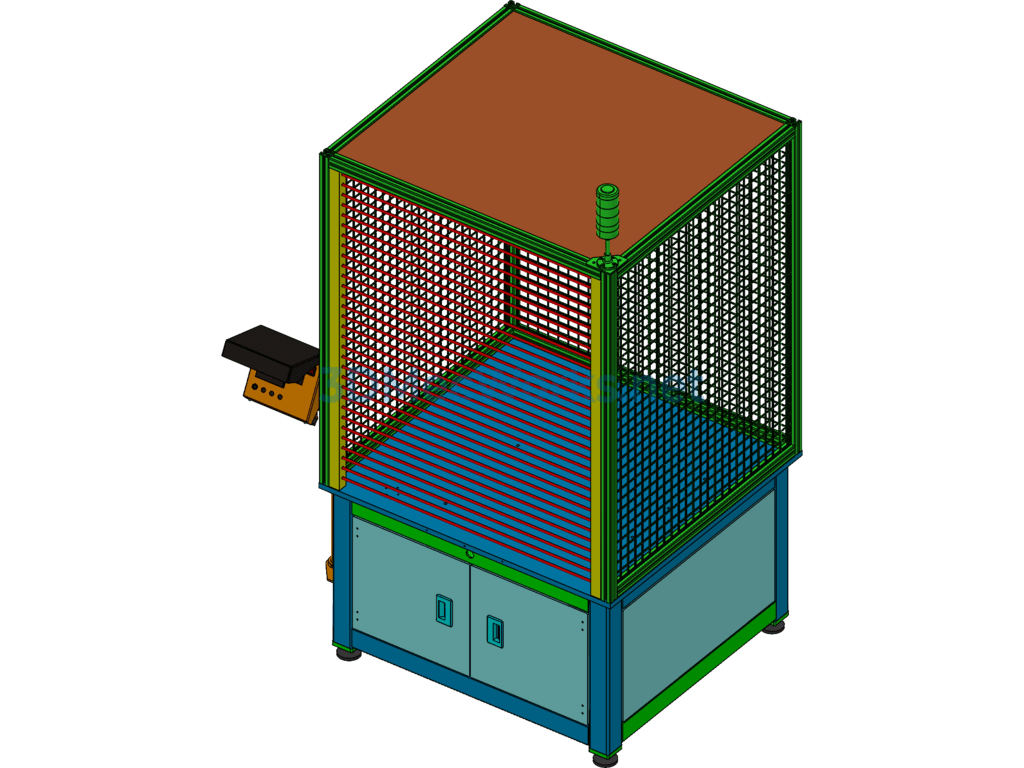

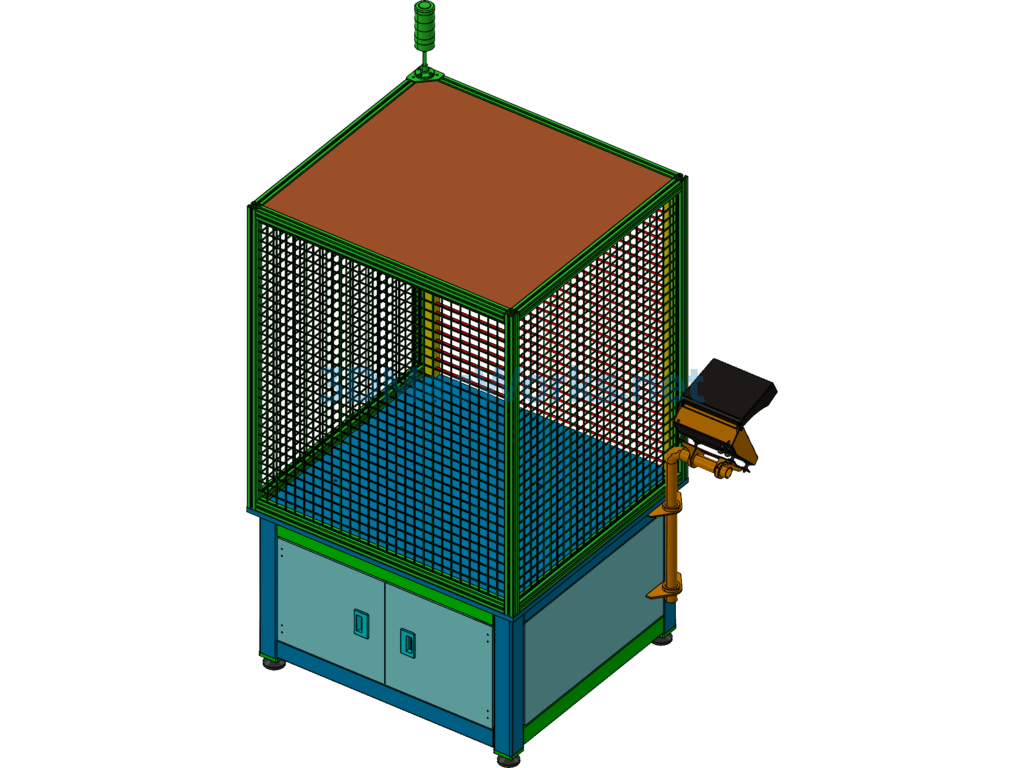

It is designed to include standard components such as an operation panel and a three-color lamp.
The upload format is XT, and you are welcome to download it.
