Design of Gear and Rack Drive Mechanism

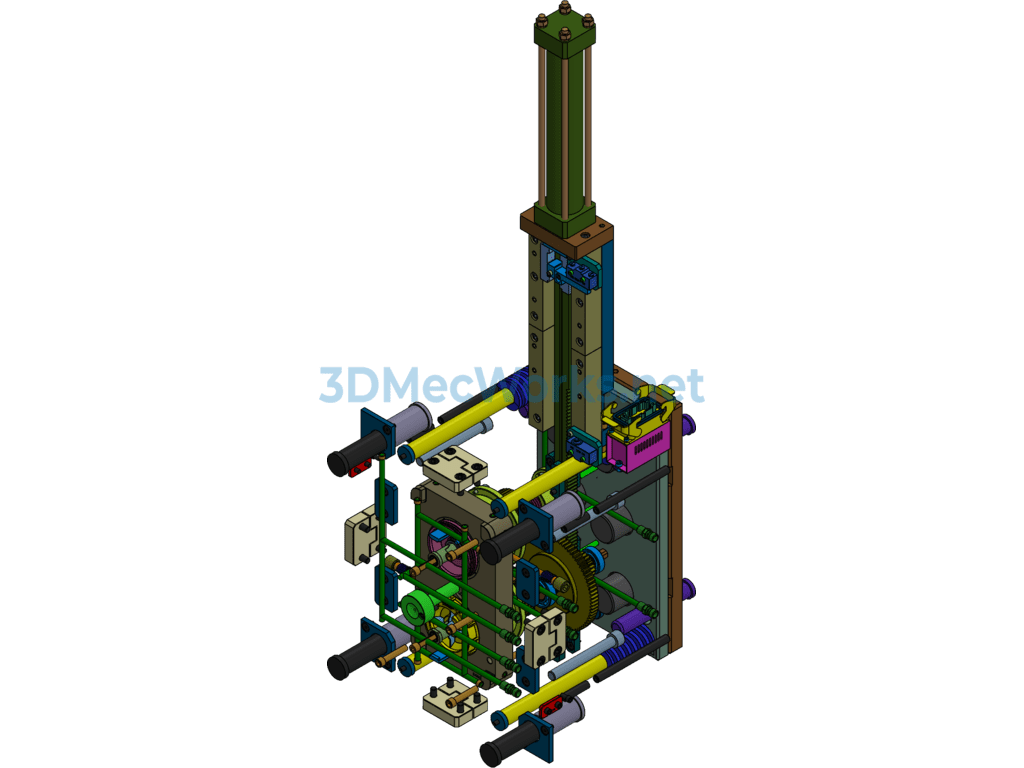

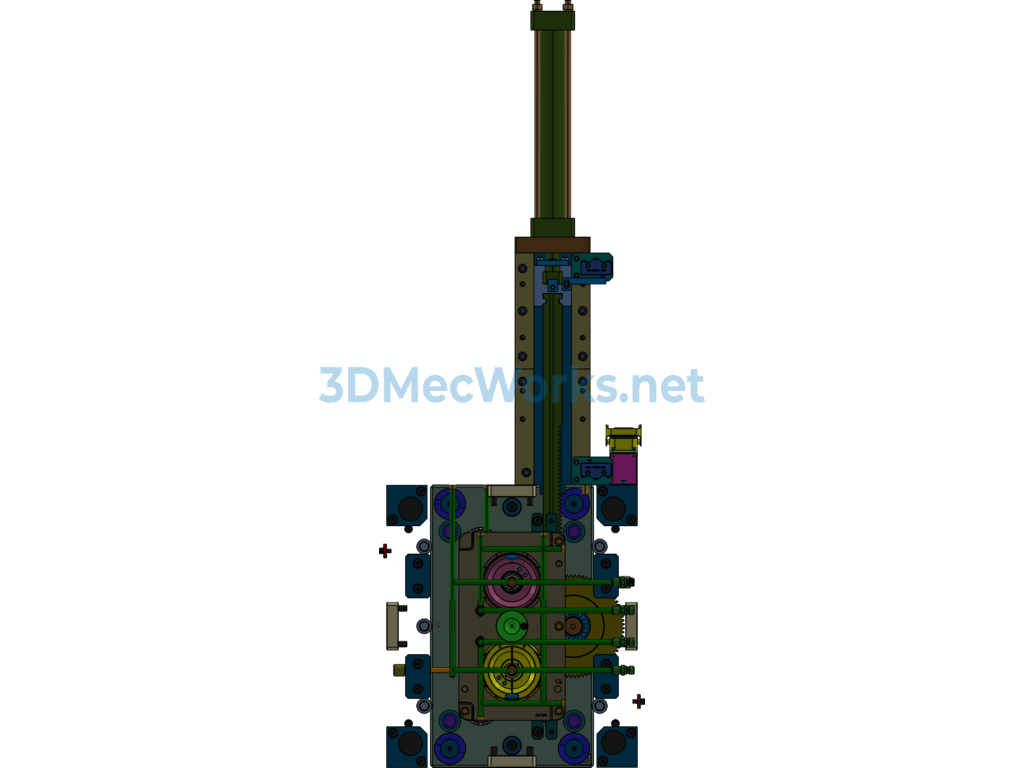

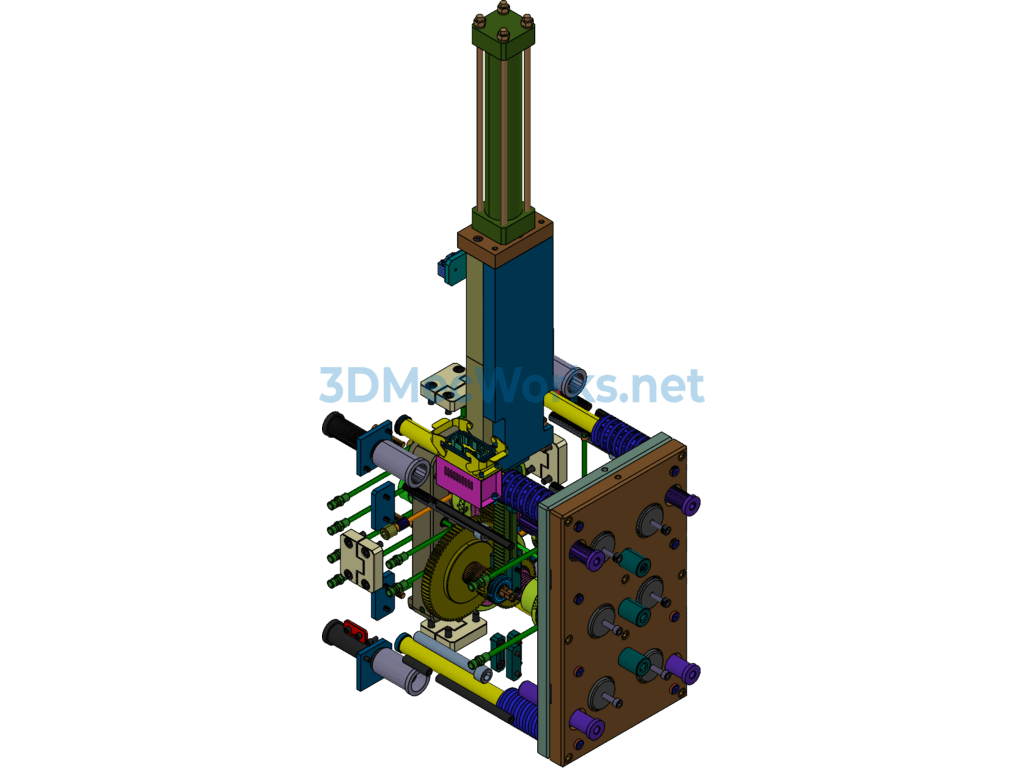

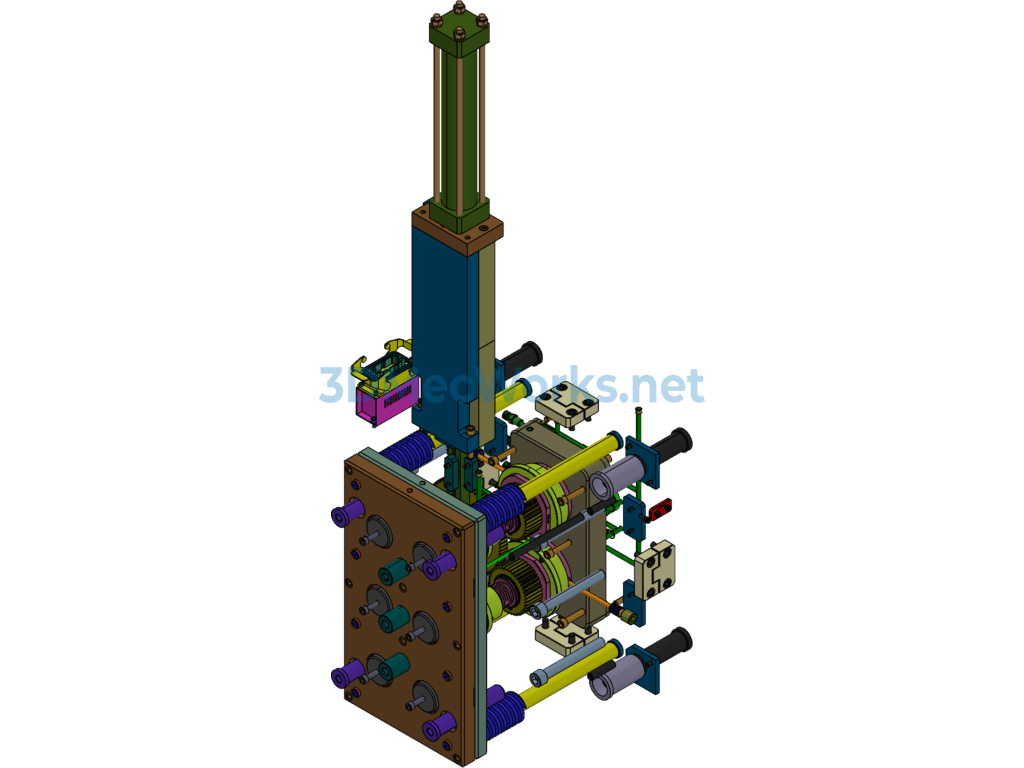

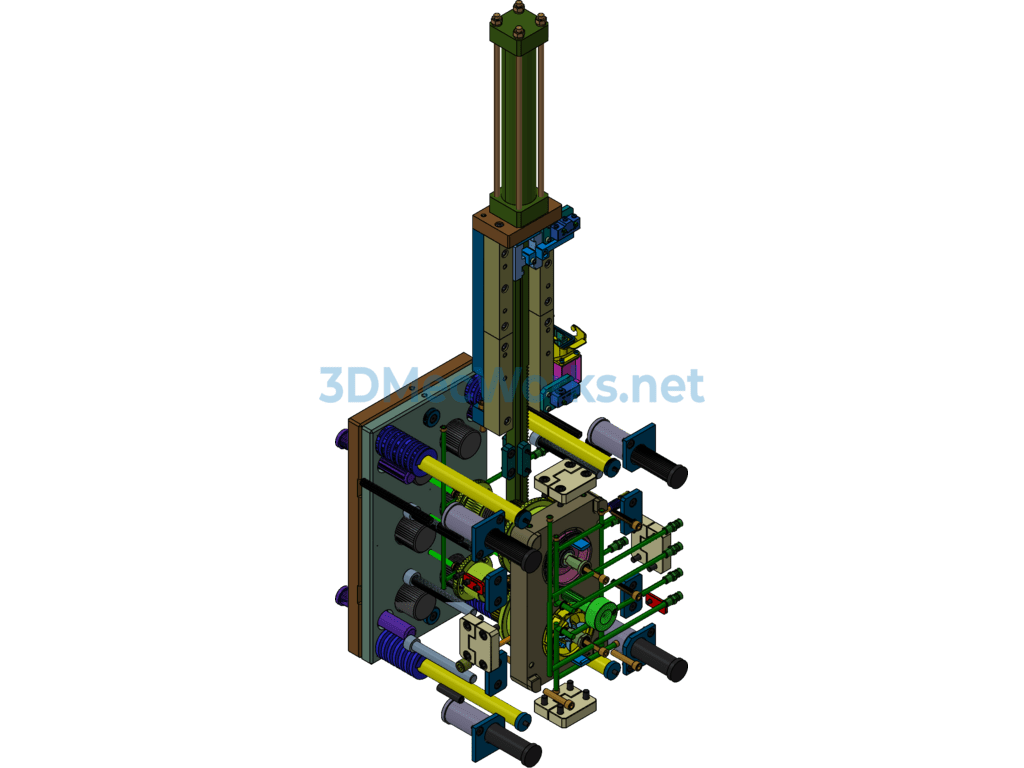

Gear Rack Transmission Mechanism Design: This uploaded model is an application design of a gear transmission mechanism. It operates by using a cylinder to drive a straight rack with the gear beginning to rotate. Gear transmission is a classic structure design frequently used in mechanical design applications. Feel free to download. The upload format is X-T.
Specification: Design of Gear and Rack Drive Mechanism
|
