Design of Automated Punching Line With Gantry Robot for Loading and Unloading

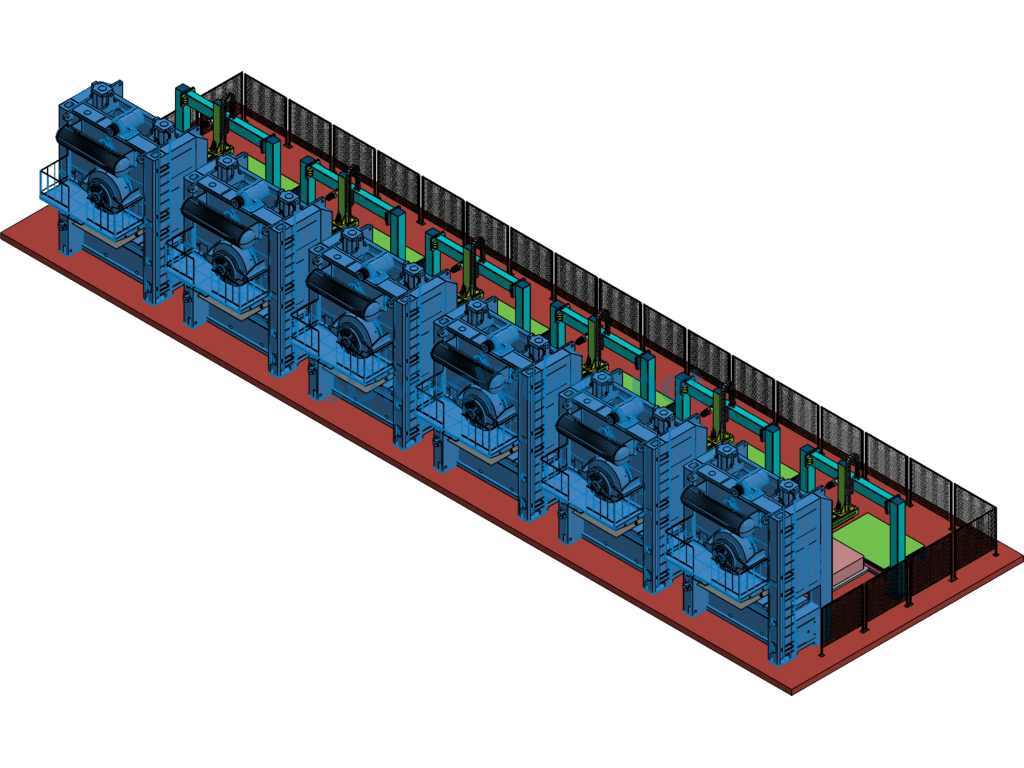

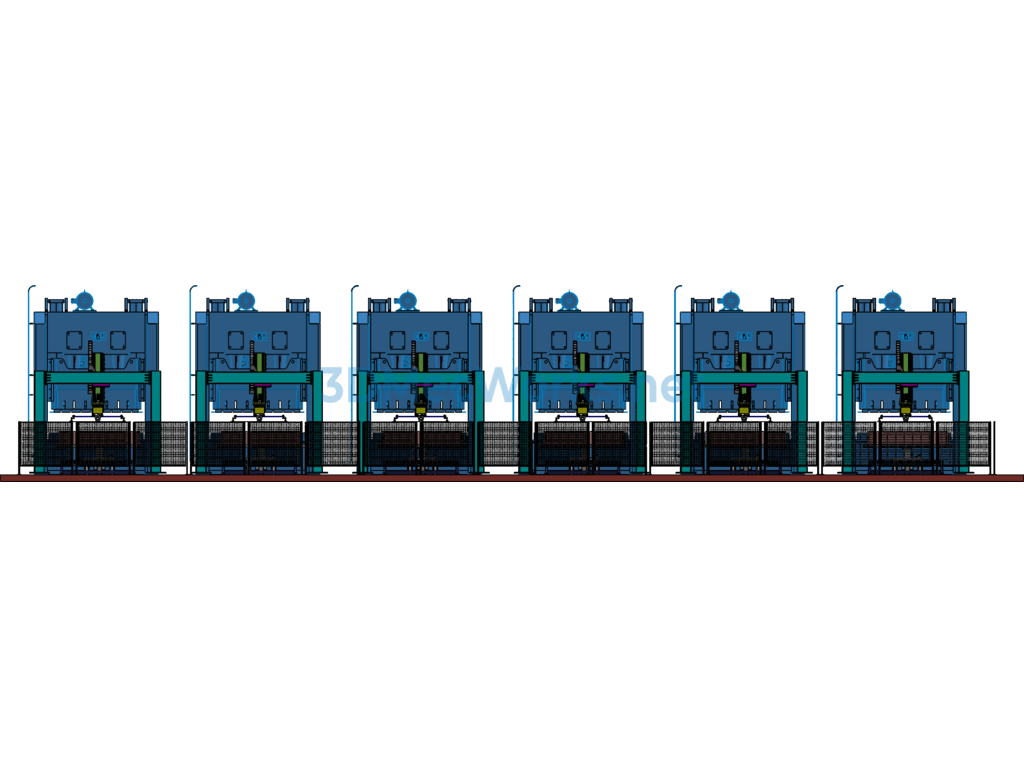

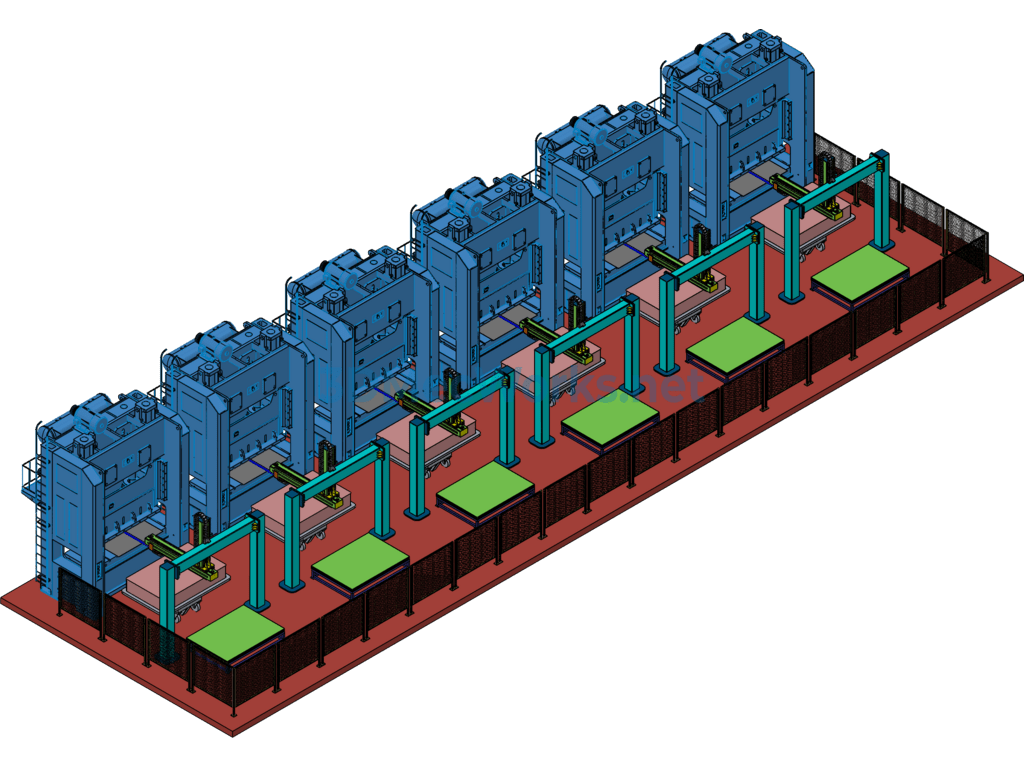

Gantry Robot Automated Loading and Unloading Press Line Design: This press line uses a gantry robot to replace manual loading and unloading. The production line consists of six large hydraulic presses and six gantry robots for loading and unloading. External barriers isolate the work area. The gantry robot has two axes for descending and parallel movement. Material sheets are grasped using vacuum suction cups. The upload format is X-T. Welcome to download and reference the design!
