Design of Aluminum Alloy Roller Shutter Door

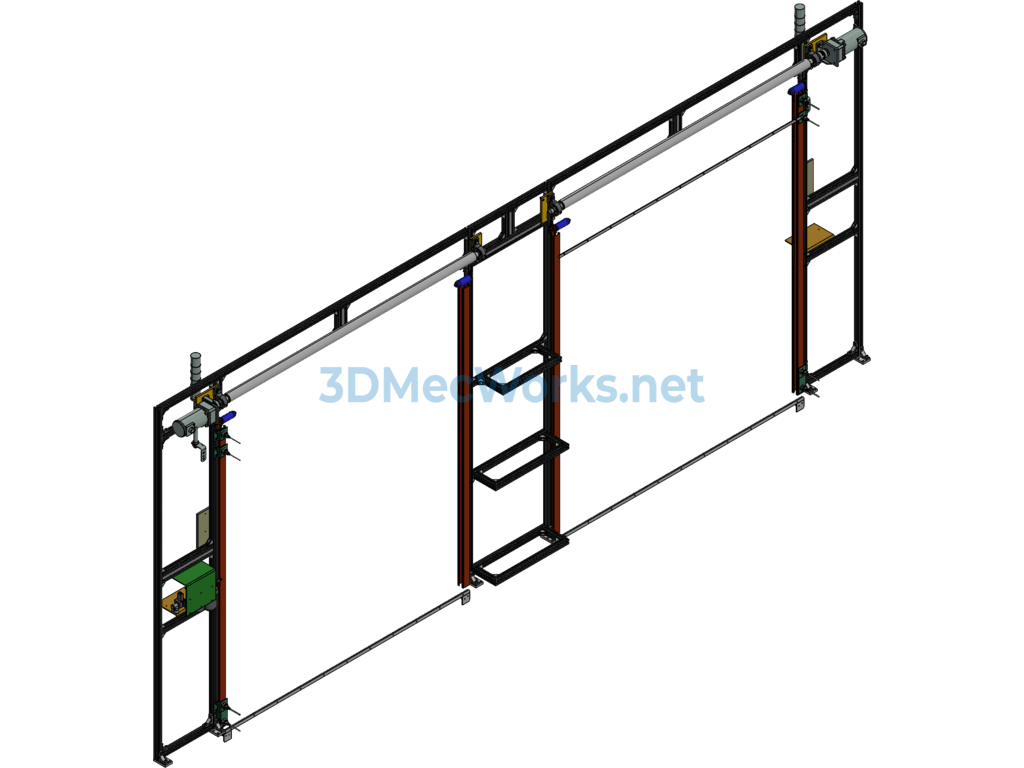

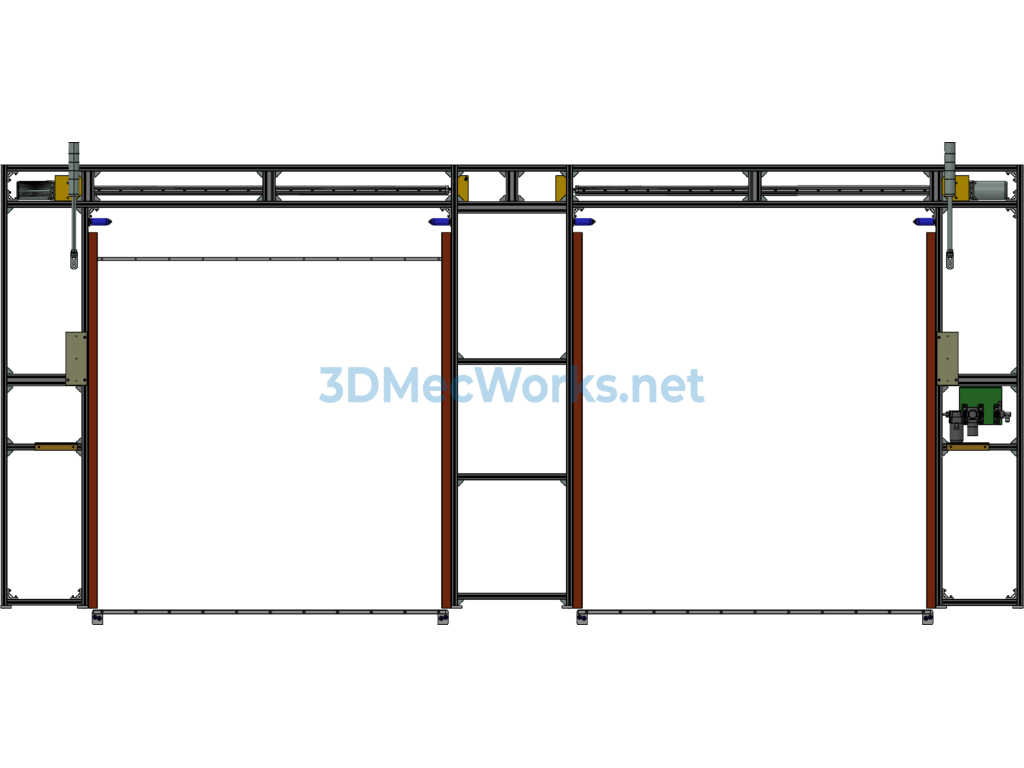

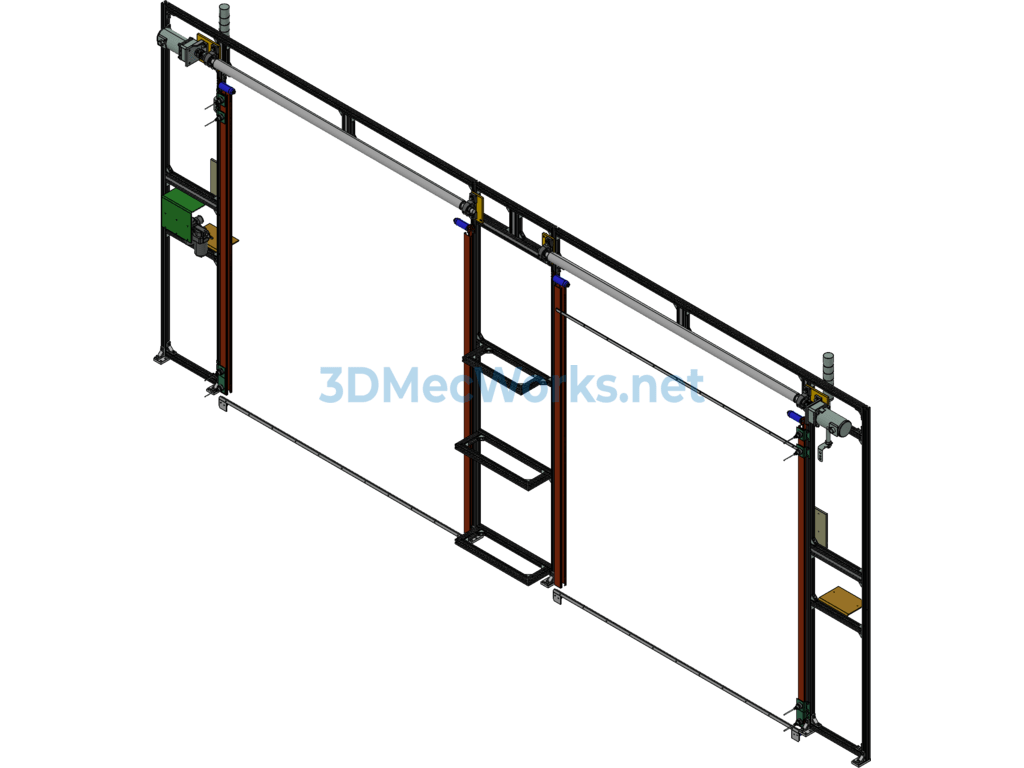

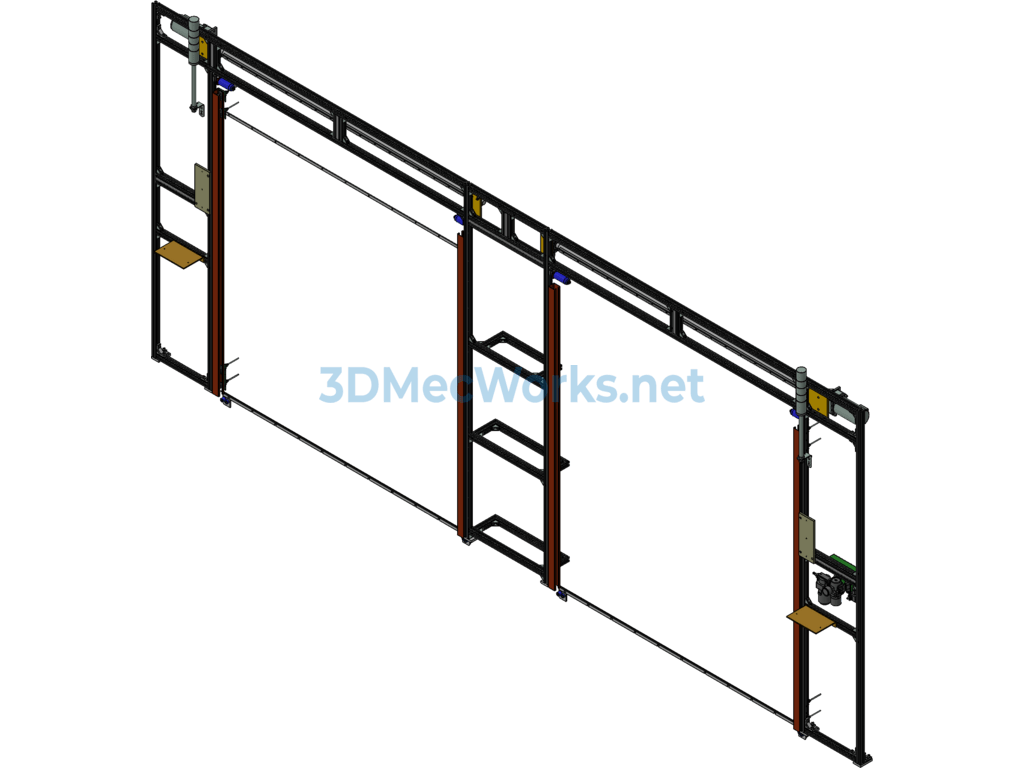

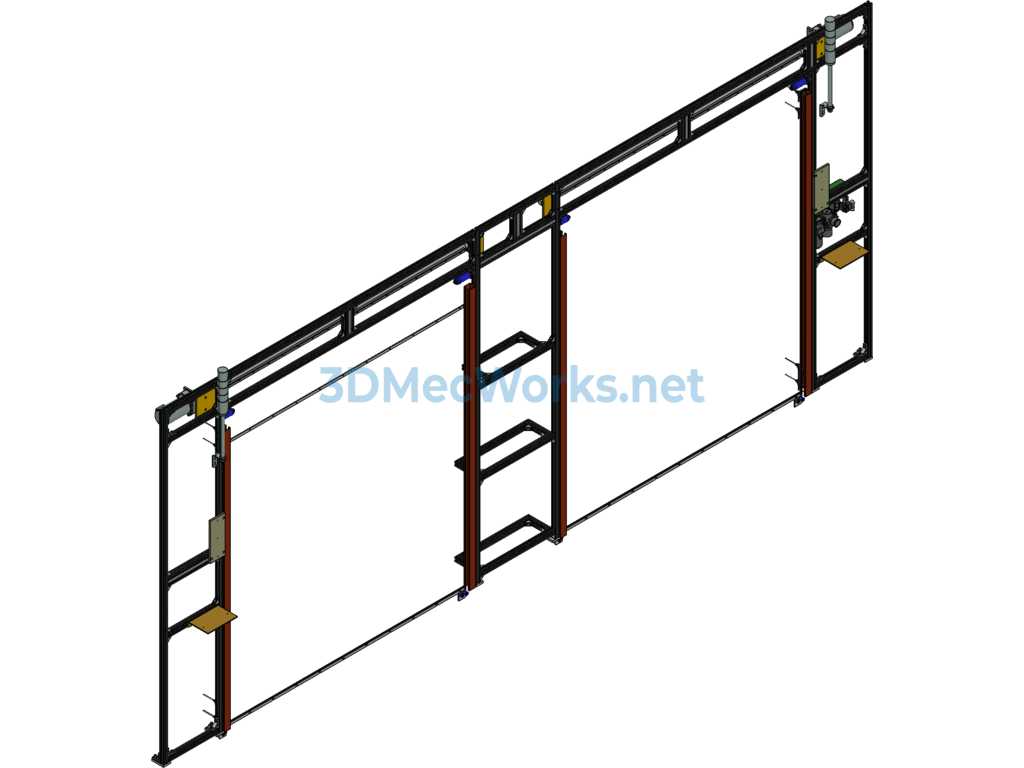

Aluminum Alloy Profile Rolling Shutter Door Design: This uploaded model is a design for an aluminum alloy profile rolling shutter door. It consists of multiple parts including curtain panels, base plate, guide rails, supports, axle, shutter machine, limiters, lintel, manual quick release switch device, push-button switch, and safety devices. It is used in machine workroom fixture applications. The uploaded format is XT. Welcome to download and refer to the design.
