Design of a Welding Fixture for Profile Frames

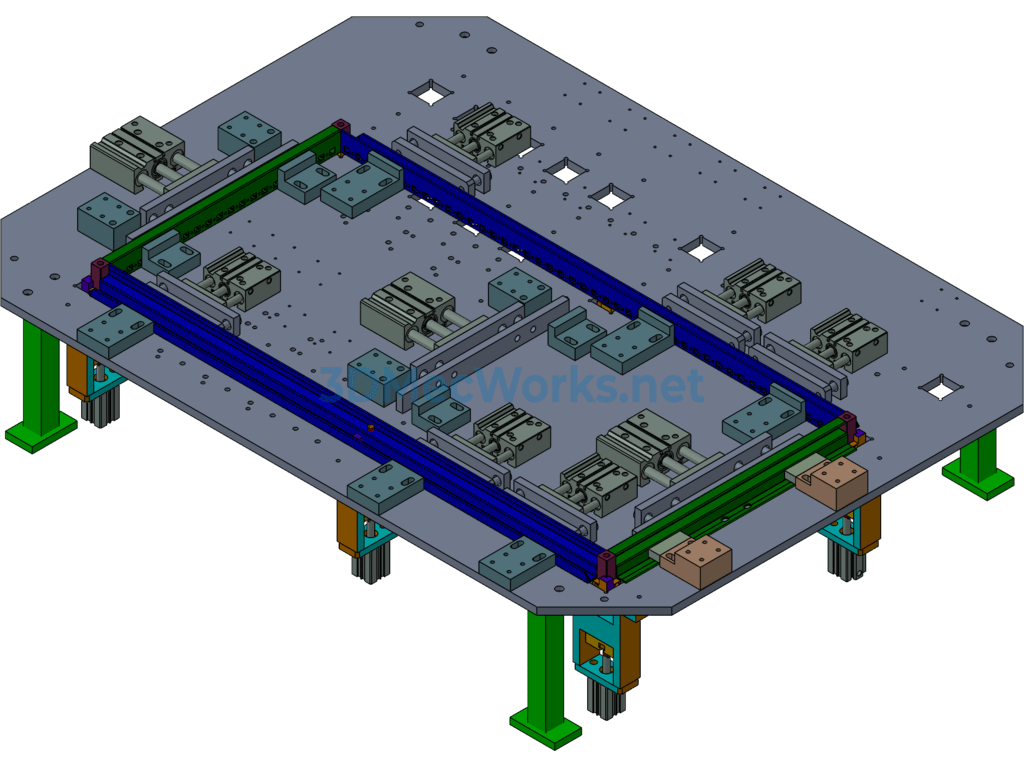

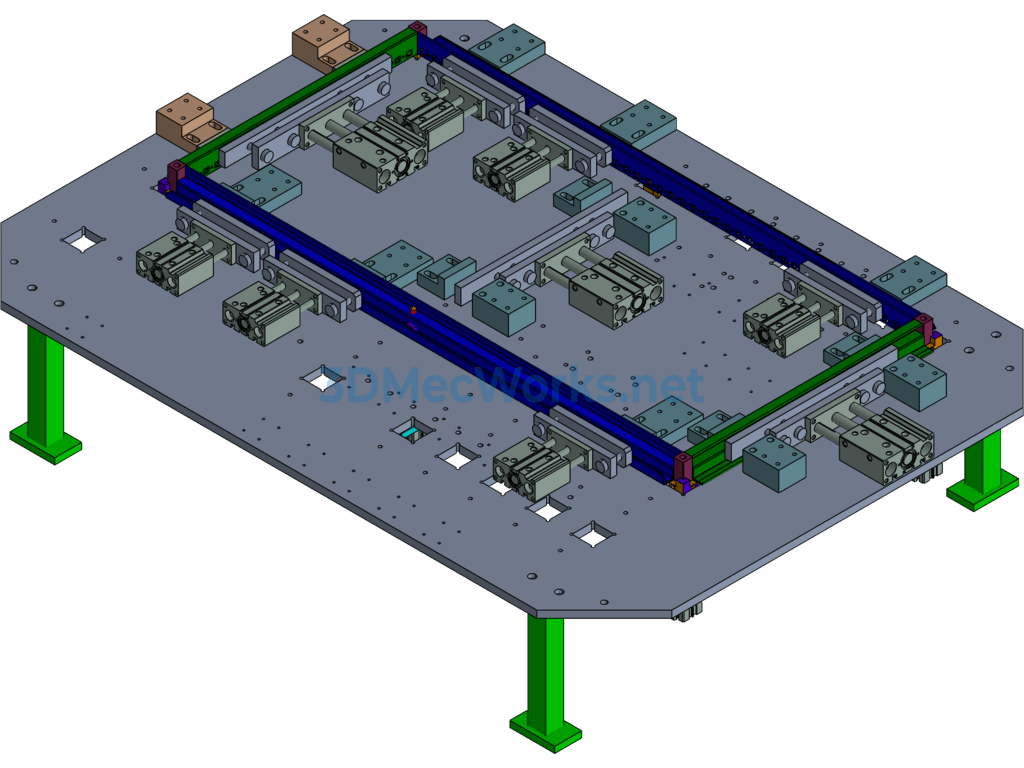

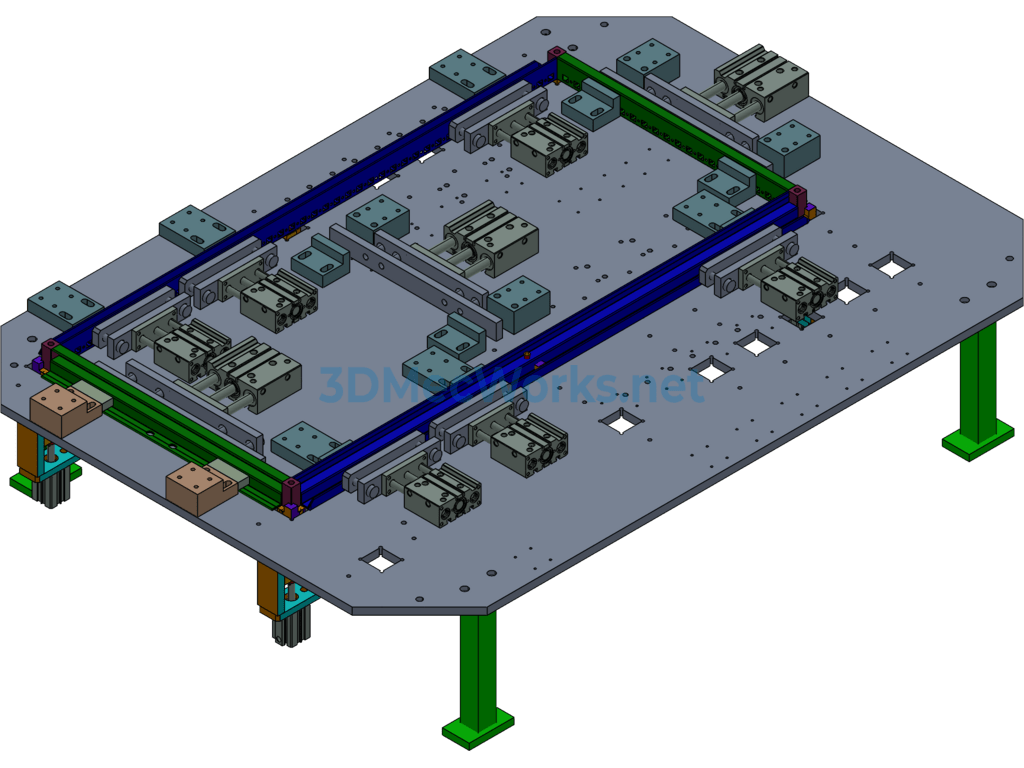

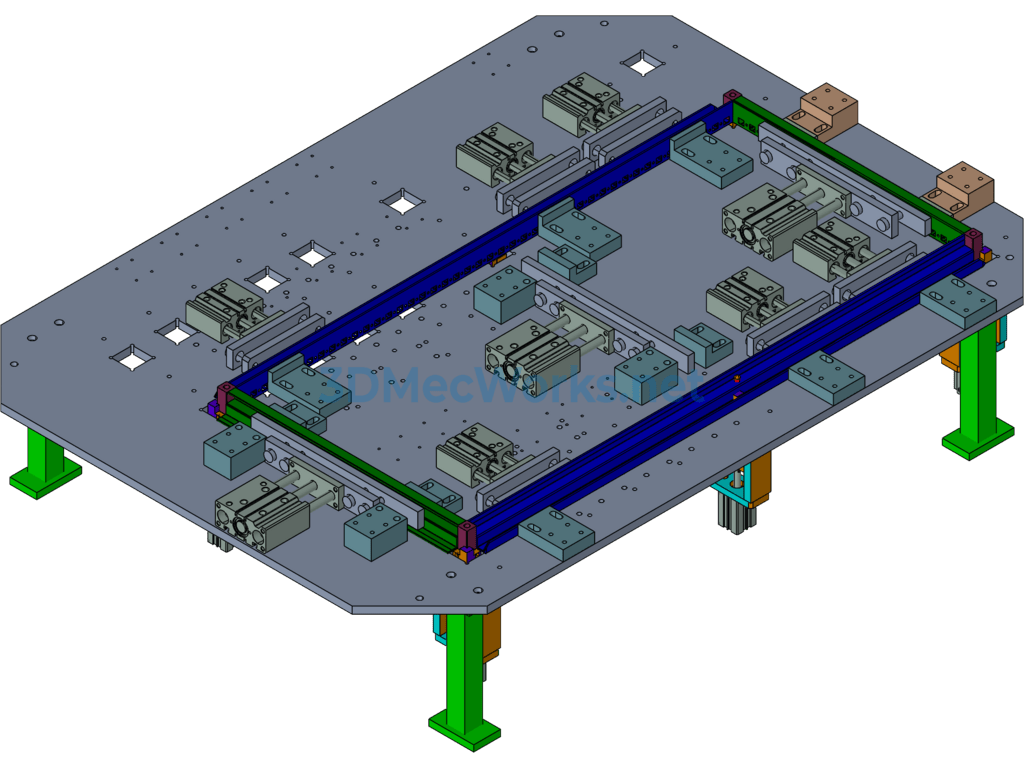

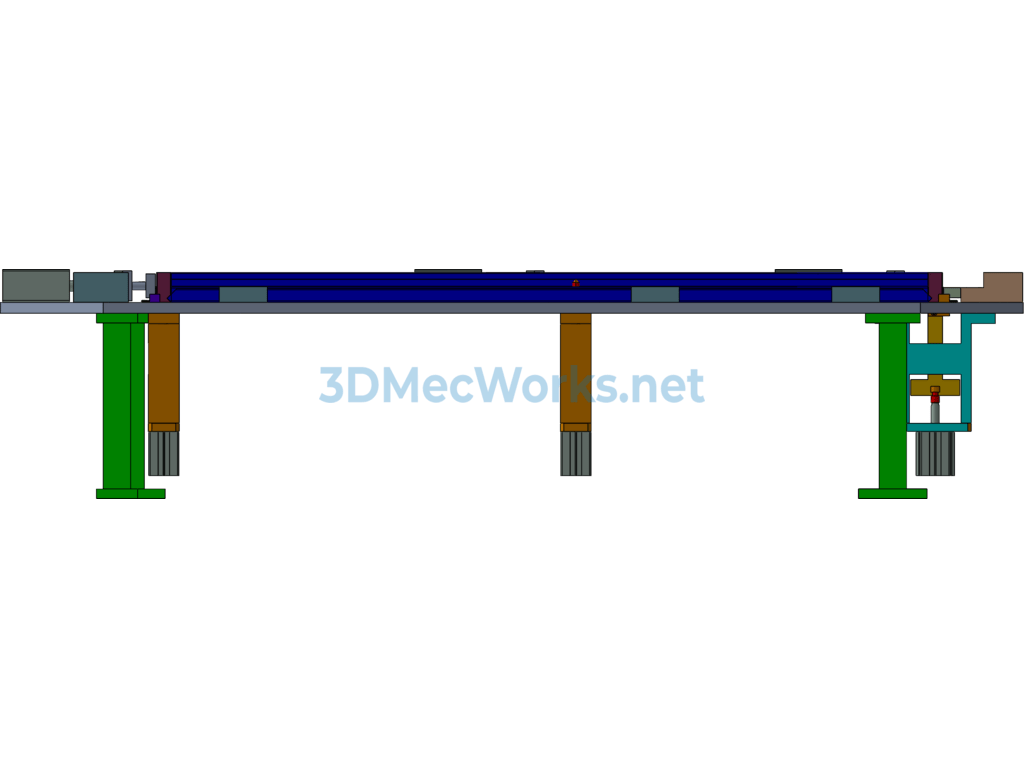

Profile Frame Welding Fixture: This fixture is used for welding the profile frames of enclosures. It is compatible with various product specifications. On the base plate, multiple sets of size holes are opened, and different model products use different hole positions. It is currently in use, uploaded in XT format, as an assembly file. The model can be edited, and we welcome you to download it for reference and study.
Specification: Design of a Welding Fixture for Profile Frames
|
