Design of a Truss Flip Chip Mounting Welding Robot

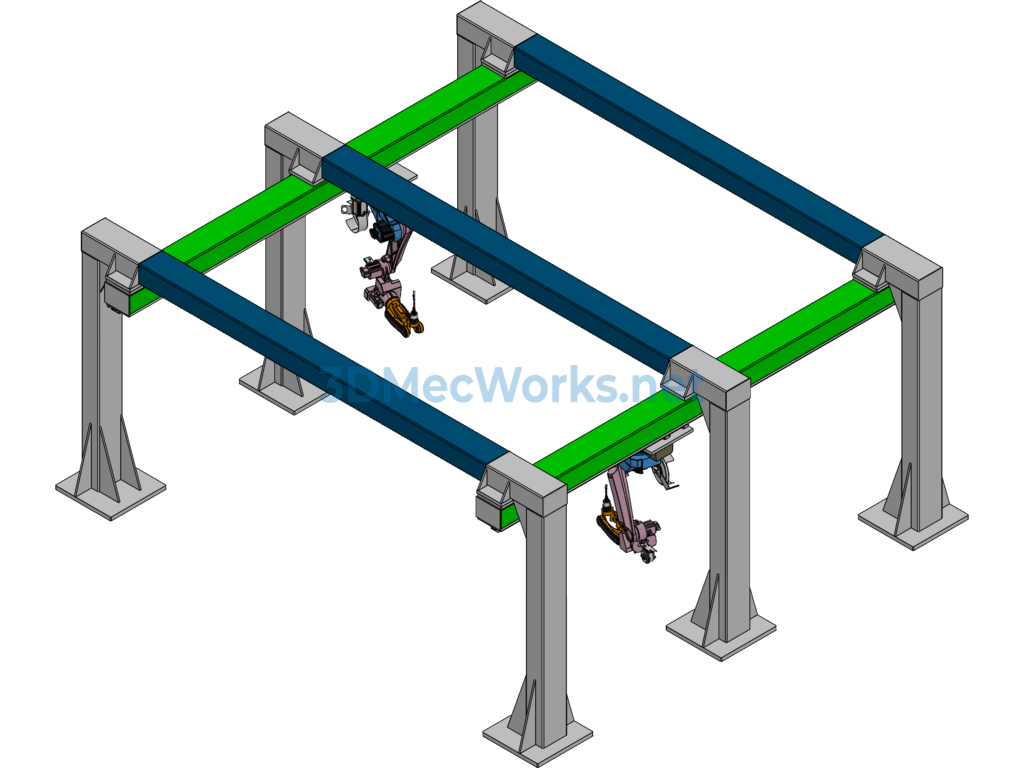

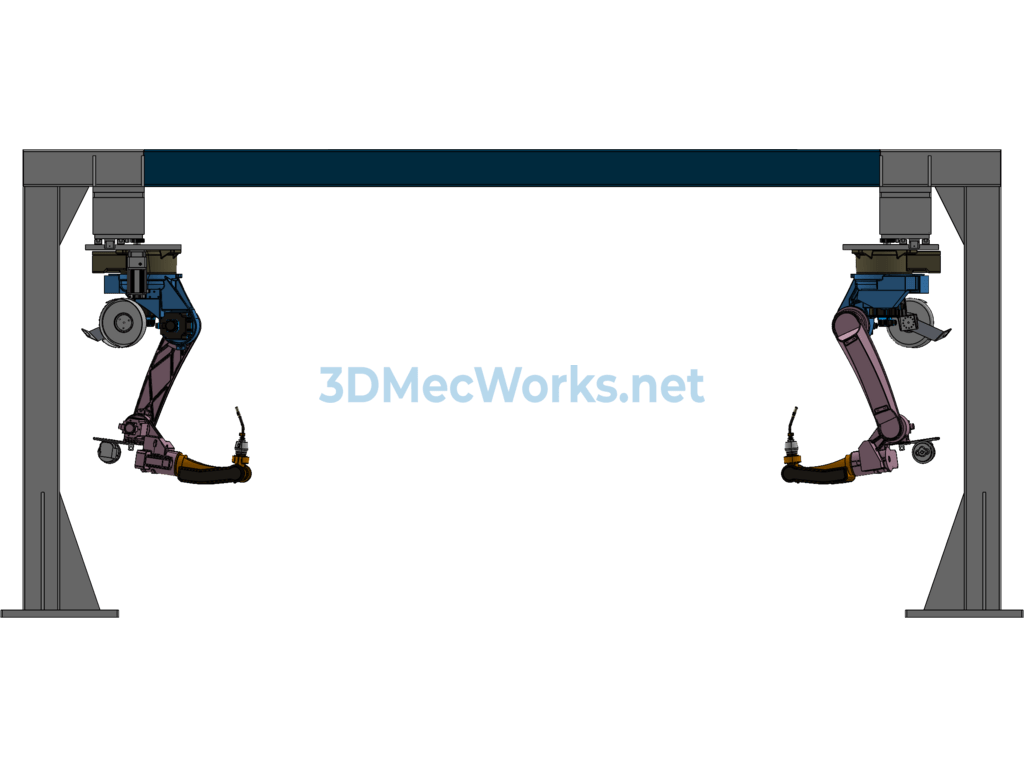

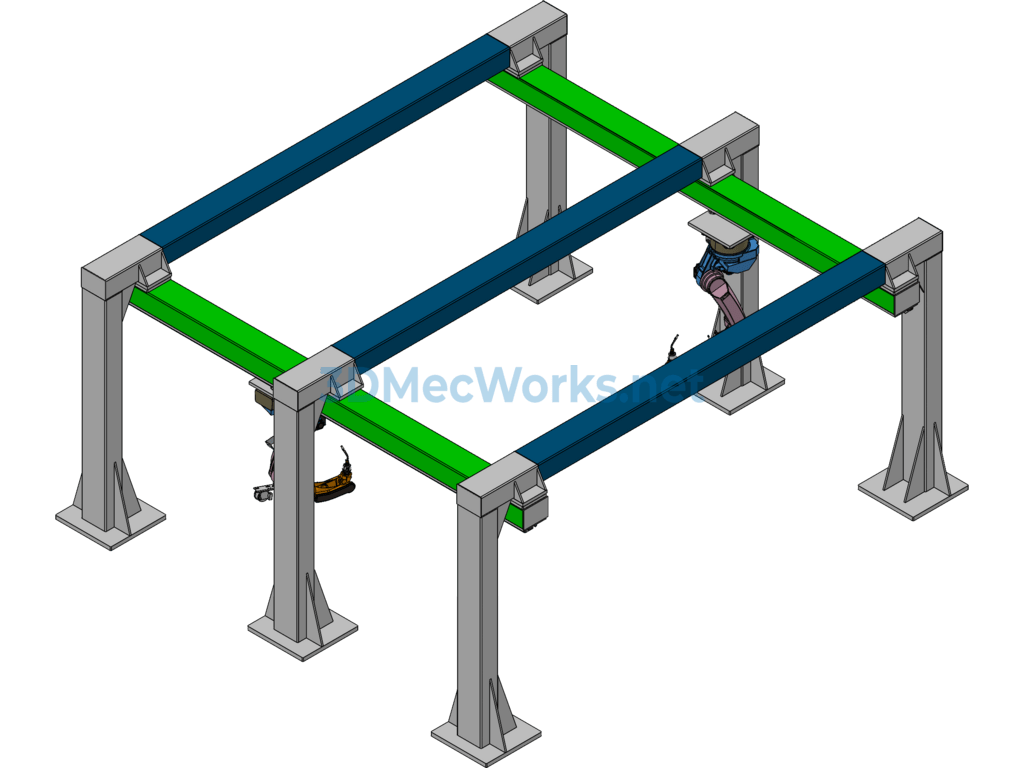

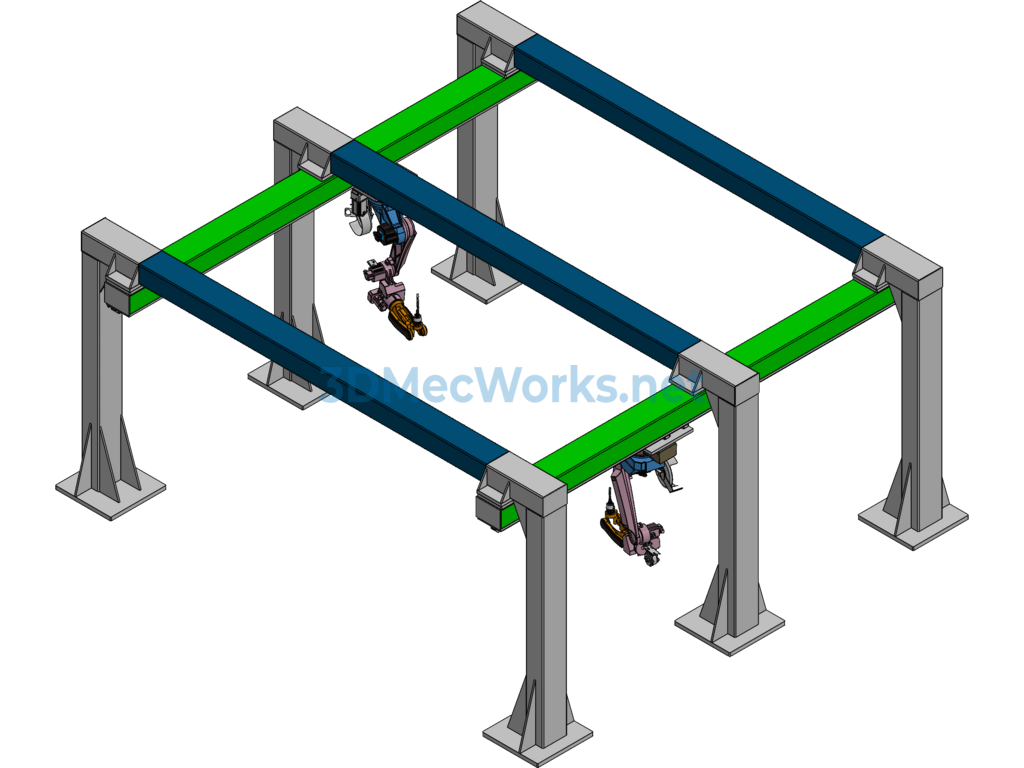

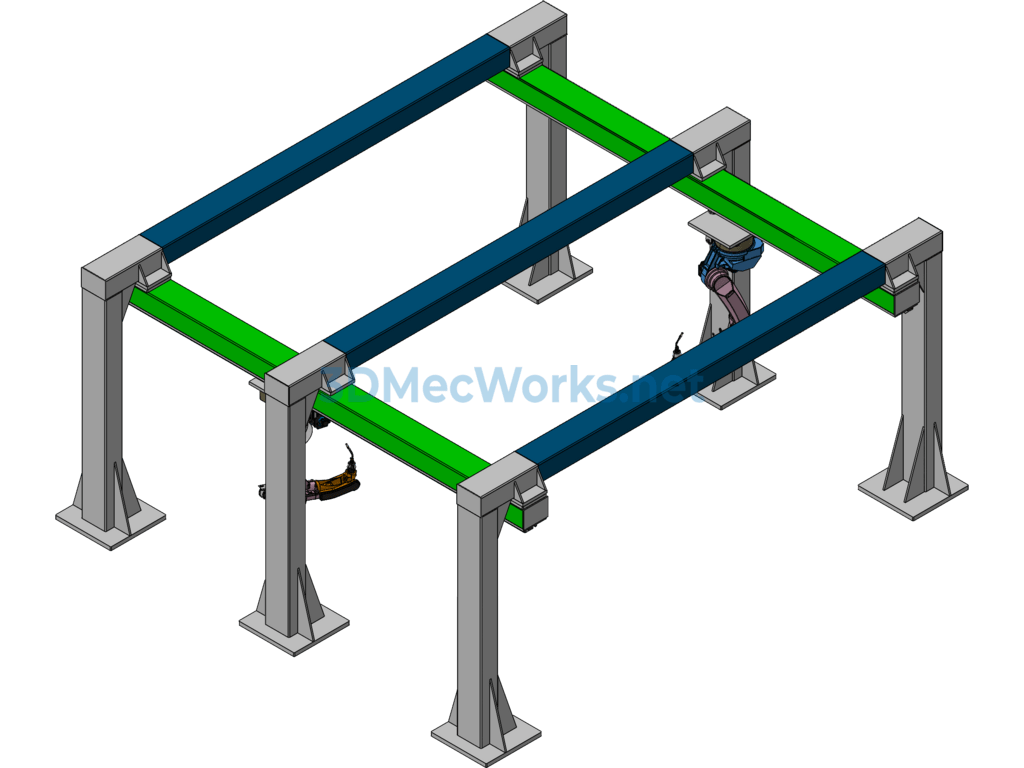

Truss Inverted Welding Robot Design: This equipment is designed with two welding robots in an inverted position, utilizing a truss-style movement method. The design includes a robot movement mechanism, with a transmission mechanism composed of a servo motor, reducer, gear rack, and linear guide rail. The main structure of the truss is welded using square tubes. Feel free to download for reference. The upload format is XT.
Specification: Design of a Truss Flip Chip Mounting Welding Robot
|
