Delta Smt Square Smd Component Inserter Equipment

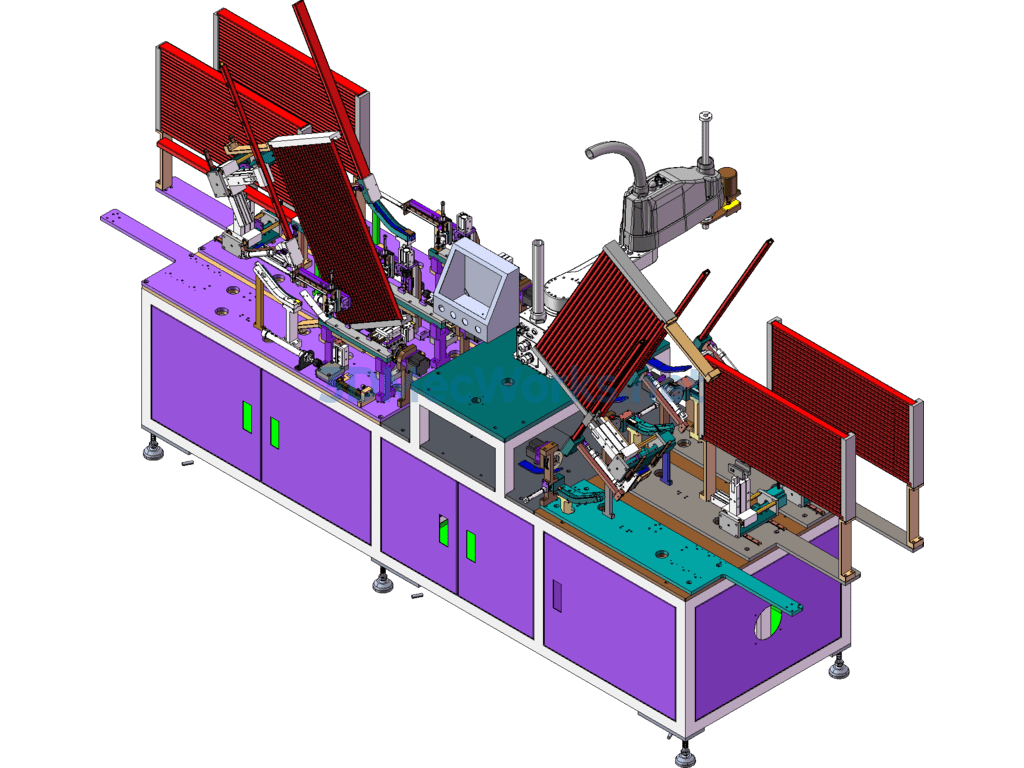

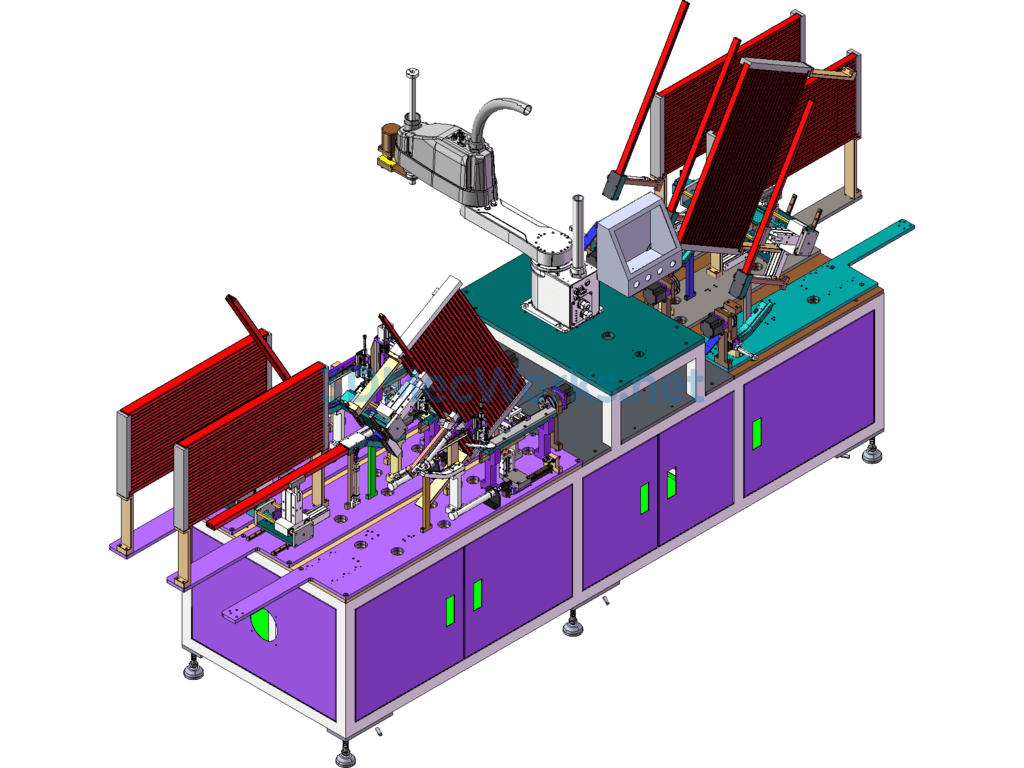

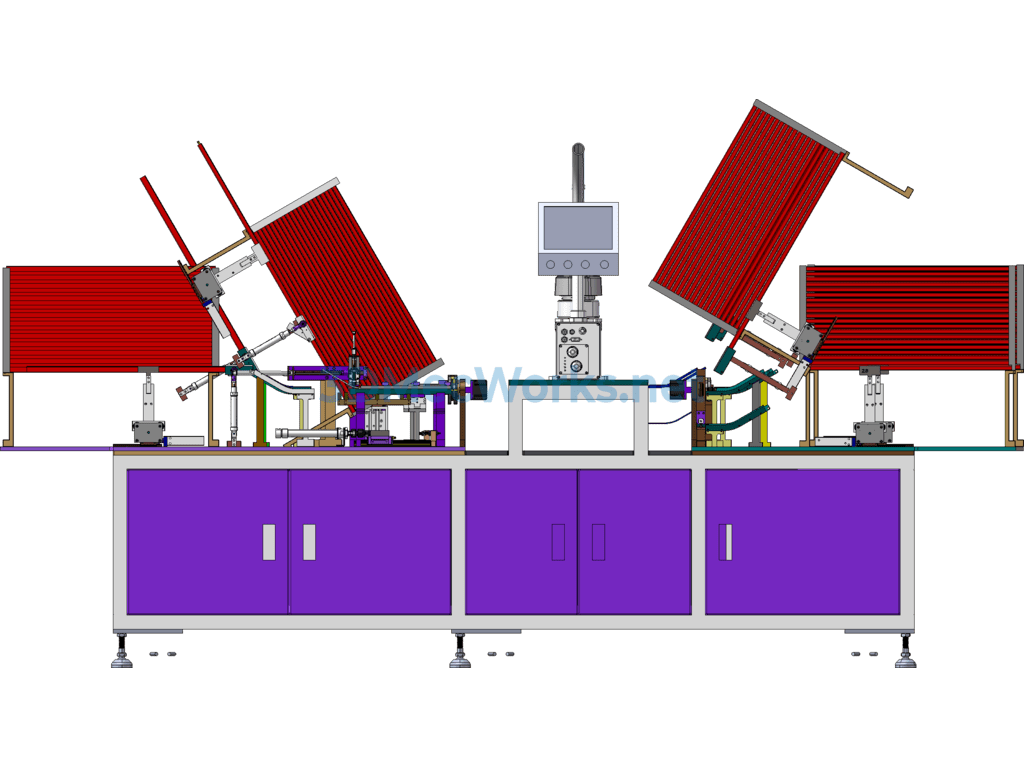

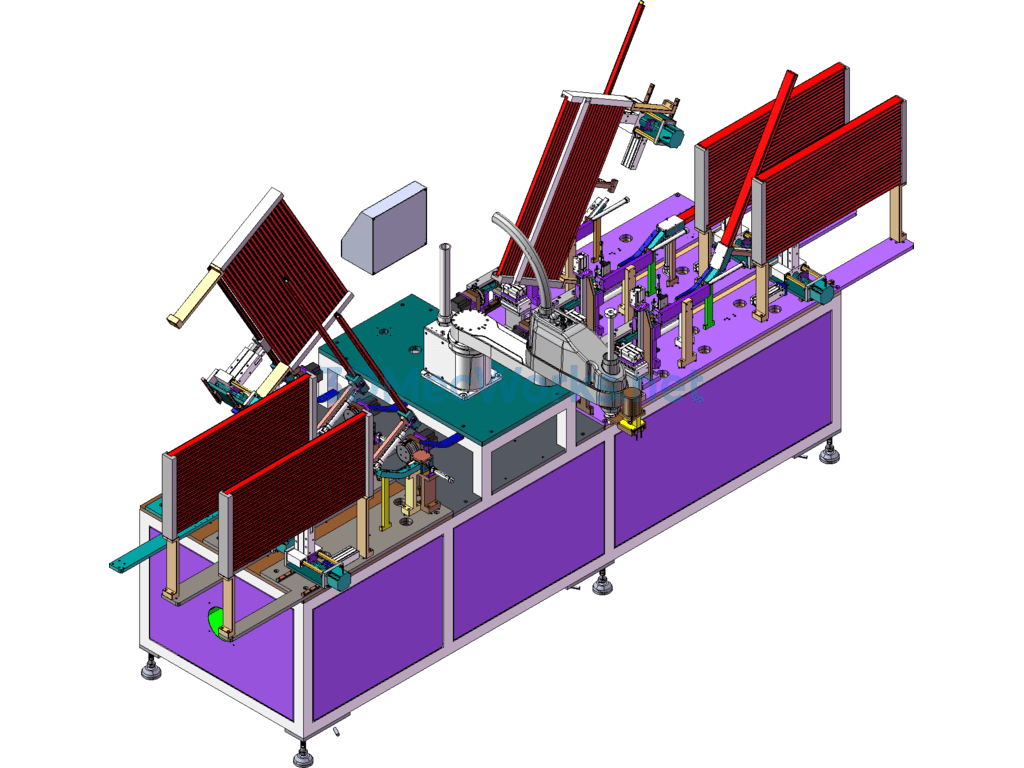

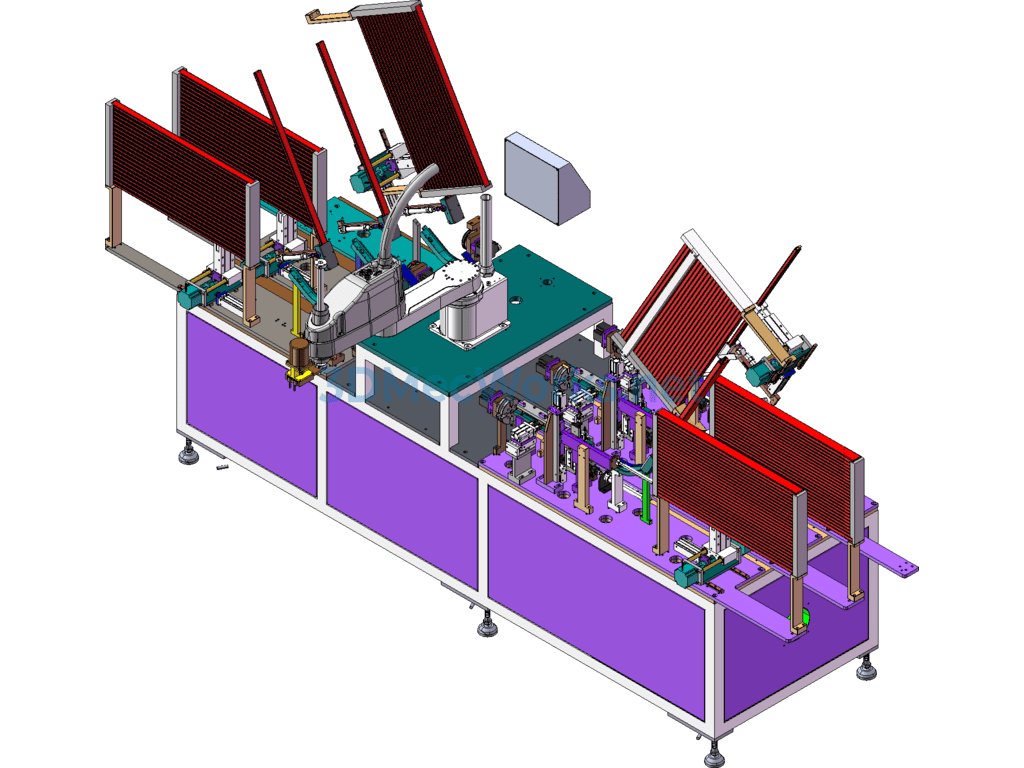

Delta SMT’s Square SMD Component Insertion Machine Equipment 3D Model SW design source files shared, highly valuable for reference, welcome to download.
A square SMD component insertion machine, this type of insertion machine can solve many parts insertion issues that traditional industries cannot resolve. Typically, chip mounters attach flat, surface-mounted SMD components, whereas AI-based insertion machines can only insert some round capacitors, resistors, and other parts. Therefore, many of these square components are still rare in the market, and few can handle this kind of square component insertion. This set of designs is developed for these non-standard components, featuring an automatic insertion machine. All incoming parts are tube-fed, requiring only manual placement of tubes on the loading station. The equipment automatically takes the tubes, and then performs unloading, sorting, and robot insertion. The entire process is unmanned. This is a great set of drawings; feel free to download. Solidworks 2011 can open this model!
