Cylindrical Nickel-Metal Hydride or Lithium Battery High-Speed Tester

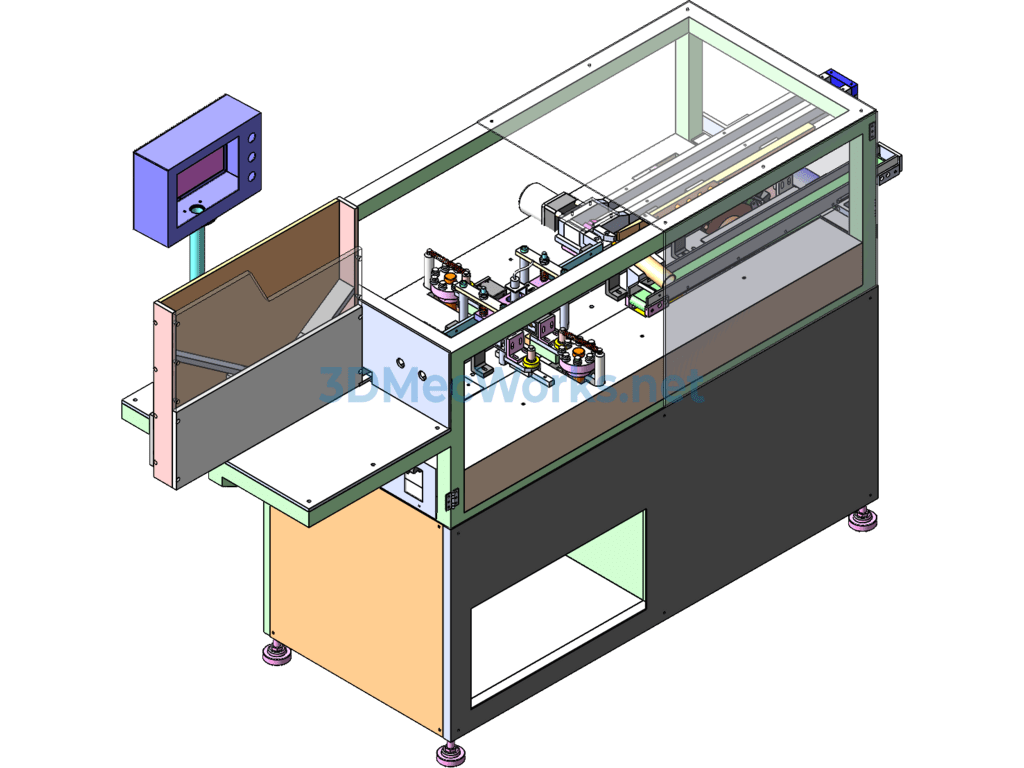

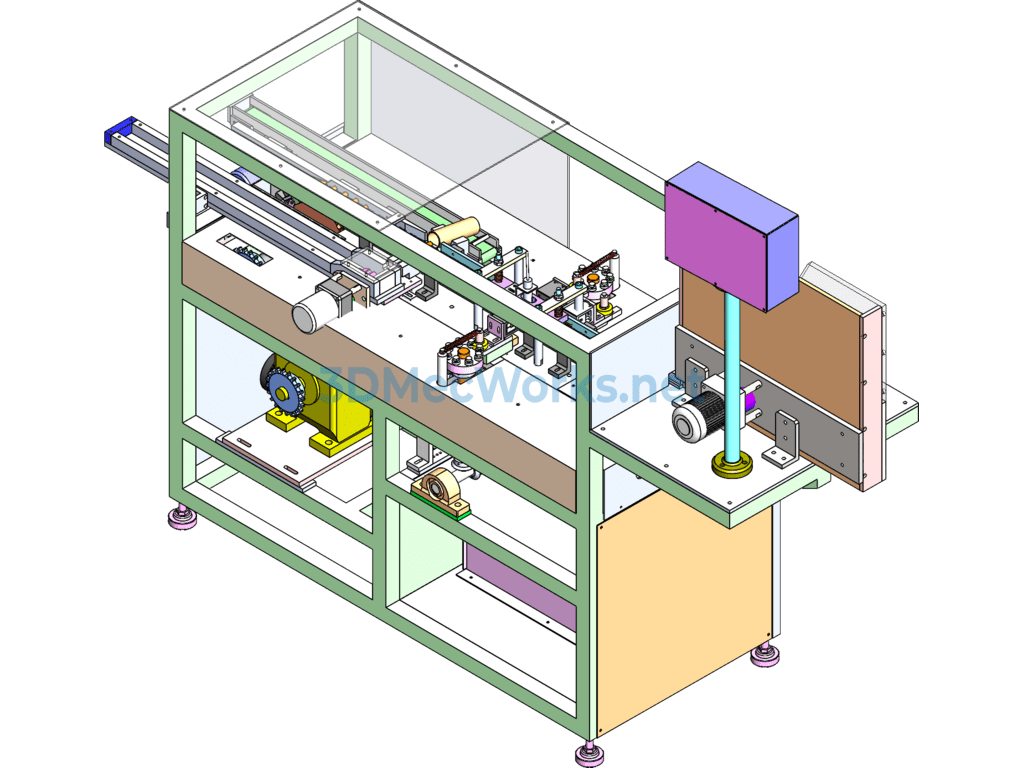

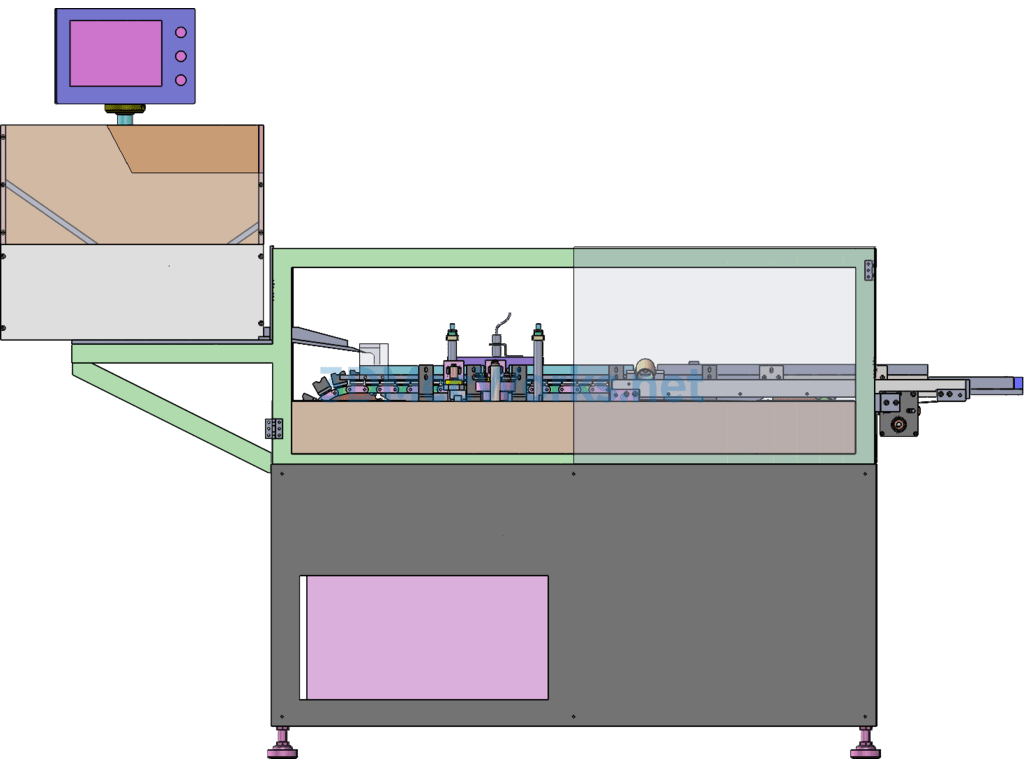

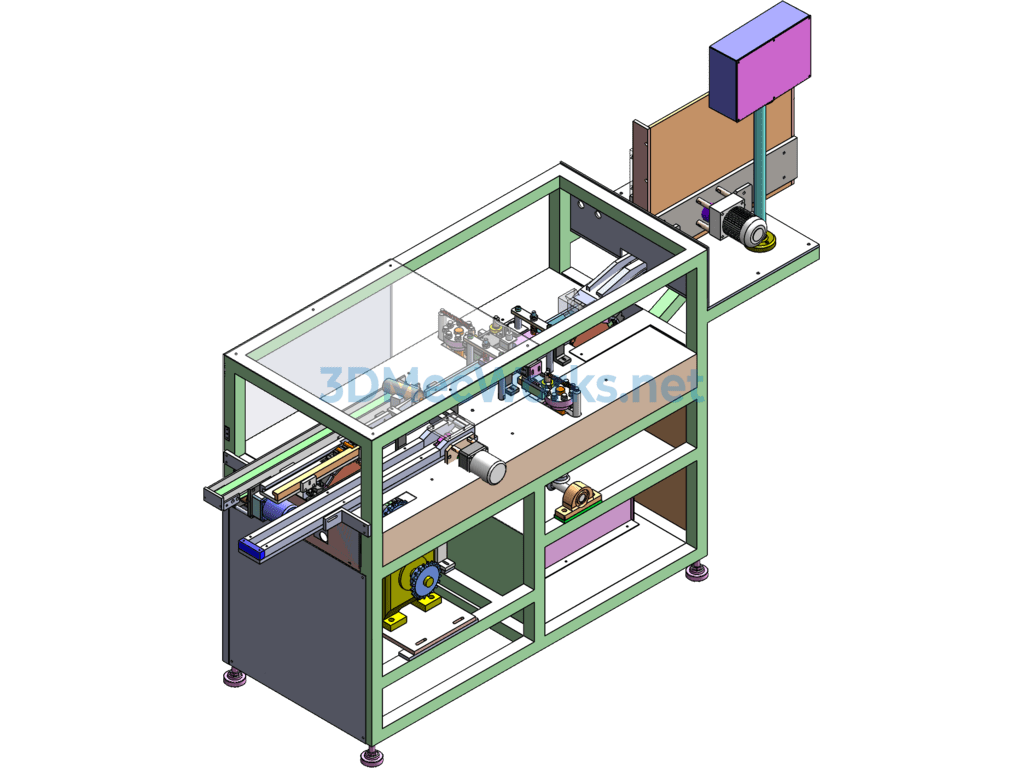

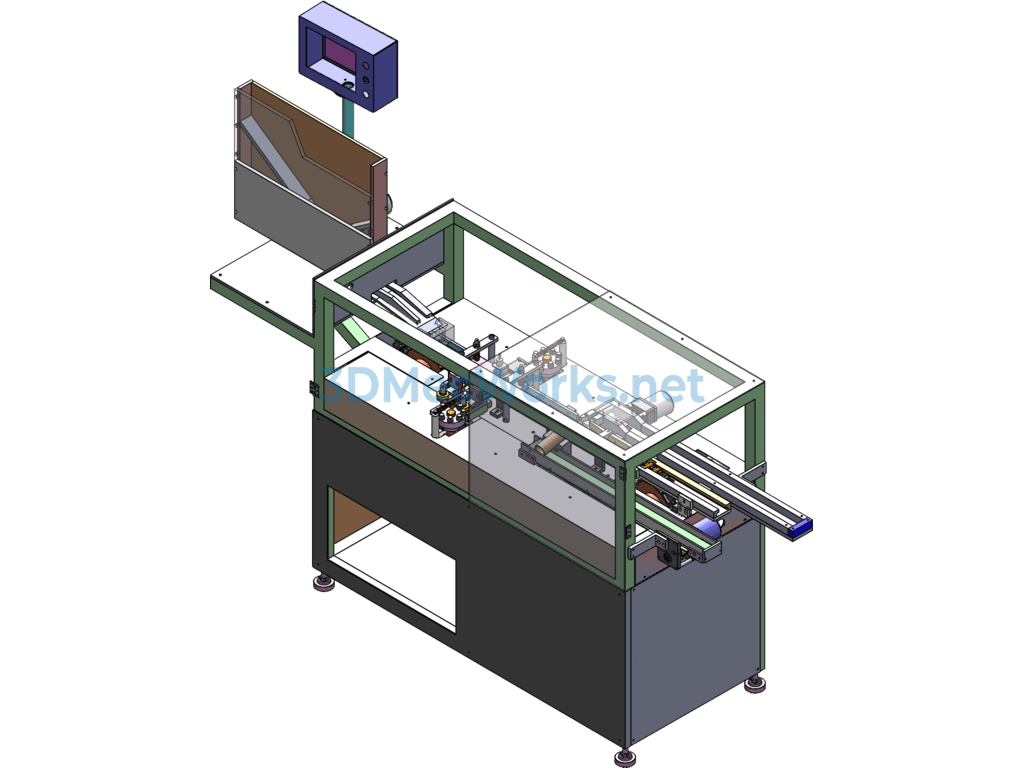

This is a high-speed battery tester for cylindrical 2A and 3A nickel-metal hydride or lithium batteries. It is capable of fast feeding and continuous testing of battery voltage and internal resistance. The device is a verified, mature machine for mass production. The image shows the SOLIDWORKS source file, which is convenient for editing and modification, and can be directly used for fabrication. The equipment is reasonably designed with a clever structure. As a mature device, it is very worth learning from, and peers are welcome to refer to it! Sharing the 3D model SW2012 design source files of this high-speed nickel-metal hydride or lithium battery tester, the document is relatively large, so please be patient when downloading.
