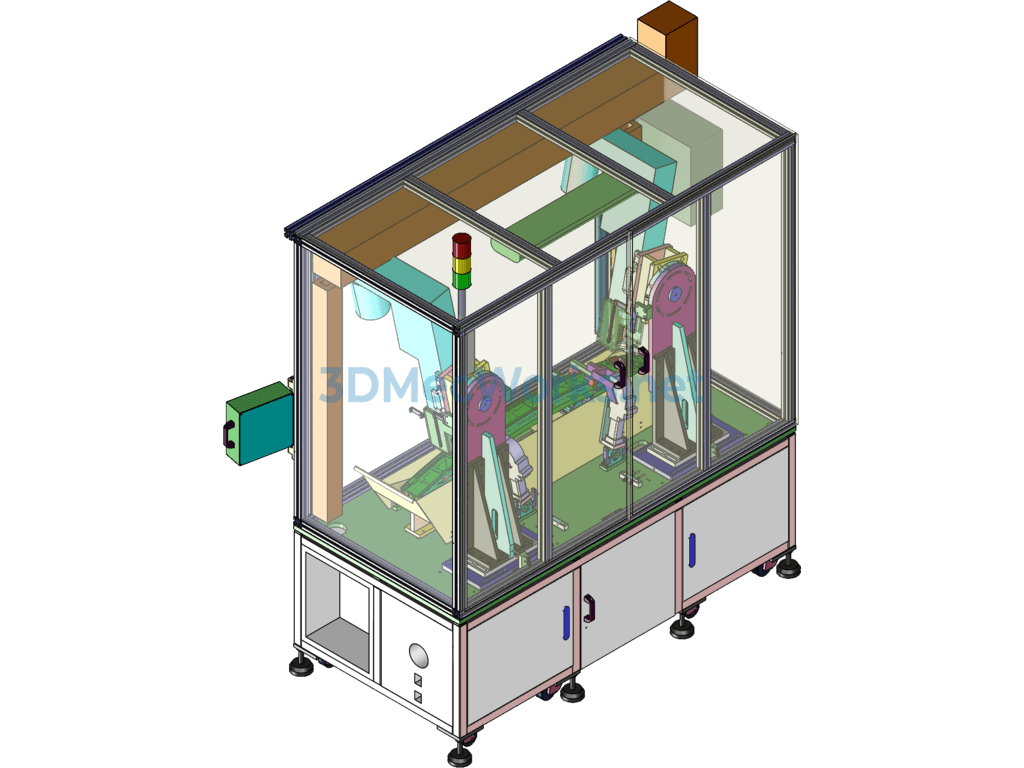

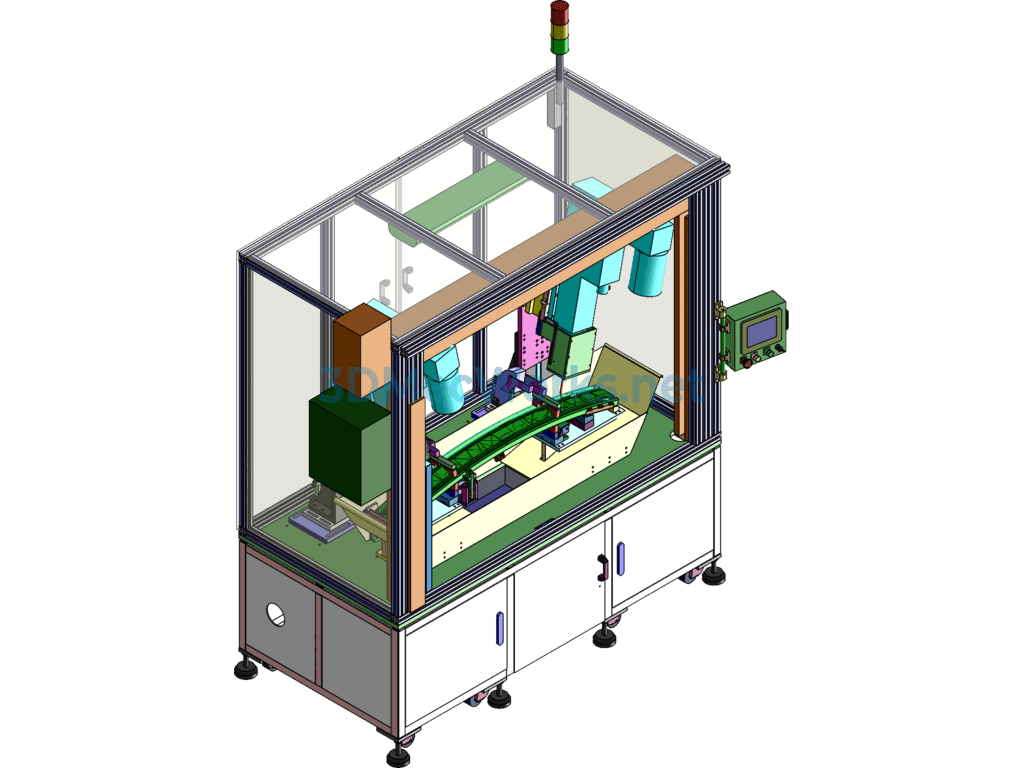

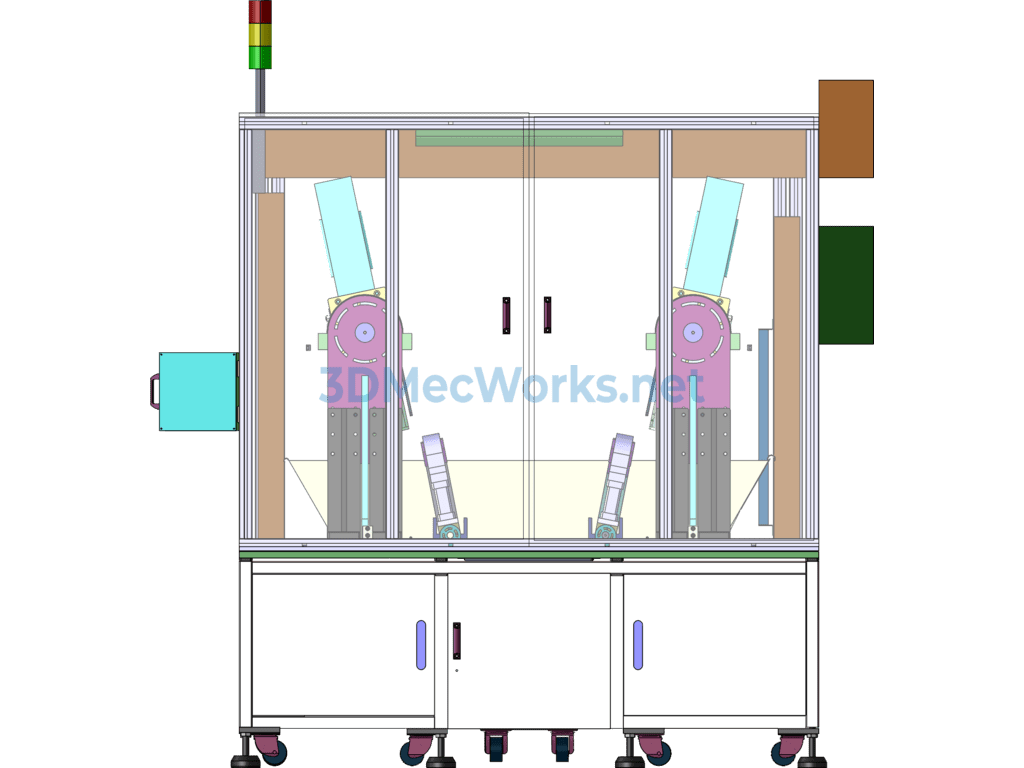

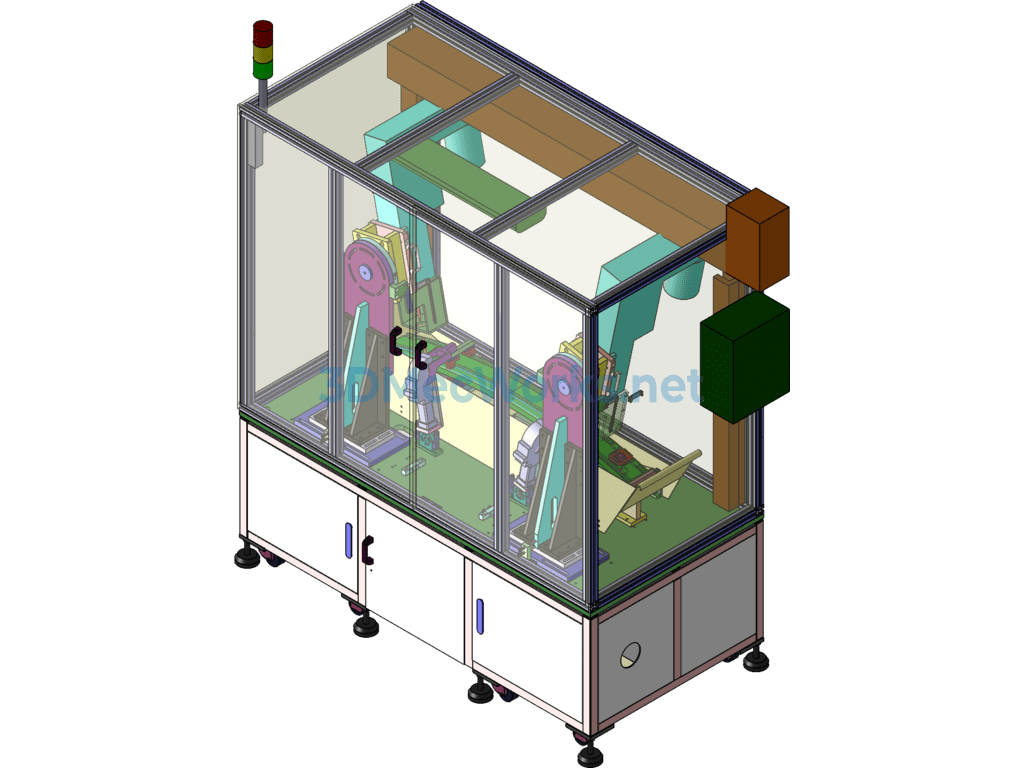

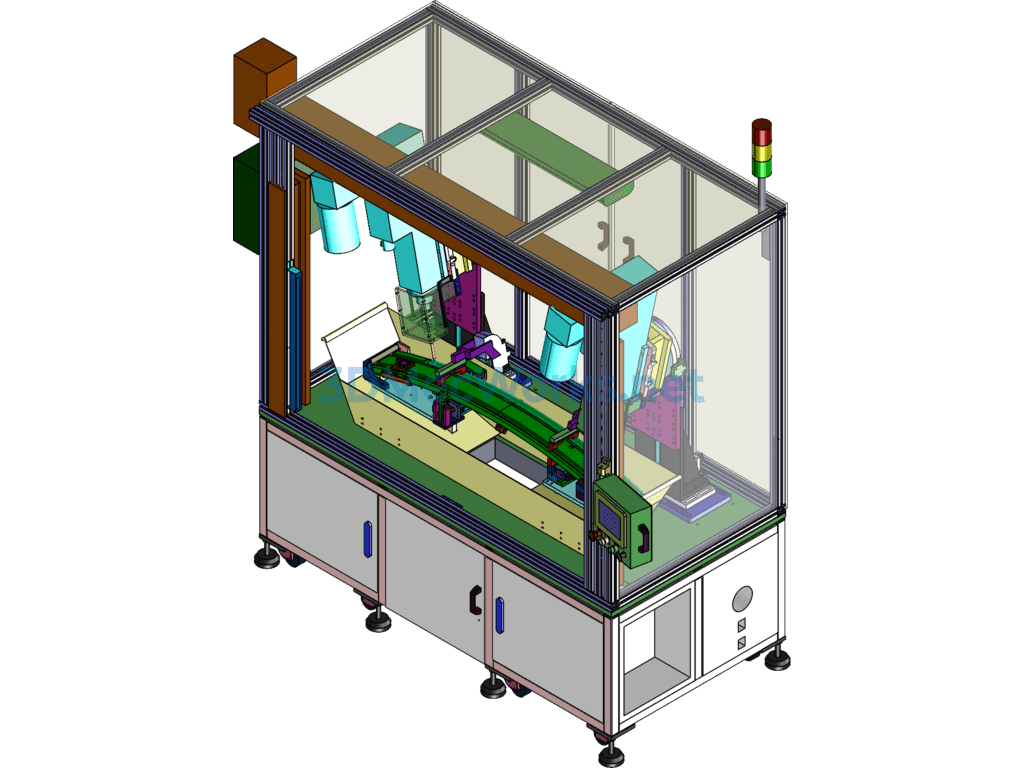

Cylinder Bumper Hole Punching Machine

Car Bumper Hole Drilling Equipment Solidworks2012 Model Download

This model is designed according to relevant standards for designers to use as a reference. For the specific design principles, you can examine the model and gain insights on your own. It is a very comprehensive piece of equipment.

Design Principle: Manually place the product to be drilled into the fixture. The sensors detect and activate the front and rear cylinders to clamp the product. The servo motor drives the drill bit to move up and down.
