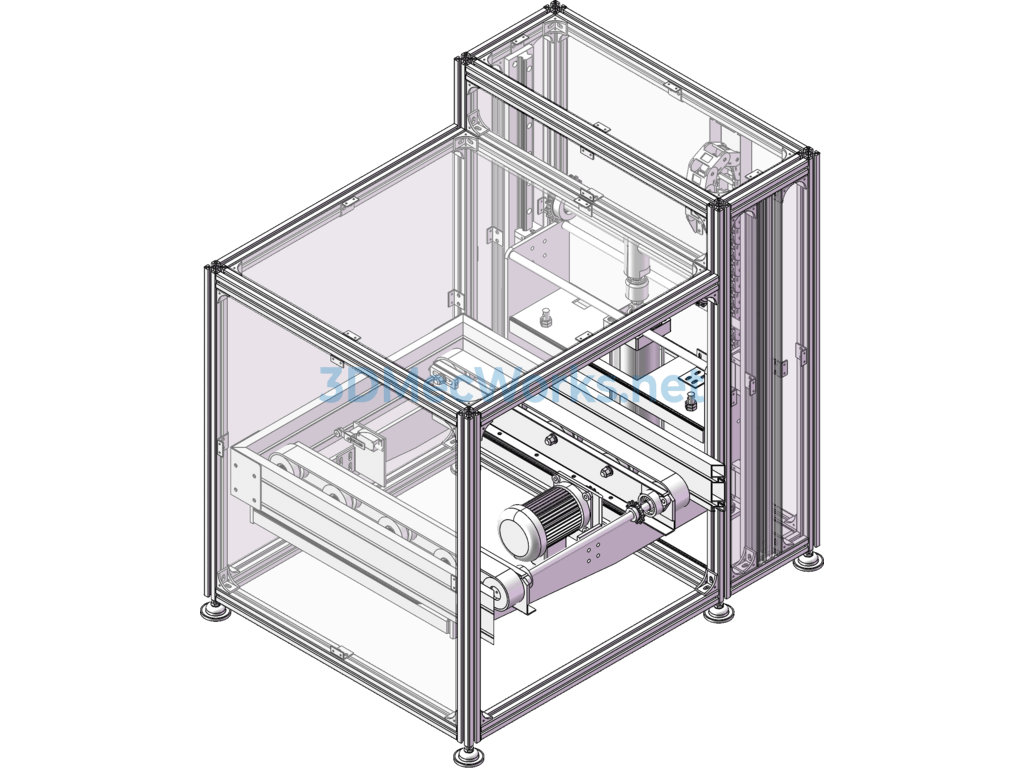

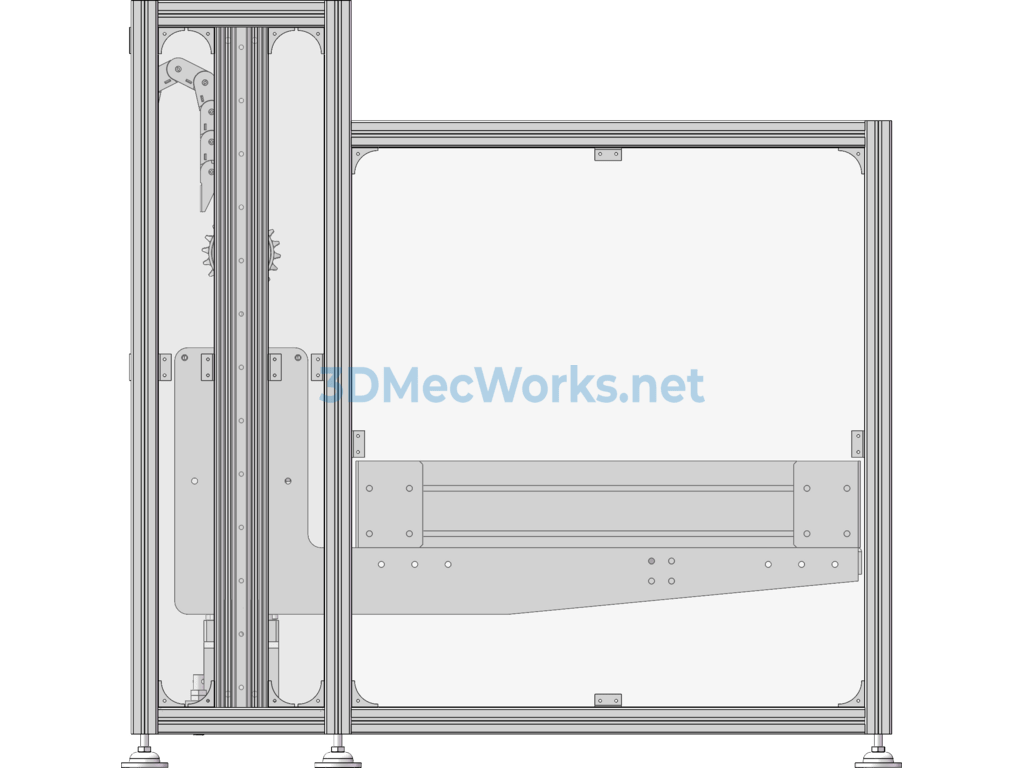

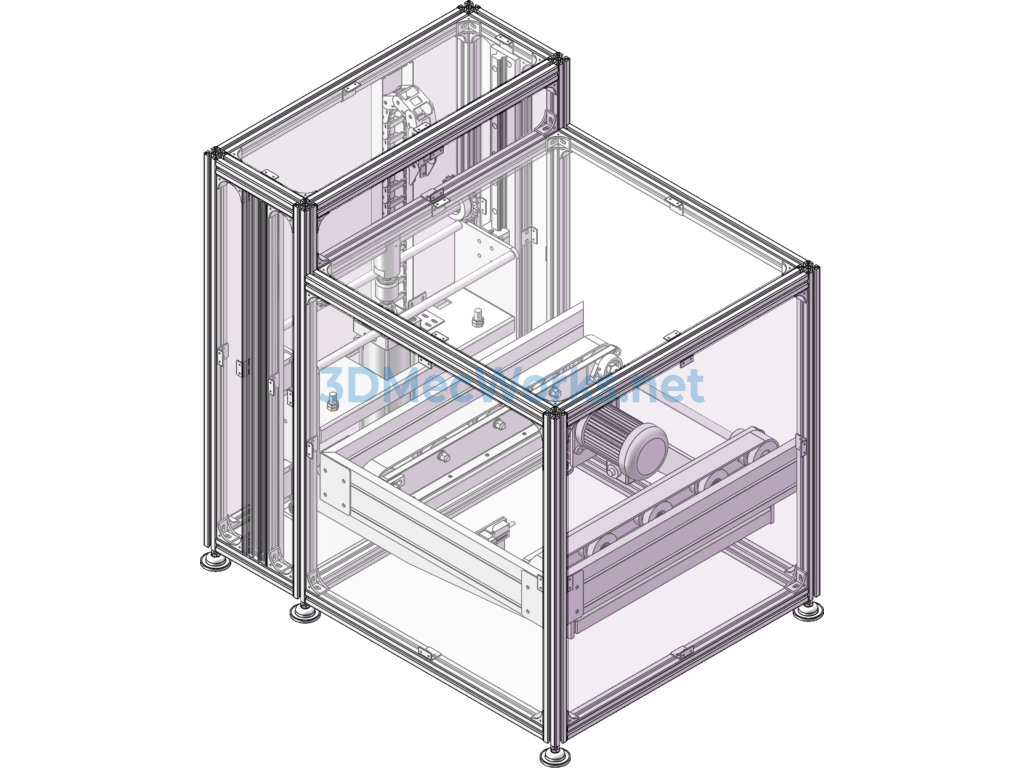

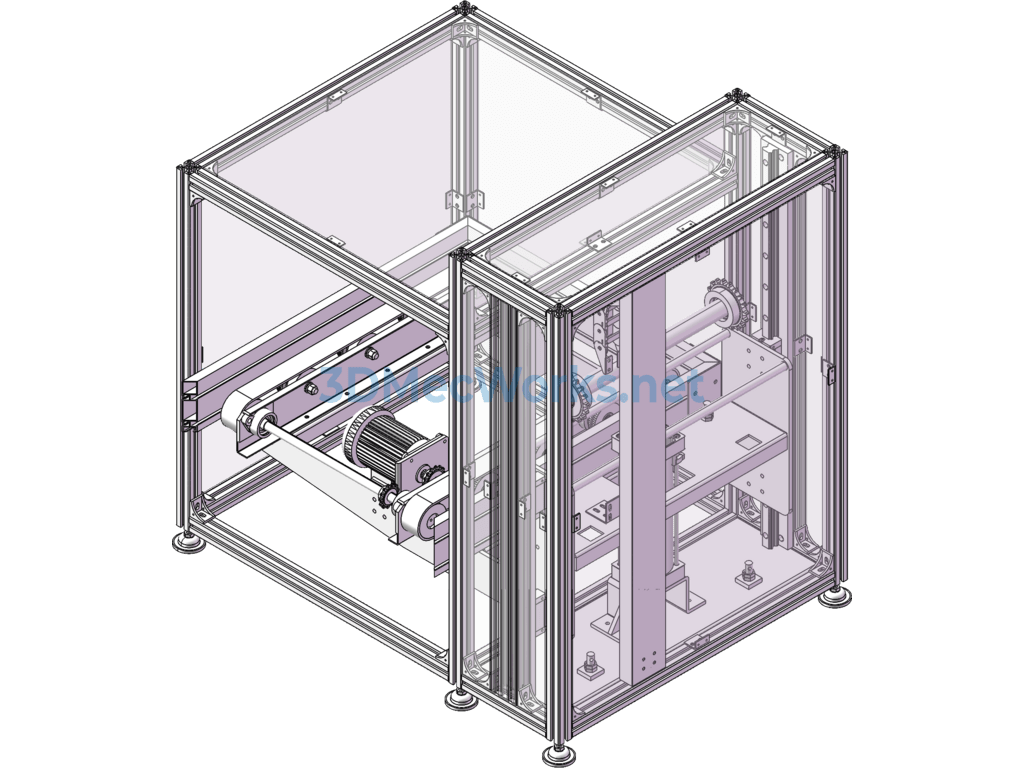

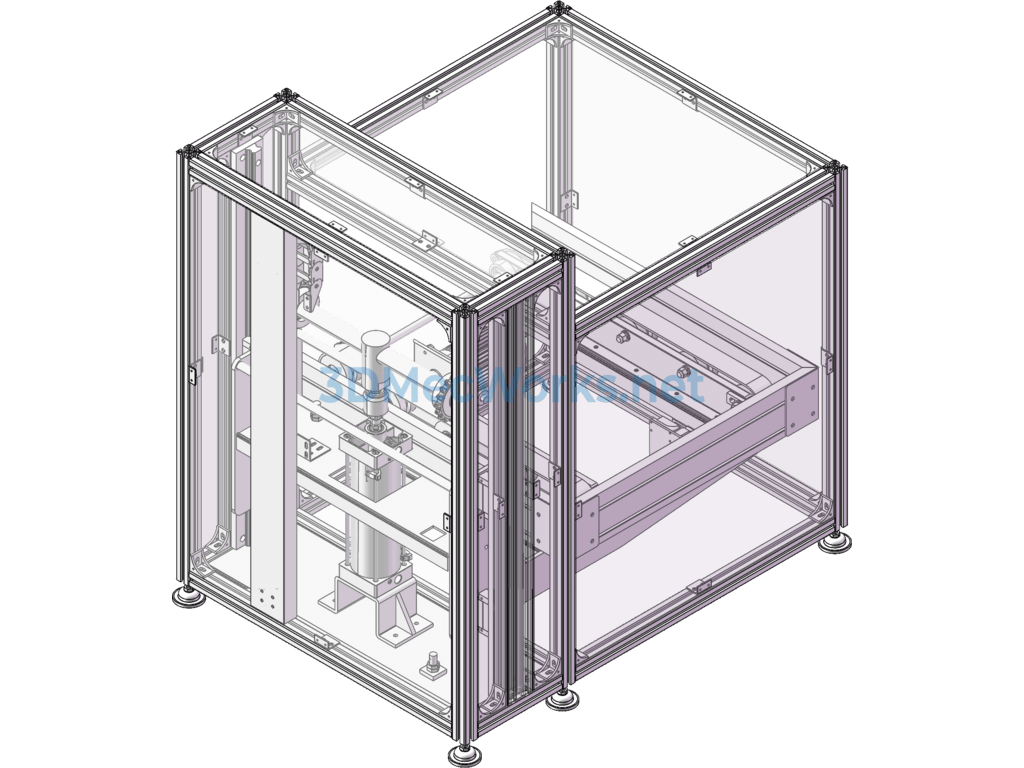

Circulating Lifting Single Machine 3D Model, the circulating lift equipment includes a power system, belt sprocket transmission system, and cylinder lifting device to achieve a reciprocating lifting function. This circulating lift includes a motor, clutch, brake, worm gear gearbox, coupling, main drive shaft, three reversing shafts aligned symmetrically with the central axis of the main drive shaft and installed parallelly. On the four shafts, a pair of sprockets with the same size and orientation is symmetrically installed at equal distances. Welcome to learn and download. SW design source files shared.
