Cup-Shaped Mask Back-End Integrated Machine (integrates Nose Bridge Sealing, Ear Strap Welding, Breathing Valve, and Stamping)

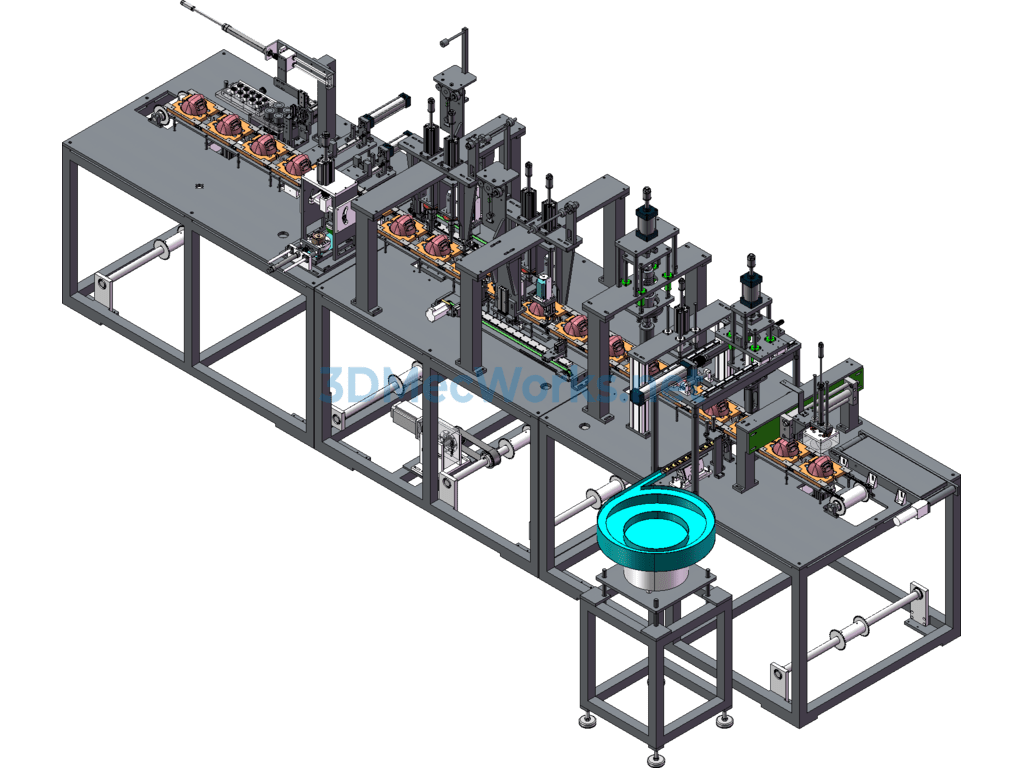

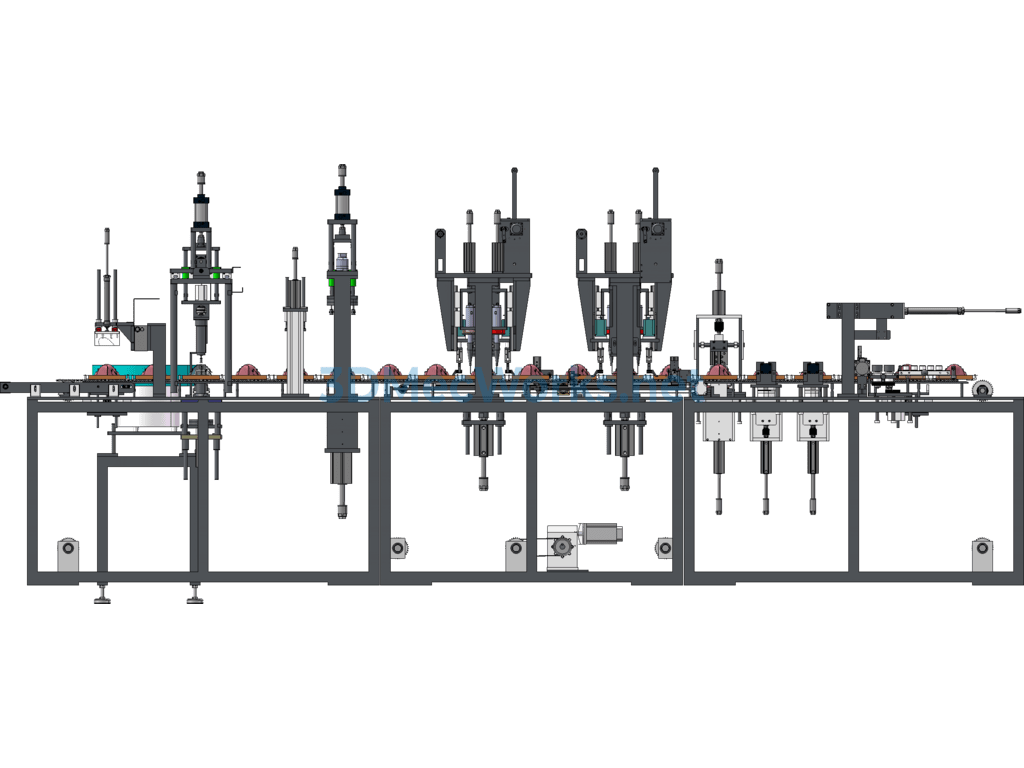

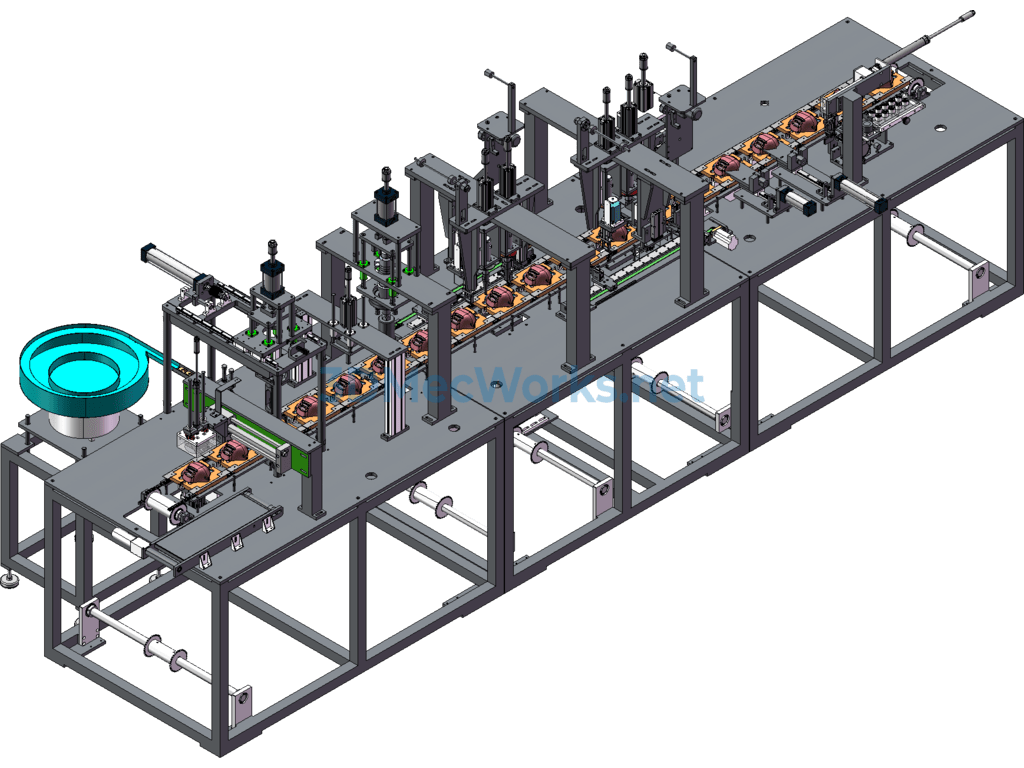

Cup-type mask machine nasal bridge sealing, ear strap welding, breathing valve stamping all-in-one machine drawings Cup-type mask machine drawings, cup-type mask rear-section all-in-one machine drawings include 3D+2D+bom list, complete data. The cup-type mask rear-section all-in-one machine is fully automated control; from mask body input, it does not damage the material and ensures filtering function. The equipment automatically relocates for punching, ensuring uniform periphery, solid pressing, and automatically welds the nasal bridge after the mask body is relocated, automatically prints the LOGO, automatically perforates the edge, automatically welds the breathing valve, and automatically spot welds the ear strap, integrating these processes automatically. Then, it completes the mask automated product output. The whole machine finishes automated work, with efficiency over three times that of traditional machines. This machine technology is advanced and mature.

Technical Parameters:
Machine dimensions…………………………………5000mm*1700mm*2000mm
Weight………………………………………1500KG
Capacity………………………………………40-50pcs/min
Voltage………………………………………220V
Air pressure………………………………………3-7kg/cm²
Frequency………………………………………15/25KHZ
Power………………………………………8000W

Machine Features:
1. Integrated design, material input to finished product output, fully automated operation throughout
2. Automatic constant pressure forming, does not damage material, easily qualifies filtering function
3. Servo transfer, precise positioning, imported cutters, smooth edge cutting
4. Multiple processes integrated into one, reasonable design, higher efficiency

I also released the front section of the cup-type mask machine, and together with this drawing, it makes a complete set of cup-type mask production line.
