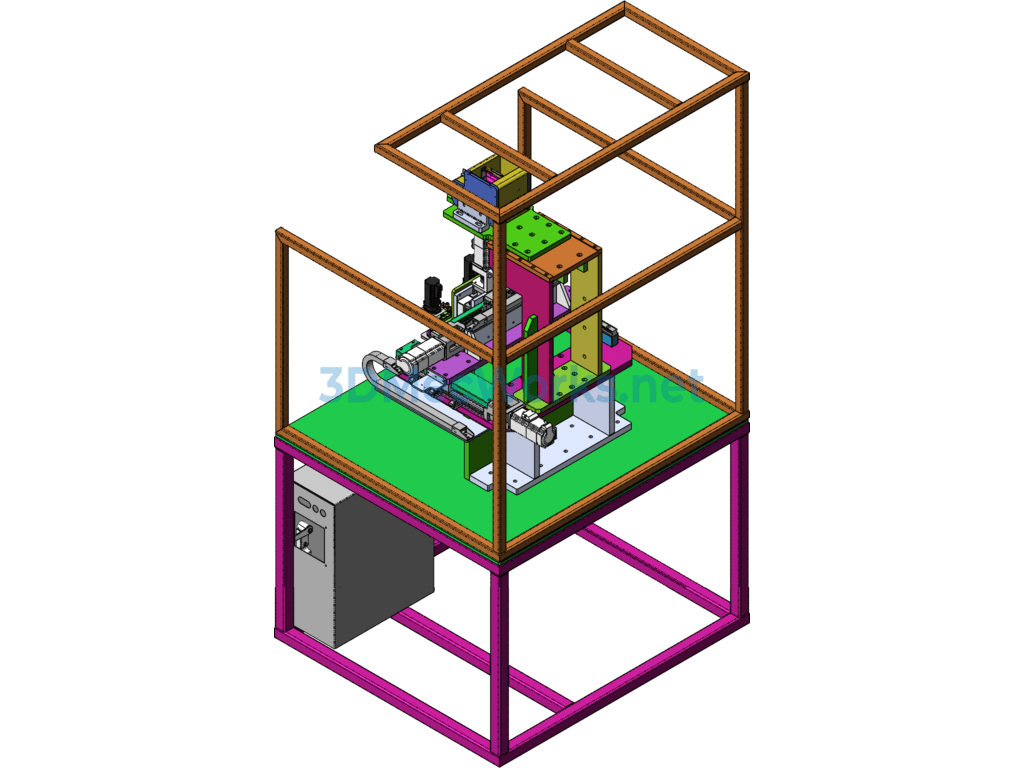

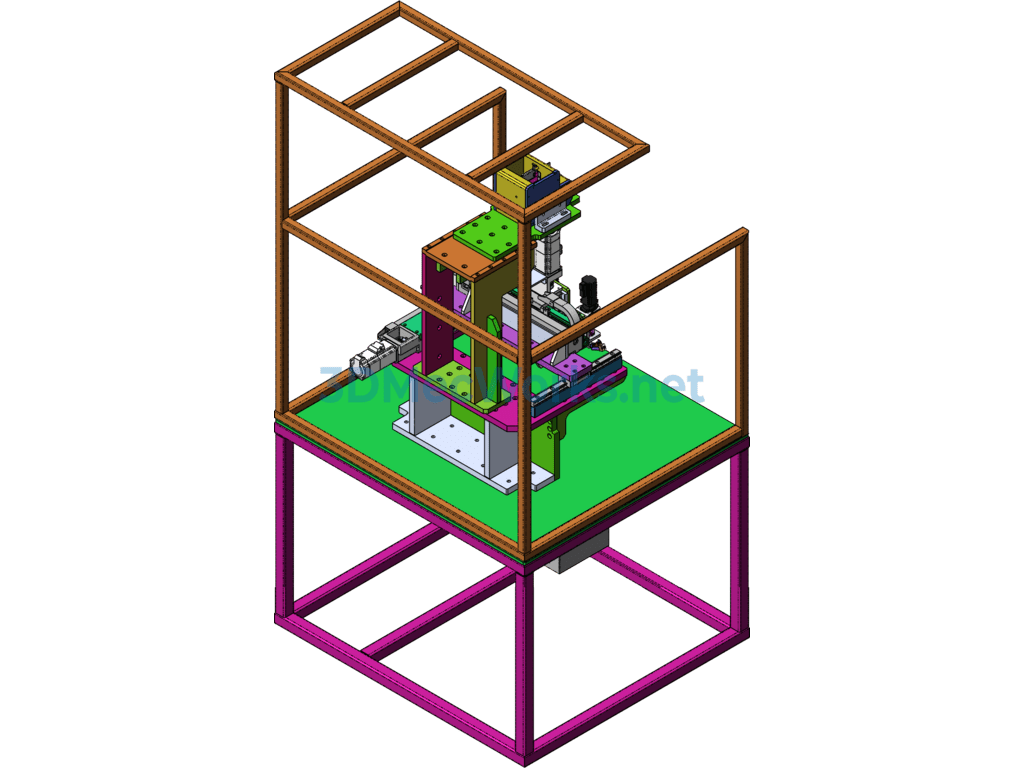

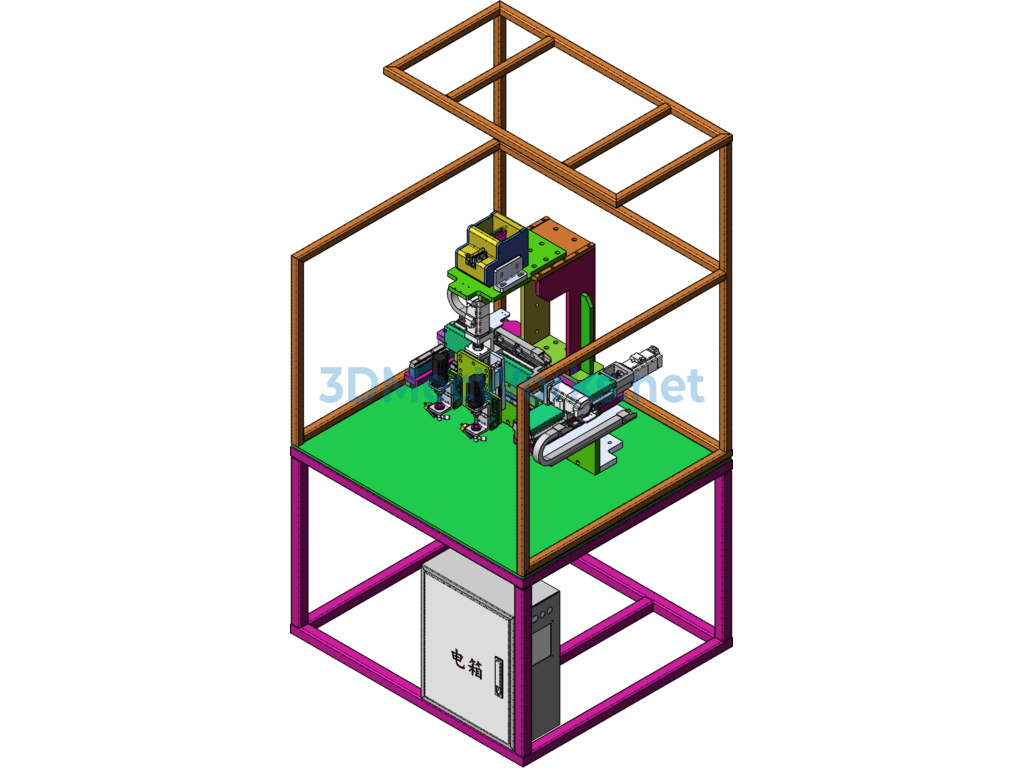

Automatic Screw Fastening Fixture Design Model Diagram. This is a specialized screw fastening device, and the drawings have been used in actual processing and production. The structure of this screw fastening fixture consists of: frame section, screw feeding fixture, XY axis servo moving slide, and electric screwdriver for screwing. The drawing format is solidworks2018, and you are welcome to download it for reference.
Specification: Crosshead Screw Tightening Equipment
|
