Complex Multi-Axis Transmission Structure

Complex Multi-Axis Transmission 3D Model SW Design Source File Sharing, including stp file, fully rendered.

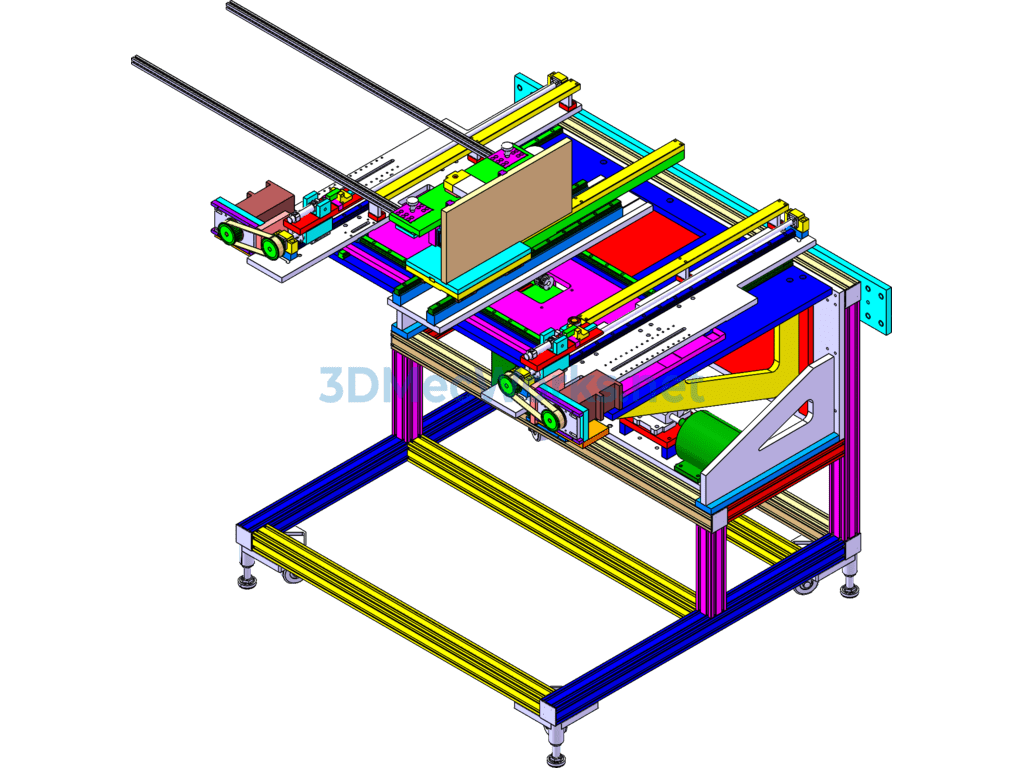

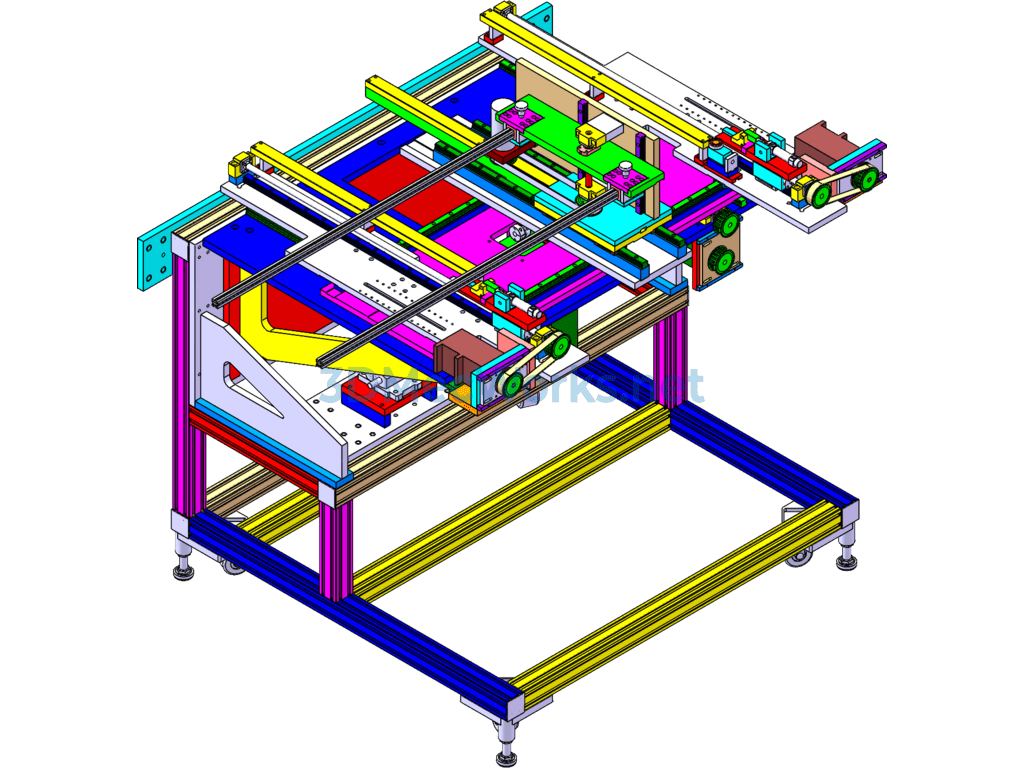

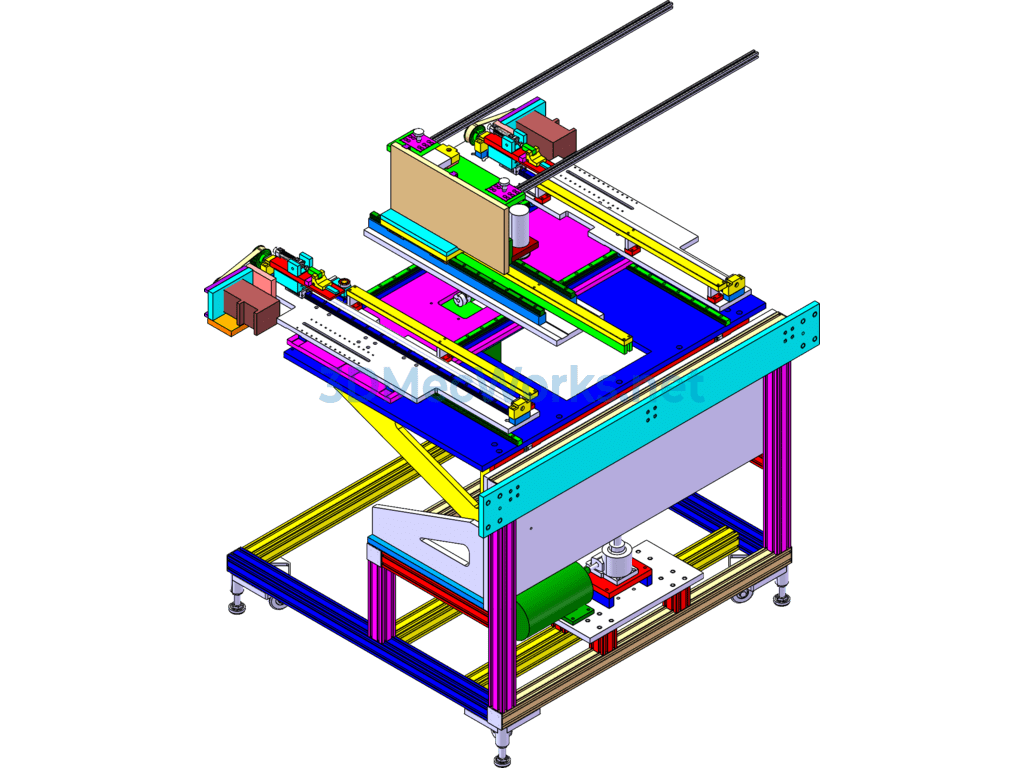

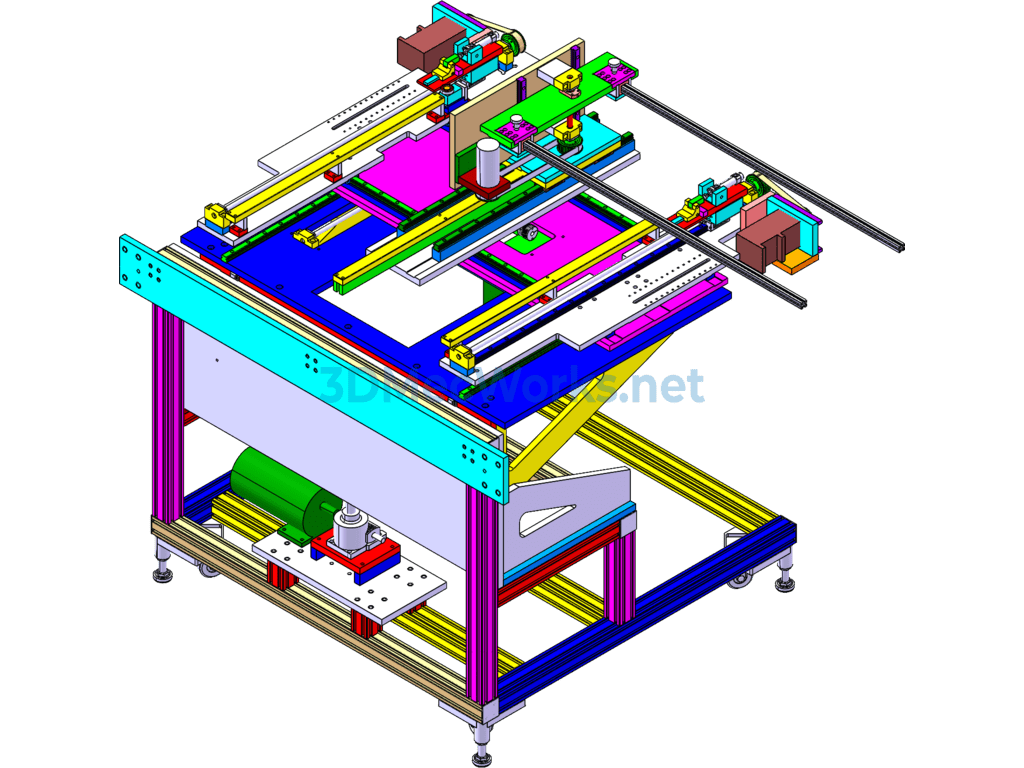

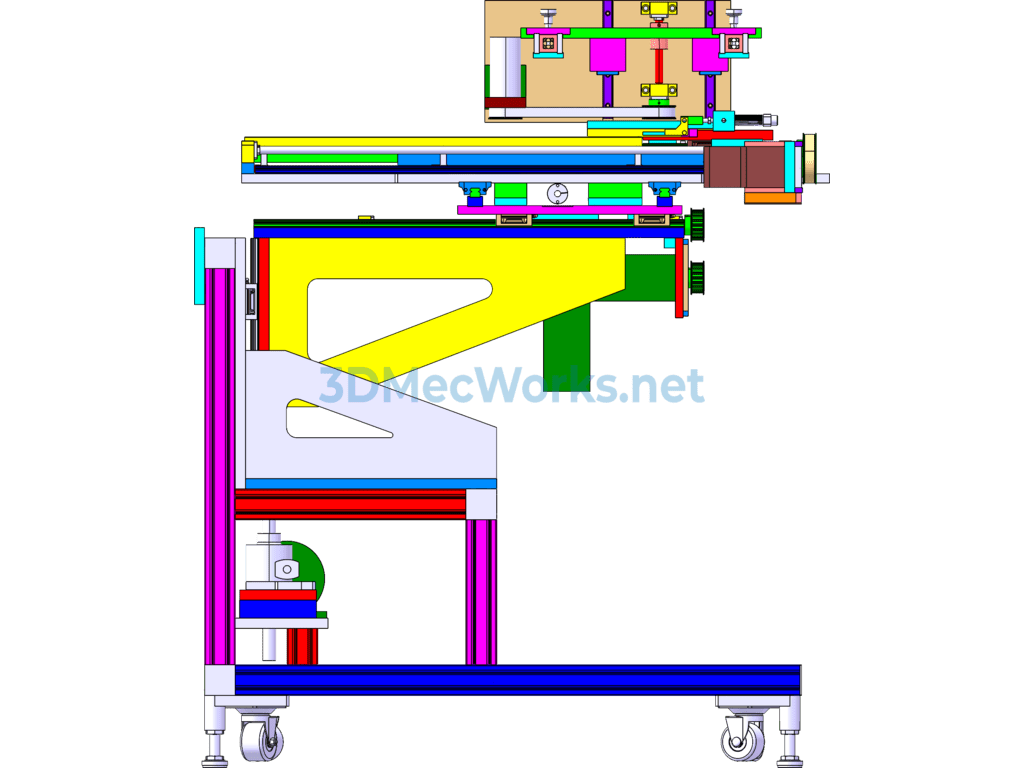

This model features a multi-axis lead screw transmission structure, driven entirely by a servo motor, with closed-loop control, characterized by high precision, fast response, and accurate positioning. The model is designed in SW2011 and includes ST format files, which can be opened with other software for study. This mechanism can be used in large handling devices, offering high degrees of freedom and incorporating a fresh design with extensive use of lead screws, bearings, and motor applications, making it highly valuable for reference!
