Complete Gearbox Design Course (Liaoning University of Technology)

This is a complete set of reduction gear course design, including SolidWorks 3D models with editable parameters, CAD drawings, motion simulation, course design instruction manual, assembly animation production video (.avi), and engineering drawings.

Under the grand name: Belt Conveyor Drive Device Design, it’s essentially just a reduction gear design.

Liaoning University of Technology Graduation Design Course Design.

Course Design Name: Mechanical Design Course Design
Design Topic: Belt Conveyor Drive Device
No. Content Status Quantity

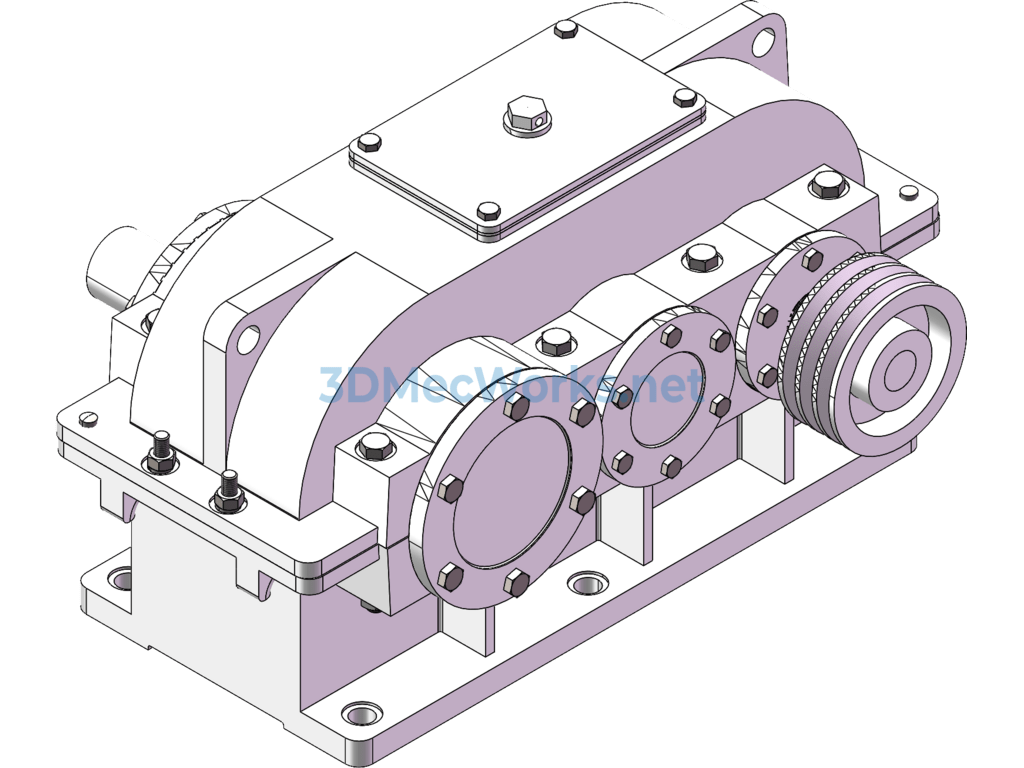

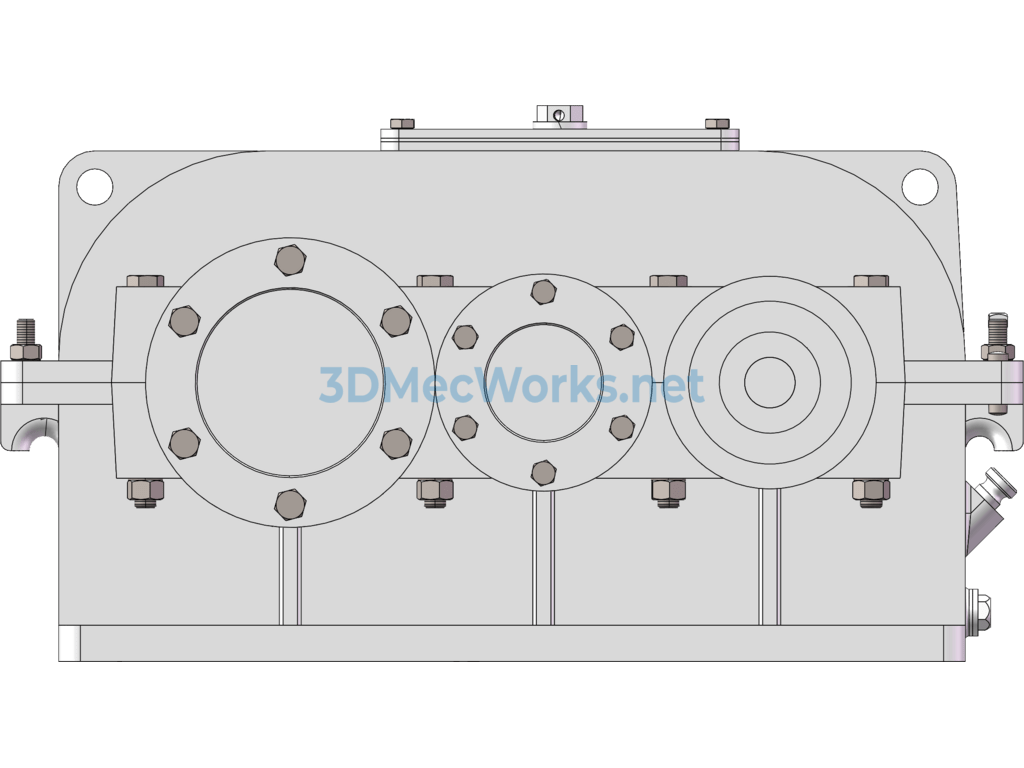

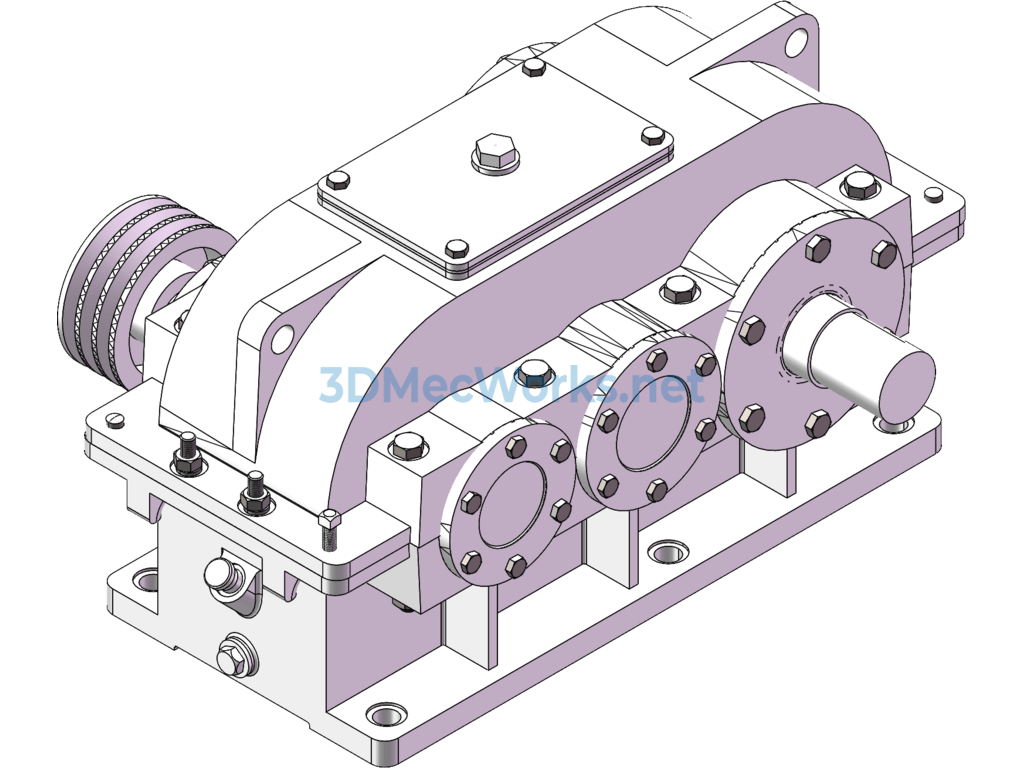

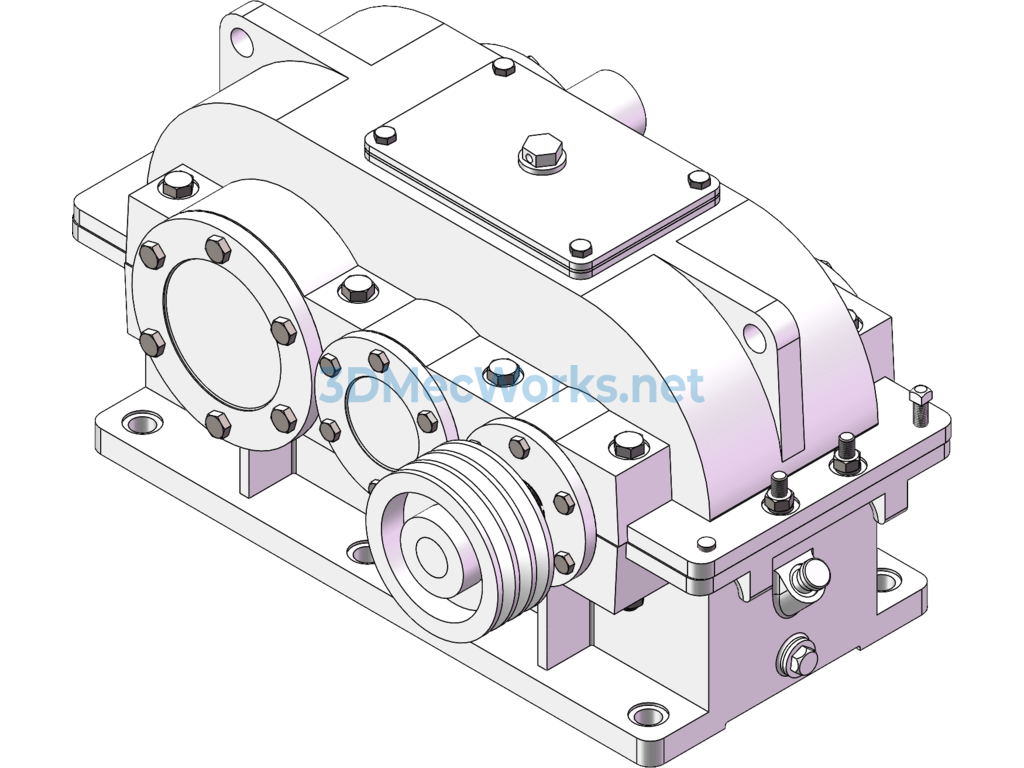

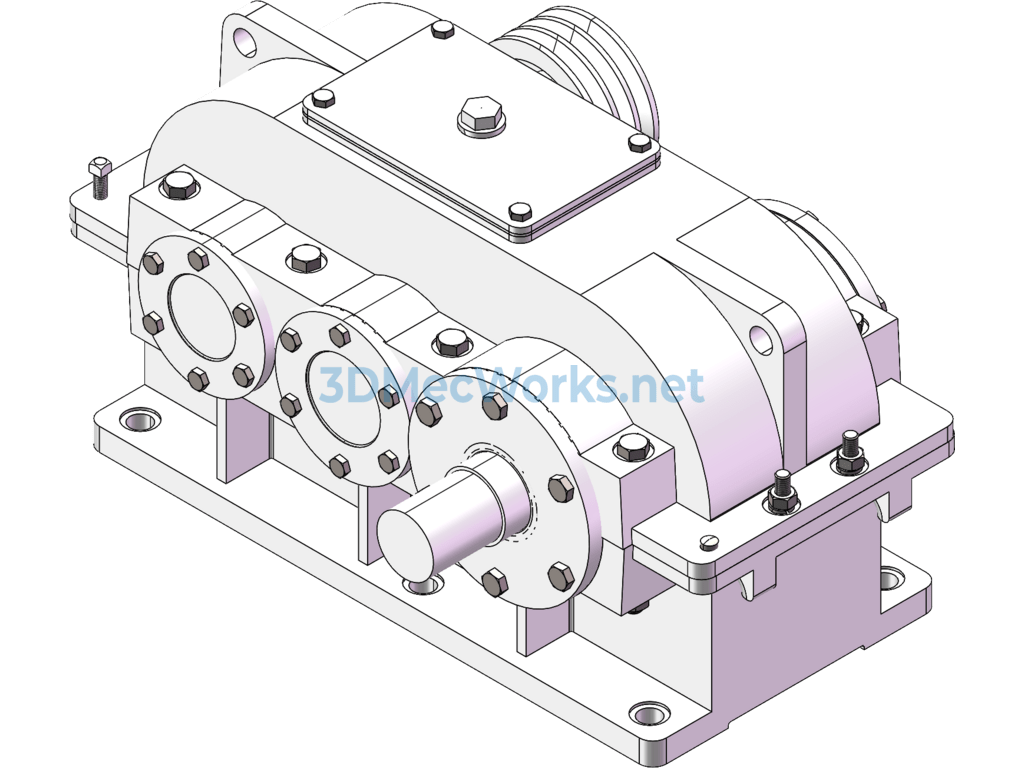

1 Double-stage Cylindrical Gear Reducer A0 1
2 Cylindrical Gear Shaft A2 1
3 Cylindrical Gear A2 1
4 Course Design Instruction Manual A4 1
5 Calculation Draft 1
6 Assembly Sketch A2 1

Design Task

1. Technical Data of the Design:
– Working tension of the conveyor belt: F = 2800 N
– Working speed of the conveyor belt: V = 0.70 m/s
– Diameter of the conveyor drum: D = 350 mm
– Width of the conveyor belt: B = 300 mm

2. Working Conditions and Requirements:
– Used in a mechanical processing shop for transport tasks, operating continuously in two shifts.
– Load has mild impact, designed for a service life of 5 years, suitable for small batch production.
– To be manufactured in a medium-sized production facility.
– Power source: Electric three-phase AC 380/220V.
– Speed tolerance: <5%.
