Classic Transmission Device: Model of a Small Conveyor Belt

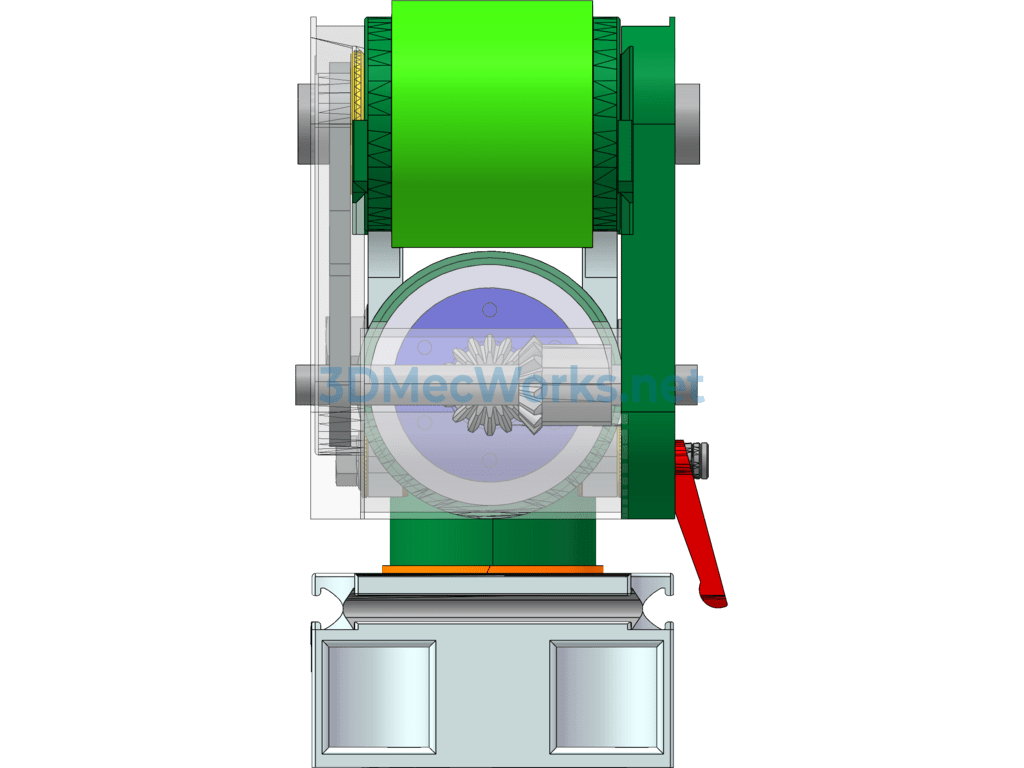

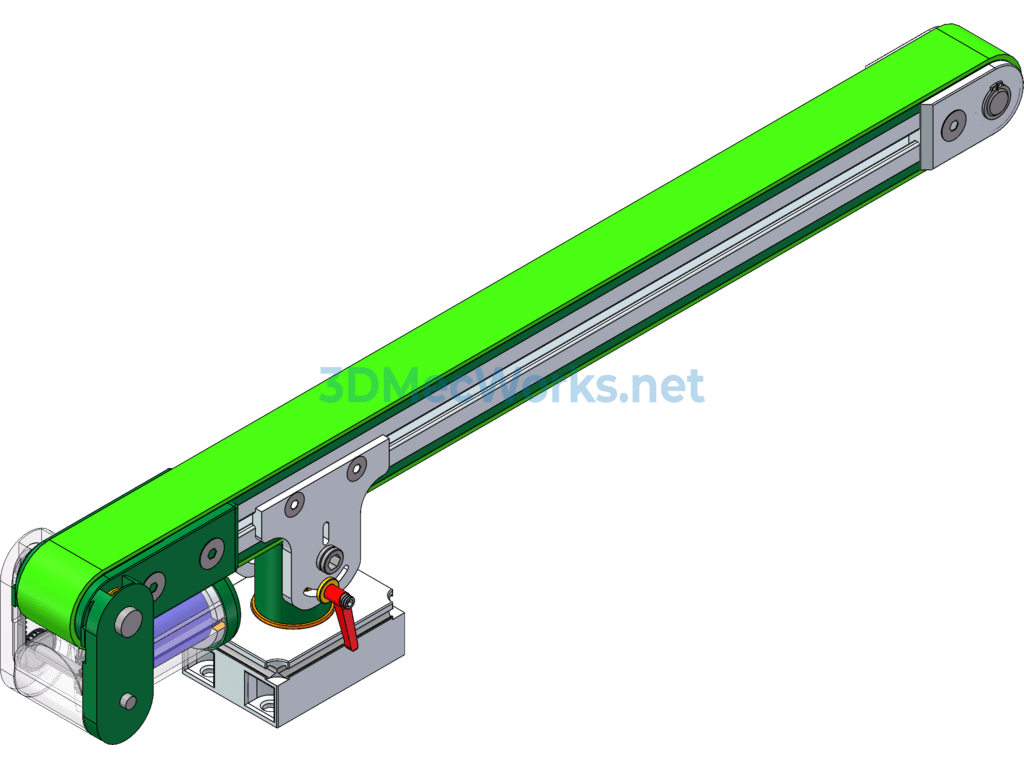

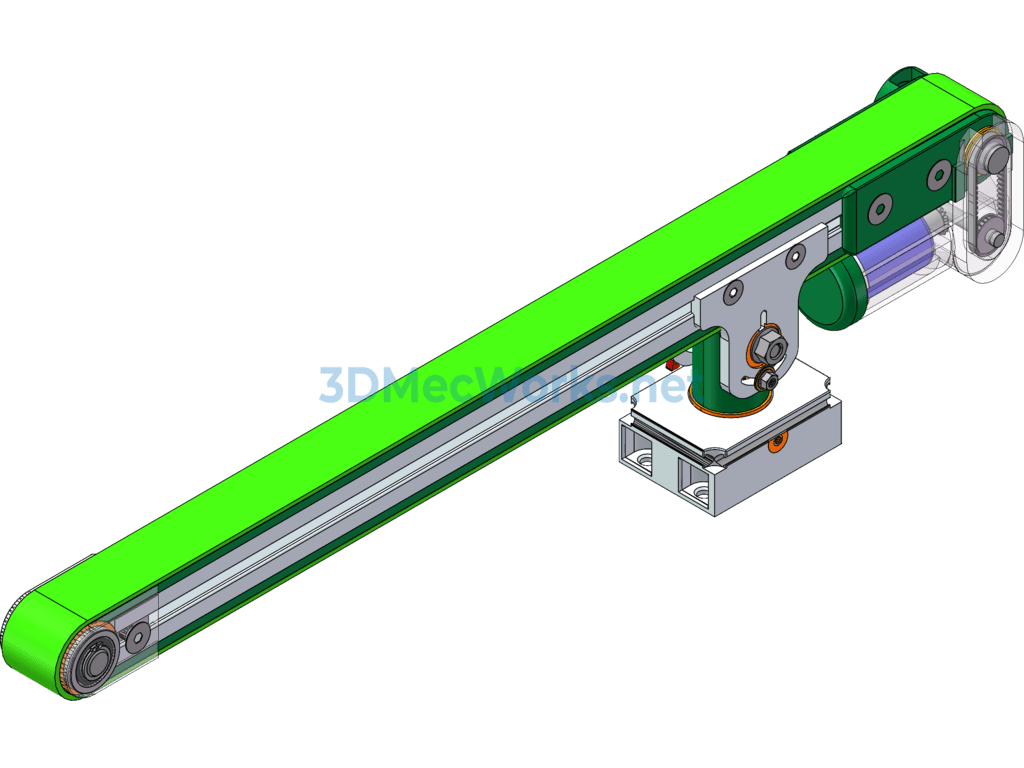

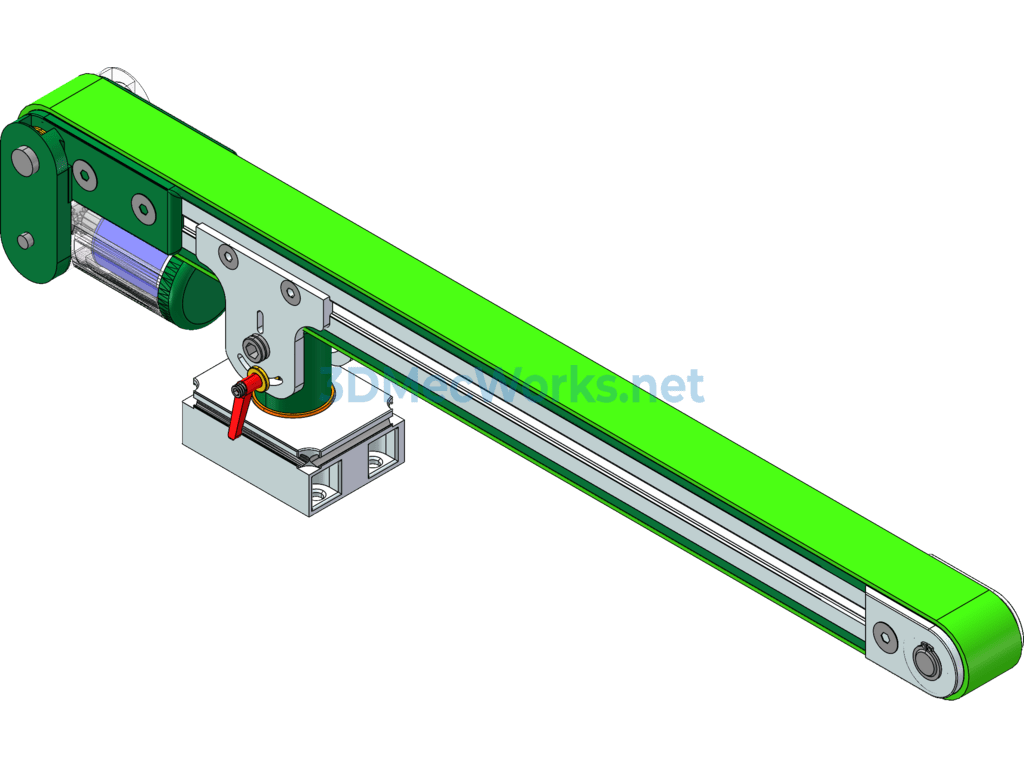

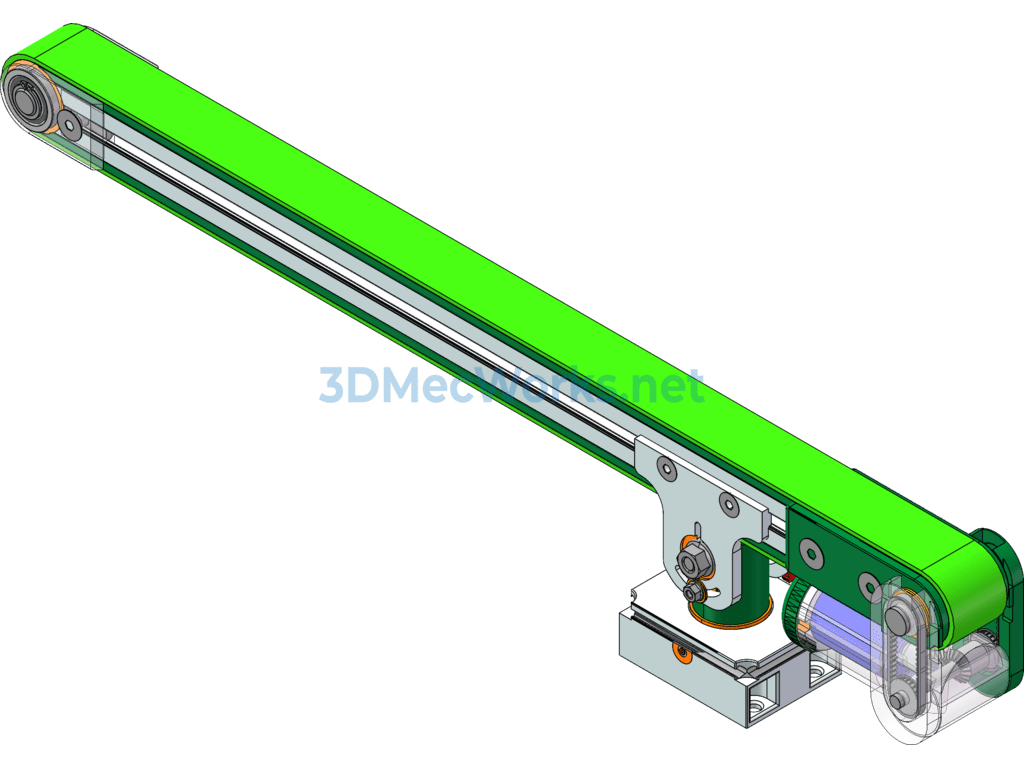

The classic transmission device, a small conveyor belt model, is a type of mechanical equipment driven by friction to transport materials continuously. It primarily utilizes mechanical principles such as motor V-belt transmission and bevel gear transmission. The structure is drawn relatively clearly and is mainly composed of a small supporting frame, conveyor belt, idler rollers, drum, tensioning device, and transmission device. Phantom download to study this model of small equipment.
