Clamping Mechanism, Horizontal Adjustment Mechanism - Exported - Free Download

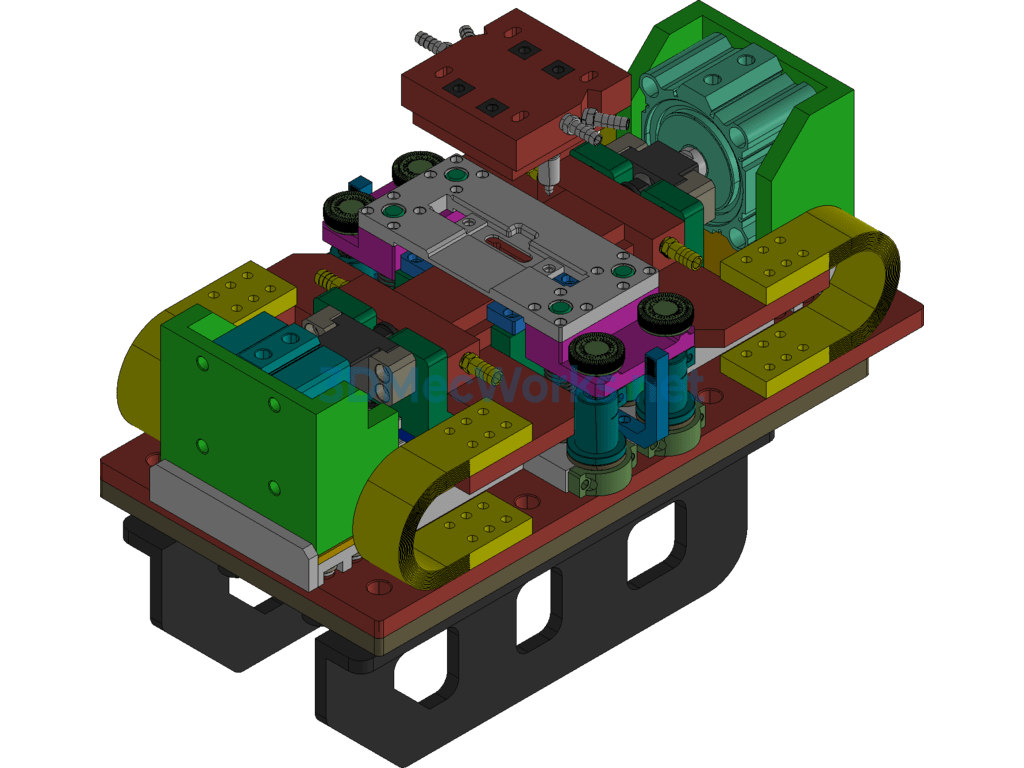

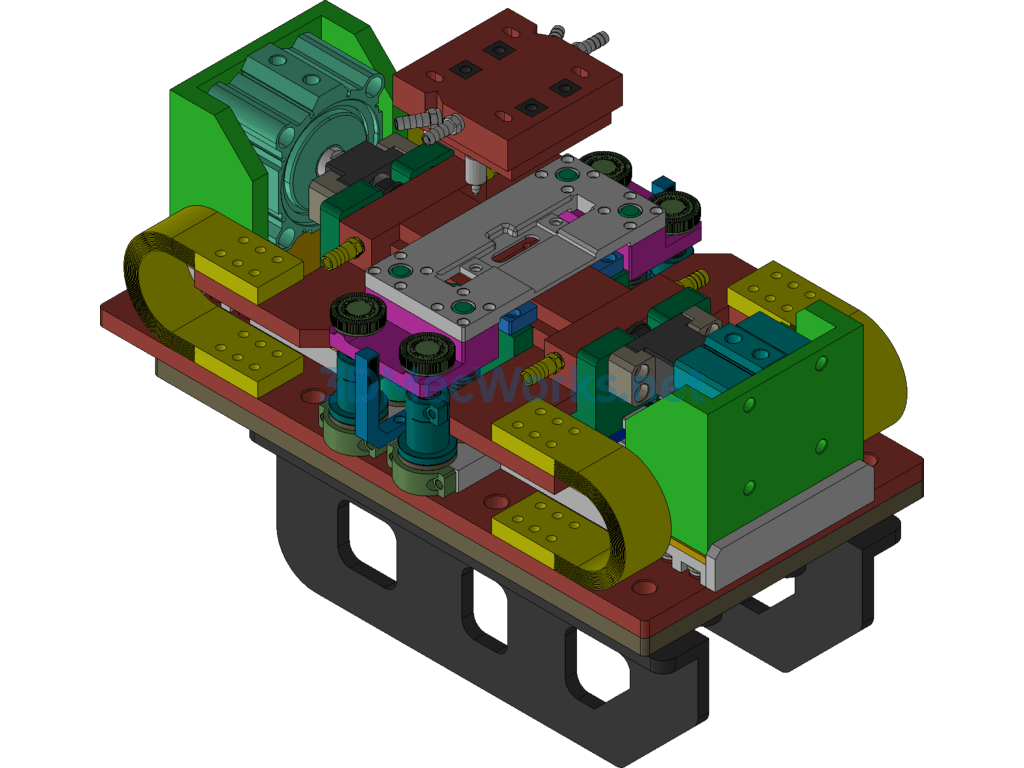

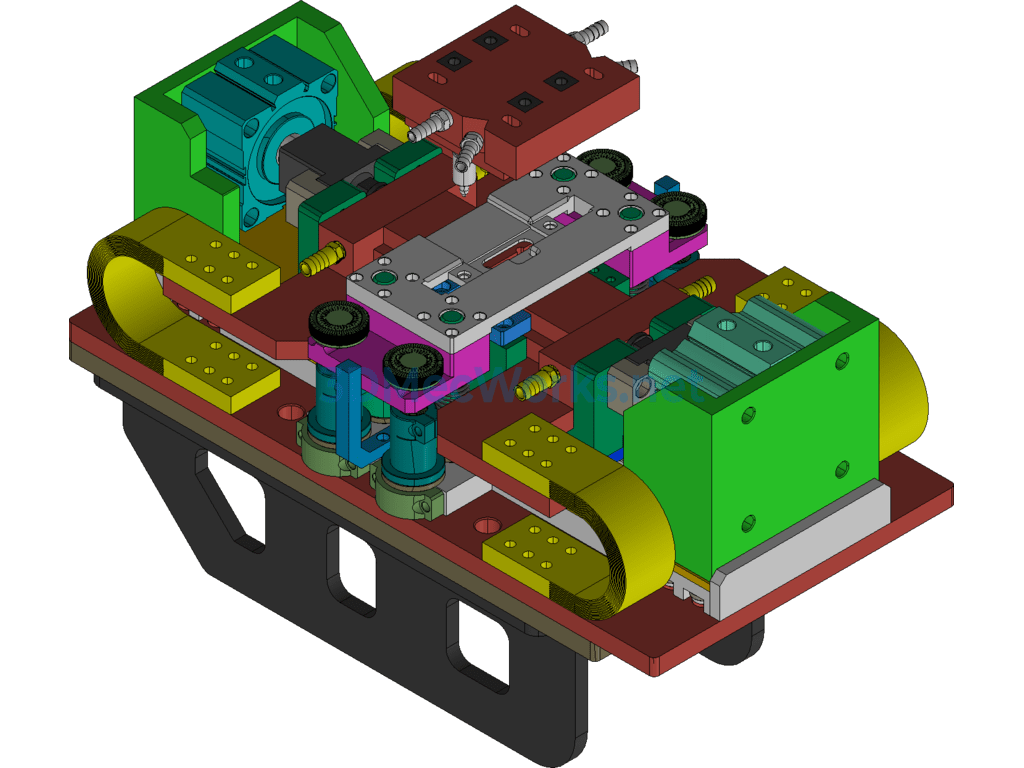

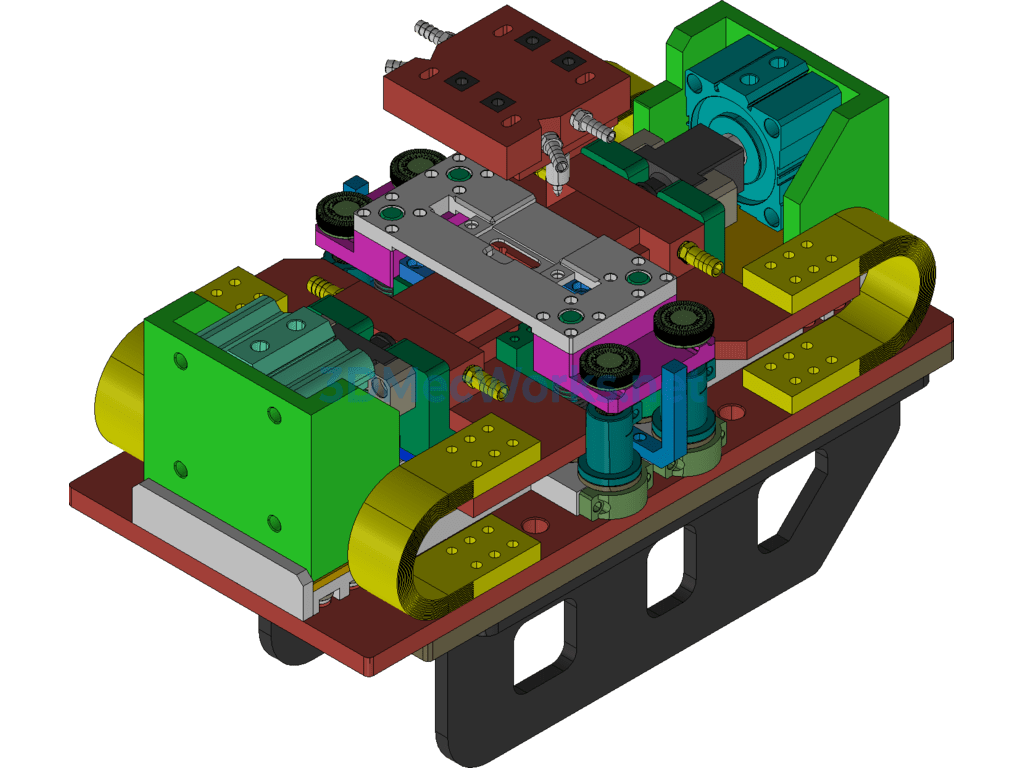

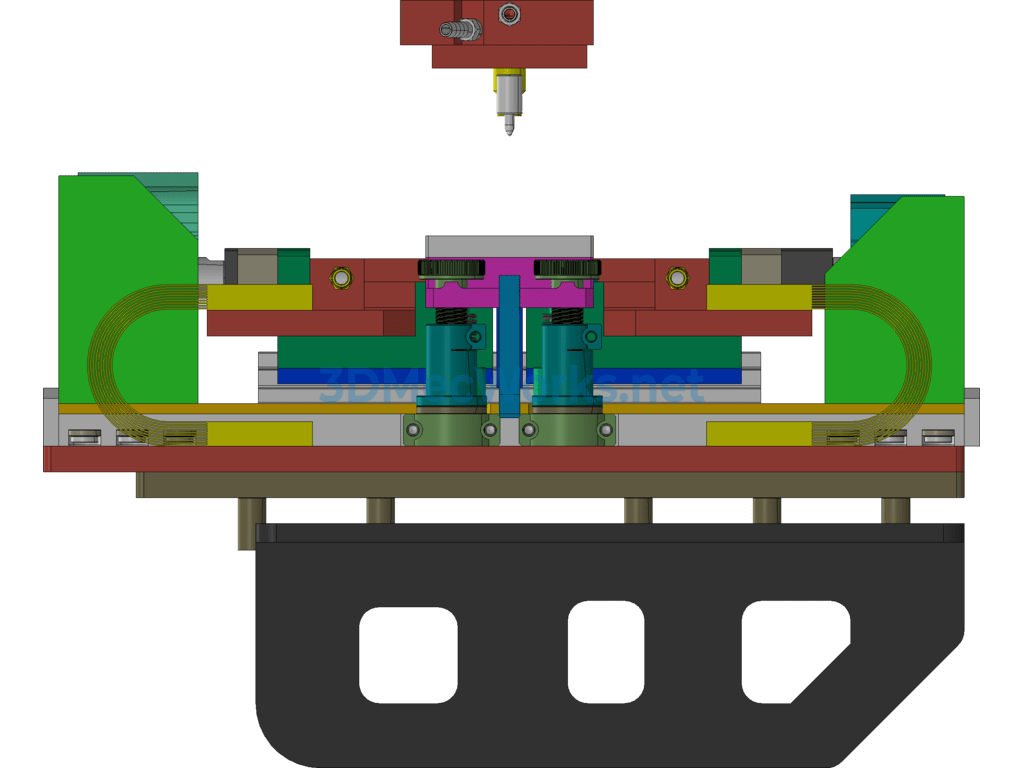

Clamping mechanism: The cylinders on both sides clamp the material in the middle. The middle clamping unit acts above the same slide rail, and there is a pressure head holding it from above. Therefore, the clamping unit needs precise adjustment of the horizontal position, with adjustment mechanisms arranged on the left and right sides.
The blueprint structure is detailed and used for actual production with step files.
