Clamping And Rotating Assembly (Actual Production) - SolidWorks - Free Download

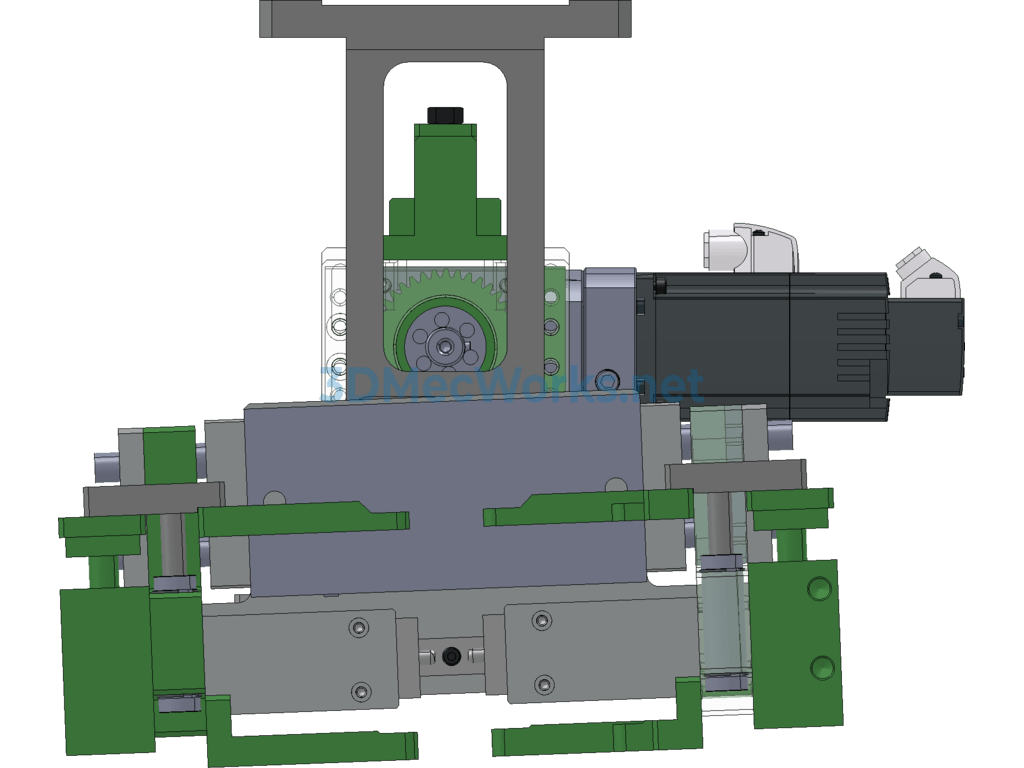

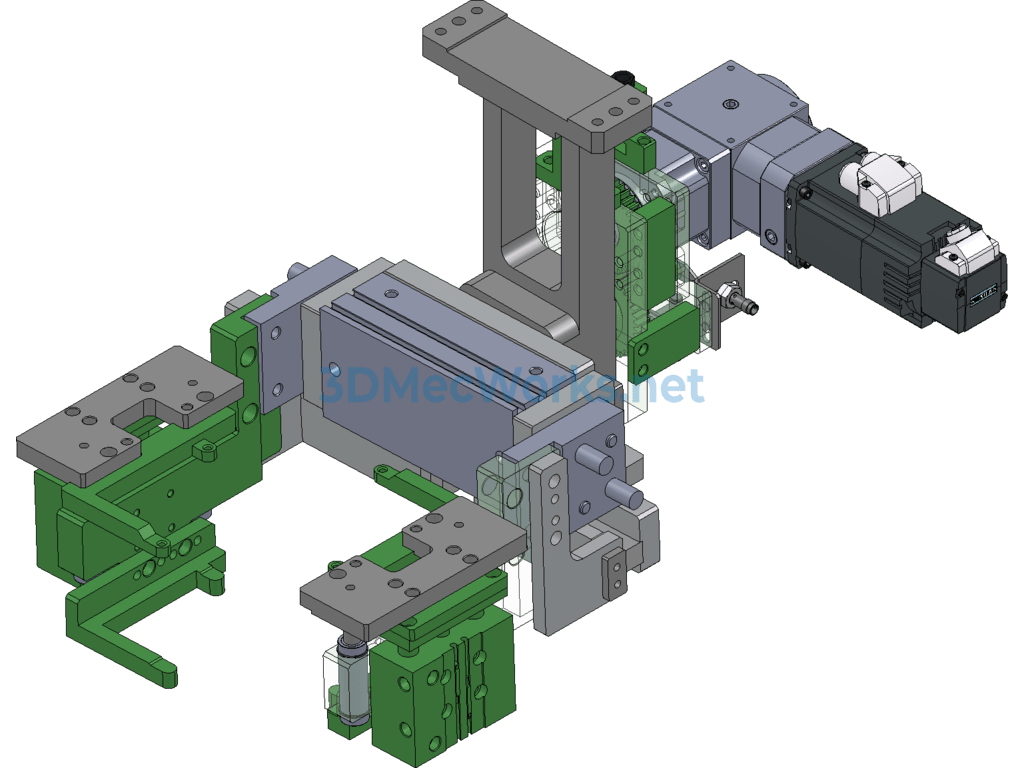

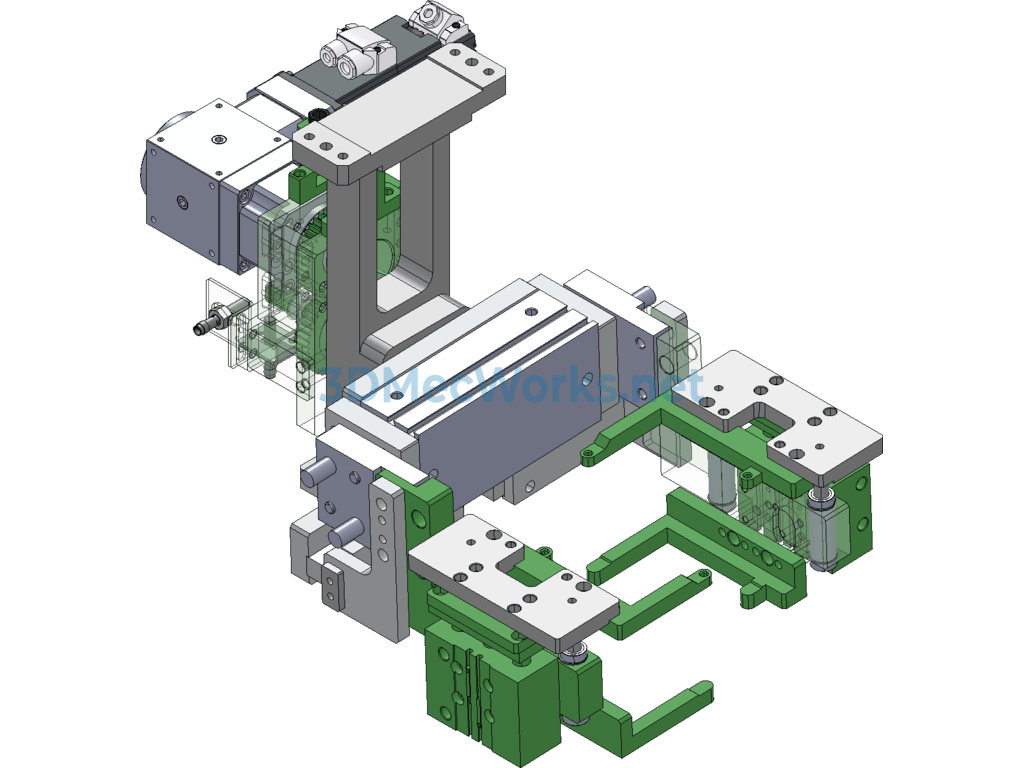

The attachment is a clamping and rotating mechanism. The cylinder clamps up, down, left, and right, and the rear uses a servo motor with gear transmission for rotation. The drawings include editable parameters. This mechanism is for actual production use, is indirectly practical, and is very helpful for planning and design. SolidWorks2018, with step file attached.
Specification: Clamping And Rotating Assembly (Actual Production) - SolidWorks - Free Download
|
