Clamp Mechanism

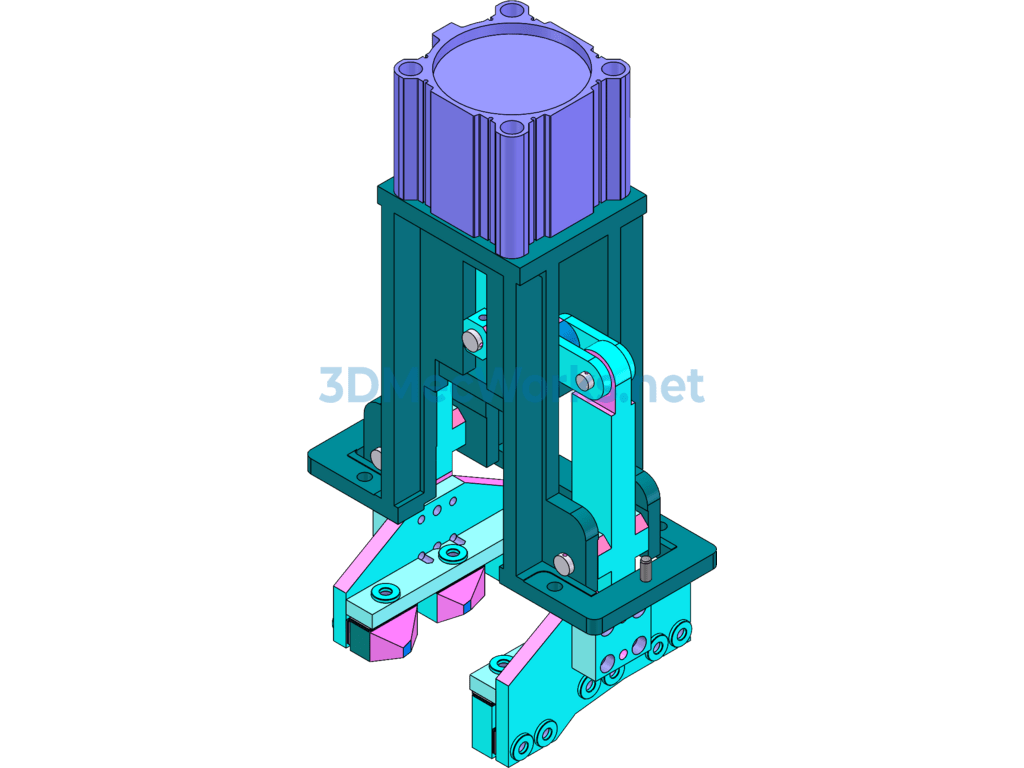

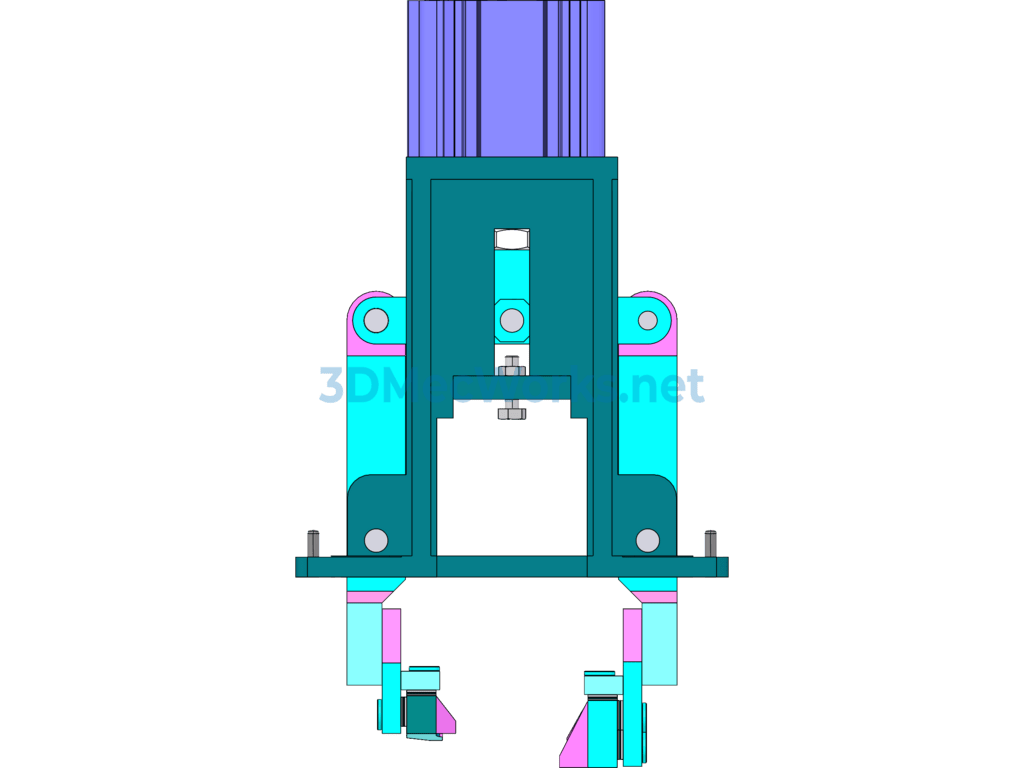

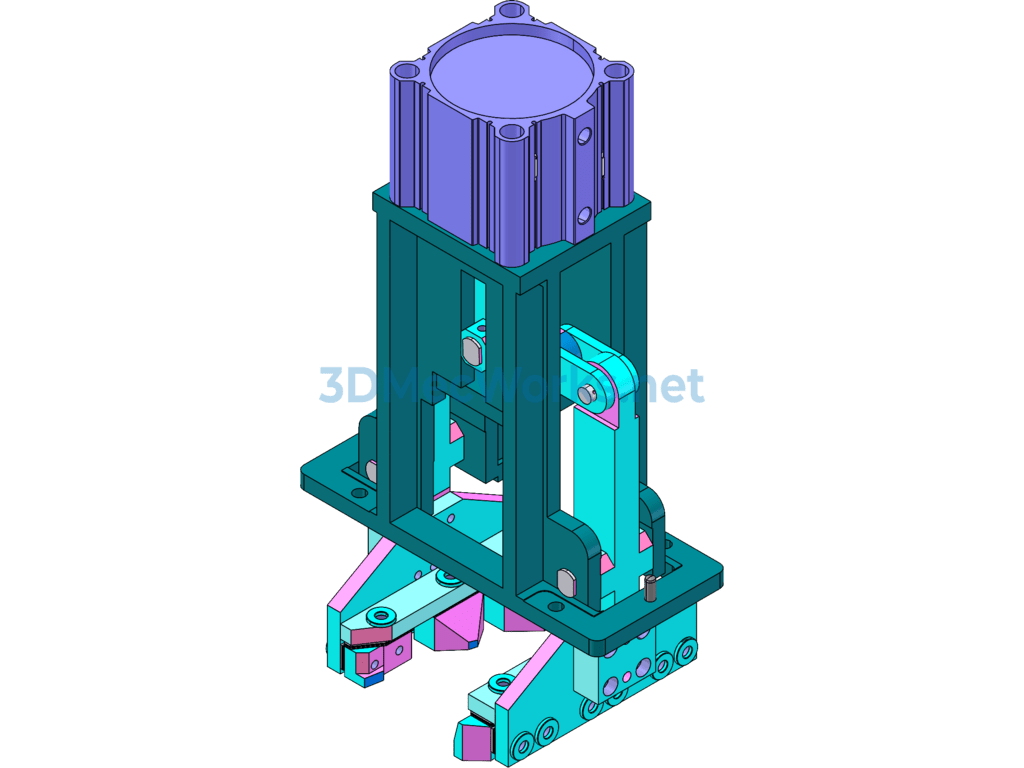

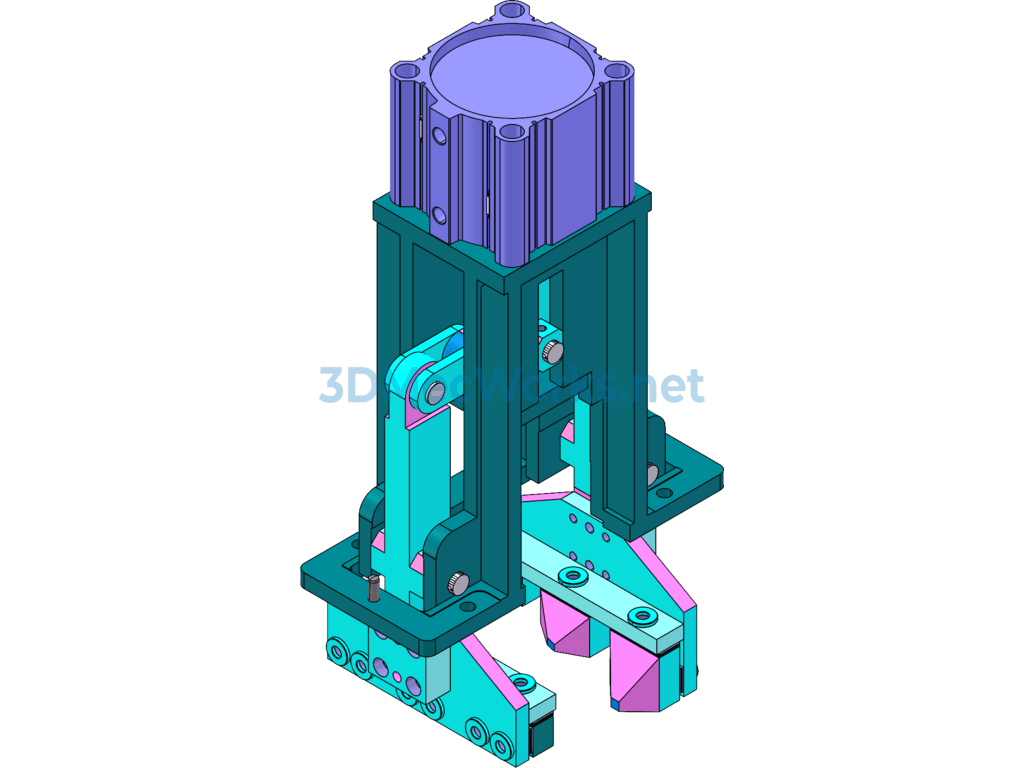

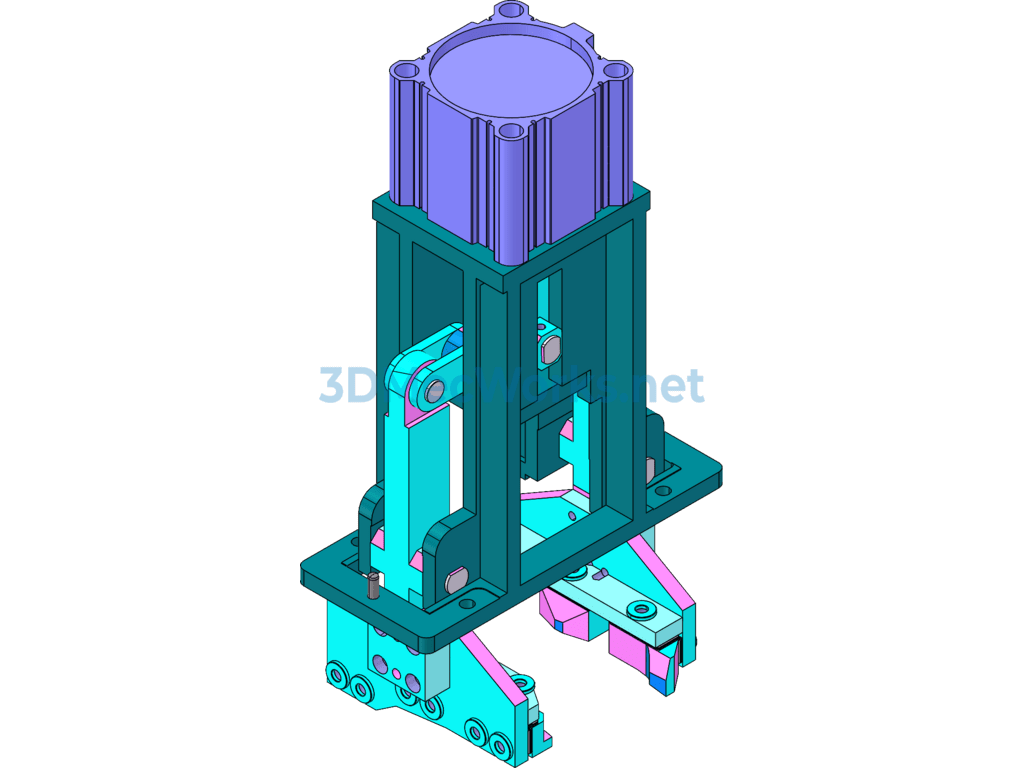

Clamp Mechanism Design Model

This is a design model diagram of a clamp mechanism that utilizes mechanical grippers to achieve clamping. It serves as the final link and execution component for the interaction between robots and their environment. The quality of its performance largely determines the overall working performance of the robot. It includes 2-finger, 3-finger, and deformable fingers; special grippers such as magnetic chucks and welding guns; and universal grippers, ranging from 2 to 5 fingers.

This model is drawn and assembled using SolidWorks software. Everyone is welcome to download it for reference, study, and use.
