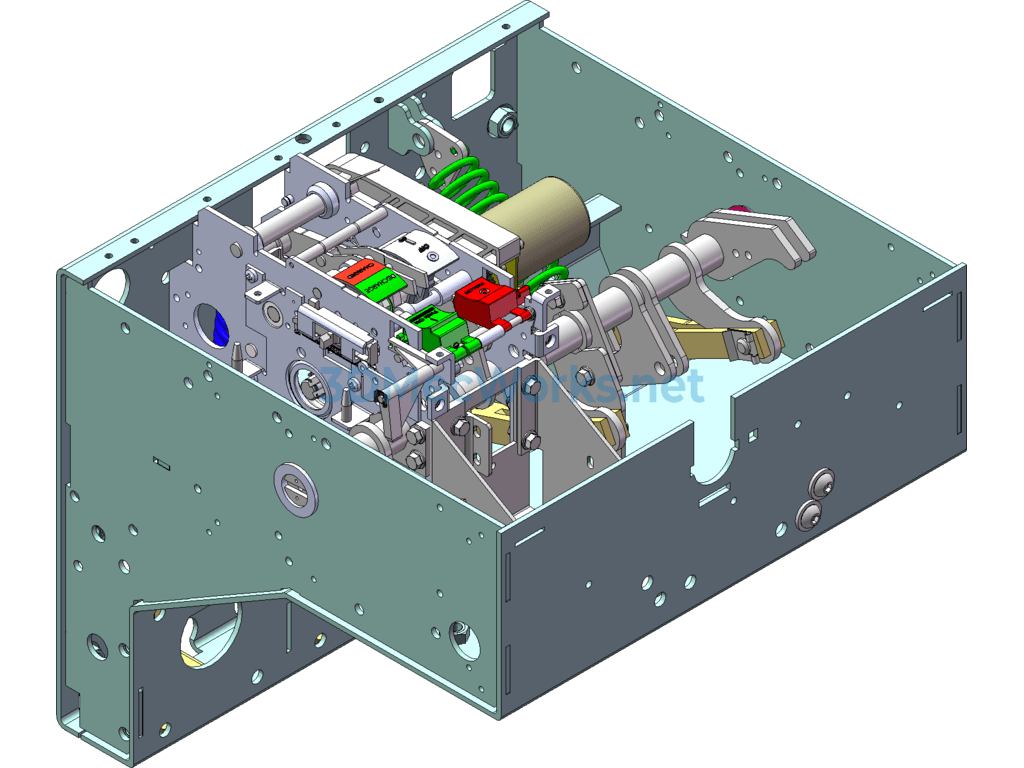

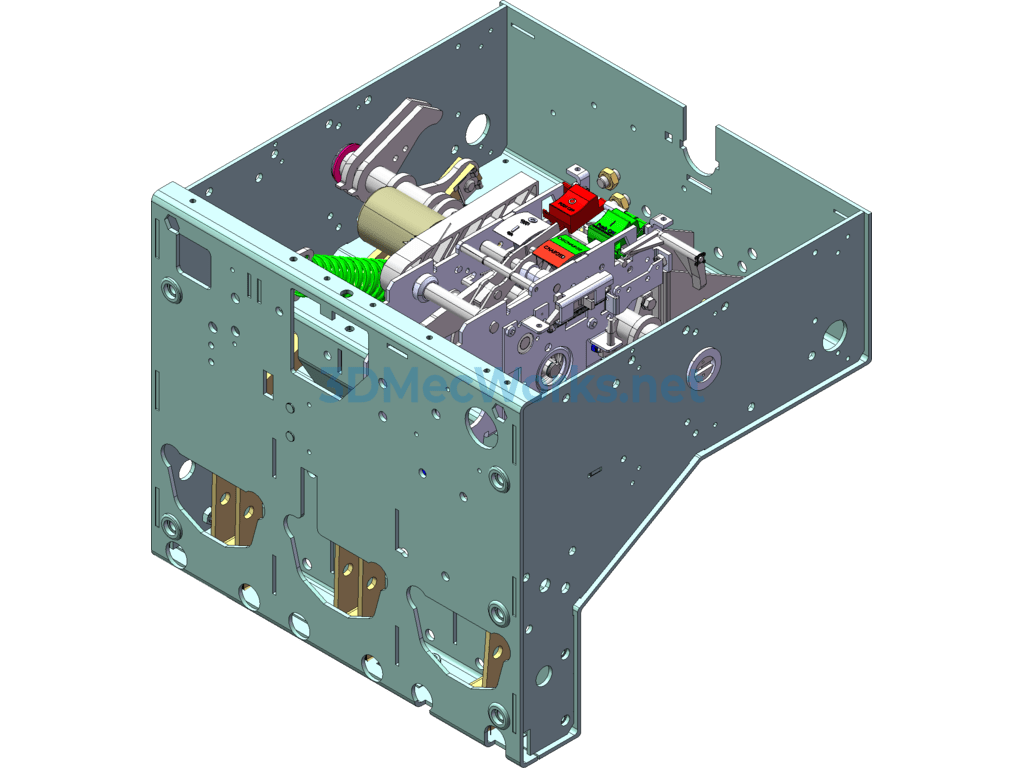

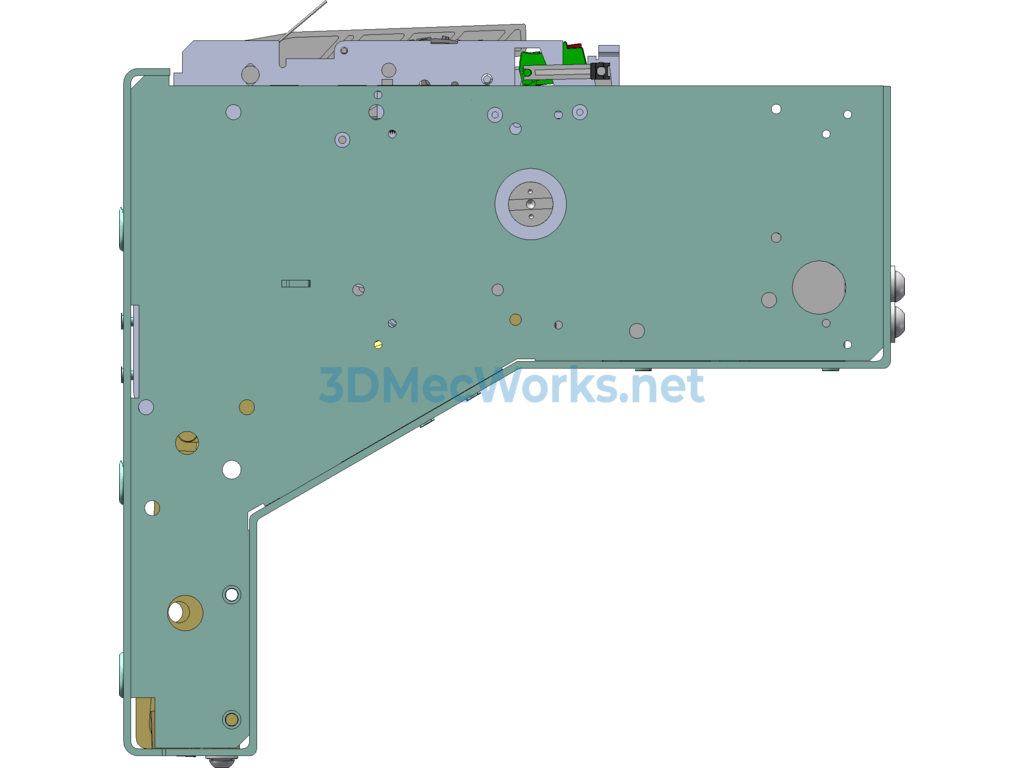

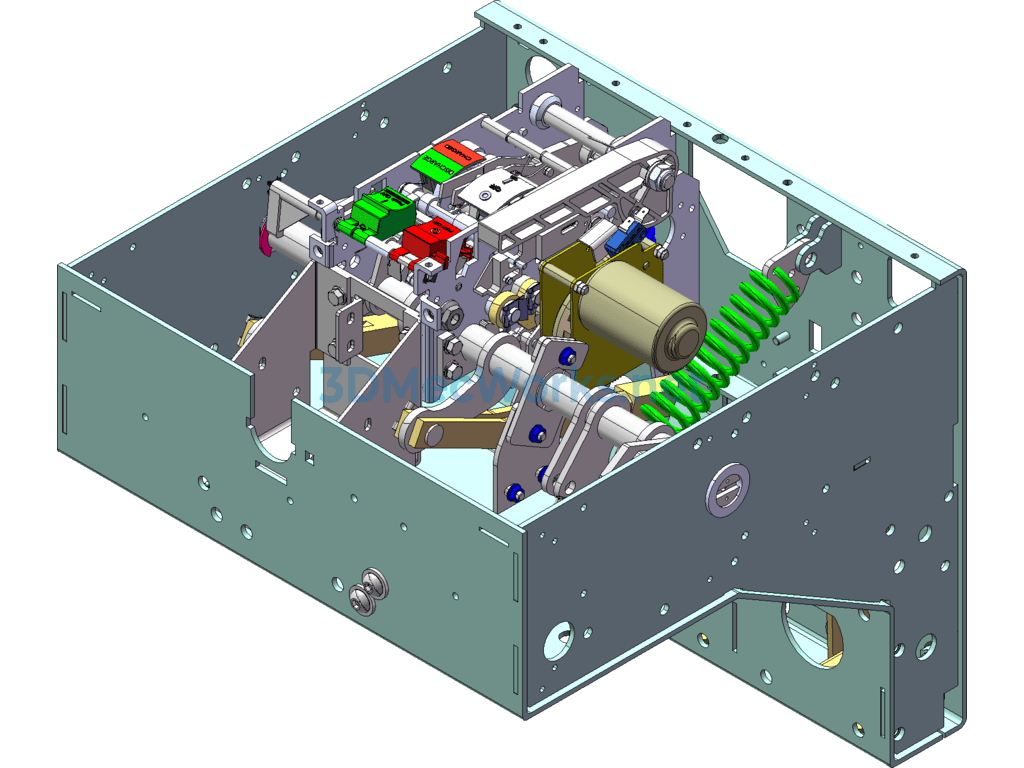

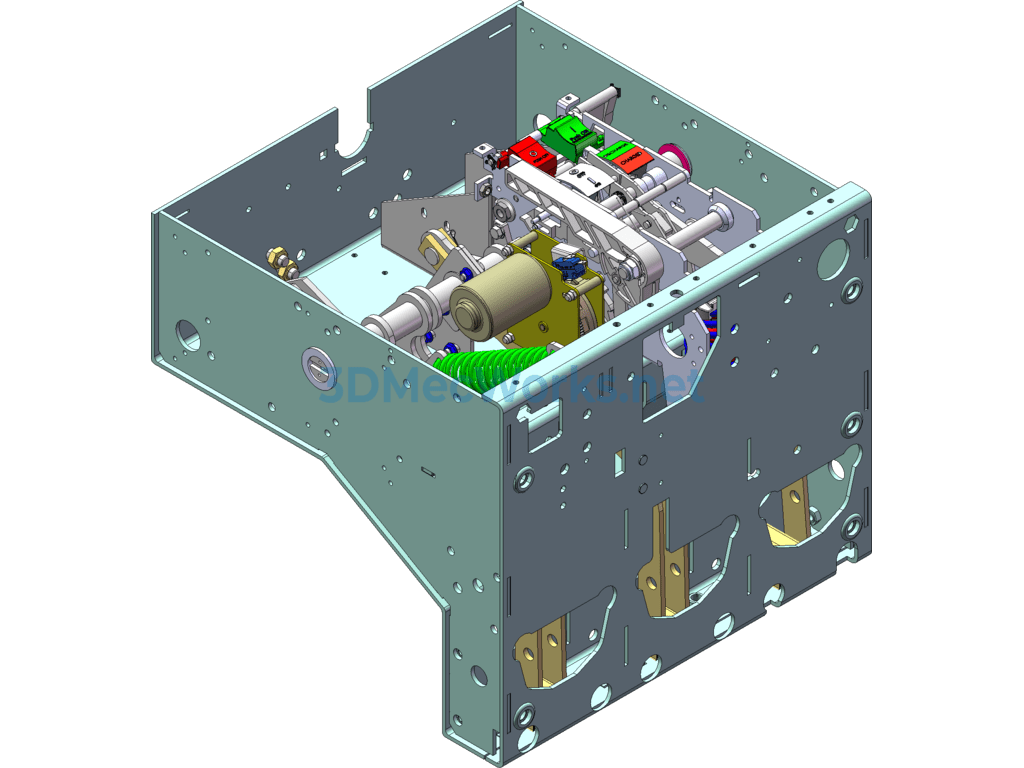

Circuit Breaker With Planetary Gear Reducer Mechanism

This product is a mechanical short circuit protection circuit breaker
which includes: circuit breaker body.
Also includes: planetary gear reduction mechanism—actuating component, which generates a displacement action under the influence of a short circuit signal;
forcing the linkage mechanism to operate, thereby separating the moving and static contacts on the static contact piece.

The planetary gear reduction mechanism includes detailed engineering drawings and design calculation data.
