Chip Mounter/placement Machine for Electronic Components (pcba Circuit Board Component Mounting Equipment)

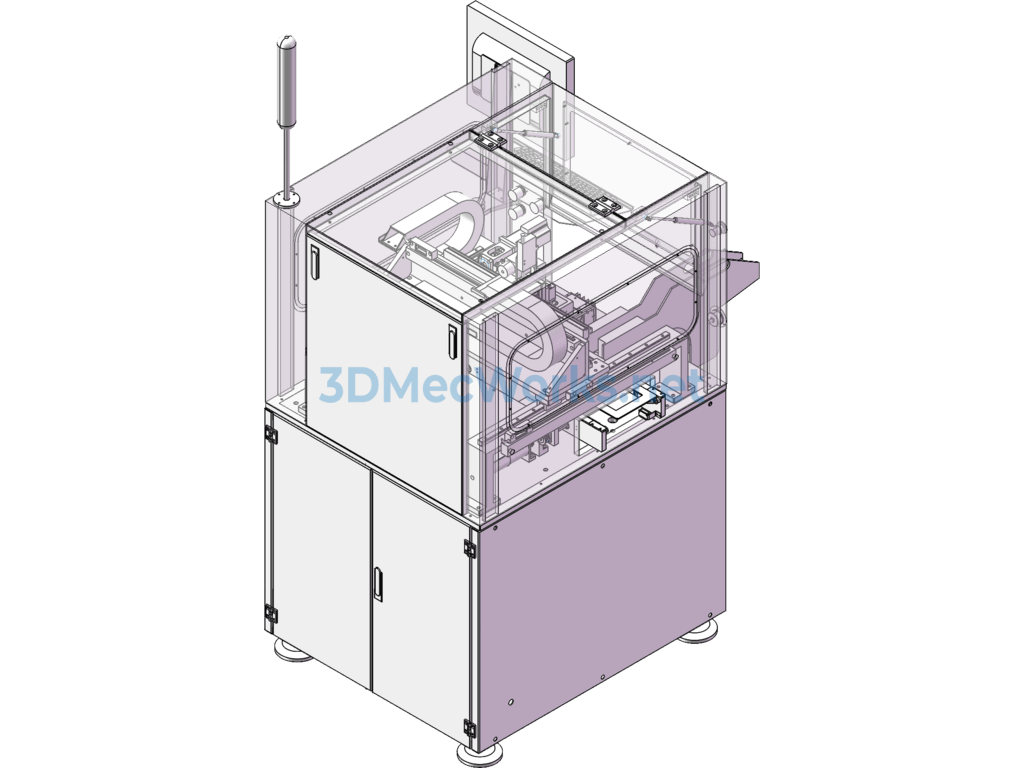

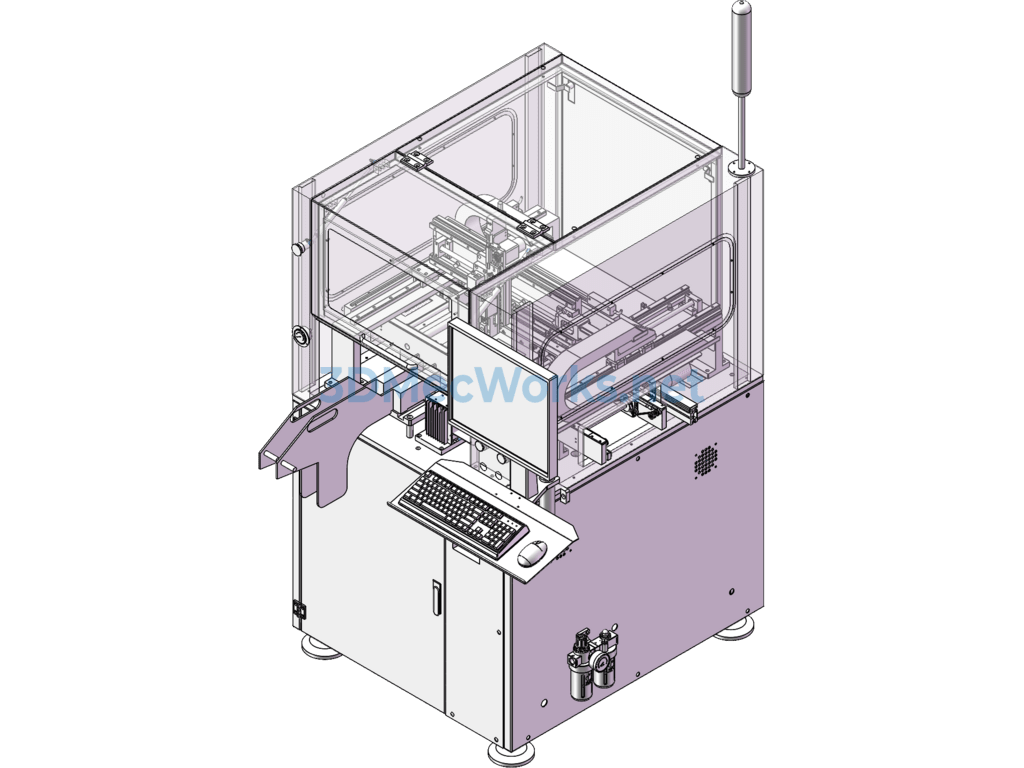

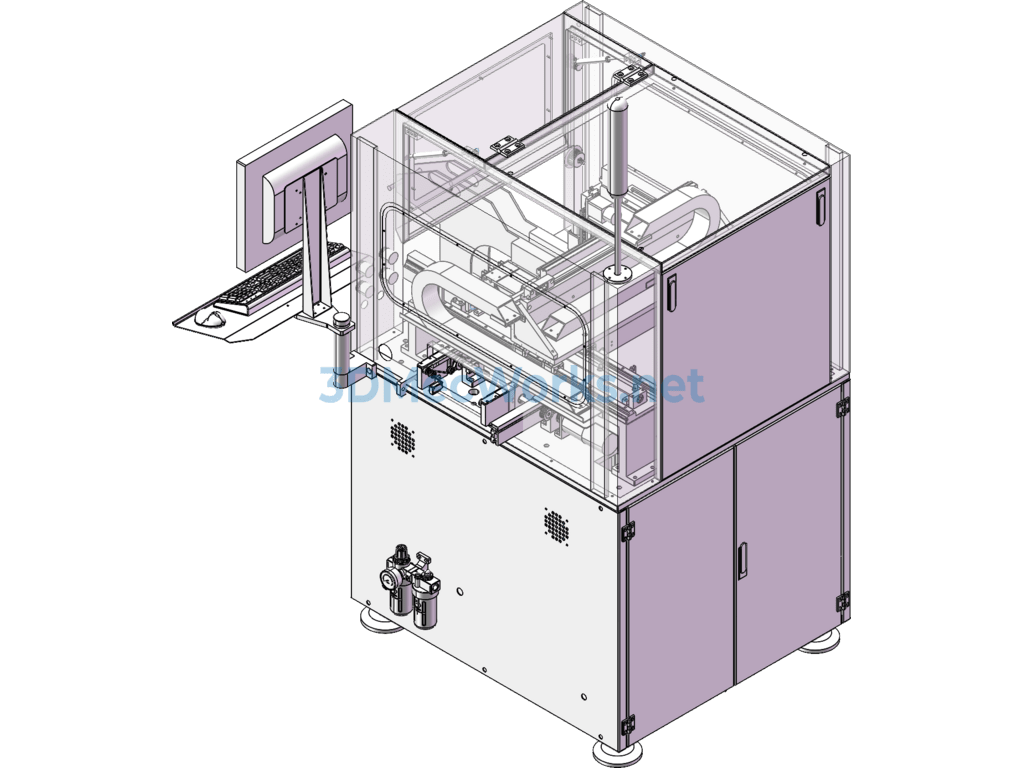

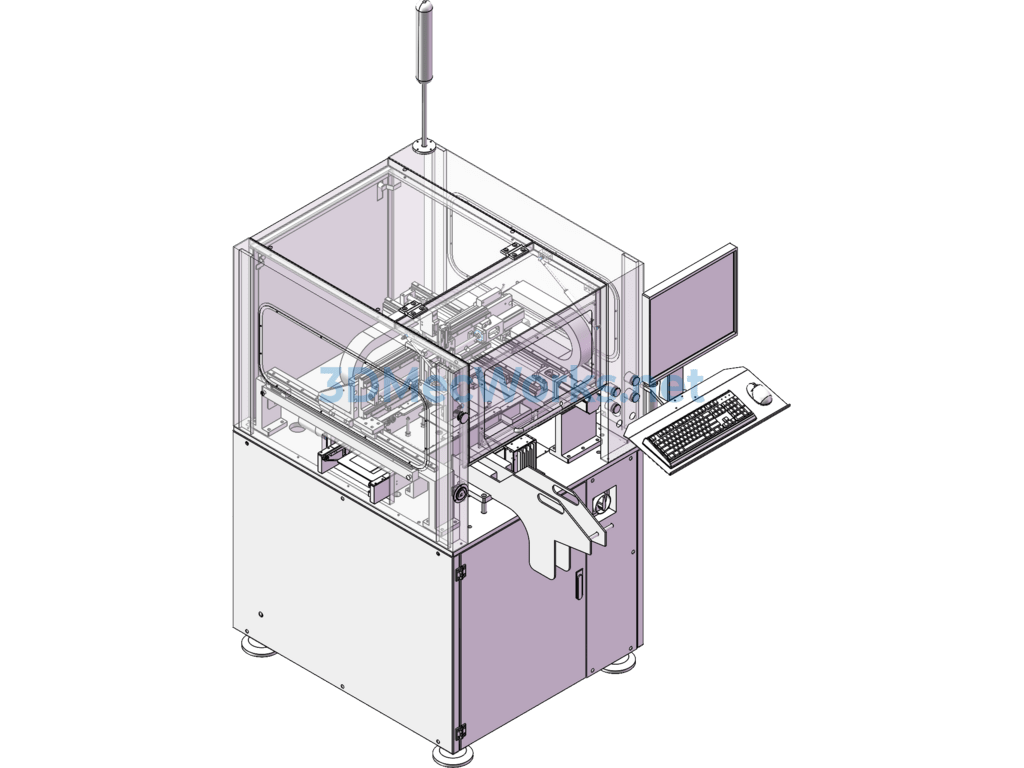

Electronic Component Placement Machine (PCBA Circuit Board Component Placement Equipment). This equipment is highly important in the electronics industry, with all three axes driven by servo motors and equipped with its own transmission line. This is an exceptionally valuable piece of equipment, offering great reference value for those involved in precision machinery! The drawings are SW design source files and can be edited.

Placement Machine: Also known as a “Mounter” or “Surface Mount System,” it is configured in the production line after the dispenser or screen printer. This equipment is used to accurately place surface-mounted components onto PCB pads by moving the placement head. It is available in both manual and fully automatic types.
