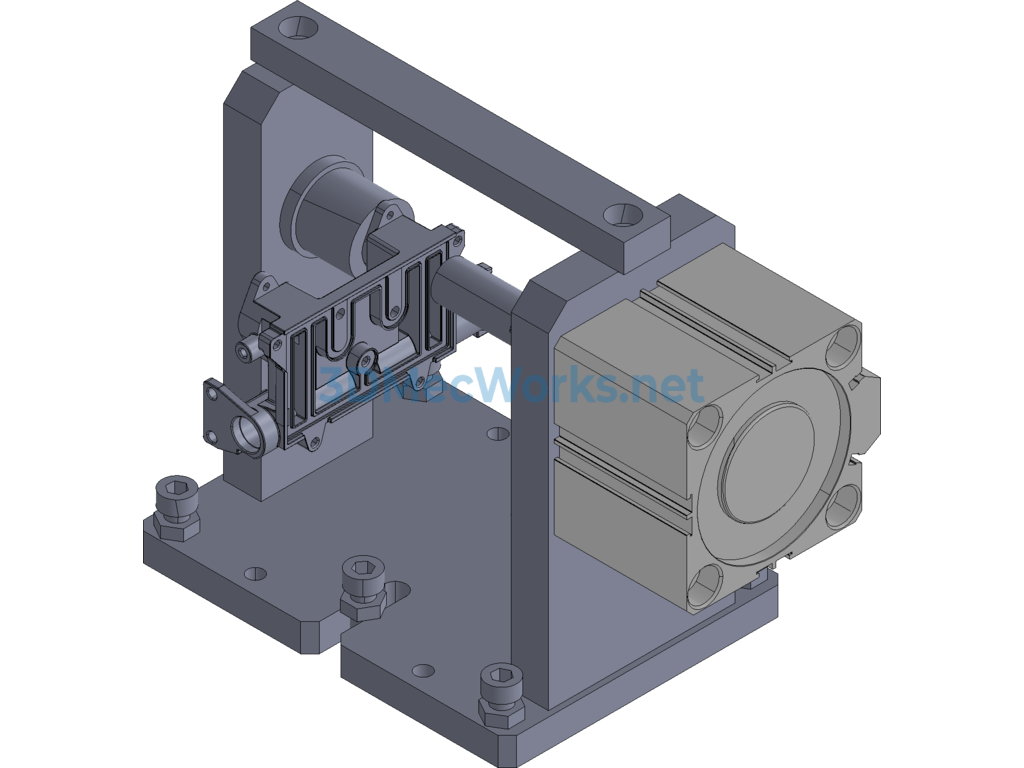

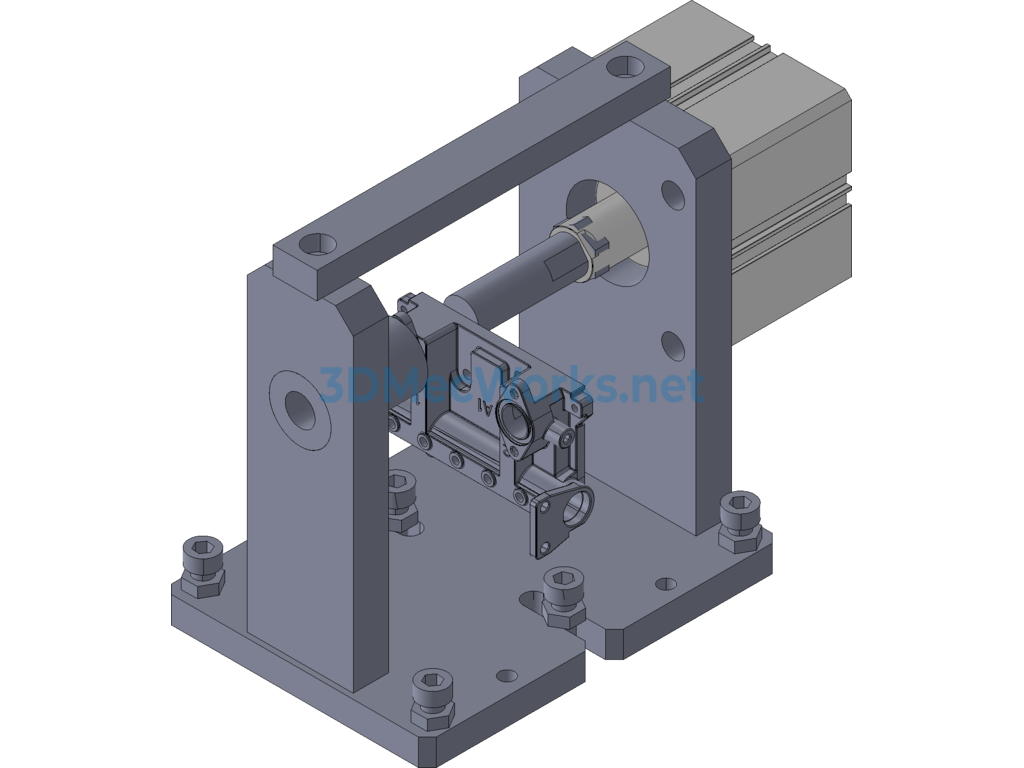

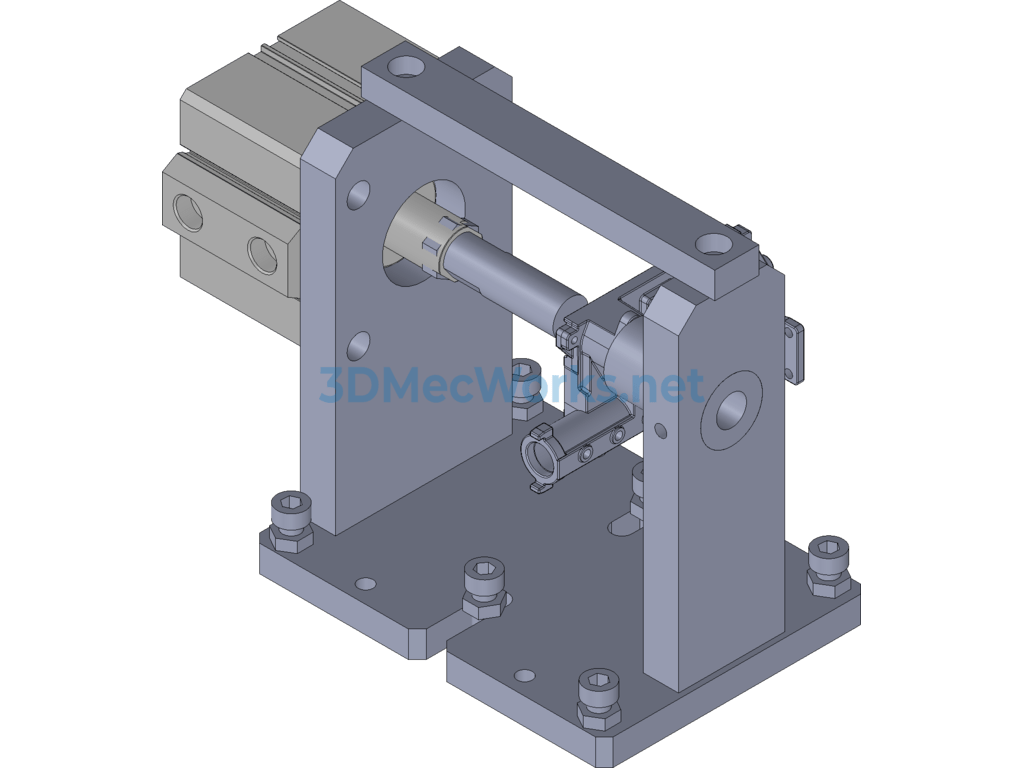

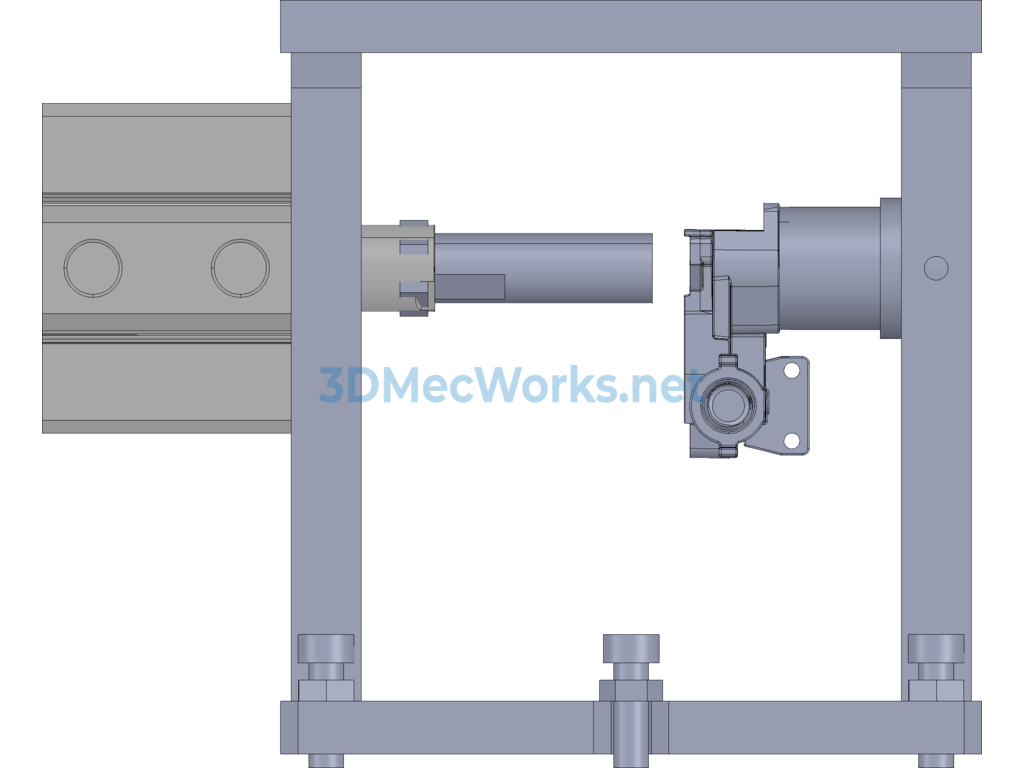

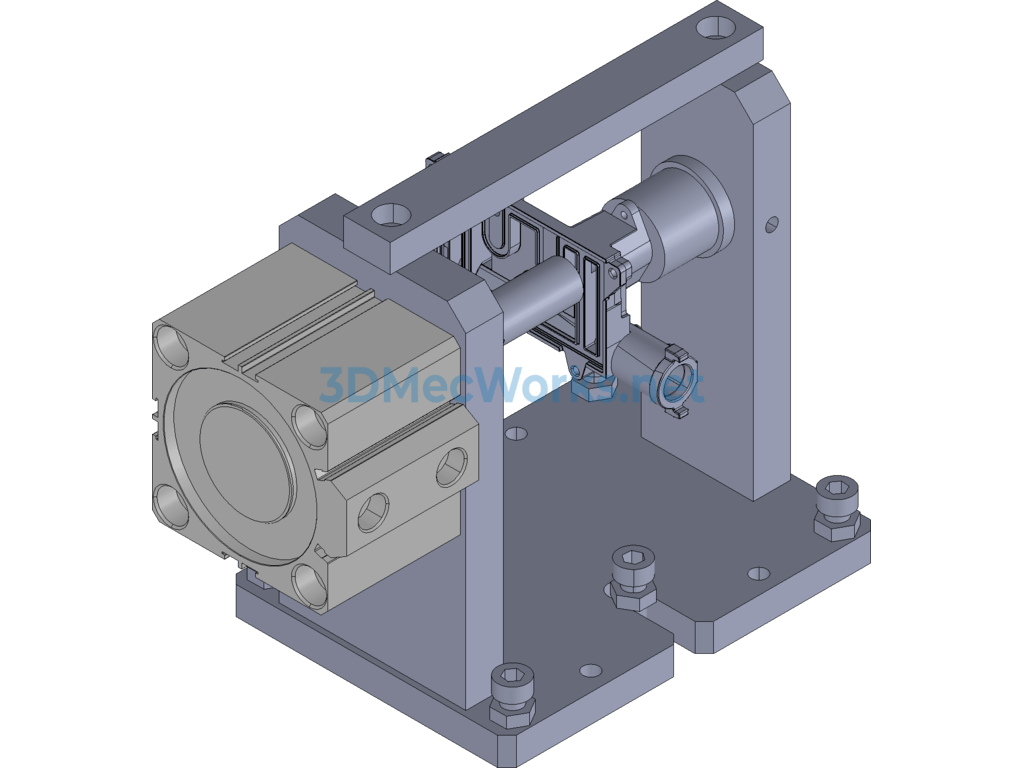

Checking Air Tightness of the Gland Tooling: a Total of 22 Sets of Fixtures

Published by

11,748 views

9,645 downloads

SKU: A012501001998 Category: 3D Projects Tags: Fixture, Gland Press, Non-Standard Equipment, Tooling, VIP Project

Leak testing gland tooling includes a total of 22 sets of fixtures, including a parts list and engineering drawings.

Specification: Checking Air Tightness of the Gland Tooling: a Total of 22 Sets of Fixtures

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	dwg, Sldasm, SLDDRW, Sldprt, step(stp)
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2016
