Central Cooling Pipeline System Equipment Design Model

Central Cooling Pipeline System Equipment Design Model

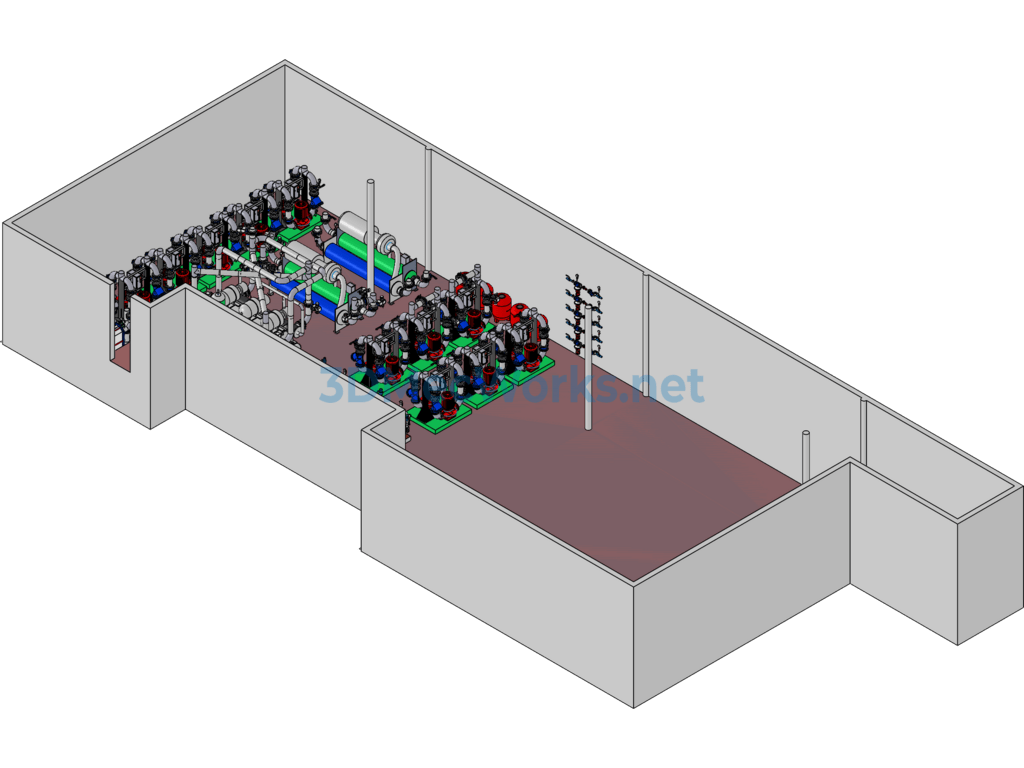

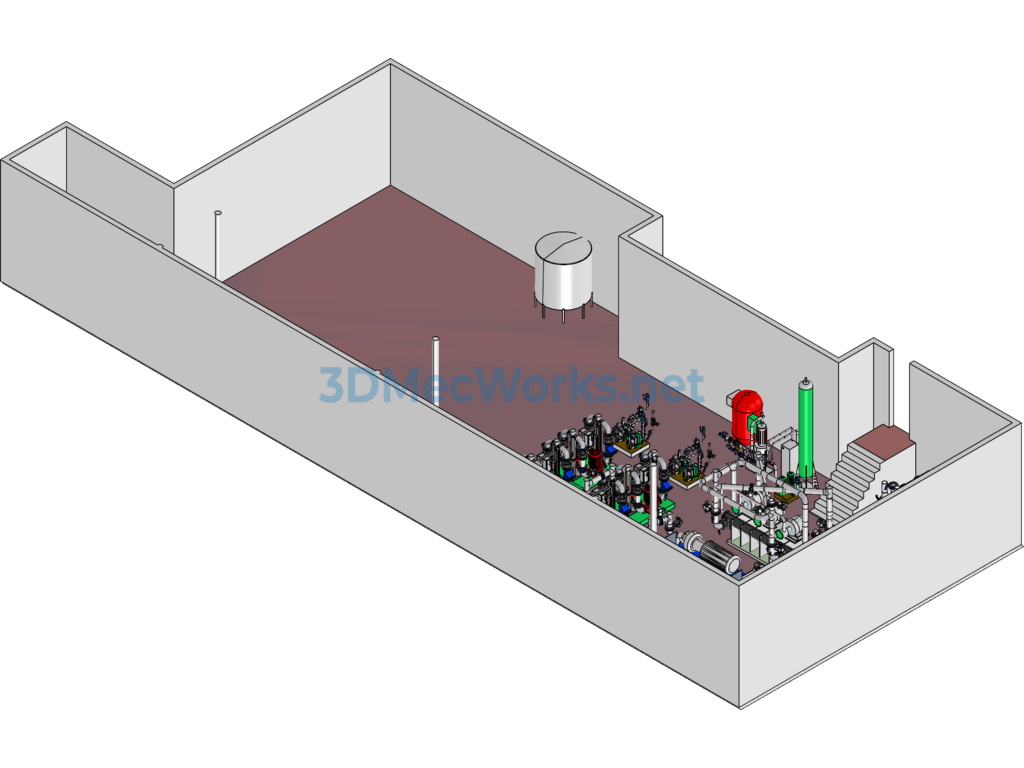

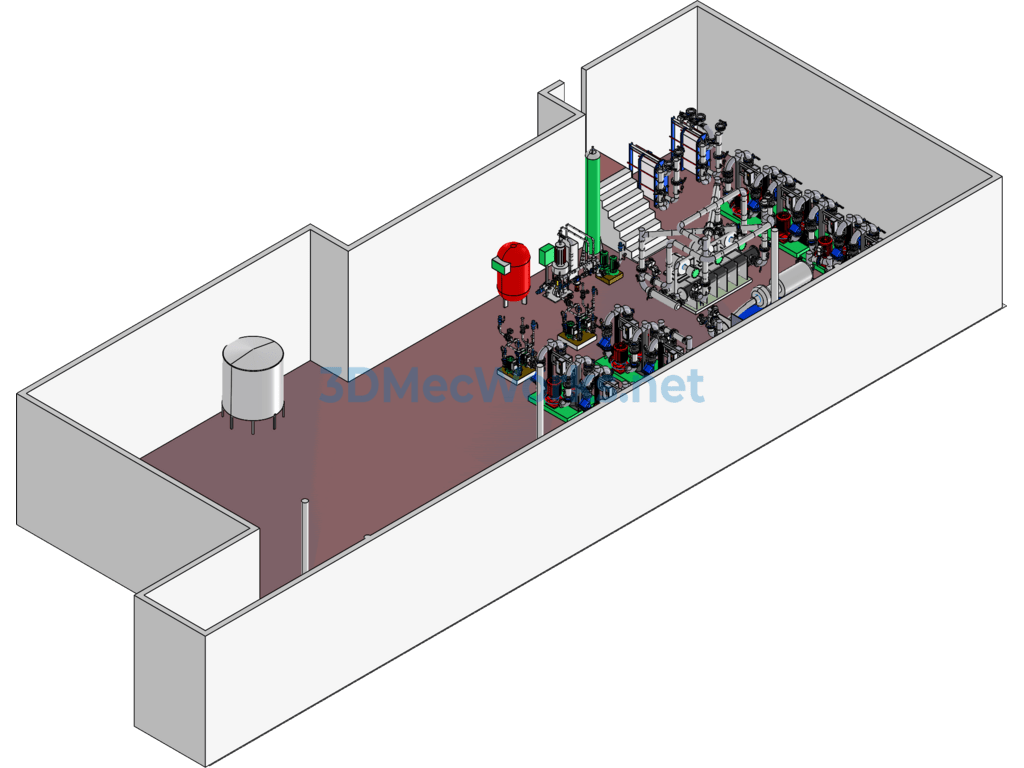

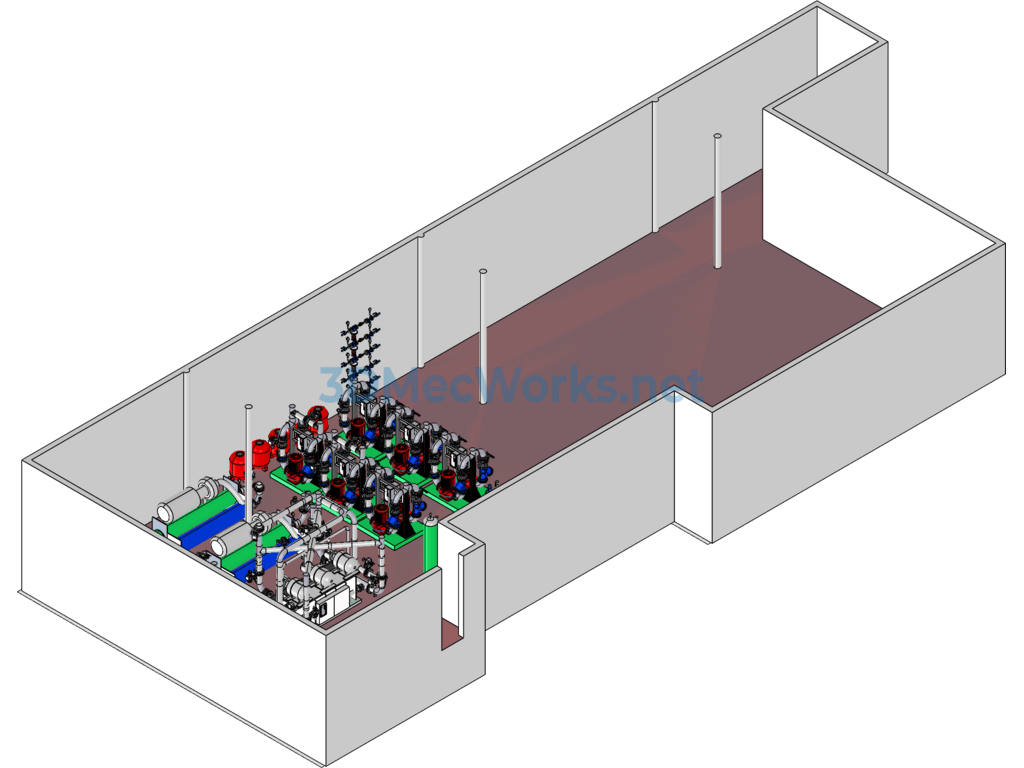

This is a complex design model diagram of a central cooling pipeline system. The pipeline is an apparatus composed of pipes, pipe fittings, and valves, used for conveying gases, liquids, or fluids containing solid particles. Typically, fluids are pressurized by blowers, compressors, pumps, and boilers to flow from high-pressure areas to low-pressure areas within the pipeline. Alternatively, the fluid can be transported using its own pressure or gravity. Pipelines have a wide range of applications and are primarily used in water supply, drainage, heating, gas supply, long-distance transportation of petroleum and natural gas, agricultural irrigation, hydraulic engineering, and various industrial installations.
