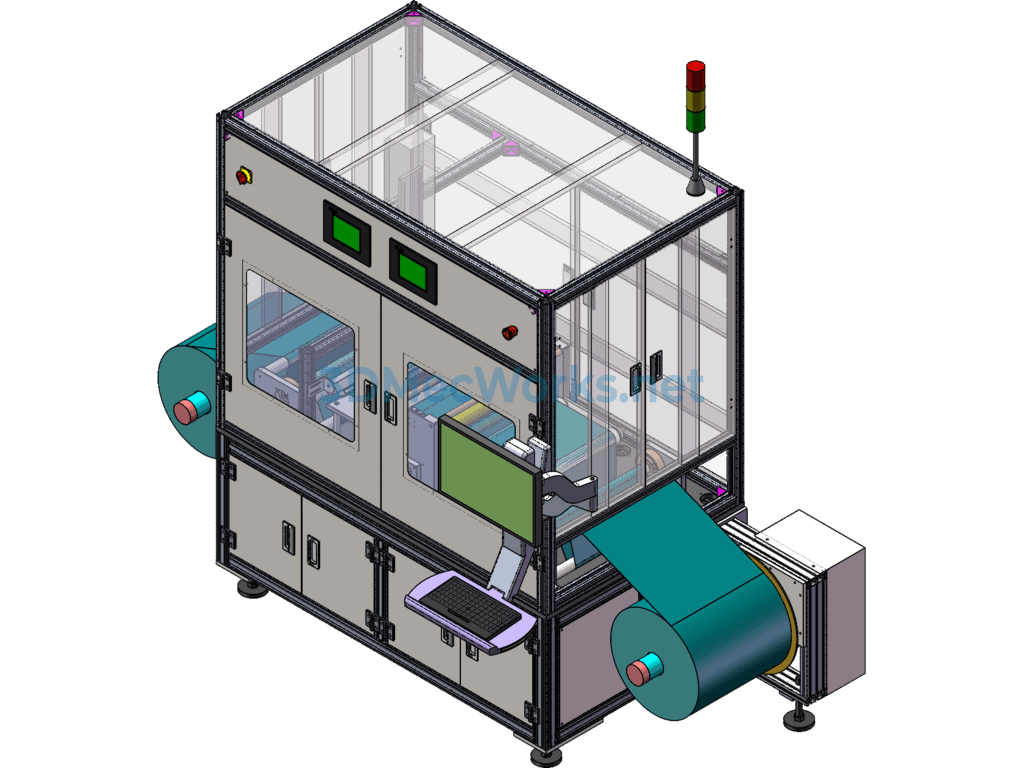

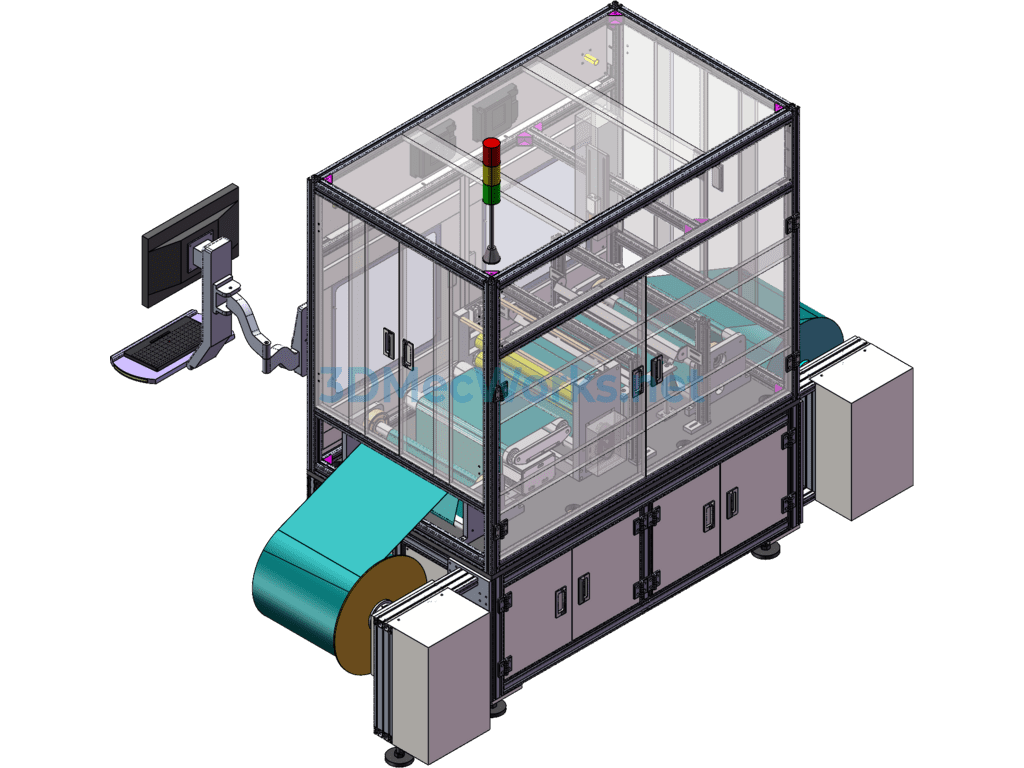

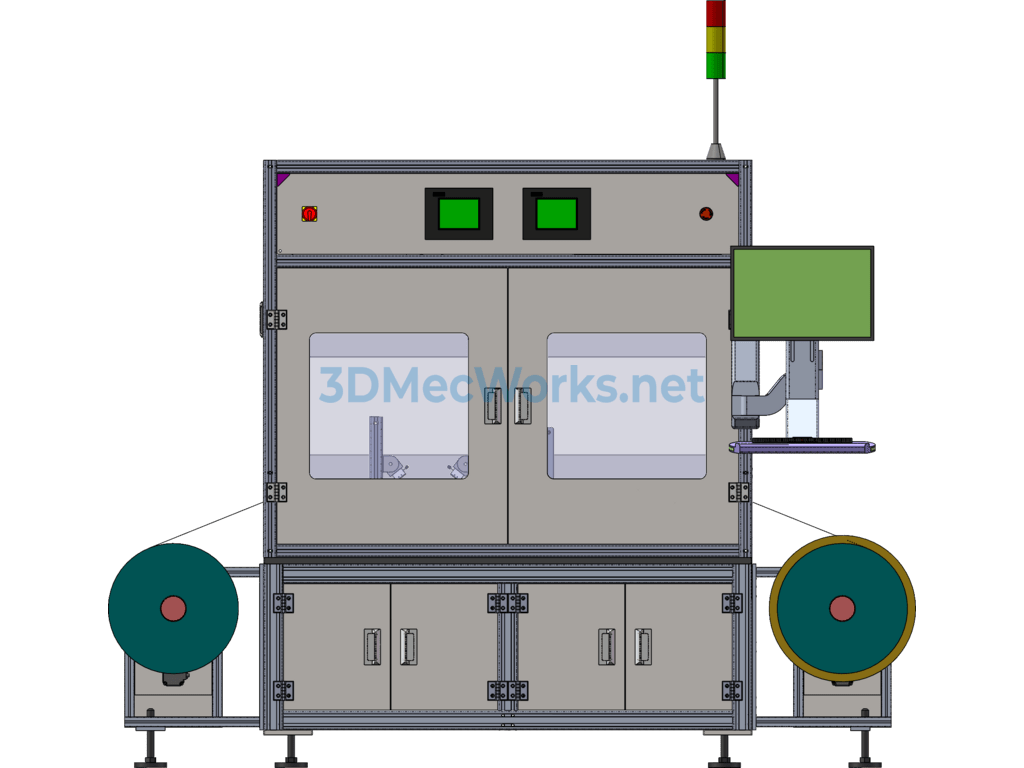

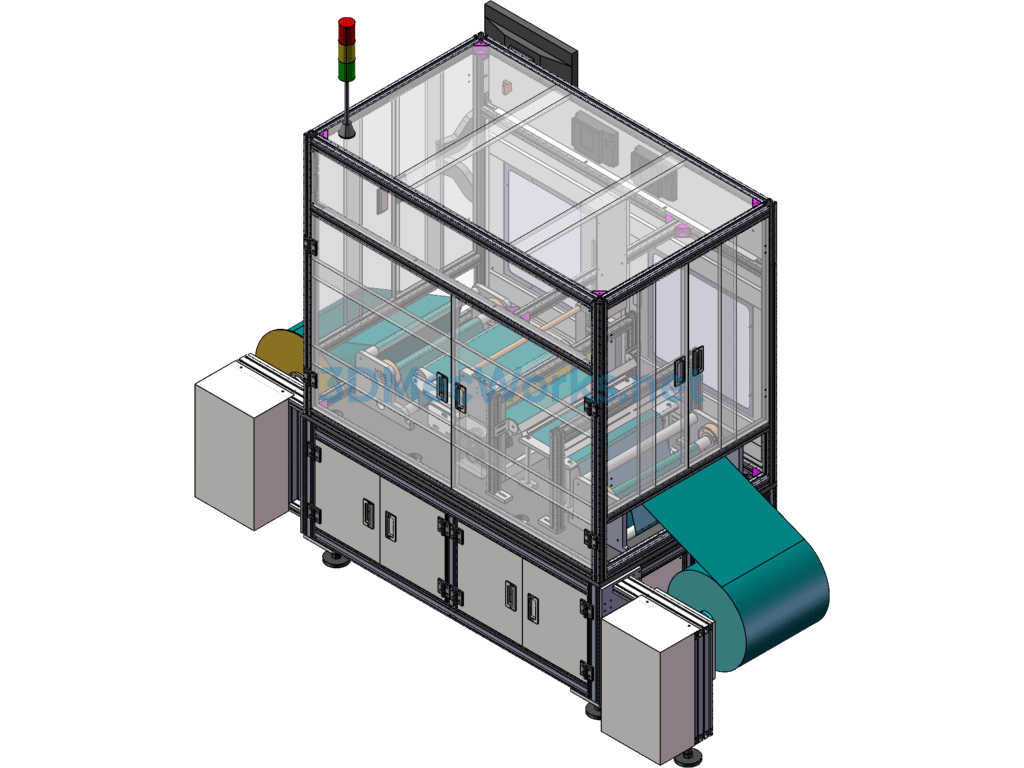

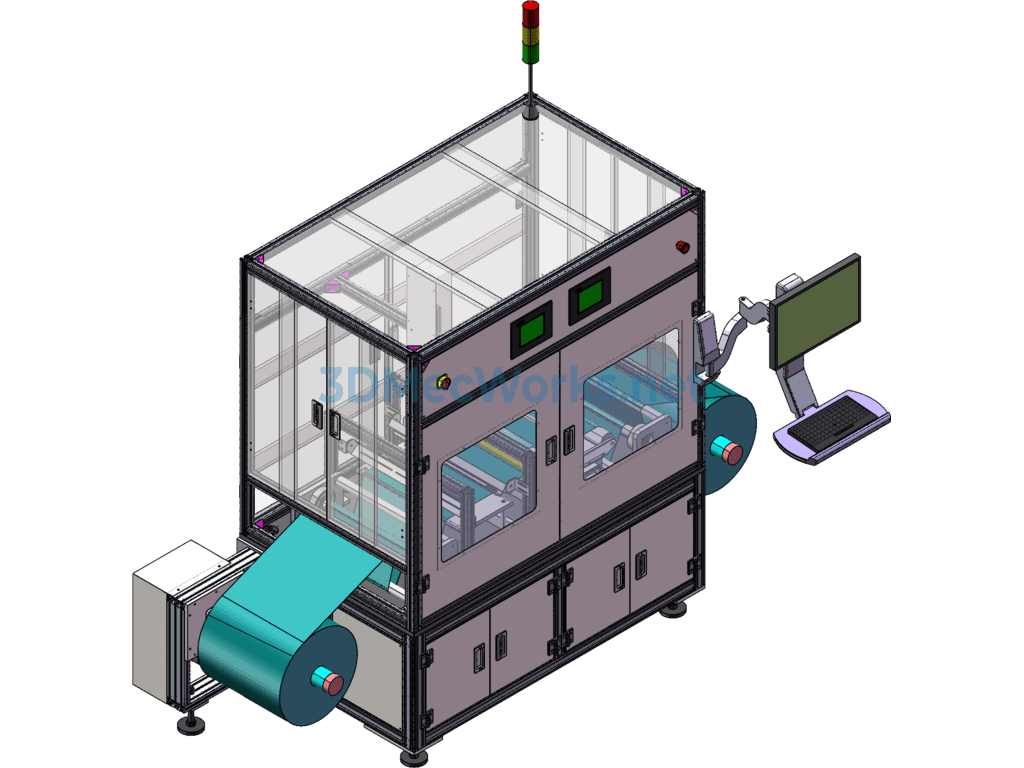

Ccd Winding Inspection Machine

Check the QR code and defects of the tape through the visual CCD. After feeding the whole roll, it is fixed by the air expansion shaft. The head of the tape is connected to the unloading place, driven slowly by servo control. There are correction control systems at both the feeding and unloading places, and a lighting system at the bottom. The CCD camera checks from the top. The system alarms in case of NG. After the whole roll is inspected, it is unloaded.
