Carton Product Palletizing Layout

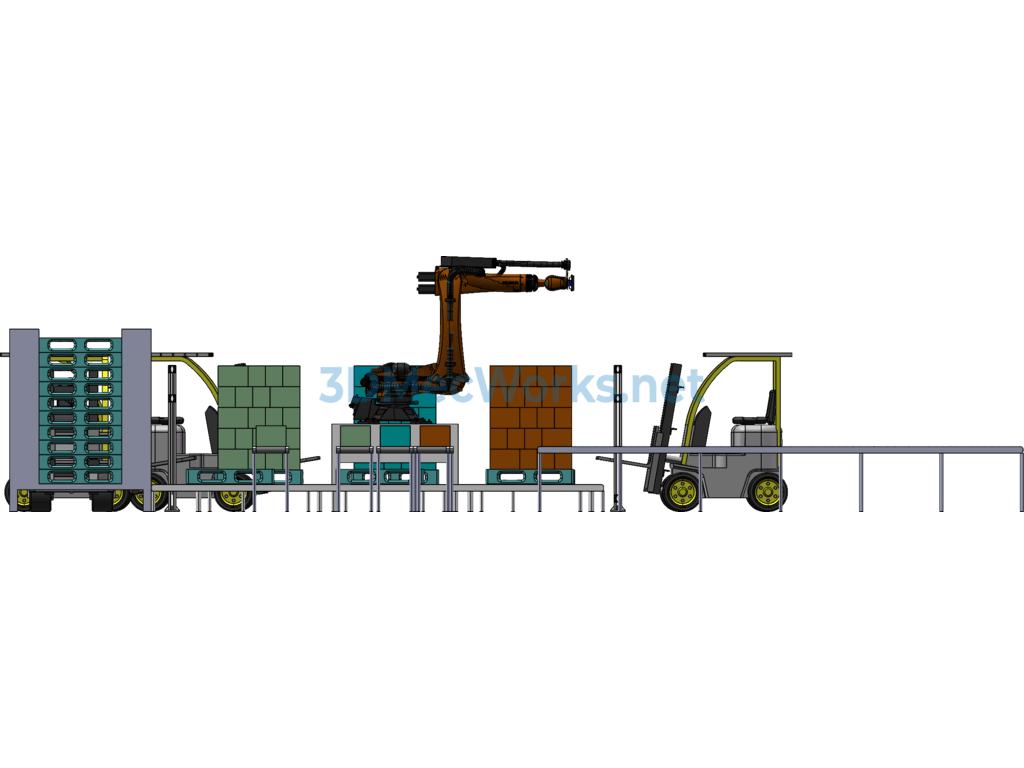

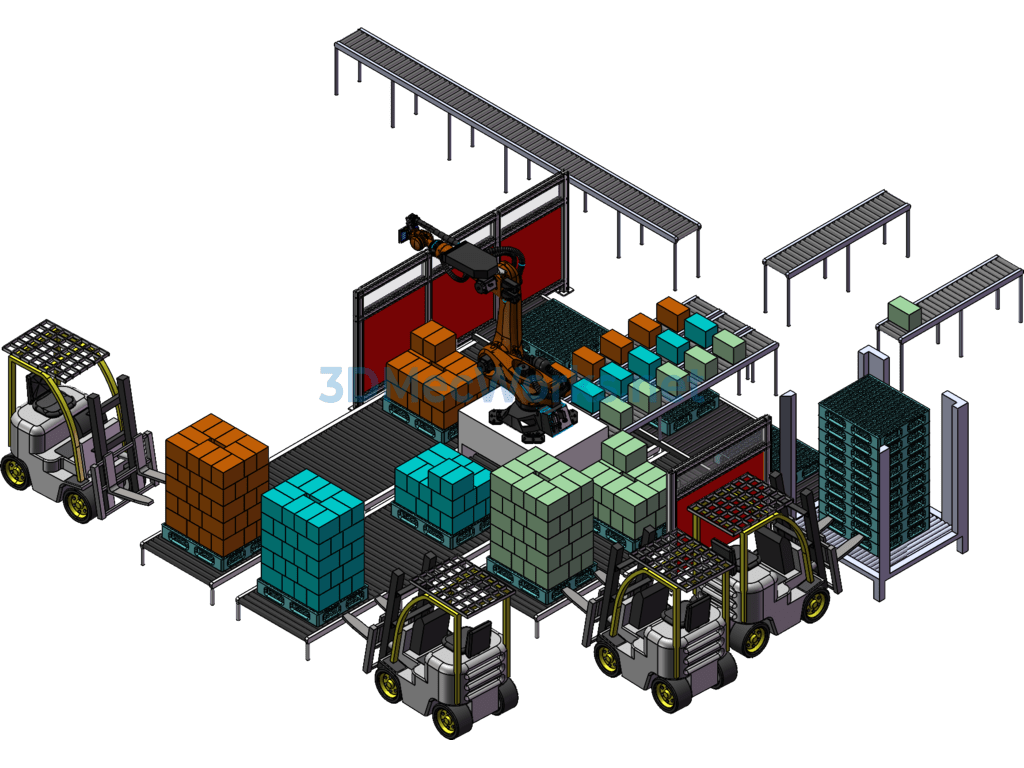

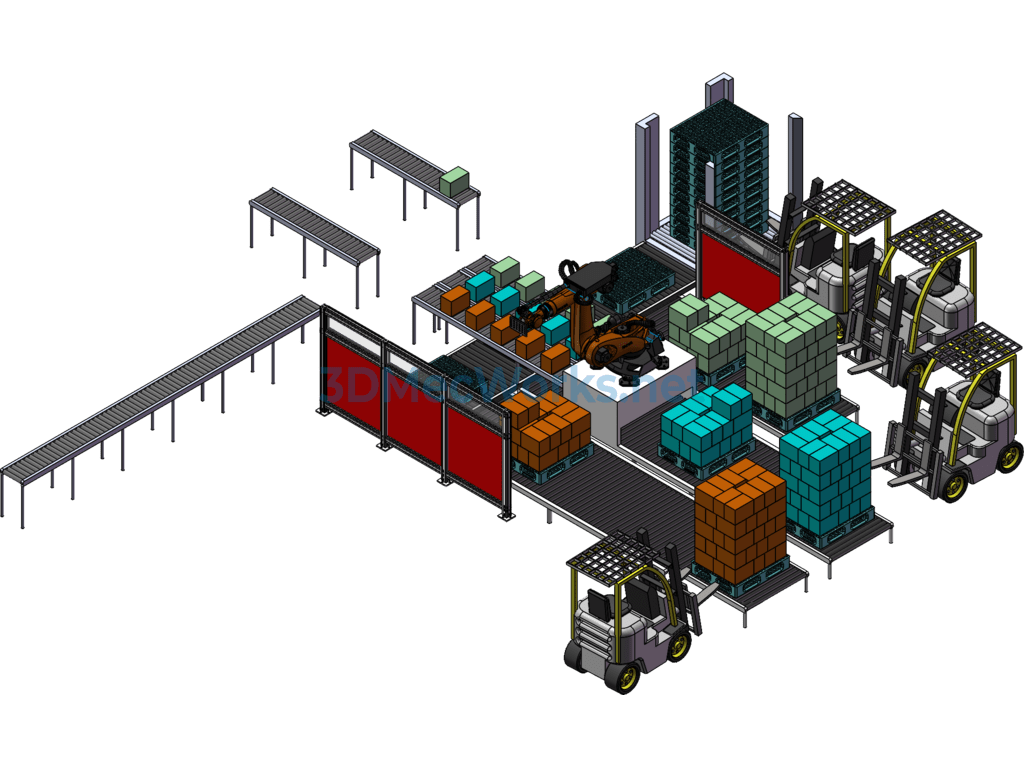

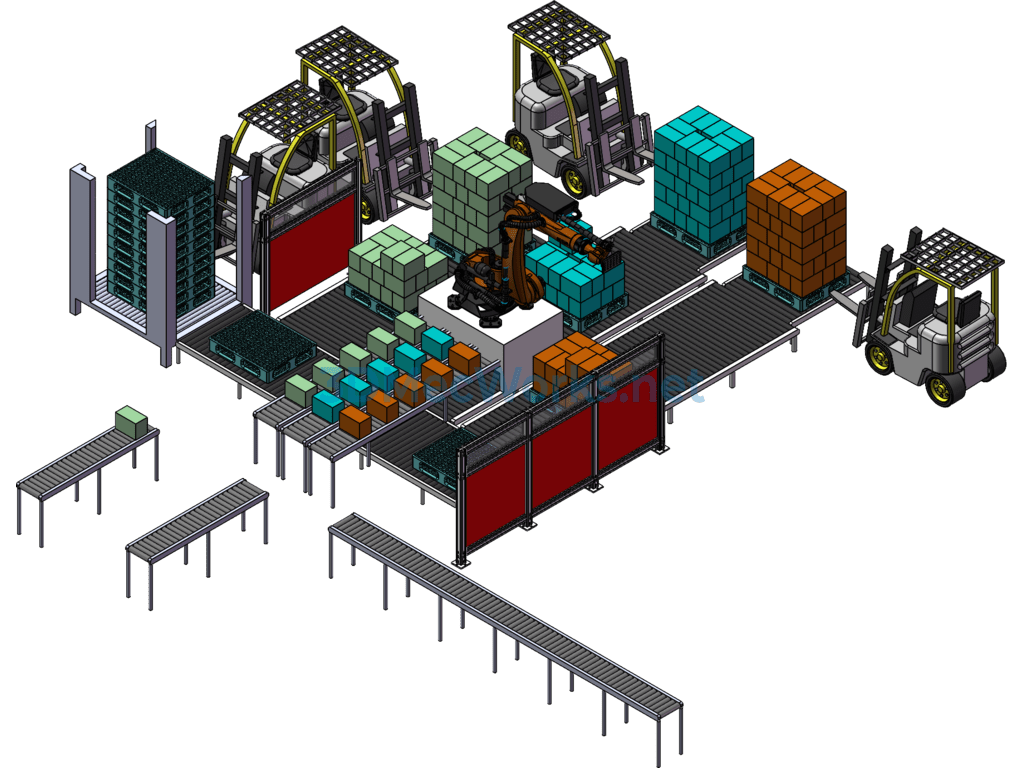

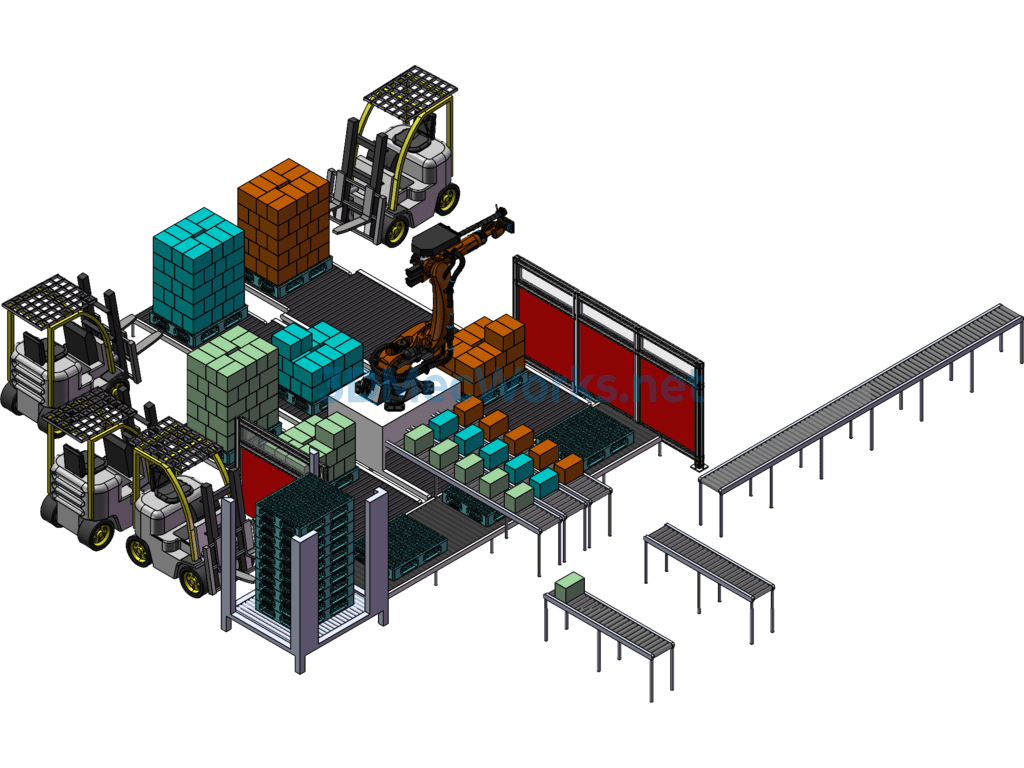

This drawing is for the palletizing layout of carton products. Cartons of different specifications are brought in by conveyor belt, while empty wooden pallets are returned and stacked through the conveyor belt and then retrieved by a forklift. A six-axis robot sorts the cartons by specification, and after palletizing, the materials are collected by a forklift. This mechanism has been verified for stability and reliability. It includes stp/IGES formats, and can be downloaded with confidence!
