Cartd25 Series Diaphragm Compressor

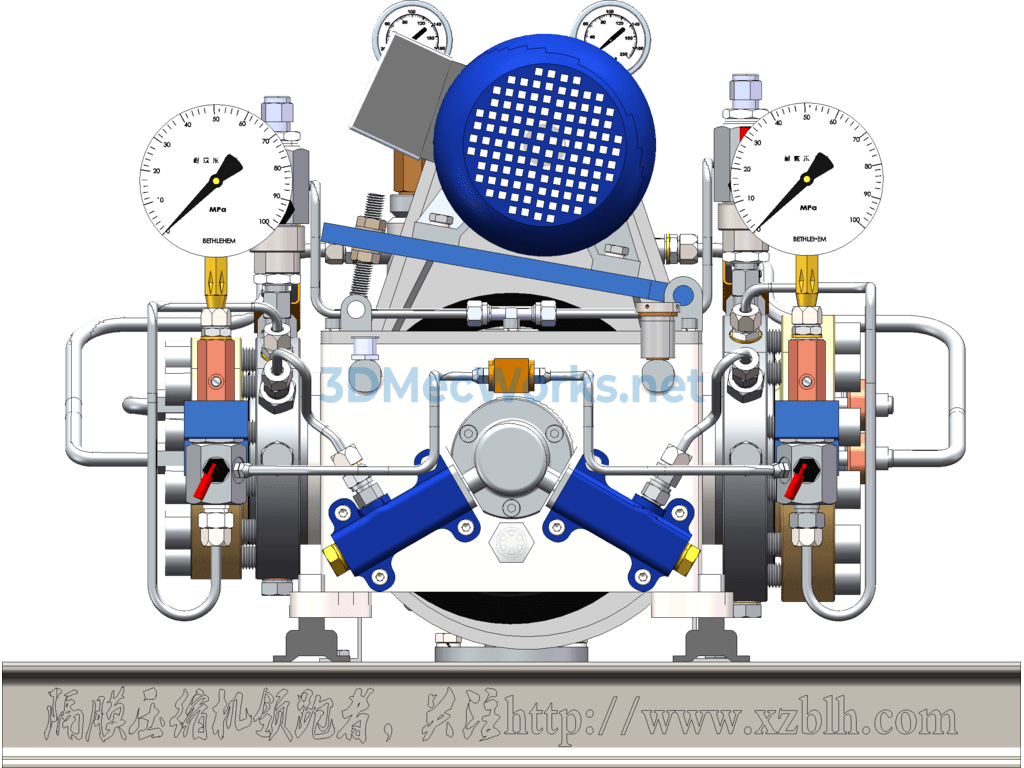

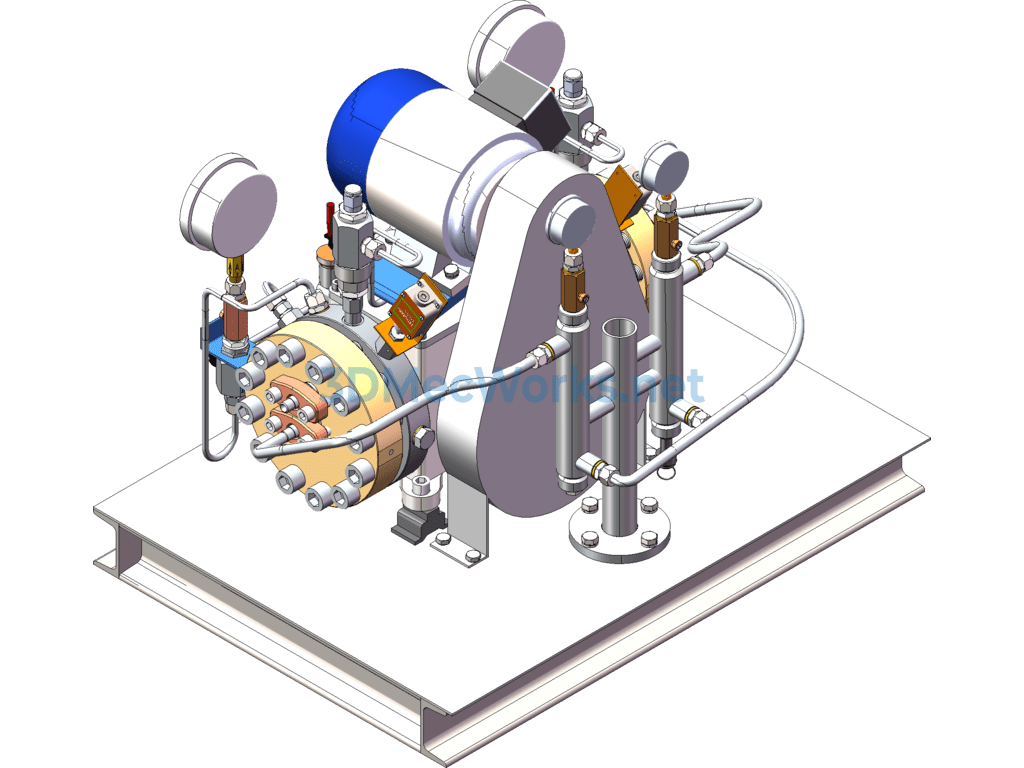

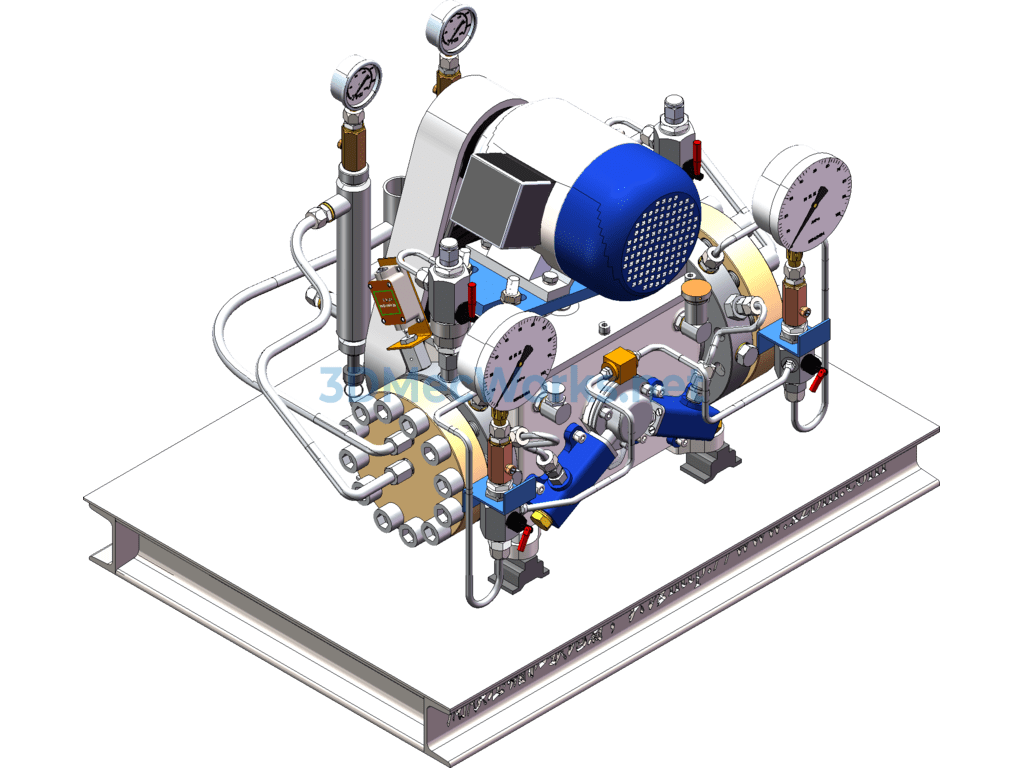

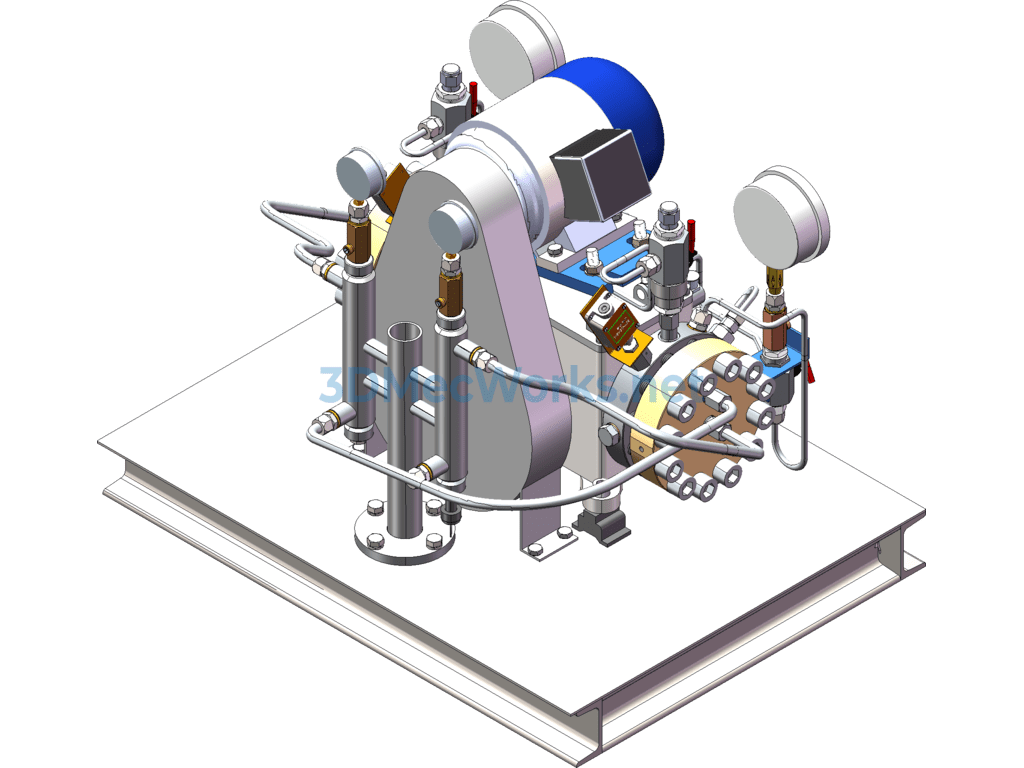

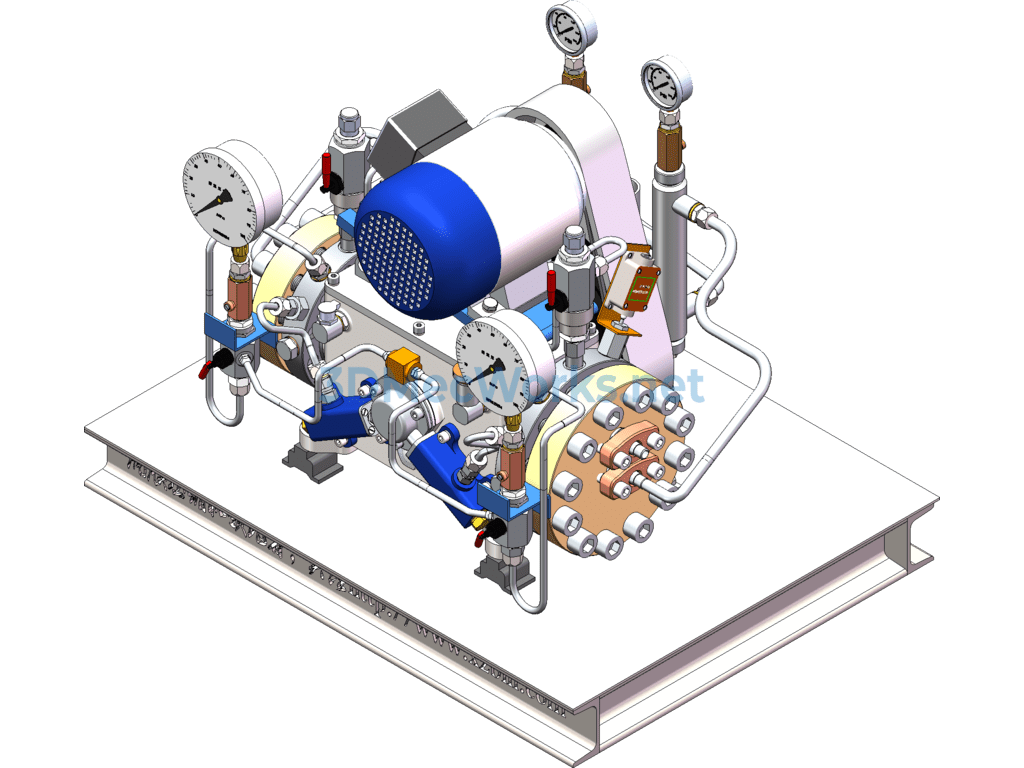

CartD25 Series Diaphragm Compressor, designed with SW2012, includes 273 part drawings, 37 assembly drawings, and 1 general assembly drawing. It contains complete, parameter-editable part features (including table parameters), provided for learning and reference purposes only!

The diaphragm compressor is a type of positive displacement compressor, which compresses gas by changing the volume of the gas chamber through diaphragm deformation. In the diaphragm machine, the cylinder head of the diaphragm head and the oil distribution plate each have a machined curved surface, forming the gas chamber and oil chamber respectively with the diaphragm sandwiched between them. The gas chamber communicates with the intake and exhaust valves installed in the cylinder head valve holes, while the oil chamber communicates through numerous flow-guiding holes on the oil distribution plate with the oil chamber within the cylinder body. Bolts around the diaphragm head fasten the cylinder head, diaphragm, oil distribution plate, and cylinder body together, ensuring both the gas and oil chambers in the diaphragm head are sealed without leakage.
