Carbon Dioxide Cylinder Welding Regulator

CO2 Cylinder Welding Regulator 3D Model, SW Design Source File Sharing! Argon-CO2 Gas Cylinder Welding Regulator Design Model

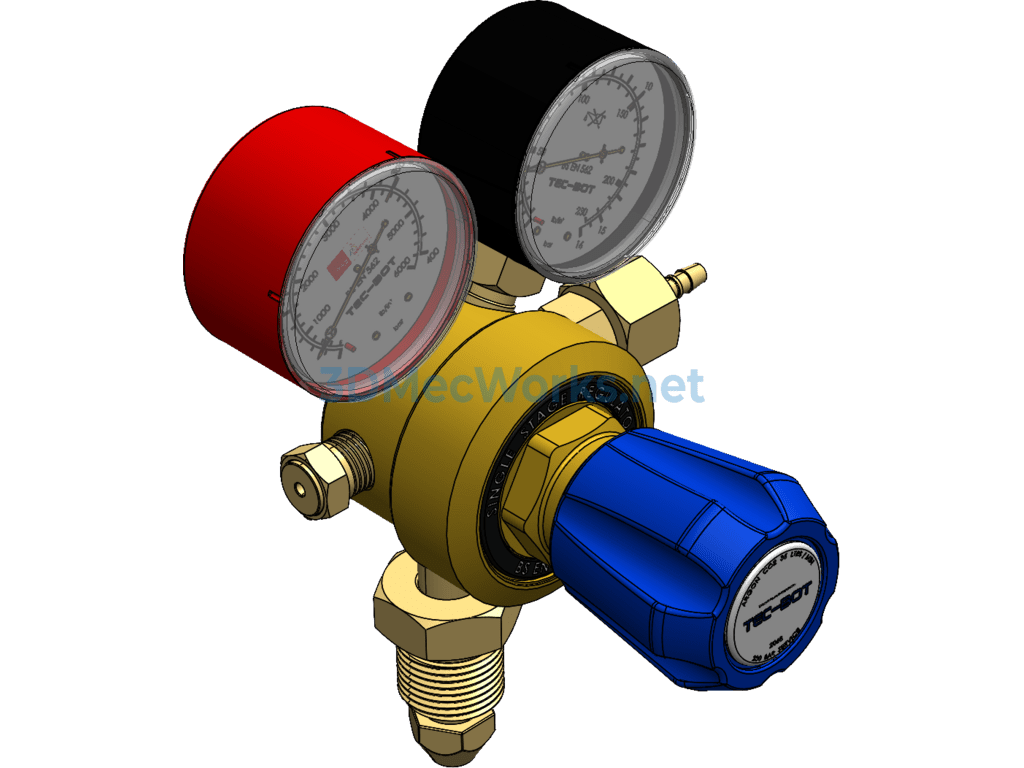

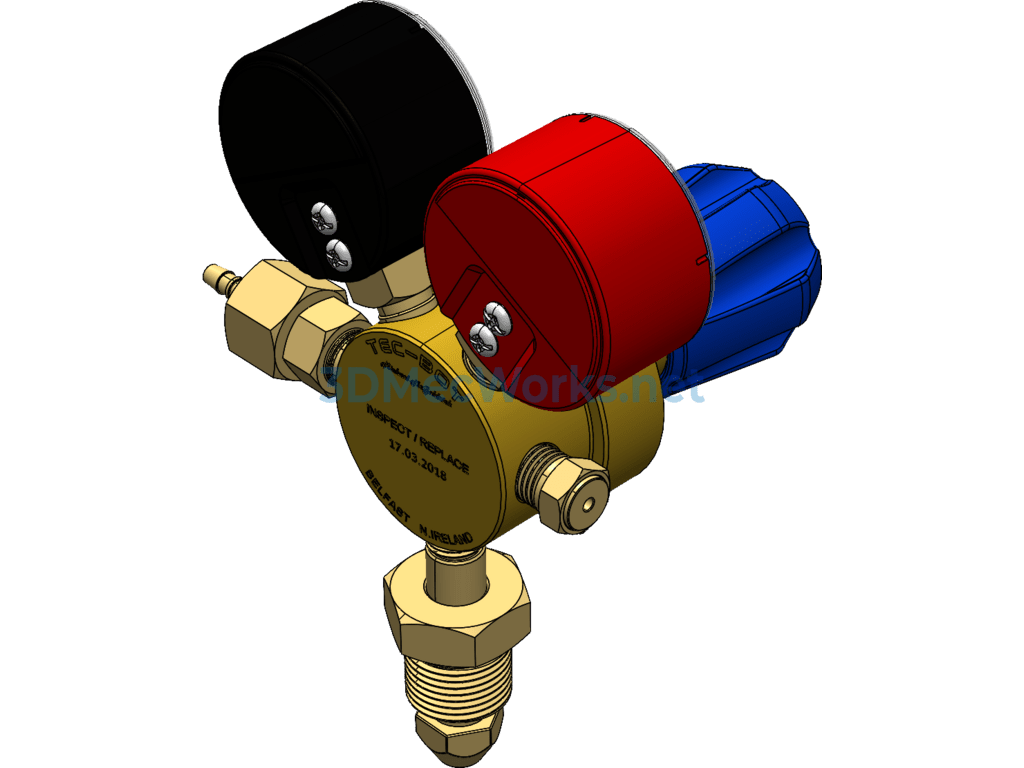

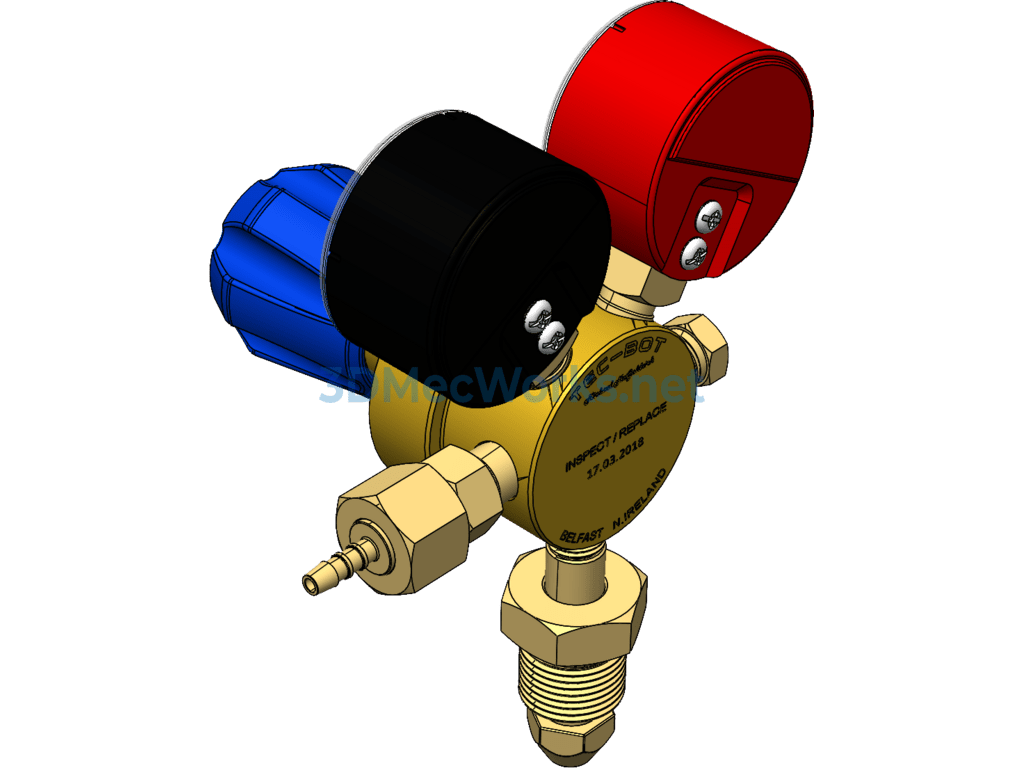

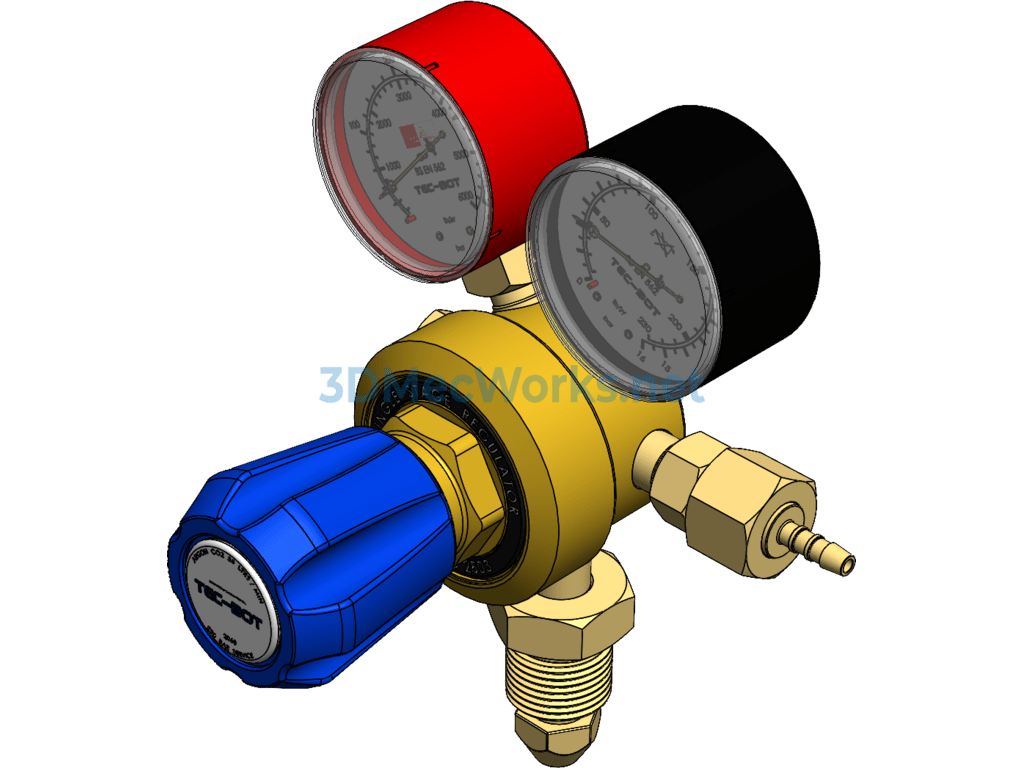

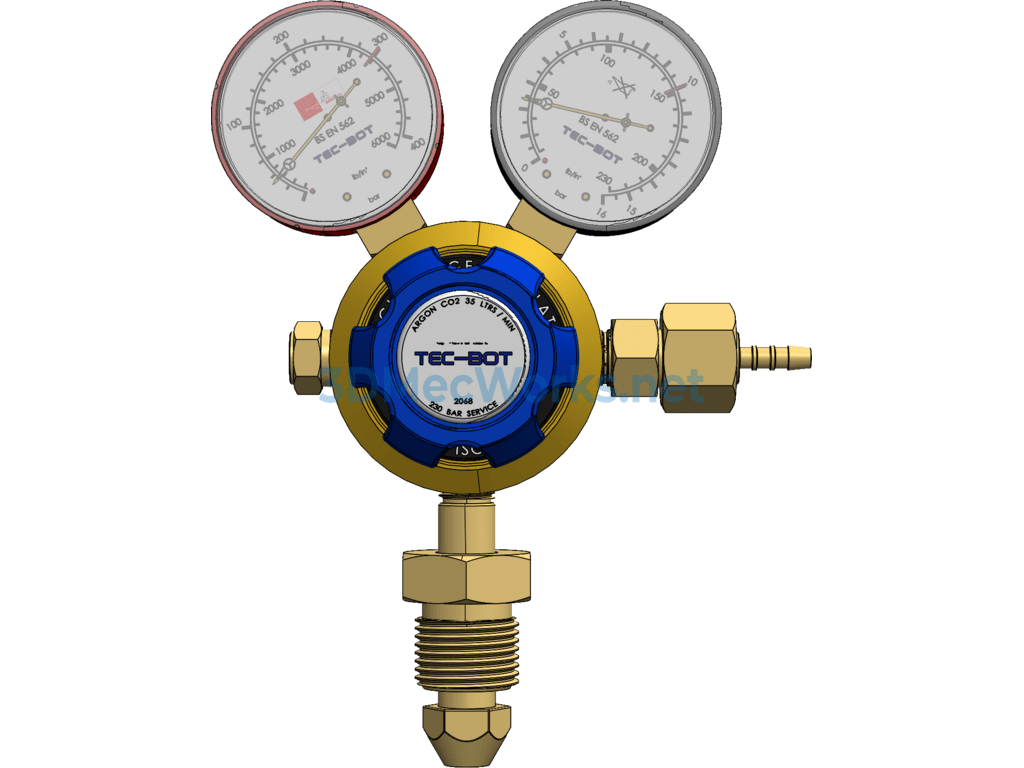

This is a design model for adjusting argon-CO2 gas cylinder welding regulators used in electric welding machines. The model is created using SOLIDWORKS 2014 and includes parameters, allowing for the editing of mapped dimensions. The model is fully developed using basic SW features (such as extrusion, cut, rotation, sweep, etc.) to control gas flow.
