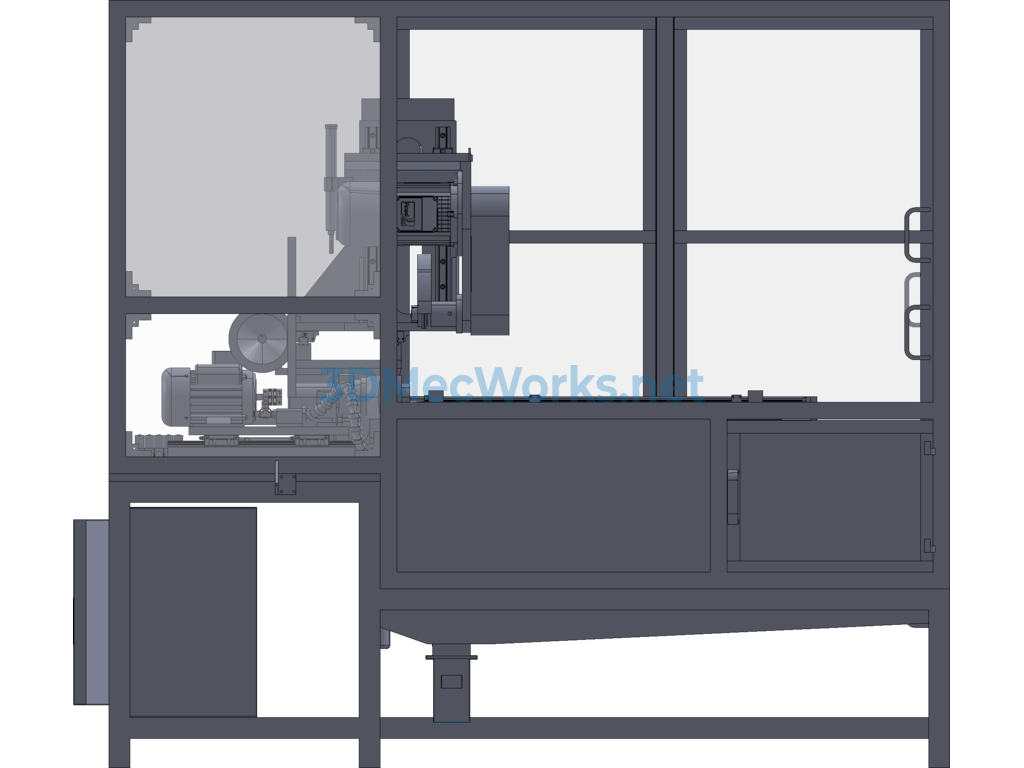

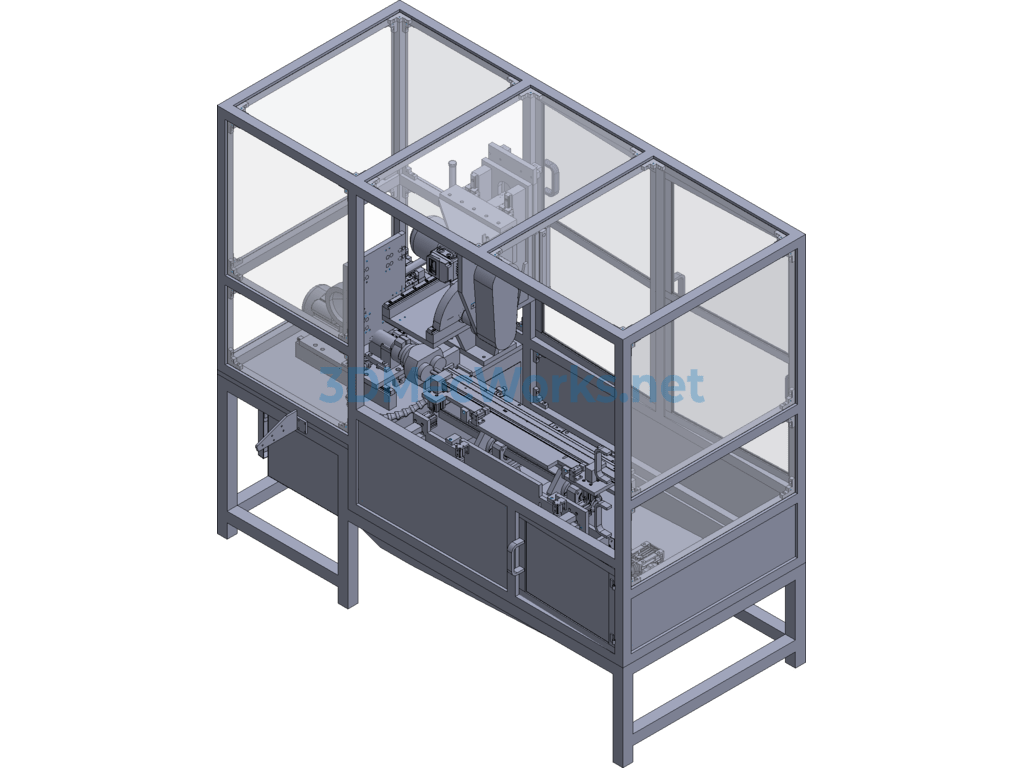

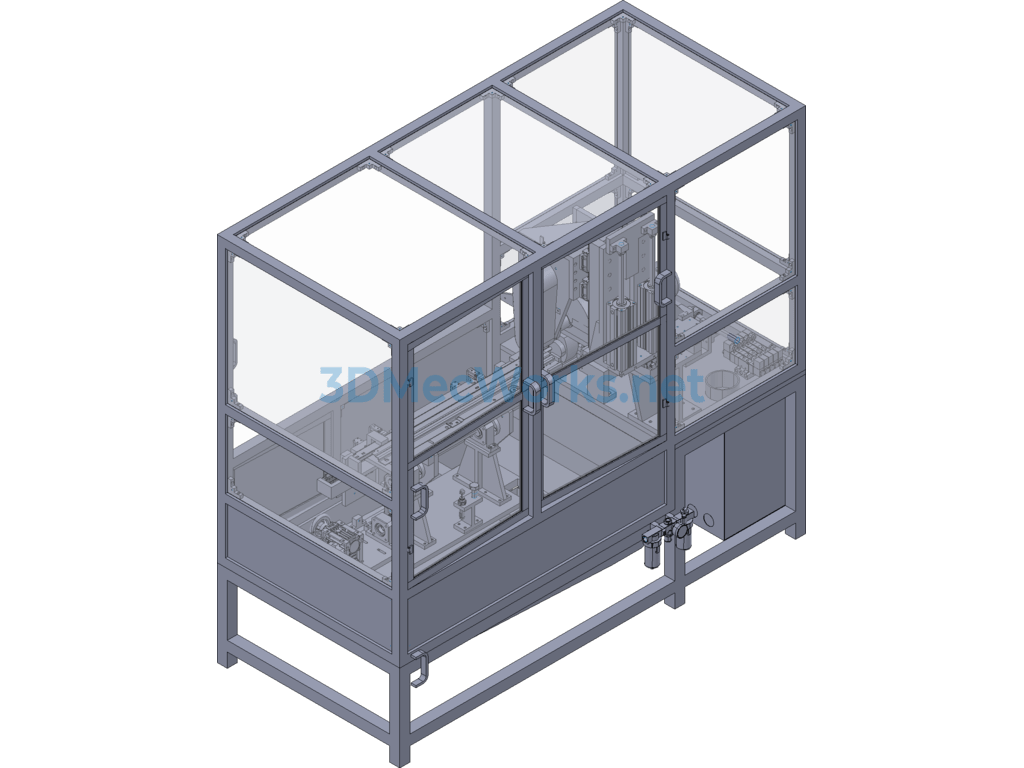

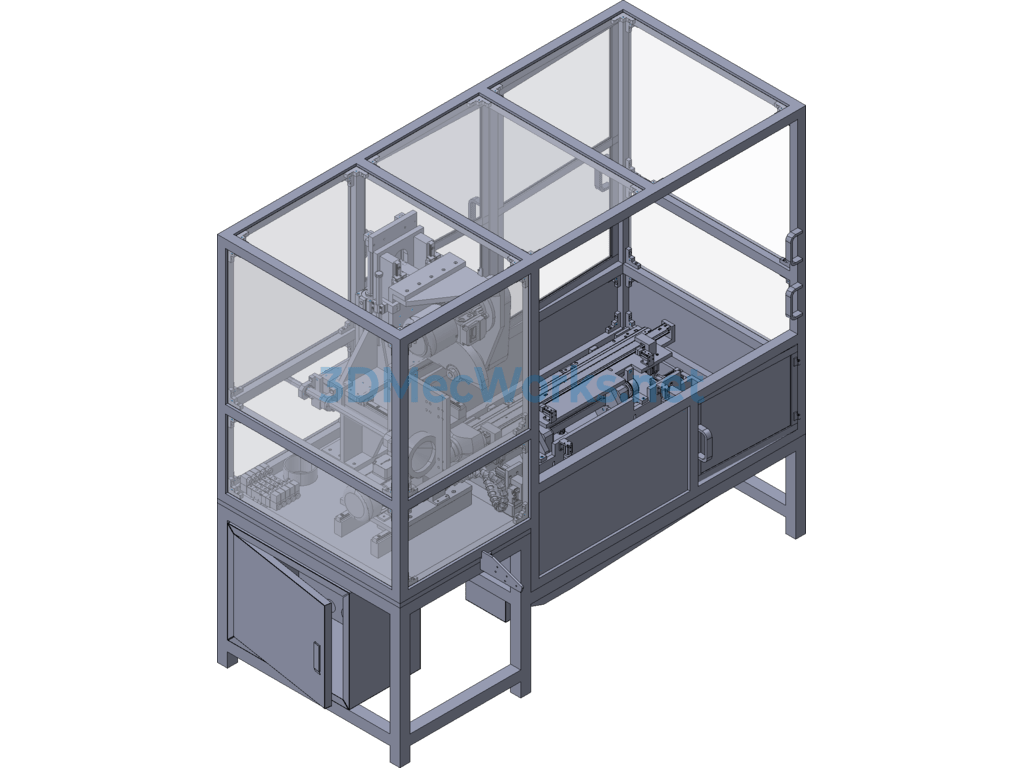

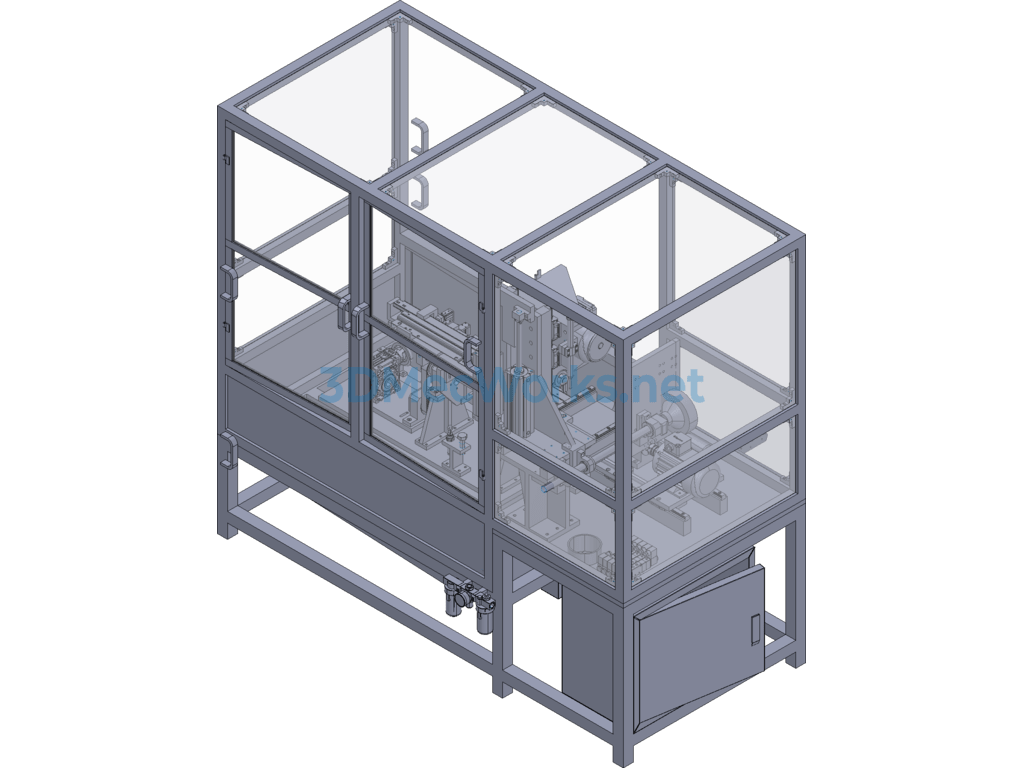

Car Sunroof Guide Rail Sawing and Chamfering Machine

This is developed for a sunroof guide rail, a special machine that simultaneously realizes double-hole chamfering and end face sawing.
Additionally, the tooling for two types of guide rails can be replaced without disassembling the fixture, which is ingeniously practical.
The chamfering and sawing structure is also relatively unique, offering chamfering and sawing functions in a small space.

The entire machine was developed using CREO 3.0, and is now converted to STP format. It is recommended to open it with CREO 3.0.
It is now shared for everyone’s learning and reference.
