Car Door Seal Irregular Notch Punching Machine

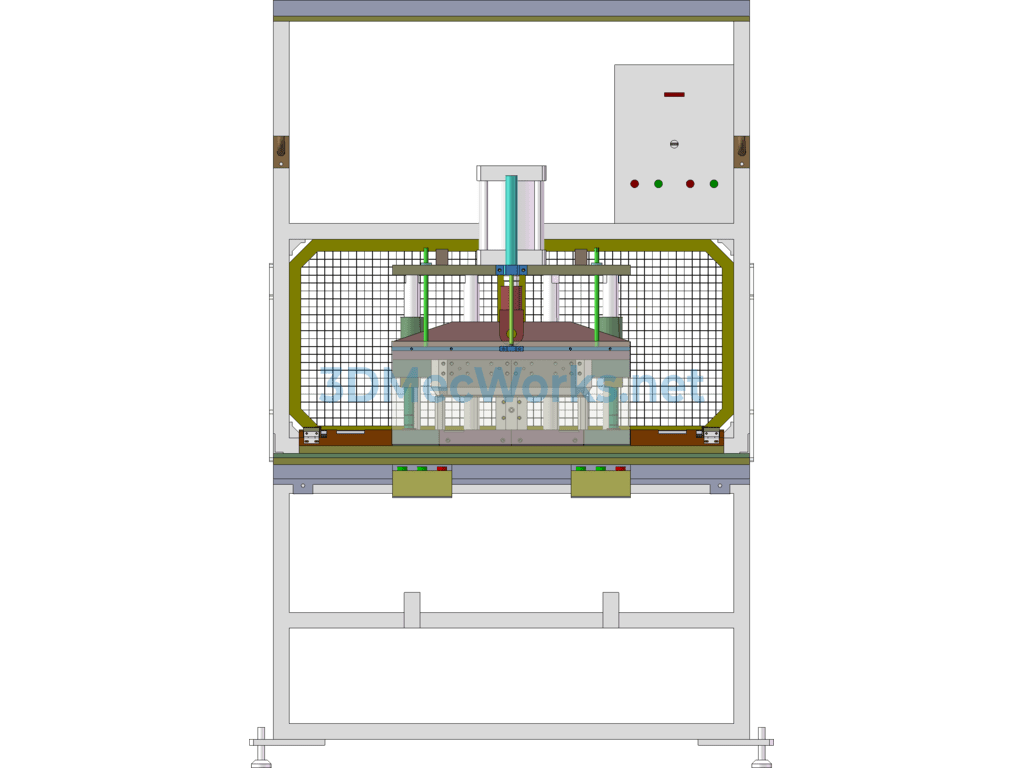

This is an original design of a 3D model of a punching and cutting integrated machine. The product requires a special-shaped notch to be punched in the middle. There is an engineering drawing inside. The equipment is used for punching and cutting the product. The product is relatively soft. The drawings have already been used in actual production and include many classic structures. Many structures can be referenced. The working principle is relatively simple: using the principle of forming a cutting edge with the upper and lower molds to achieve the purpose of punching and cutting. The drawings are very detailed, in SolidWorks 2018 format. Everyone is welcome to download.
