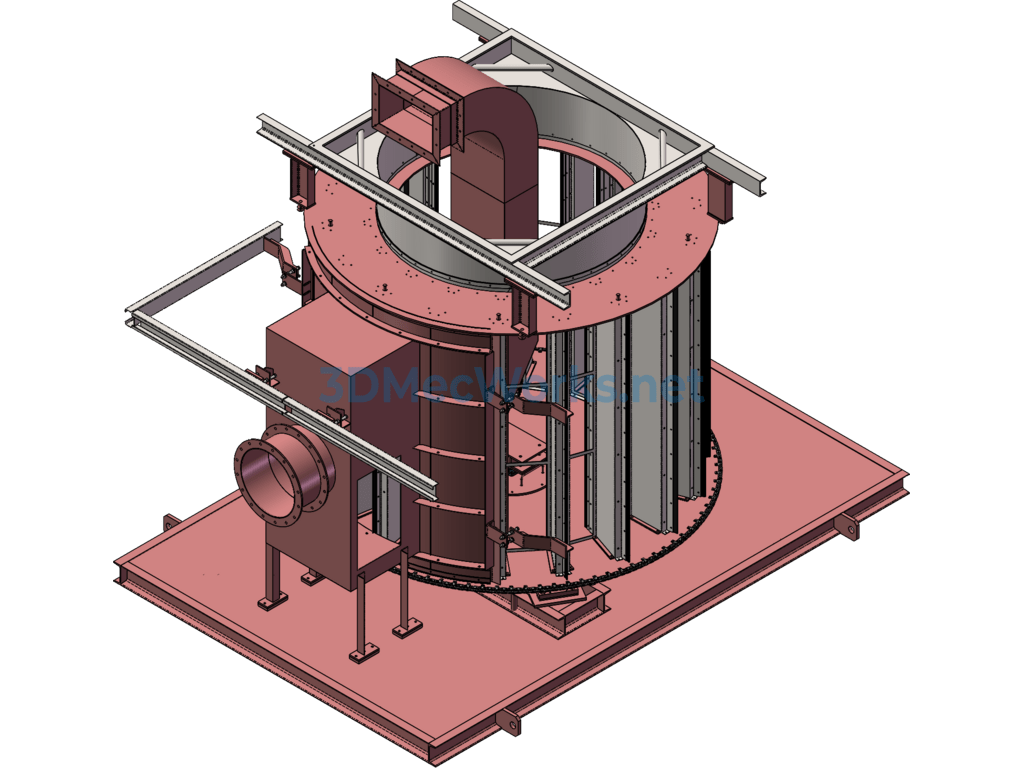

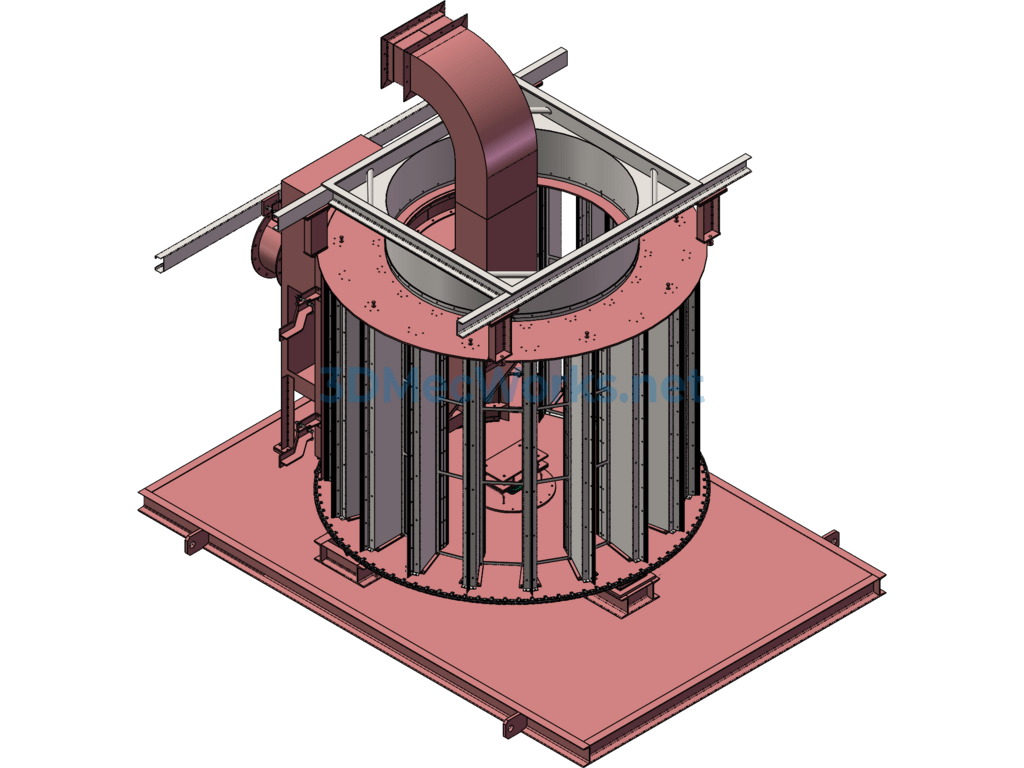

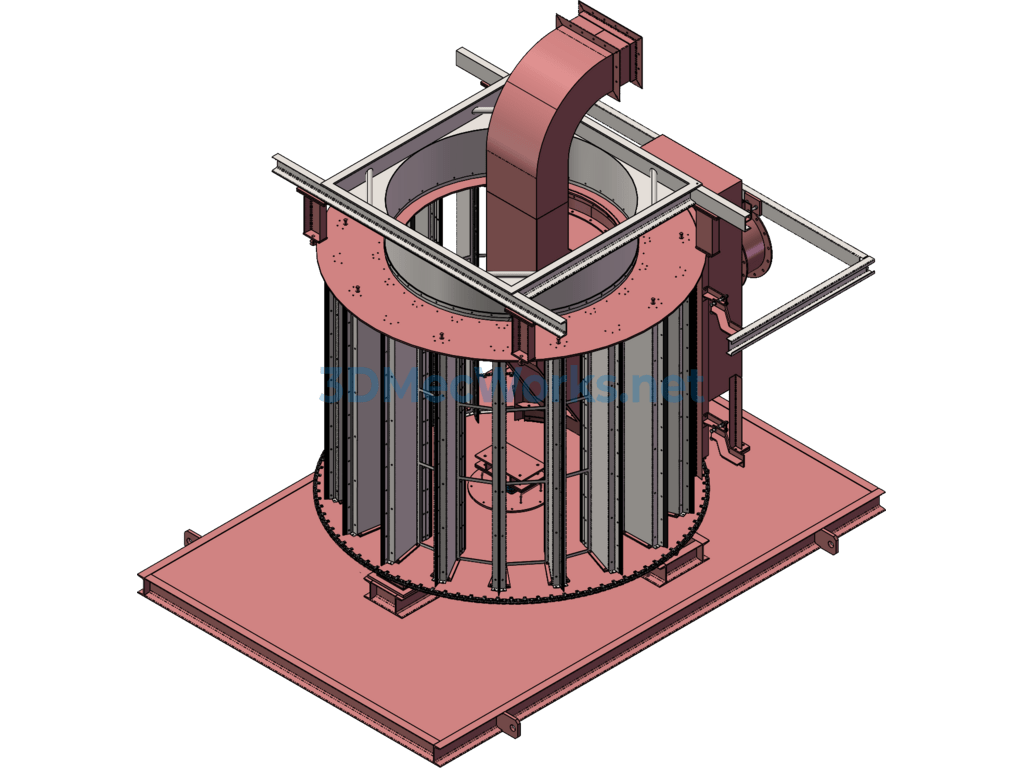

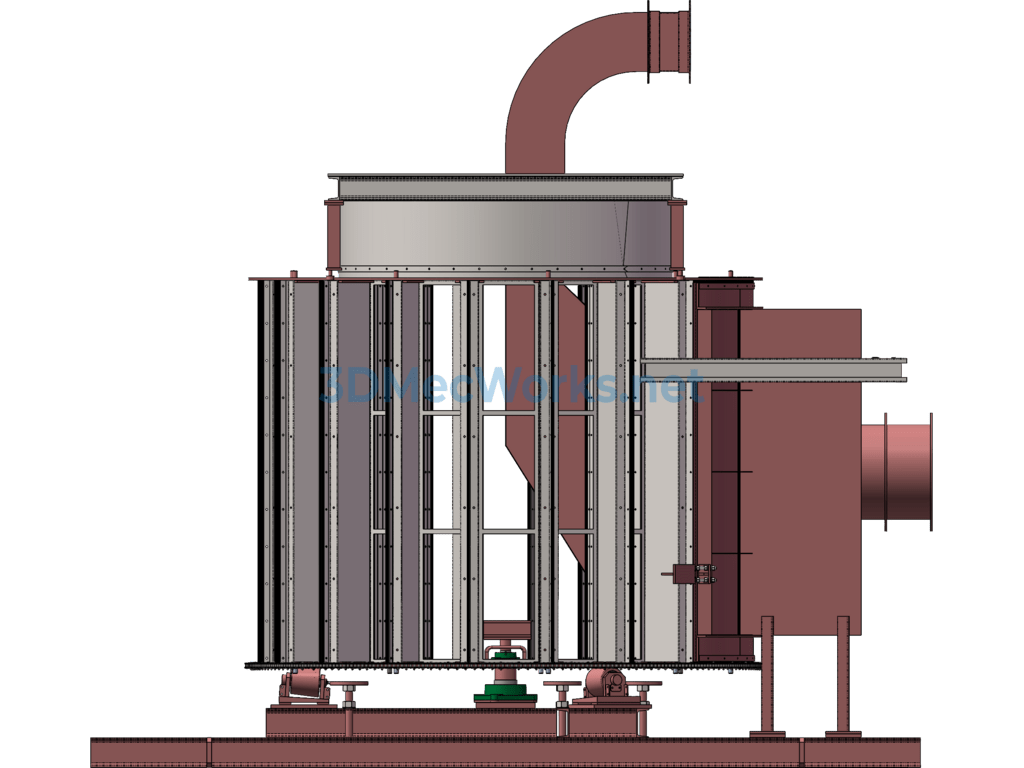

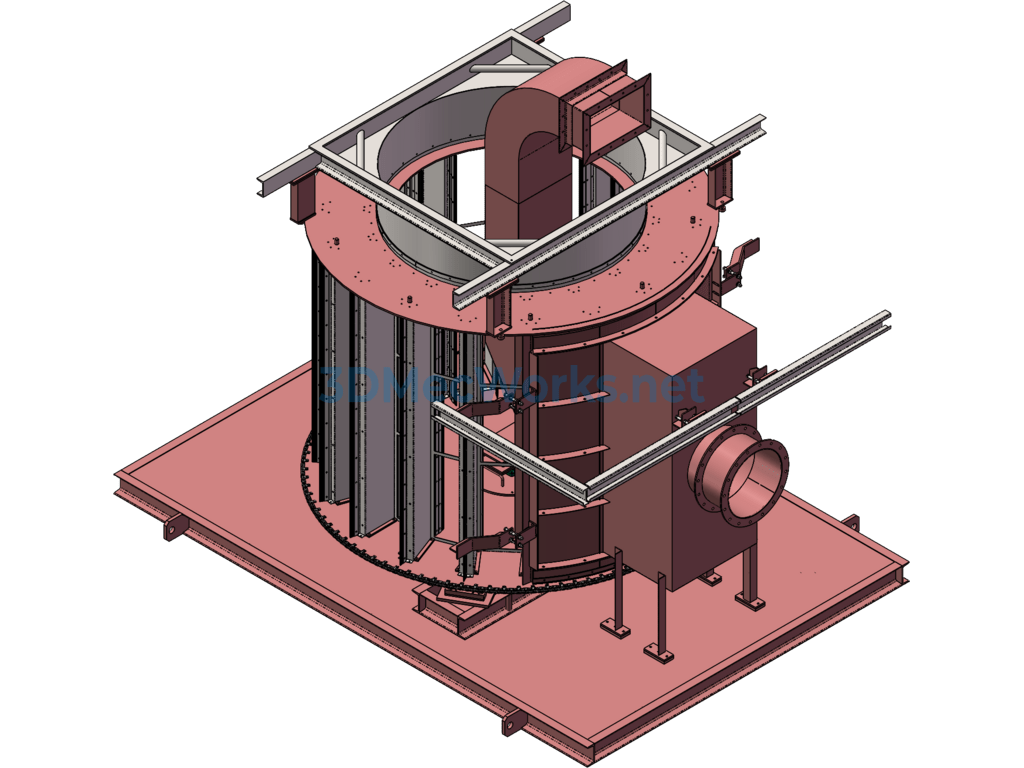

Detailed structure diagram of tube-type zeolite rotary wheel device _x000D_
Includes assembly drawing and its component drawings, with clear structure. _x000D_
The detailed assembly structure of components is clear at a glance, and the equipment is an upgraded product for VOCs exhaust gas treatment. _x000D_
It has improved the technical defects and shortcomings of existing exhaust gas treatment equipment (including disc-type rotary wheels), offering a tube-type zeolite rotary wheel concentration device with a simple structure, reasonable design, and easy use. _x000D_
It is especially suitable for handling low concentration and large air volume. _x000D_
The zeolite rotary wheel is designed in a tubular form with a modular zeolite design, making transportation and installation convenient. _x000D_
The concentration factor can reach 40 times, purification efficiency is 98.5%, and later maintenance is very convenient. _x000D_
Includes 3D drawings and CAD development sheet drawings.
