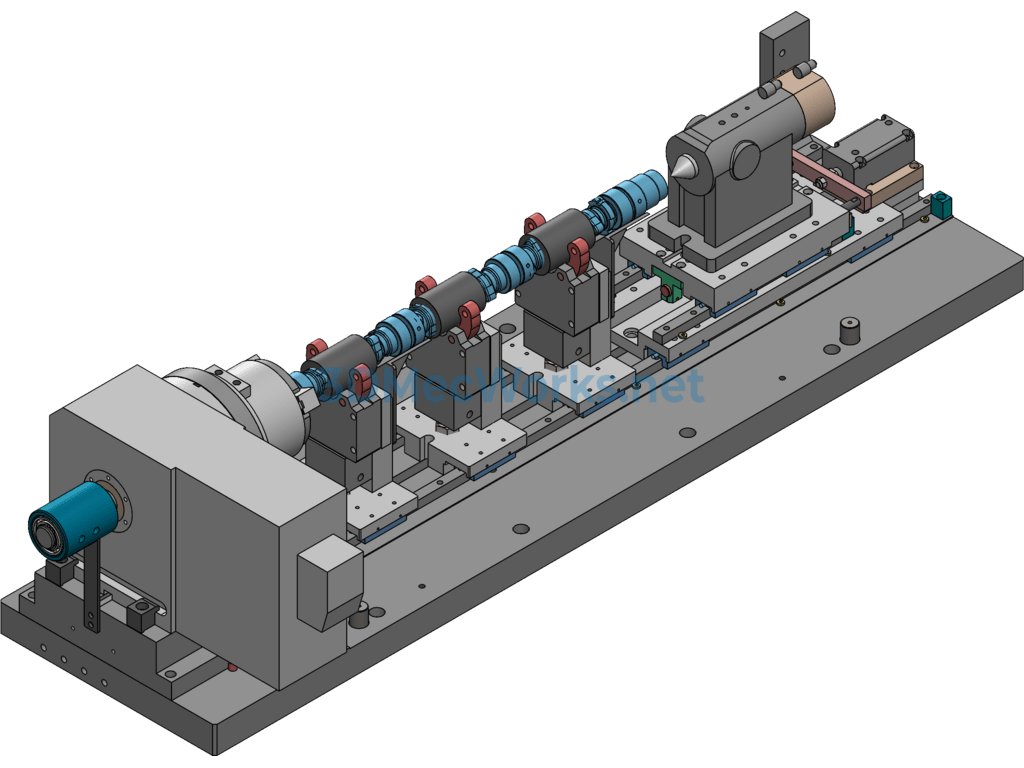

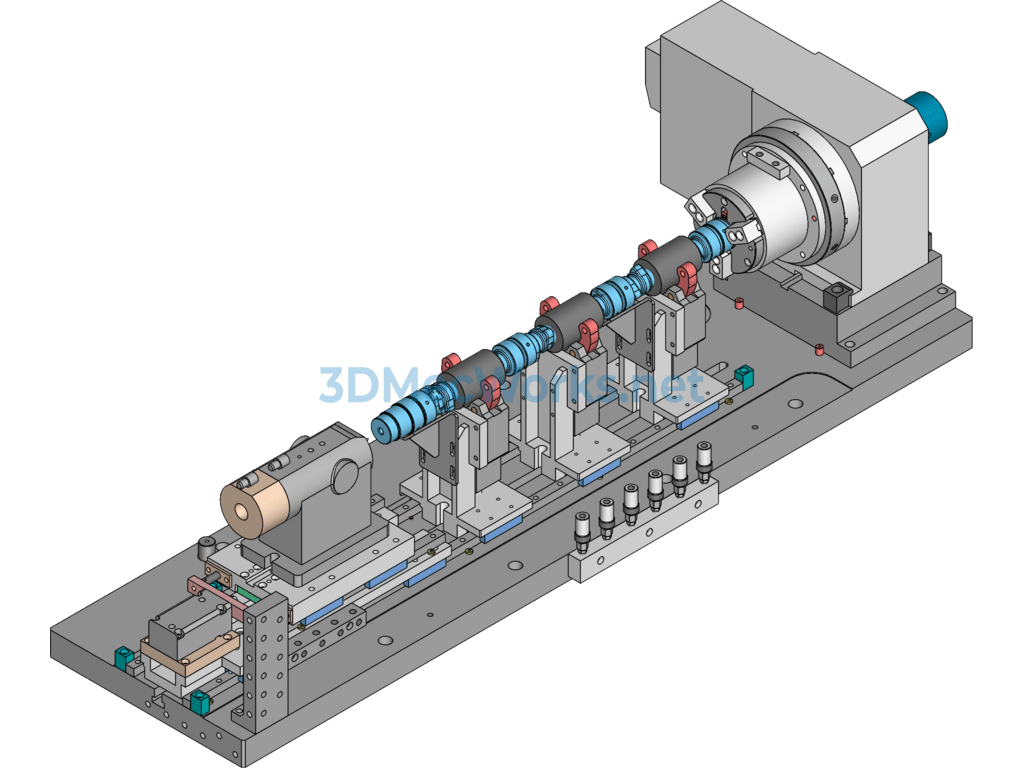

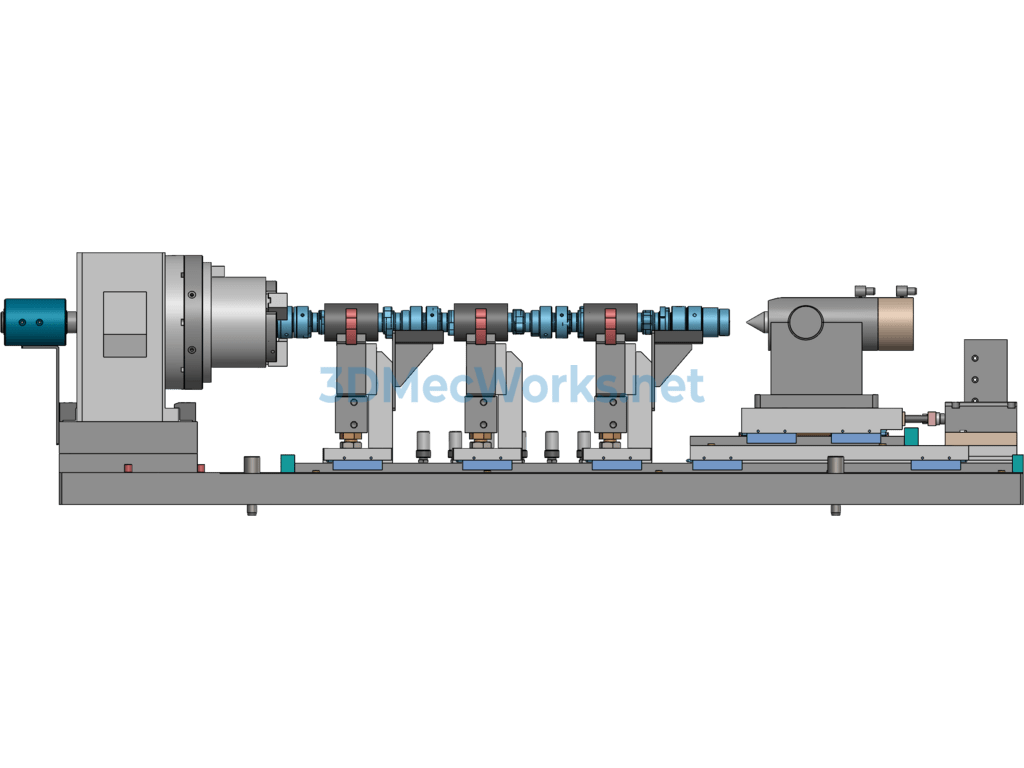

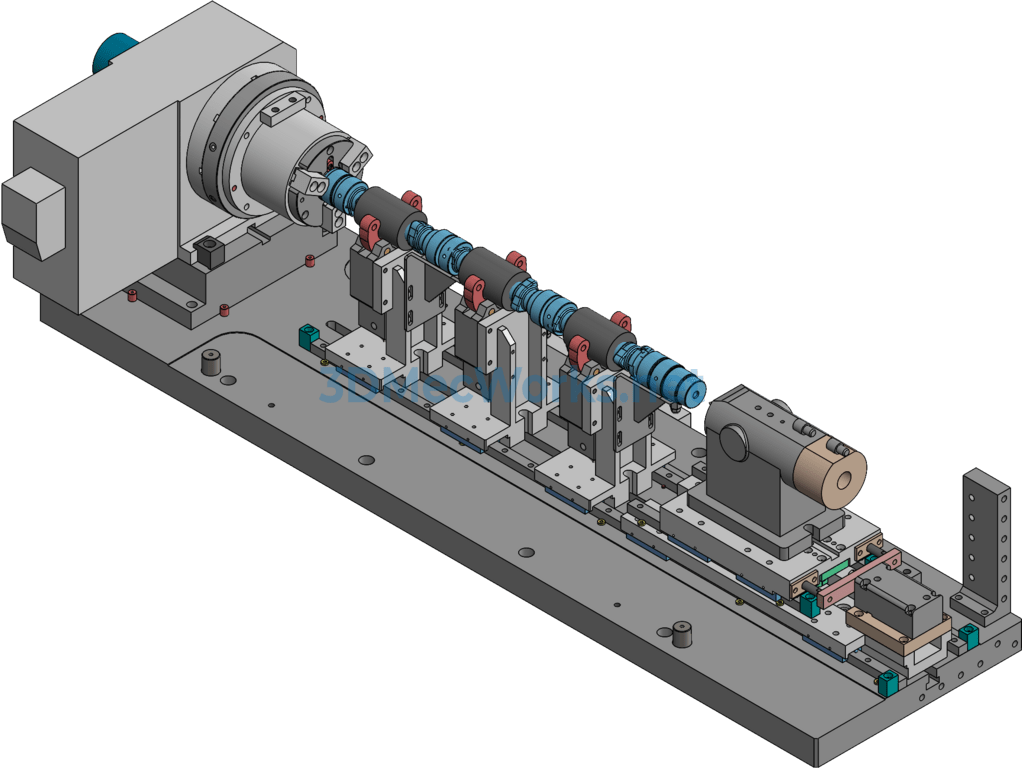

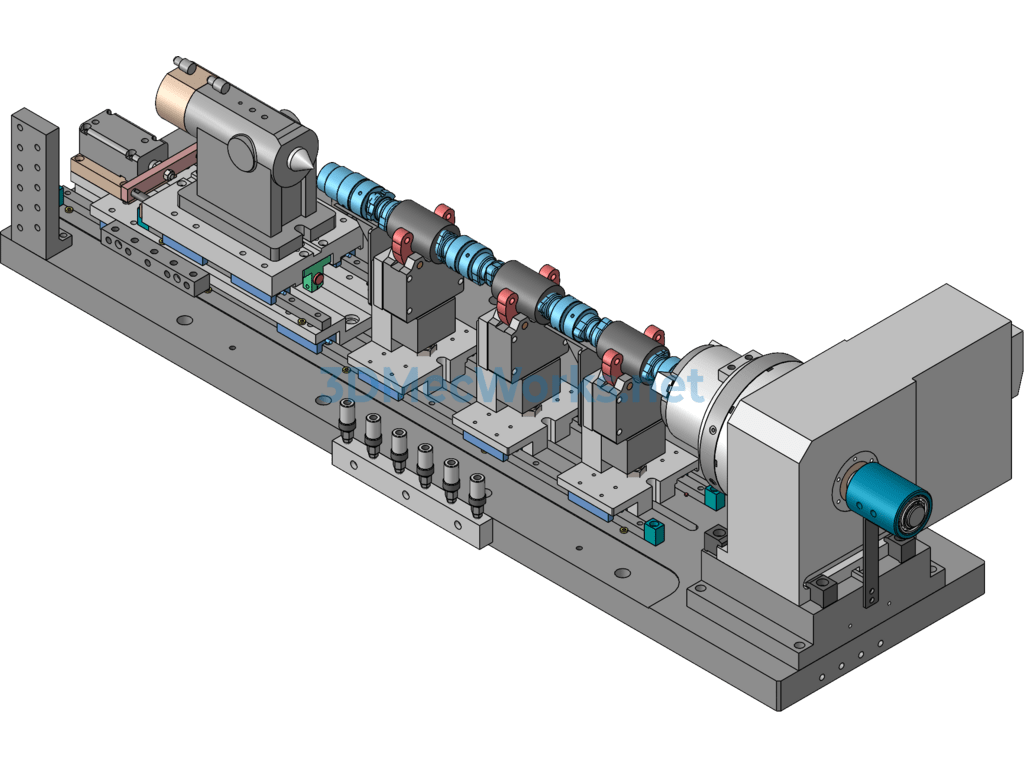

Camshaft Jig Assembly Drawing
This illustration is an assembly drawing of the camshaft hydraulic fixture, designed to be used with the CMV-1100A machine tool, with a worktable size of 1200×600. This fixture employs workpiece center positioning and features a 6-hole angular direction. The approximate weight of the fixture is 650KG.
Specification: Camshaft Jig Assembly Drawing
|
