Cam Transfer Mechanism

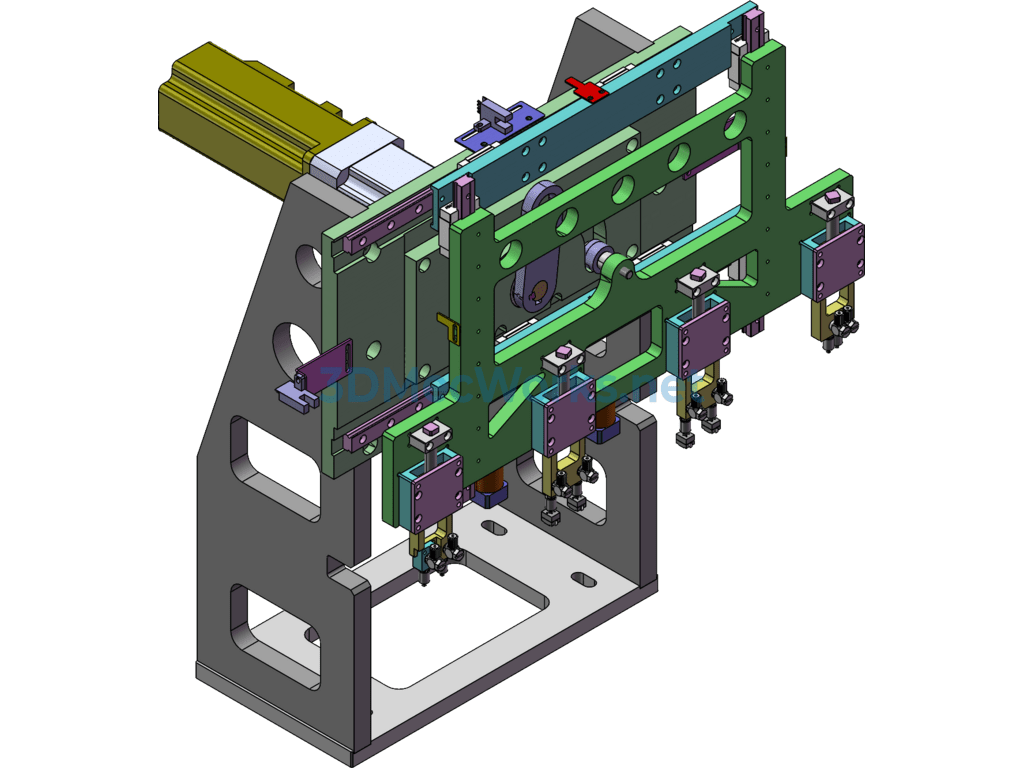

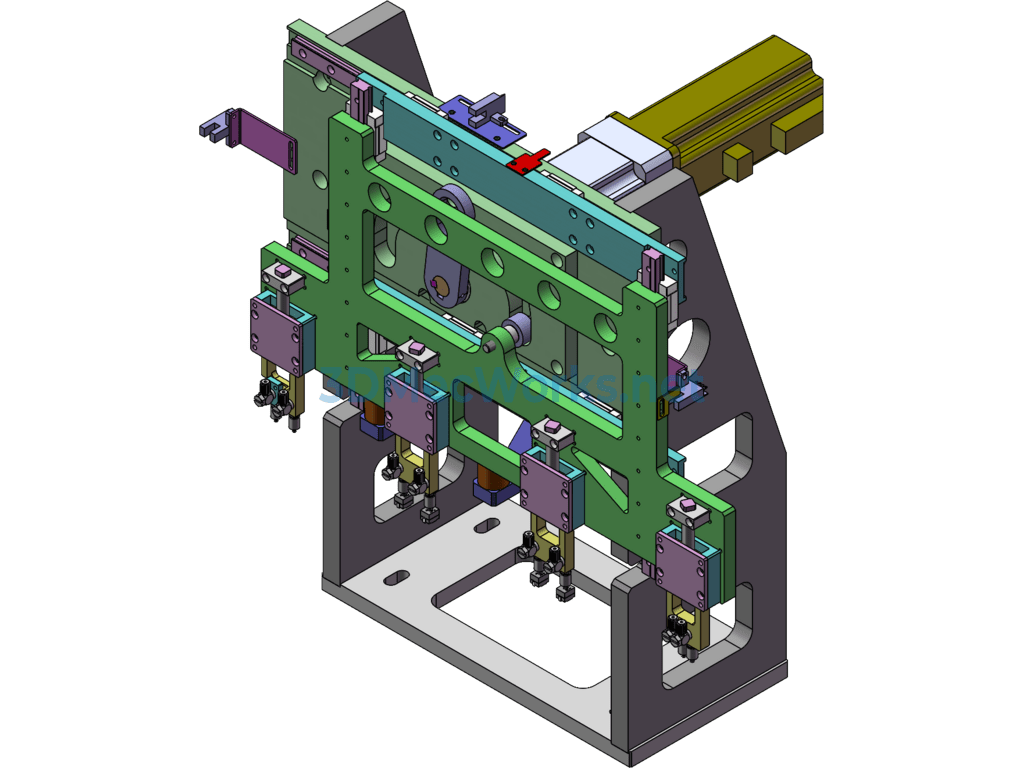

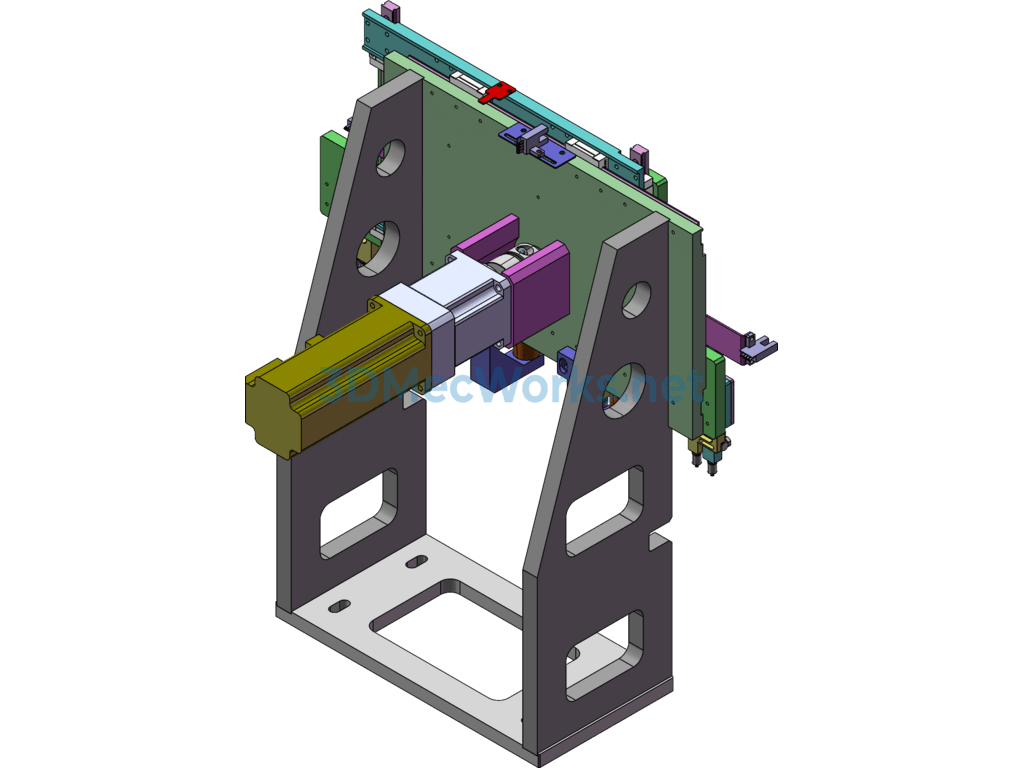

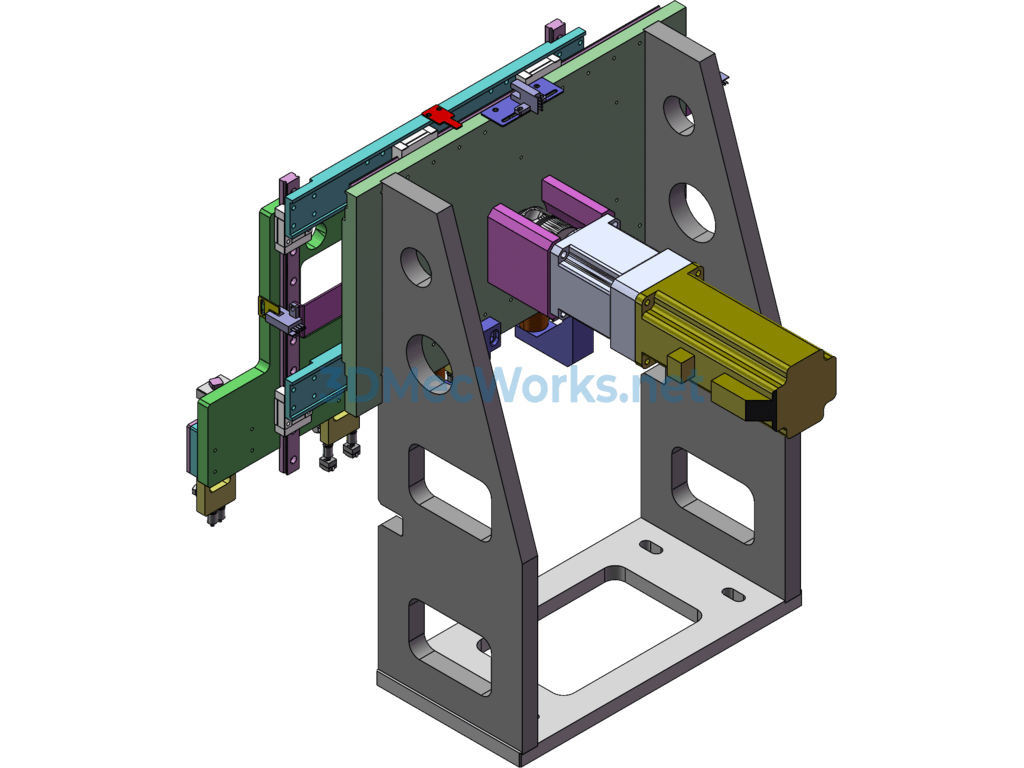

Cam Transfer Mechanism 3D Model, Solidworks 2013 source file provided + STEP file.

1. This cam transfer mechanism is driven by a servo motor, offering fast transfer speed. The transfer cycle time can reach 1.5 seconds or less, transferring 4 stations at a time, with a simple structure.

2. The transfer claw features a vacuum suction cup that can pick up various small parts, including connectors, inductors, etc. It is also easy to modify, allowing conversion to a cylinder gripping method.

3. The model is in SOLIDWORKS 2013 version, includes parameters, is editable, and also available in STP format.

4. Available for everyone to download for reference and study.
