Cam Pin Insertion Mechanism – Fast – Classic – 3d

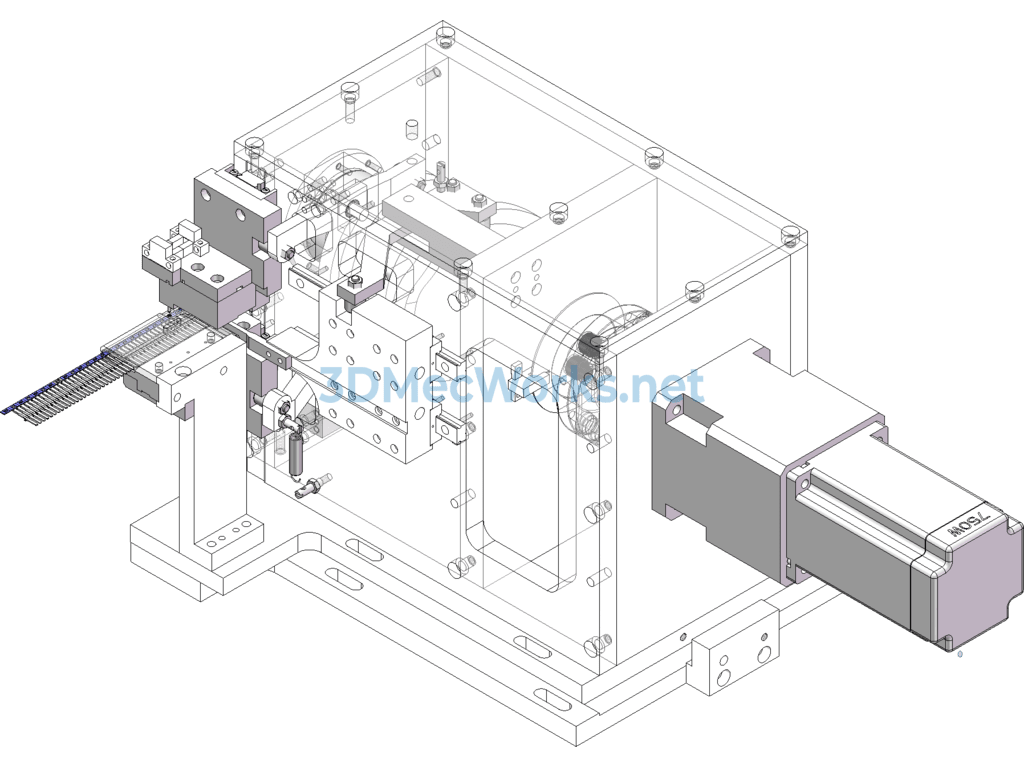

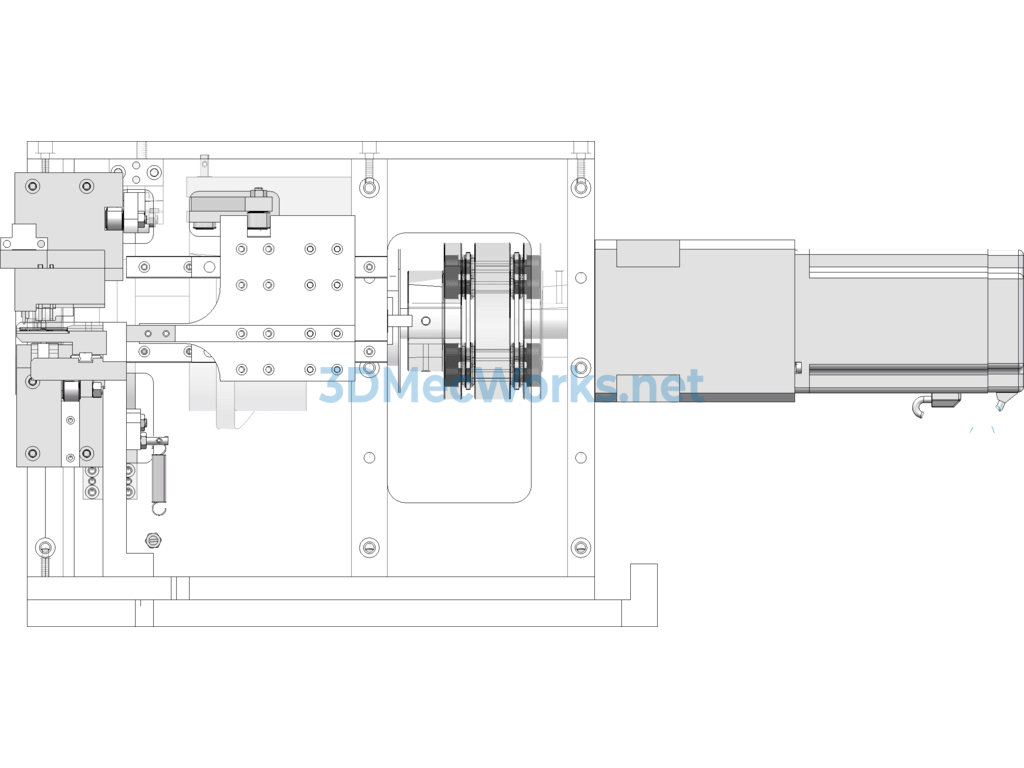

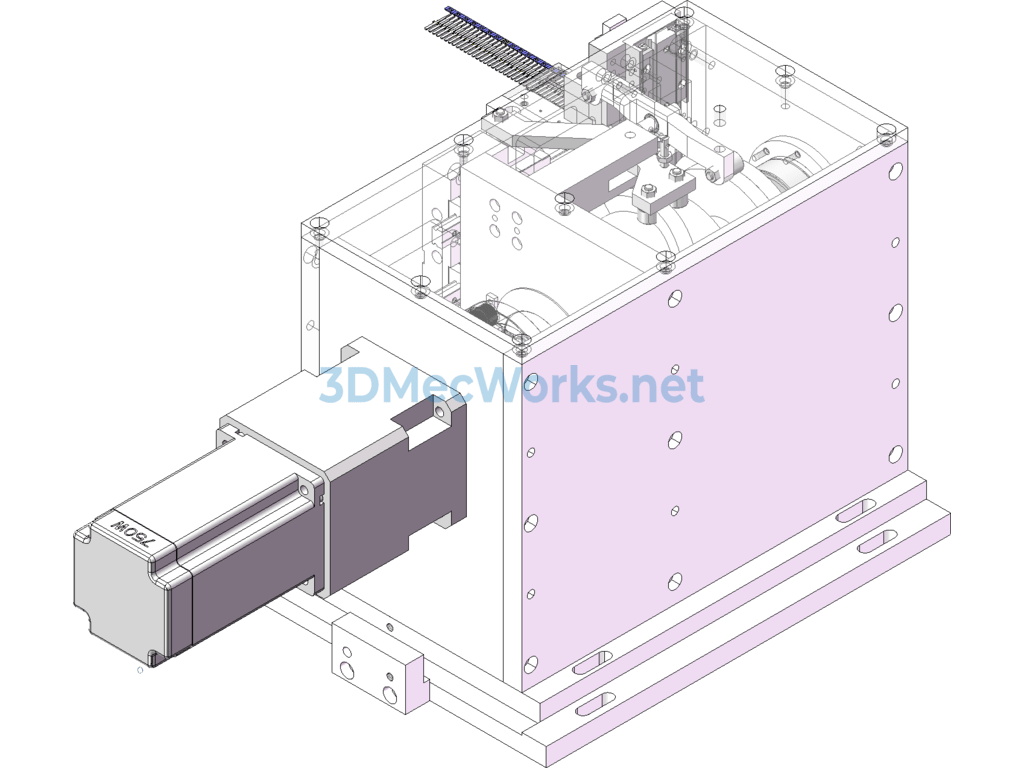

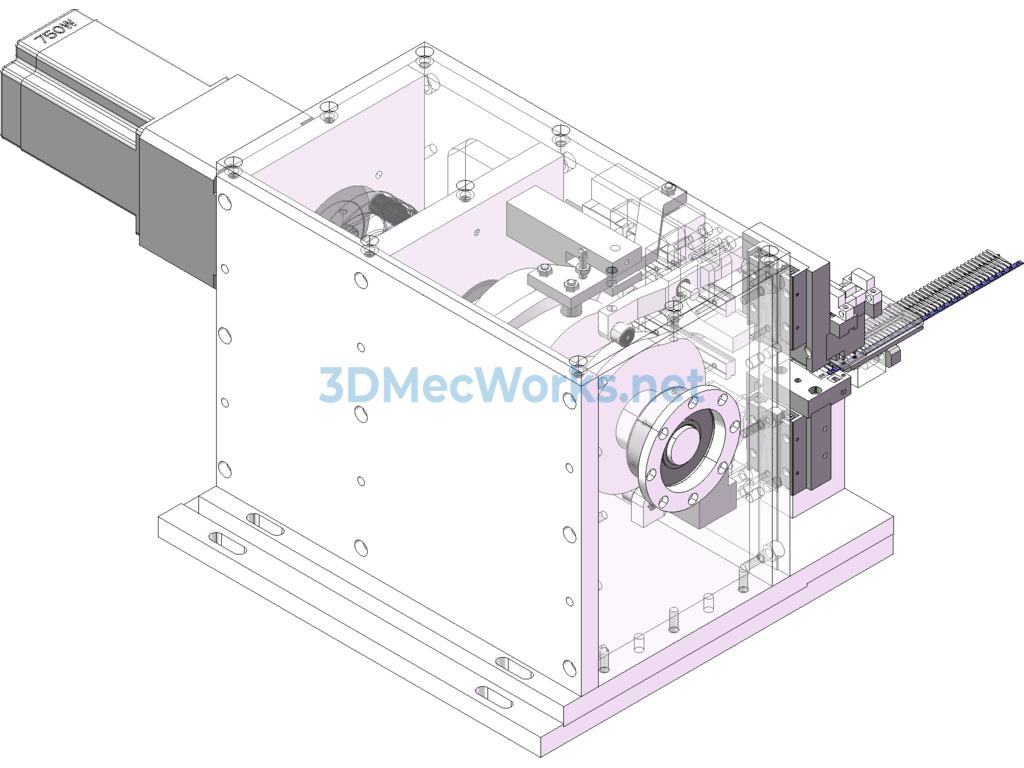

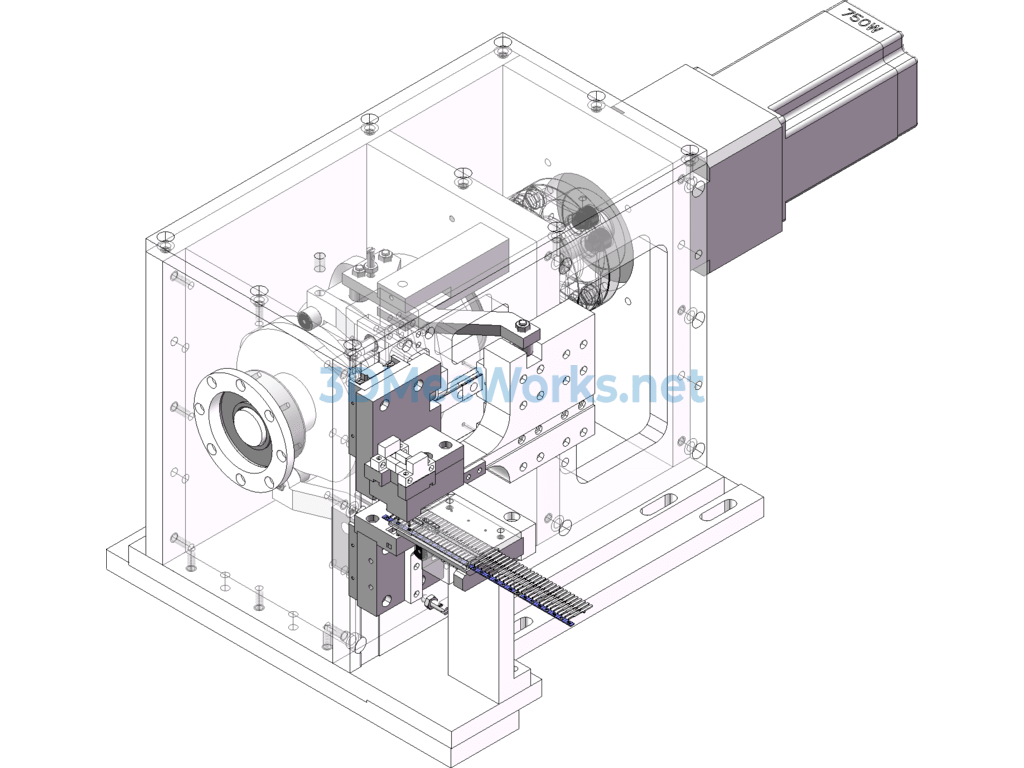

A Quick Cam Pin Insertion Mechanism

Cam mechanisms have always been challenging structures for mechanical engineers. They are popular for their stability, durability, and ability to achieve complex motion trajectories and linked structural actions. This structure is available in STP and SW format files. This mechanism is suitable for high-speed pin insertion applications, using a cam structure design and servo motor control, making it very stable. Two cylindrical cams work perfectly together to achieve actions like feeding, inserting, and cutting. As a purely mechanical structure, it fundamentally eliminates the need for a complex electrical control system, with just a servo motor driving continuous rotation to complete the entire terminal processing, offering significant reference value!
