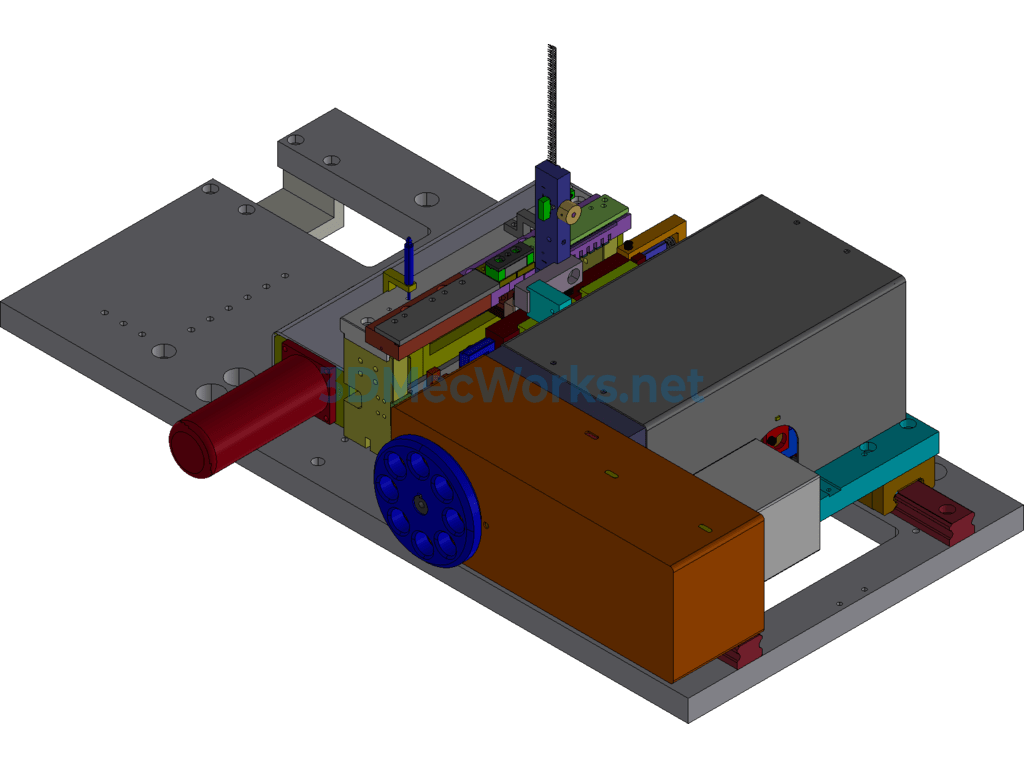

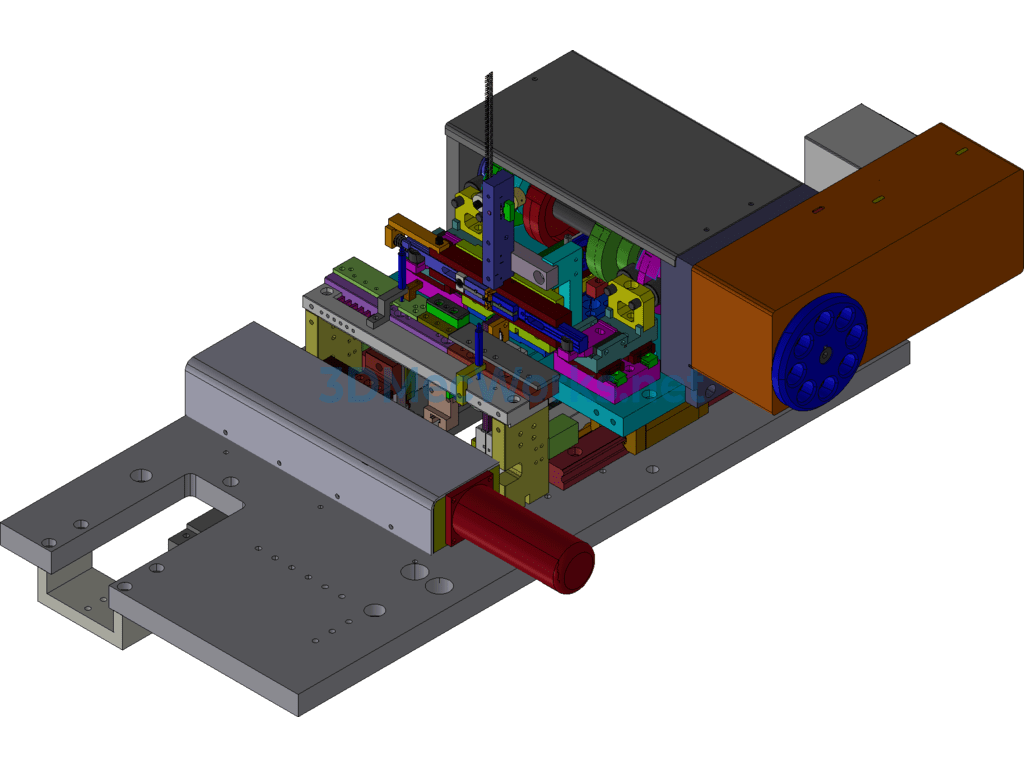

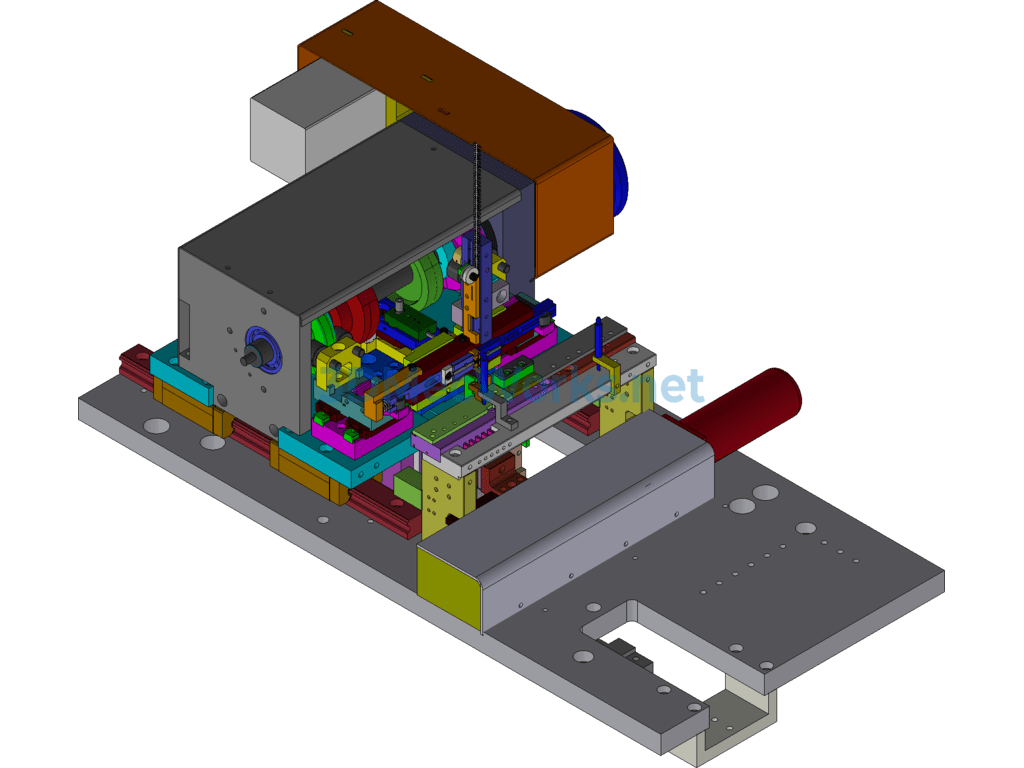

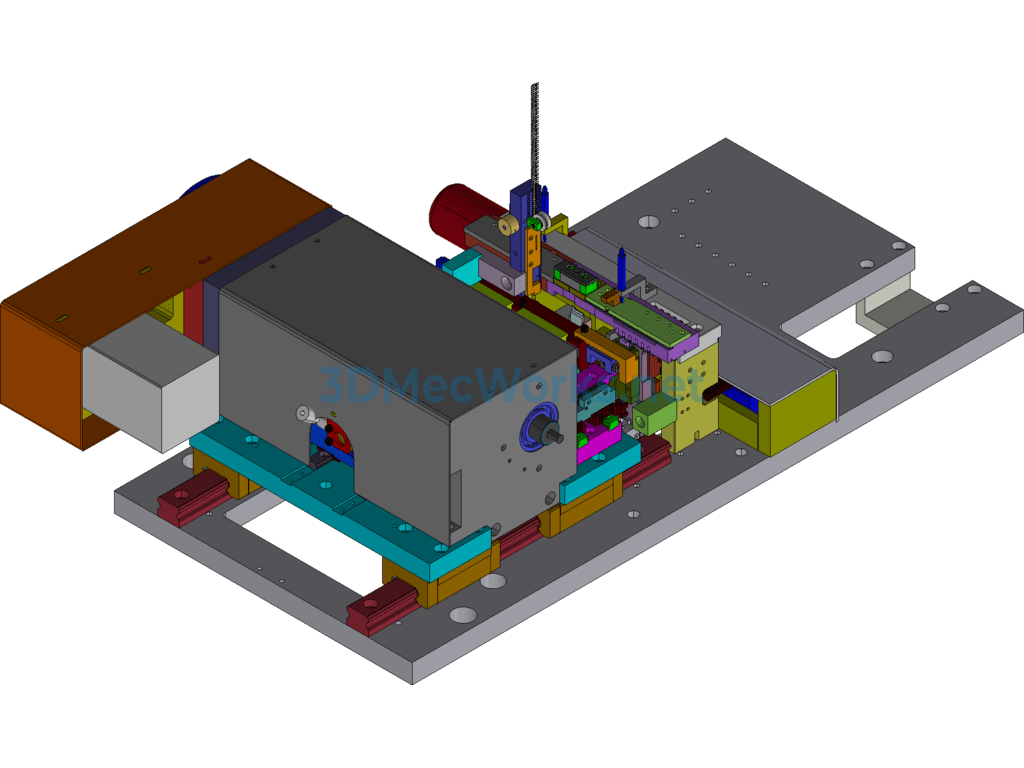

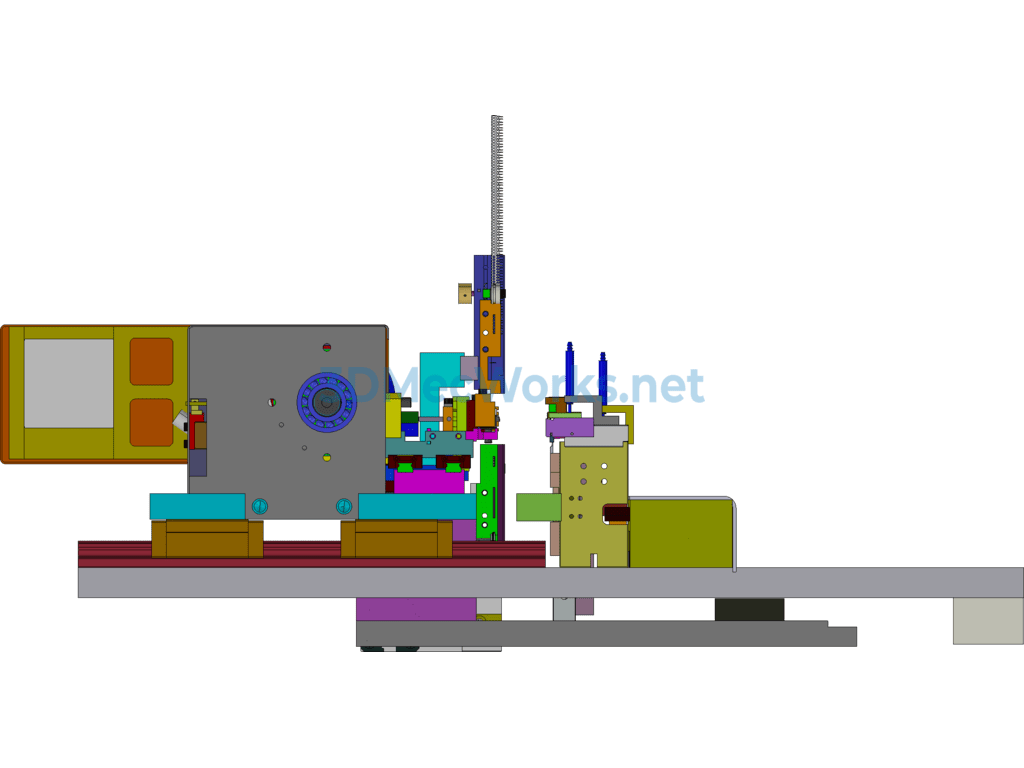

This mechanism is a cam insert pin mechanism, mainly used in fast machines for terminal installation. Through the cam transmission method, multiple motions can be seamlessly connected. Only one power source is needed to complete a series of actions such as cutting and pin insertion.

Specification: Cam Pin Insertion Mechanism - Exported - Free Download

Design Software	Exported
Editable	Editable, No parameters
File Formats	step(stp), x_t
Industry Application	Circuit Structures, Creative Design, Digital & Electronics, Mechanical Equipment, Molds & Tooling
Sharing Level	Diamond
Version	General
