Cam Manipulator (convertible Direction)

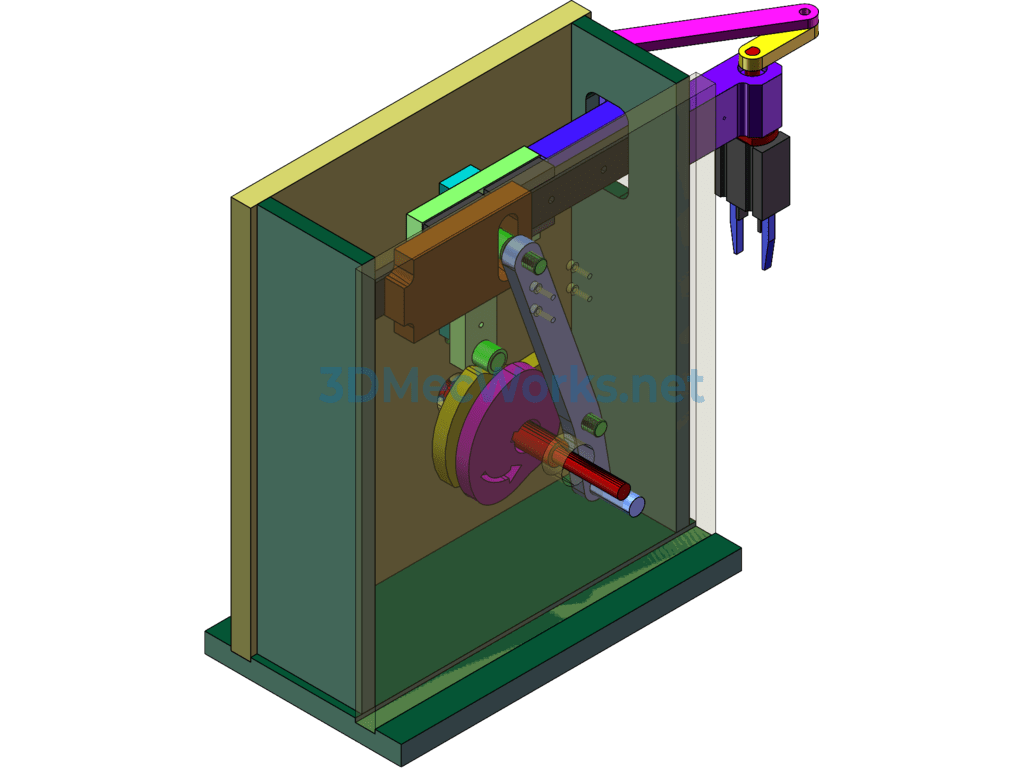

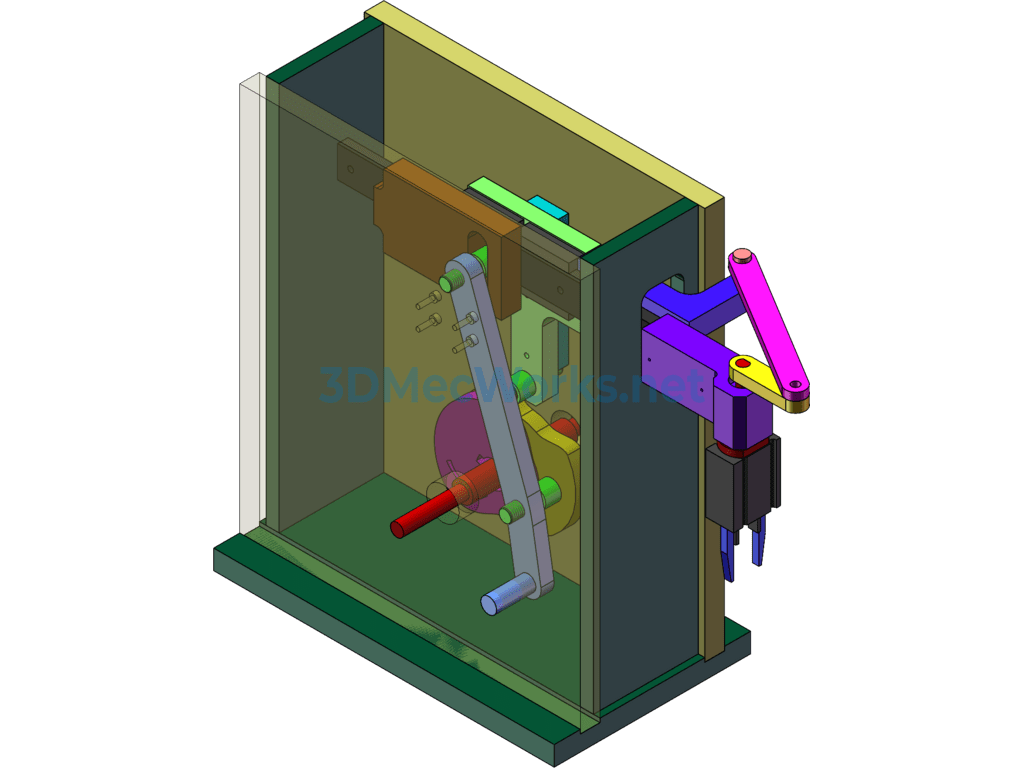

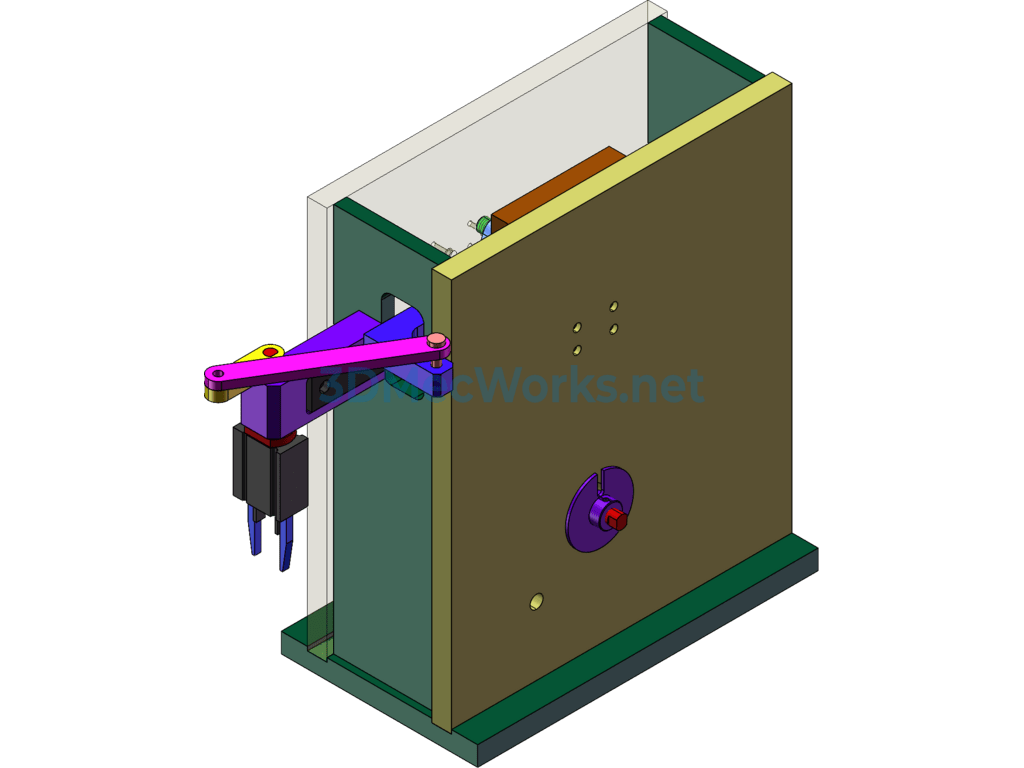

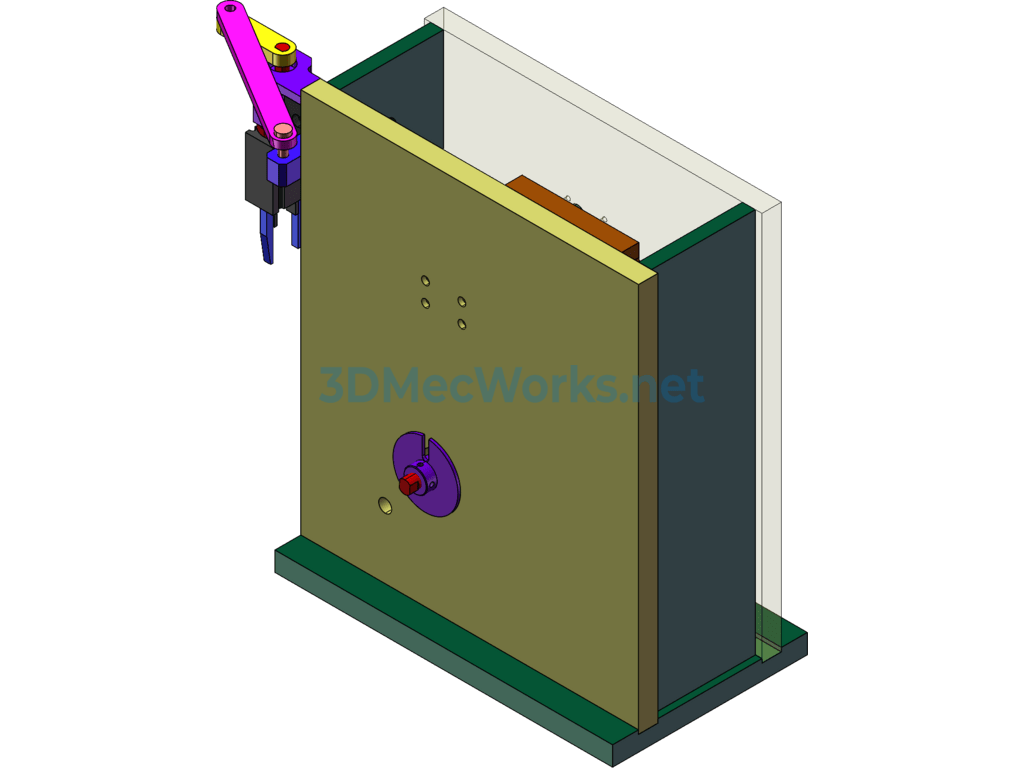

Cam robot arm with steering capability, serves as a great model for equipment. Recommended at Level 1 by management. This device is designed using SW2012, featuring a dual cam linkage mechanism, which I often use in automation equipment.

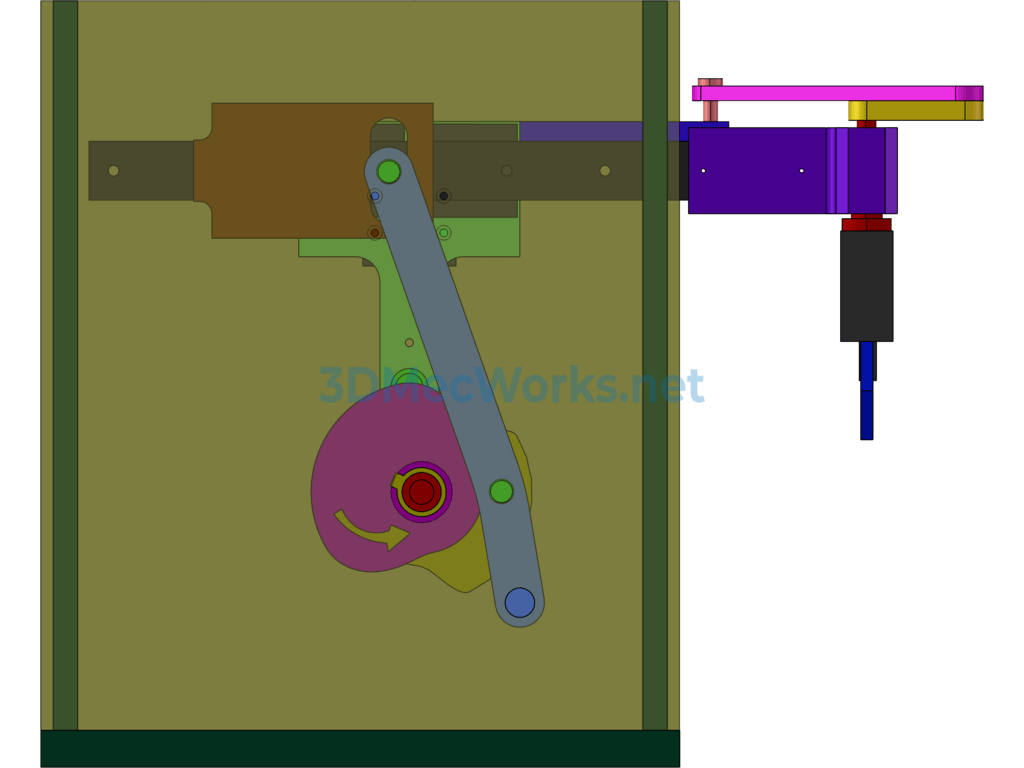

The motion path of this mechanism is a gate-shaped trajectory, used for grabbing and placing items. In addition, a special feature with a 90-degree rotation has been added. If the product is in a horizontal position at the first station, when the cam robot arm grabs it and places it at the second station, the product can automatically turn to a vertical position. This completes both the grabbing and turning functions!

This mechanism boasts high precision, fast efficiency, and stability!
