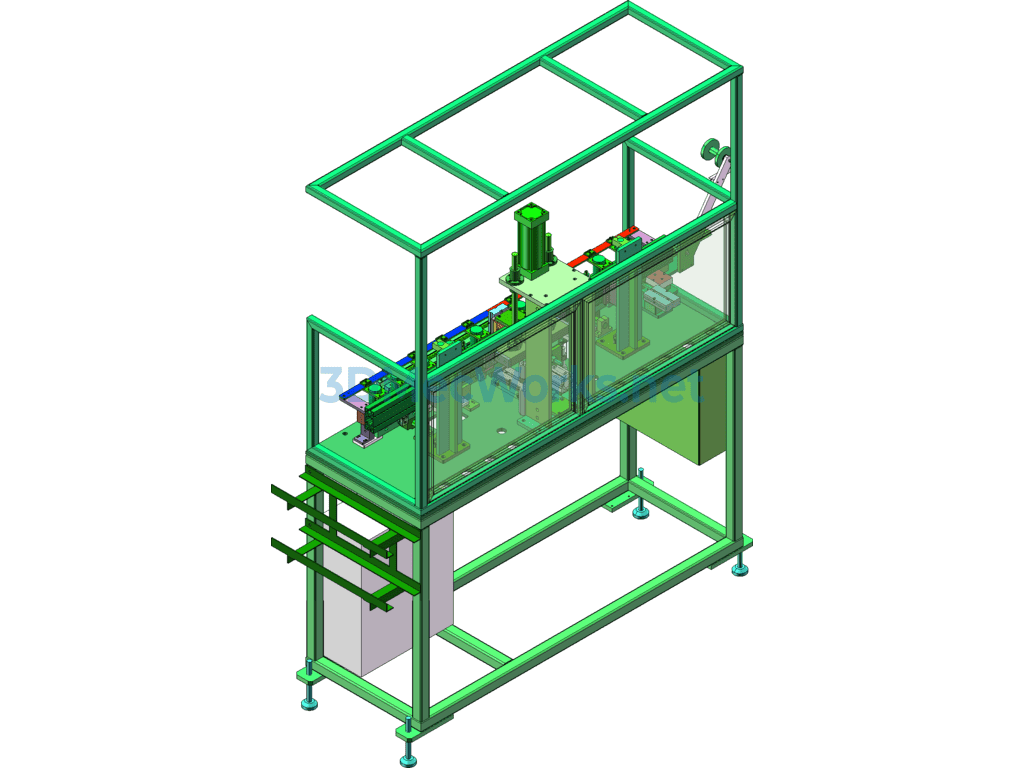

This is a 3D model diagram of an original design for a sealing strip punching, cutting, and inspection integrated machine. The equipment has three functions: punching, cutting, and product inspection. The punching method adjusts the distance of the drilling motor according to the hole spacing, and the punching distance can be adjusted. The left end and the middle use cylinder blades for punching, with the right end as the positioning end. The blades are custom-made, and there are engineering drawings included, which have been used in actual production. The drawings feature many classic structures, many of which can be referenced. The tooling principle is relatively simple: a high-speed motor is used to install a corresponding size drill to punch the product, then cut, and finally inspect the product for size. The drawings are very detailed, in the format of SolidWorks 2018, and everyone is welcome to download.
