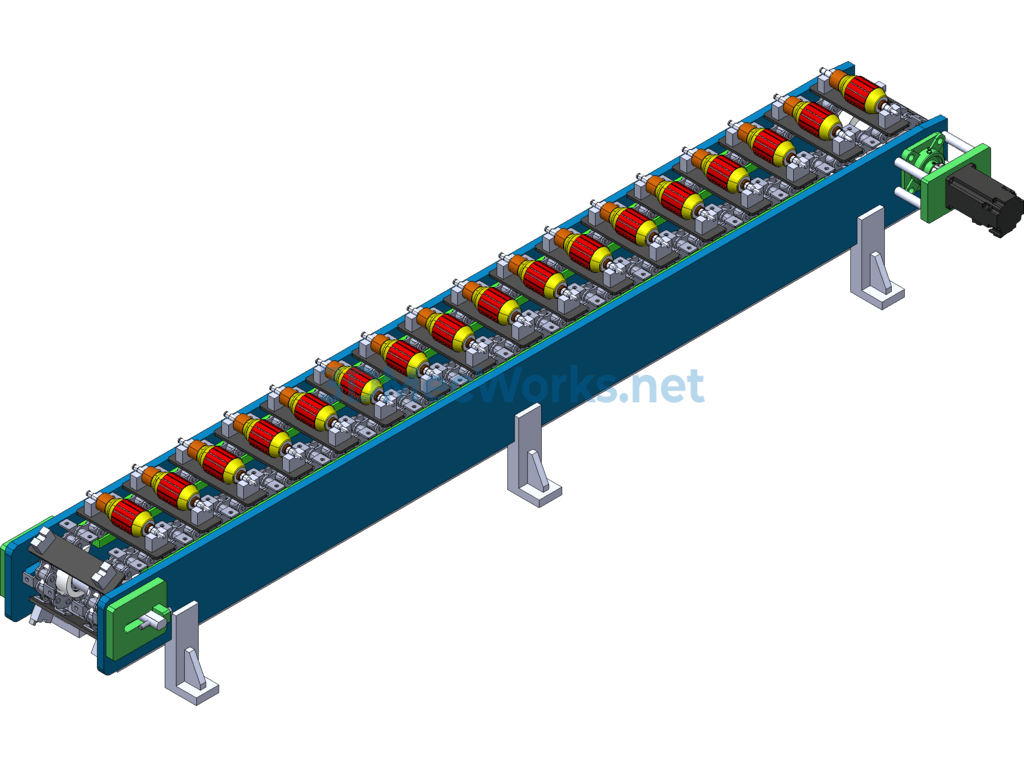

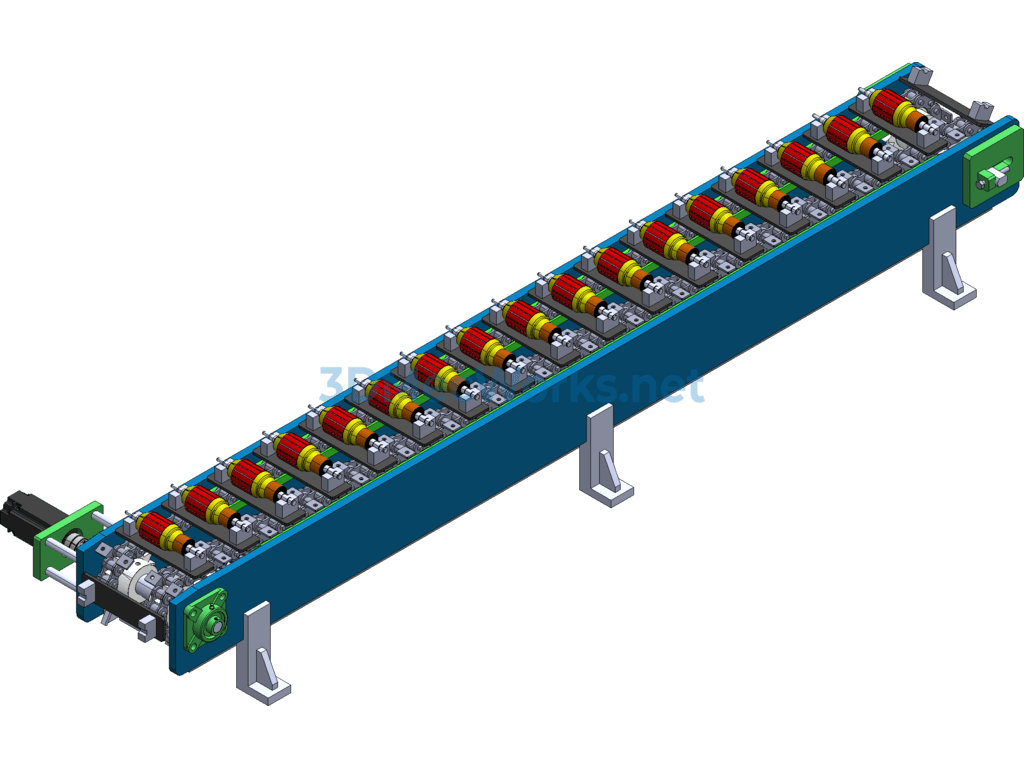

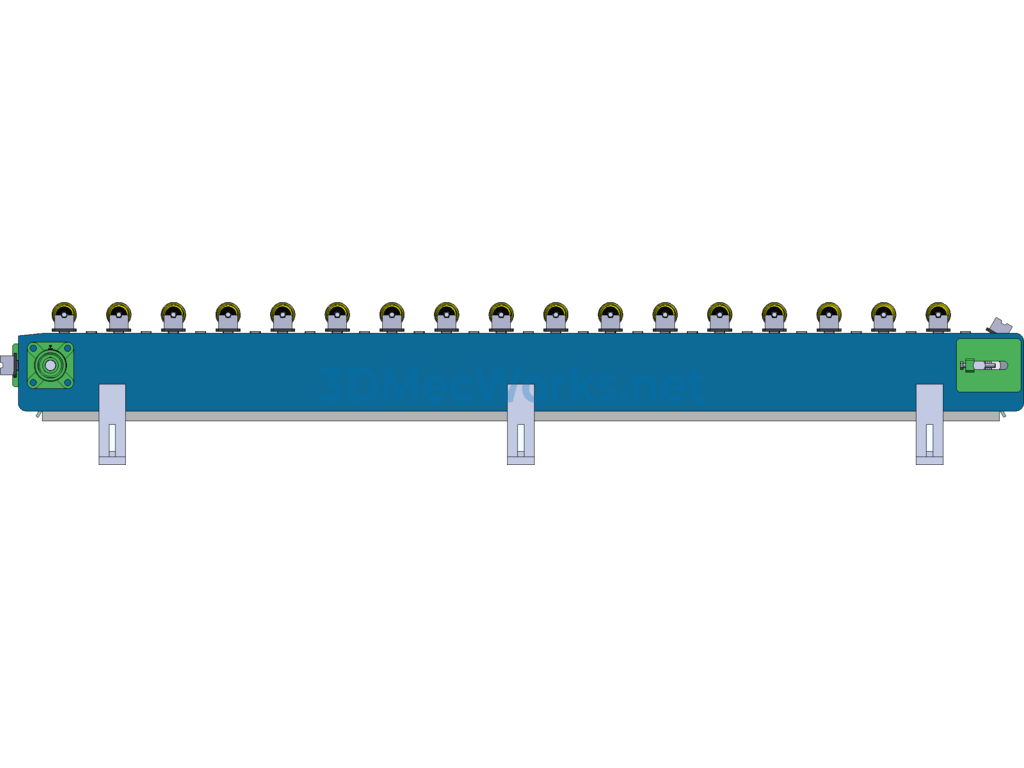

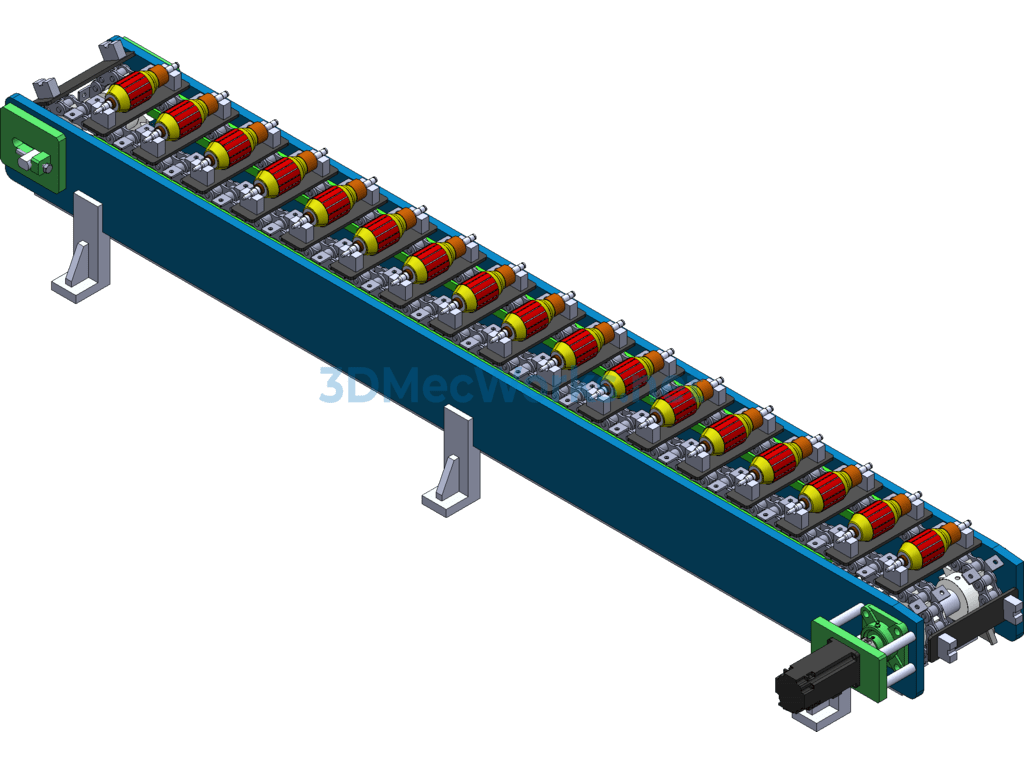

A blanking conveyor line module, suitable for occasions of linear motion in blanking conveyor lines, adopts the movement method of a foot chain blanking conveyor line’s linear drive, thus achieving linear drive motion of the conveyor line. It also has advantages such as fast speed, stable operation, high precision, and compact structure.

Specification: Bracket Chain Feeding Conveyor Line - SolidWorks - Free Download

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	Sldasm, Sldprt
Industry Application	Creative Design, Mechanical Equipment, Molds & Tooling
Sharing Level	Diamond
Version	2018
