Bluetooth Earphone Automatic Line - SolidWorks - Free Download

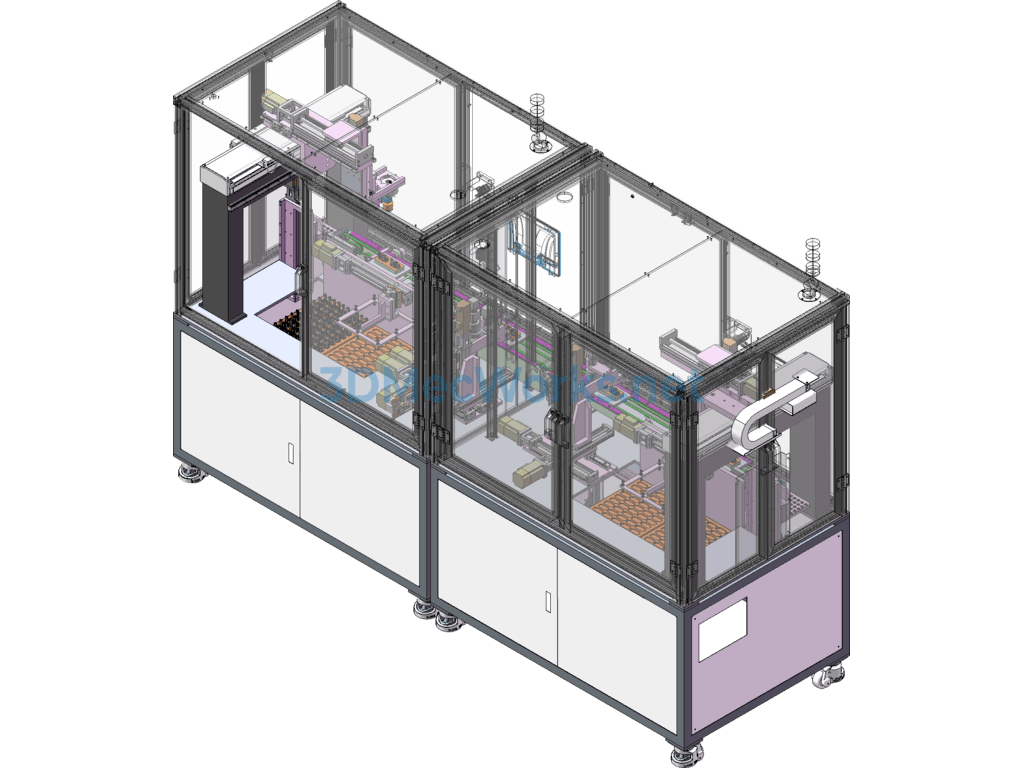

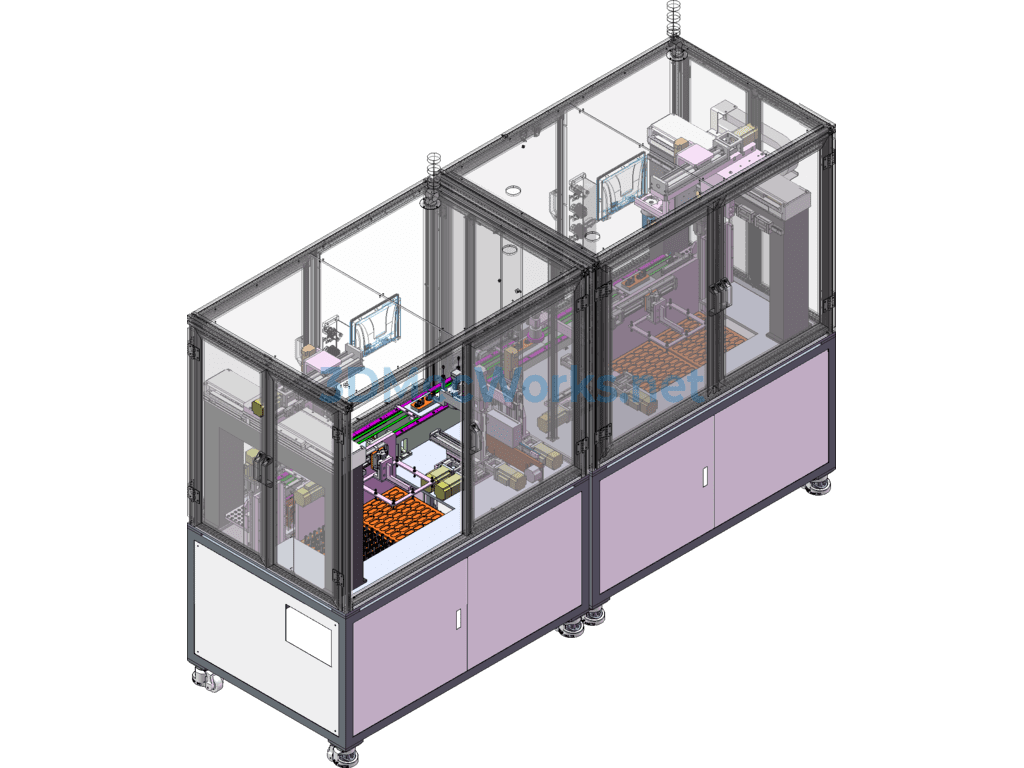

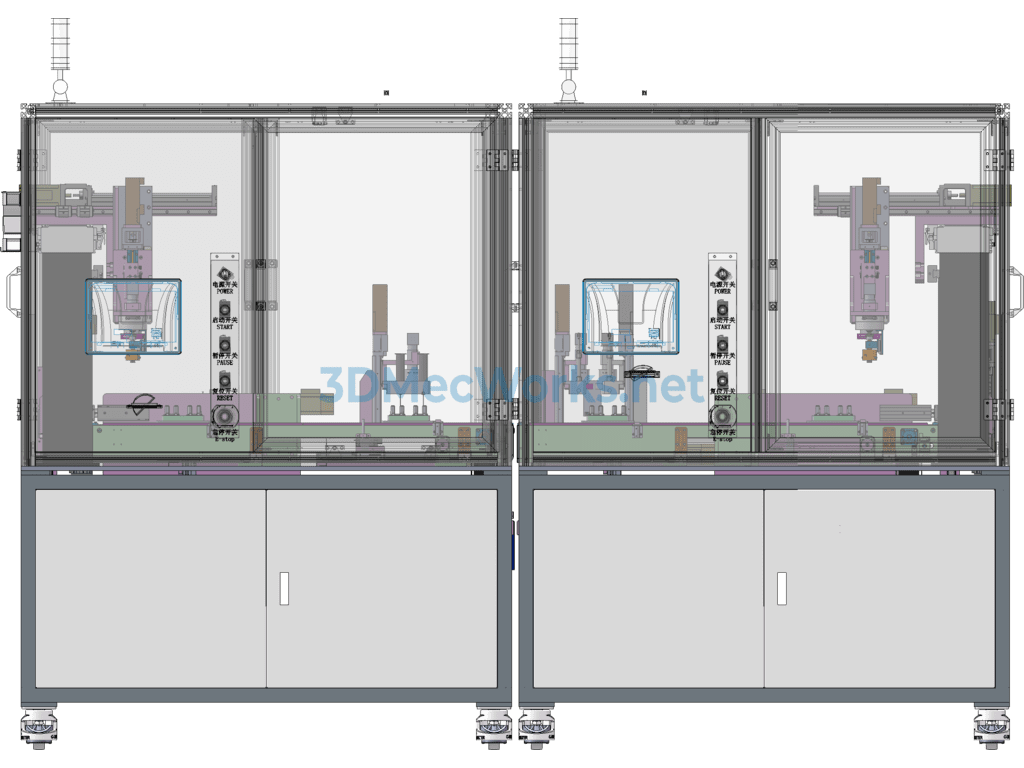

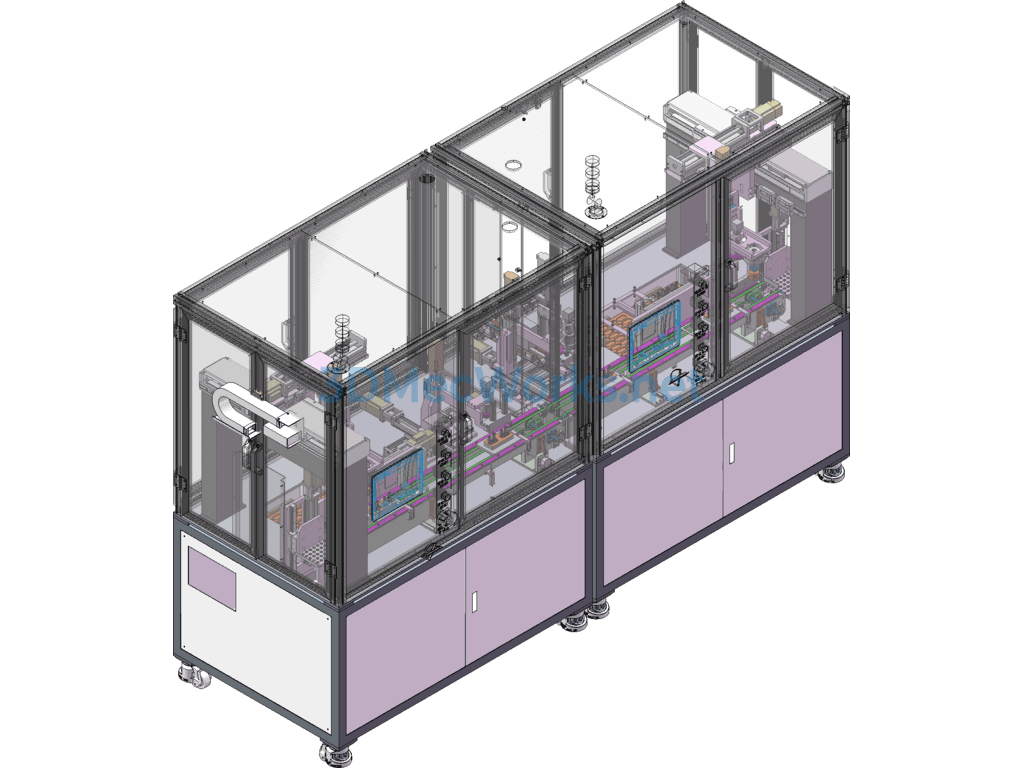

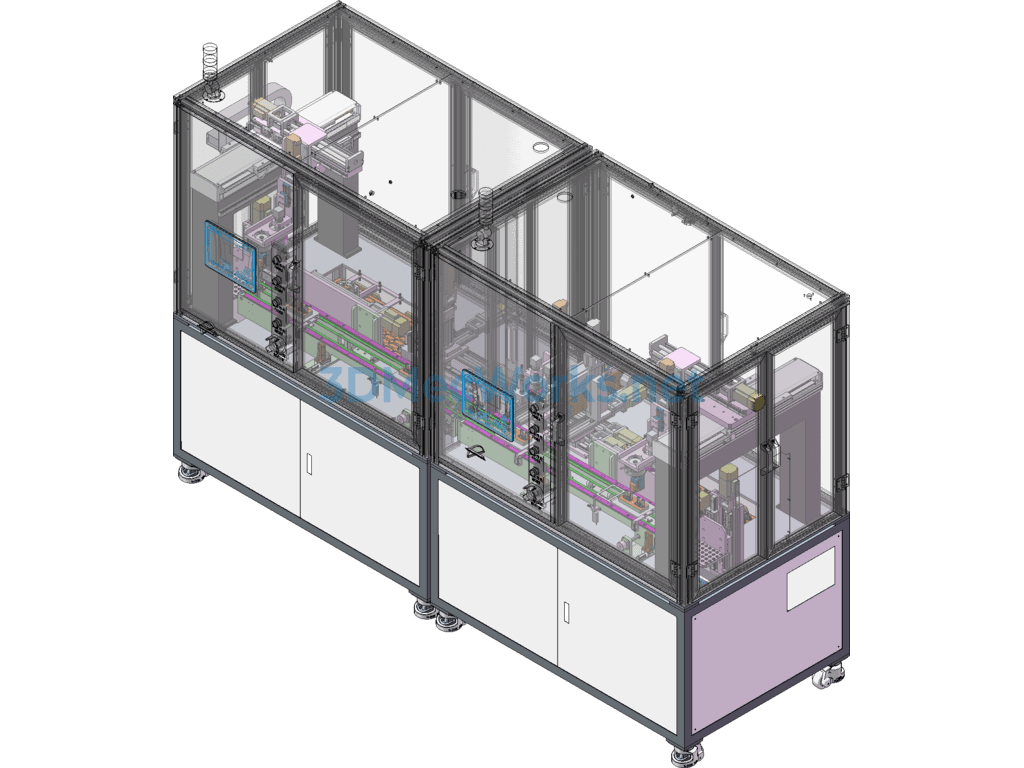

Introduction to Bluetooth Headset Automatic Line

1. The product is conveyed on the upper belt via carriers, sequentially passing through Plate Position 1, Glue Dispensing Position 2, Magnet Installation Position 3, and Product Collection Position 4;

2. The product is conveyed by carriers on the upper belt, with empty carriers recirculating on the lower belt. An elevator facilitates the transition of carriers between the upper and lower levels at both ends;

3. The line dimensions are approximately 2800*900*1700, with an estimated capacity of over 400;

4. The line is compatible with various sizes of headsets. Changing products only requires switching programs, along with changing carriers and corresponding fixtures;

5. There are 2 cameras for plate positioning, 1 for glue dispensing position, and 1 for magnet installation position, totaling 4.
