Blade Grinding Machine (pneumatically Driven Automatic Feeding, Production Equipment)

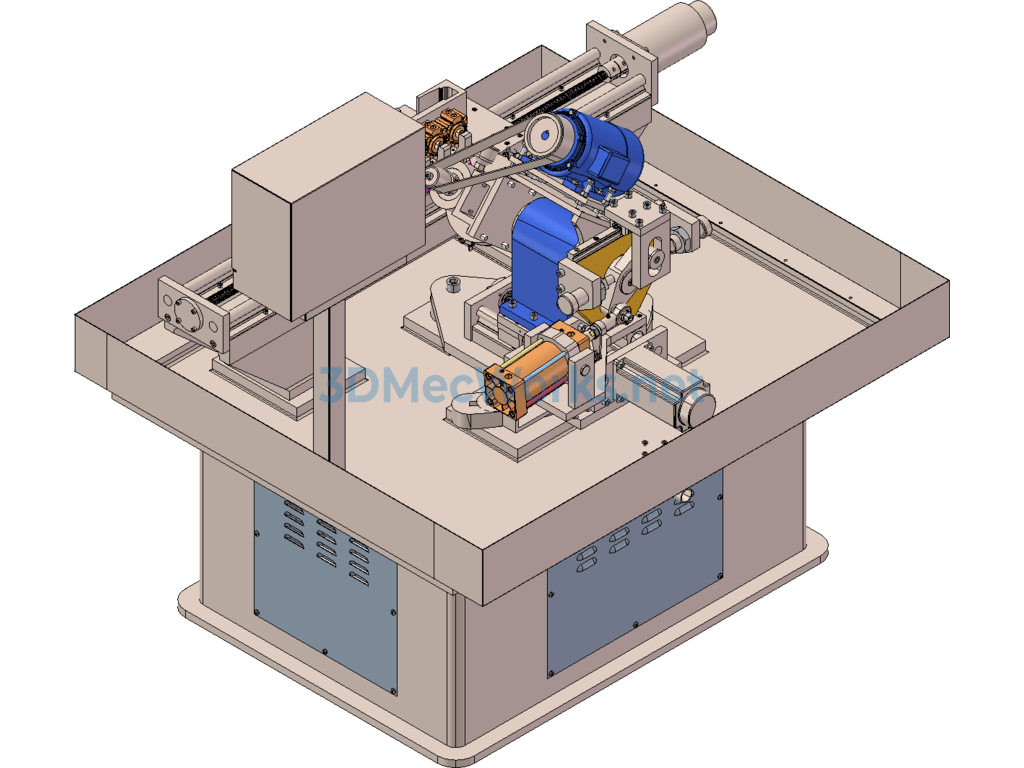

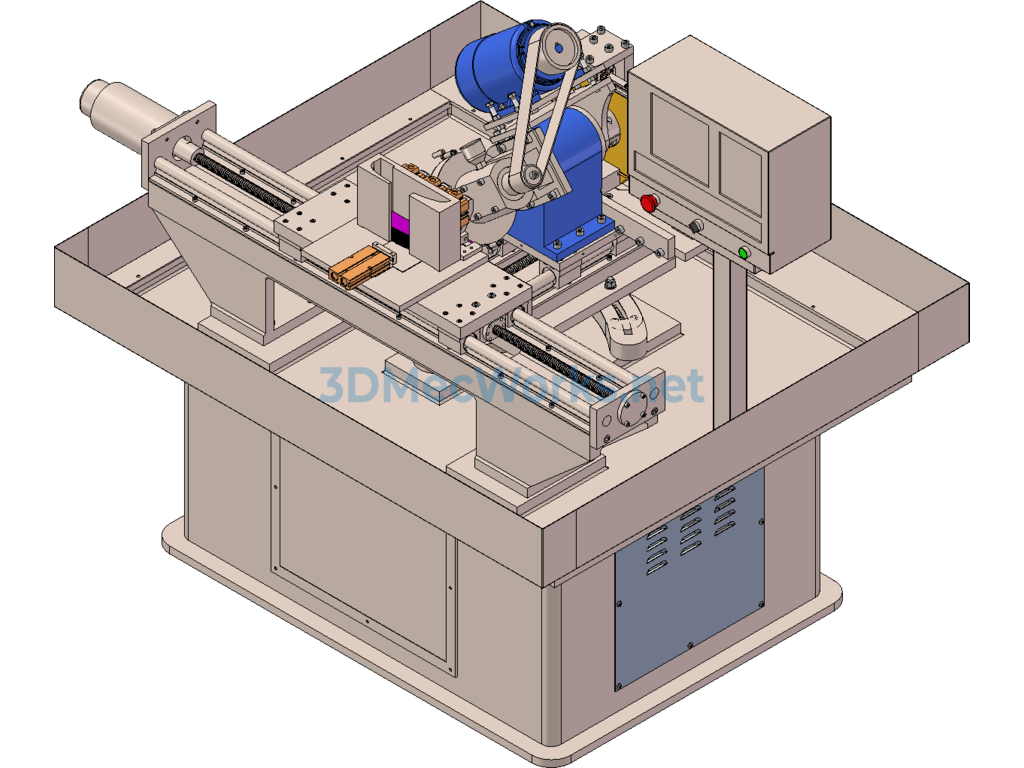

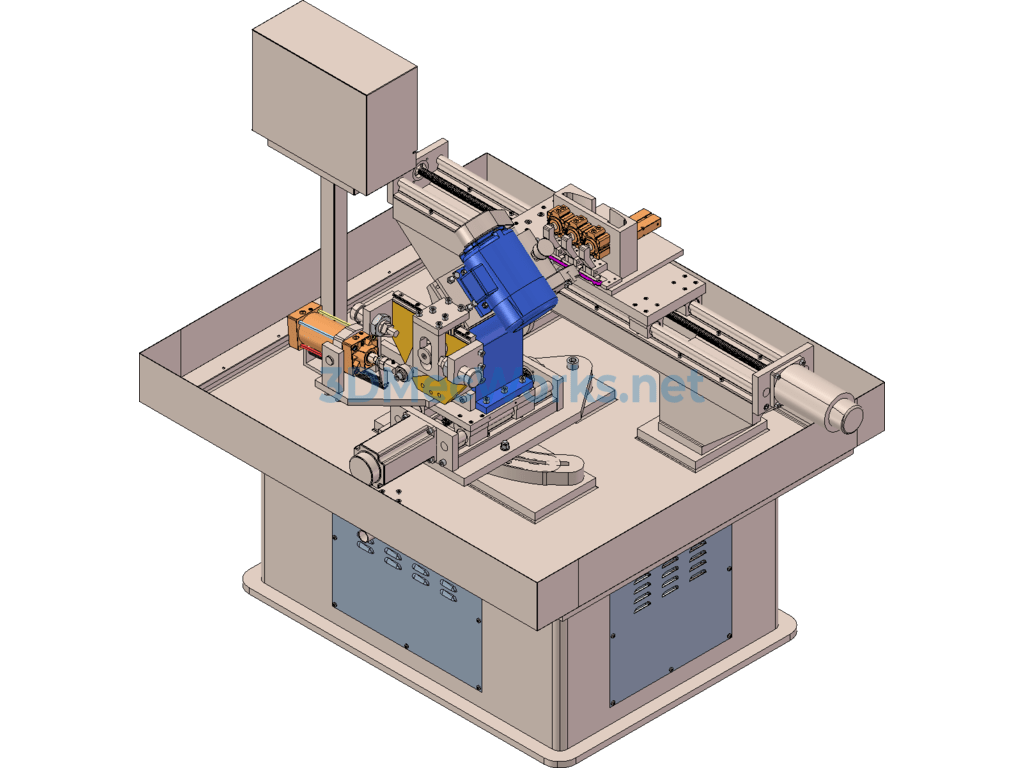

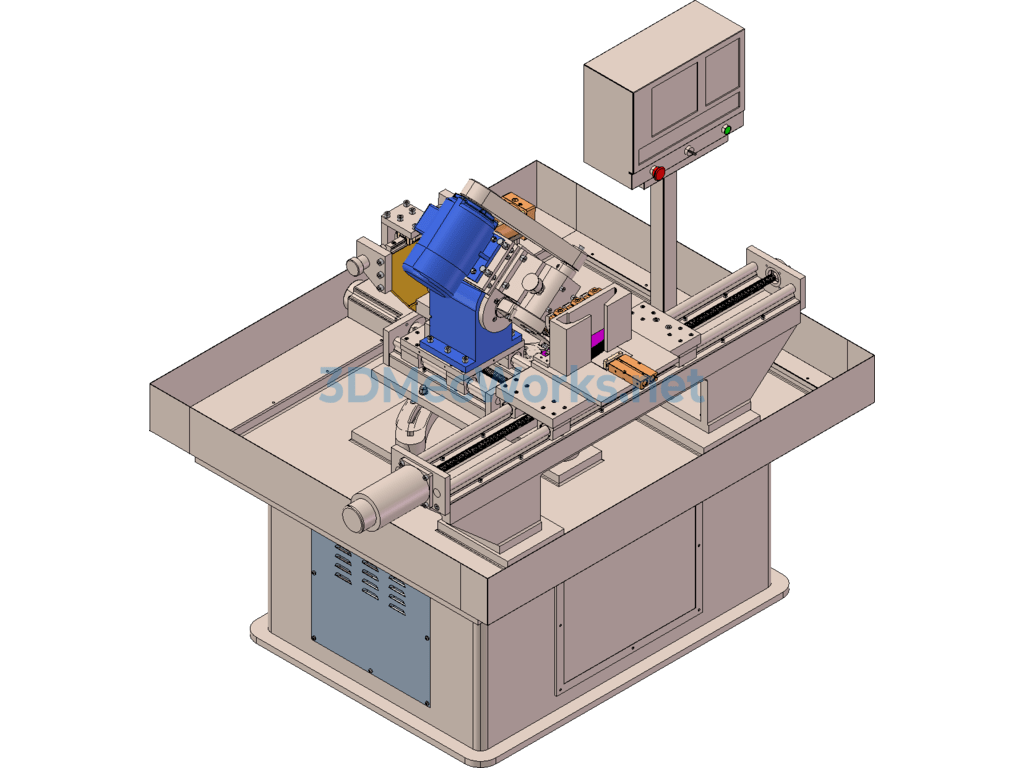

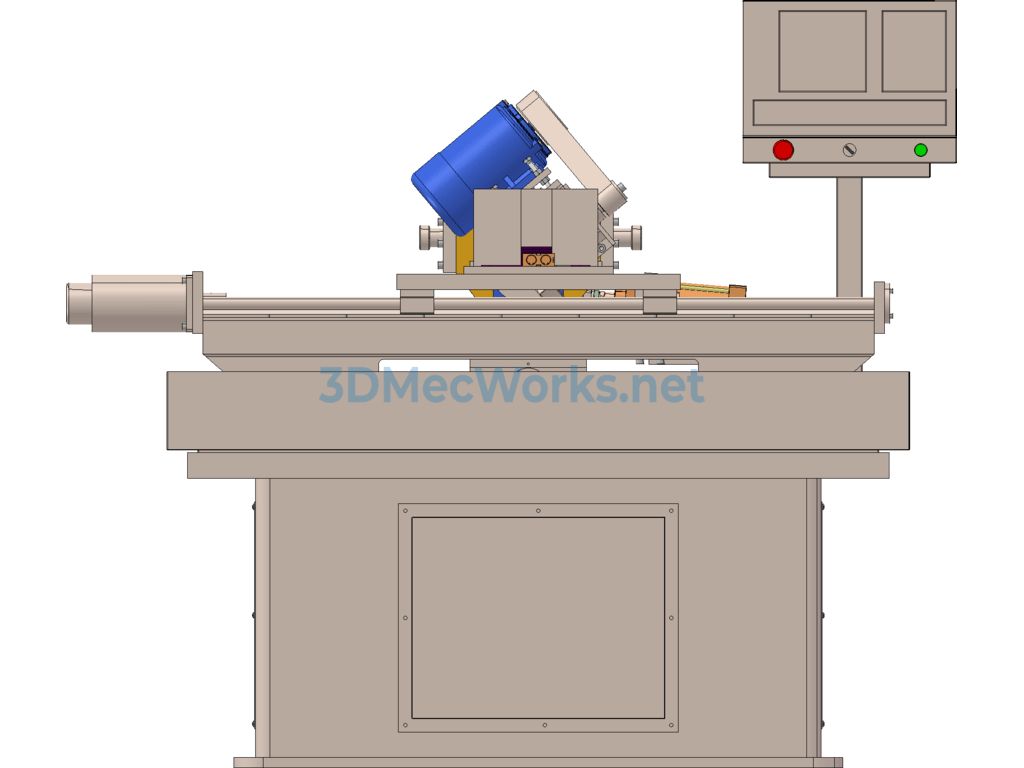

Blade grinding machine, this model was built in SolidWorks 2012, non-parametric, editable. This blade grinding machine uses direct-drive motors lead screw on X and Y axes. The spindle pendulum relies on a pneumatic linkage mechanism, with the motor synchronous belt driving the spindle grinding wheel to rotate for grinding. The pneumatic system pushes the blades, with a triple-cylinder automatic clamping mechanism to secure the grinding process. The structure is reliable and efficiently used, and it is already in production. You’re welcome to download and study if you’re interested.
