Blade Automation Packaging Machine (non-Standard Equipment for Punch Blade Packaging Machine)

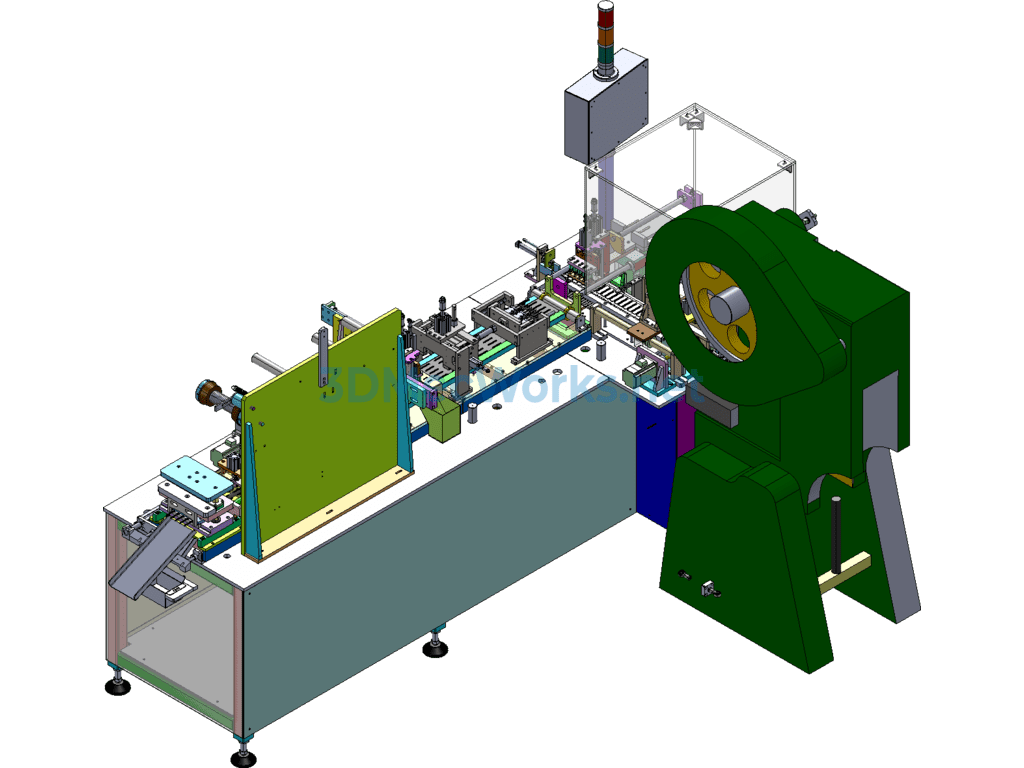

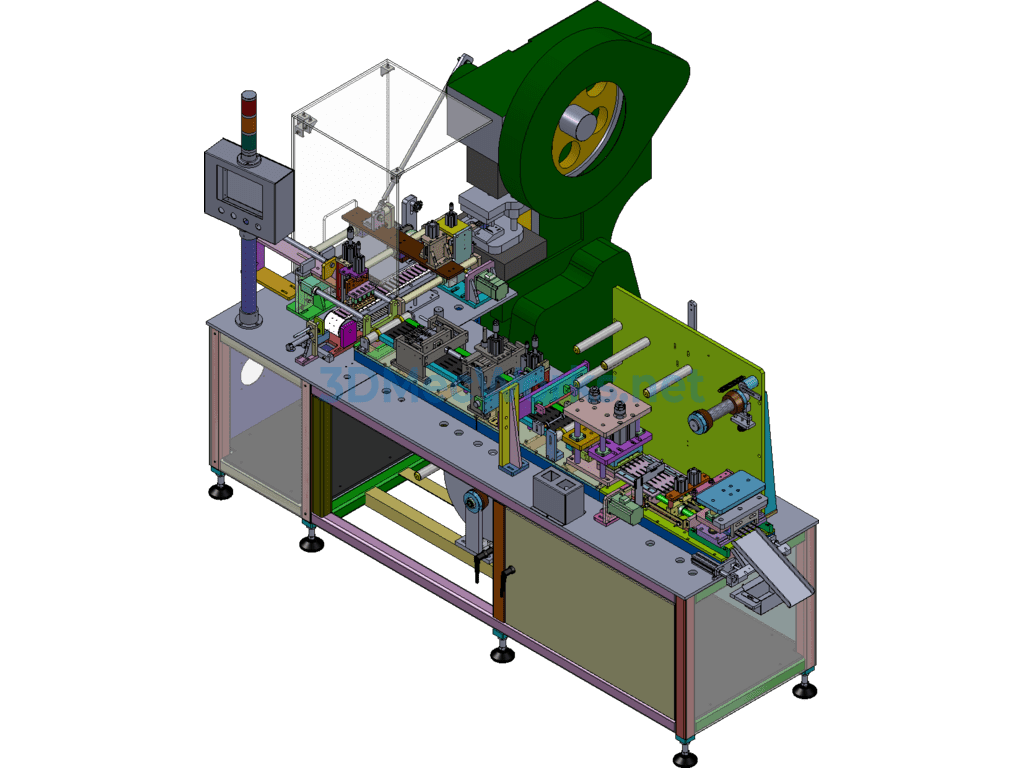

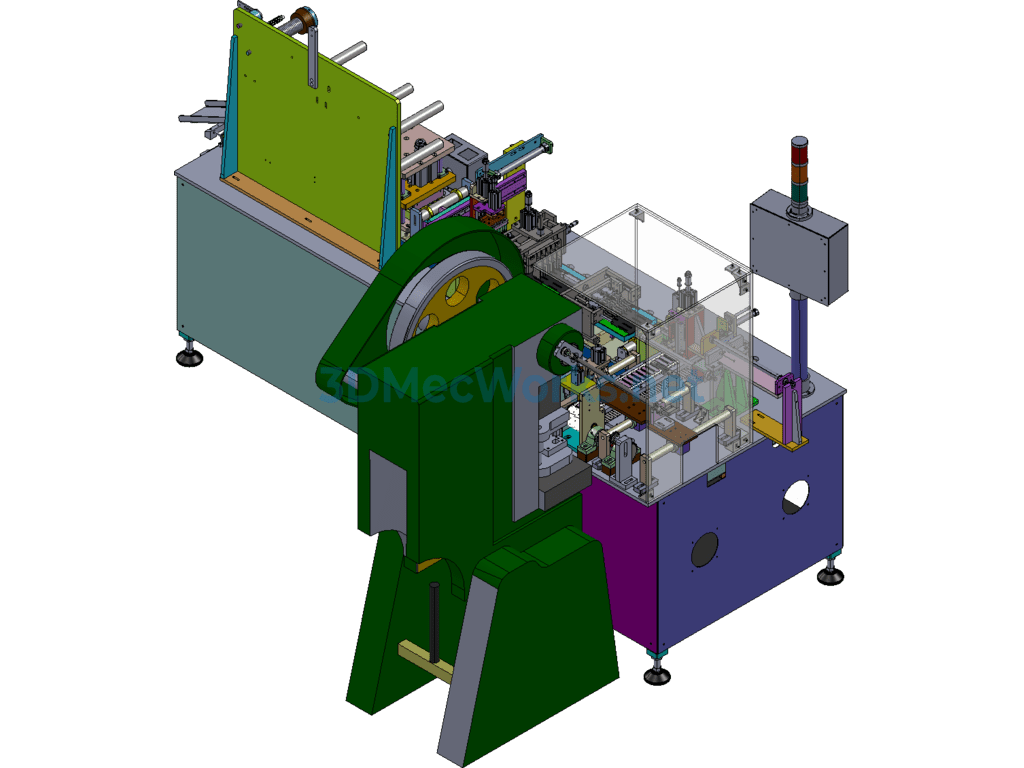

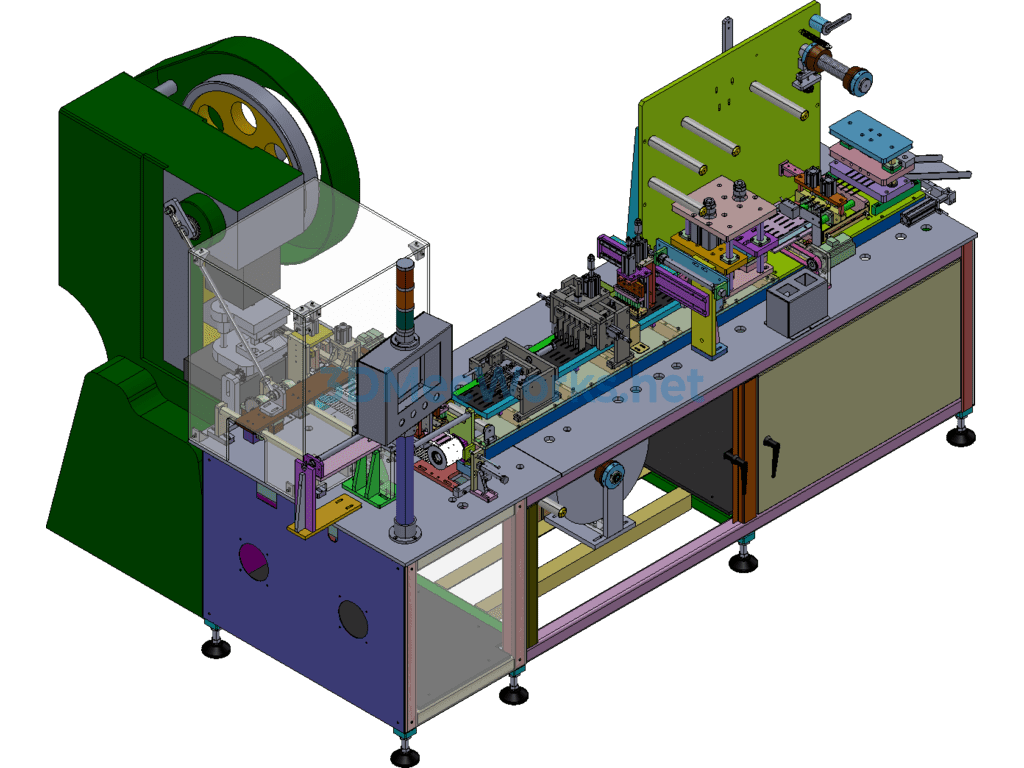

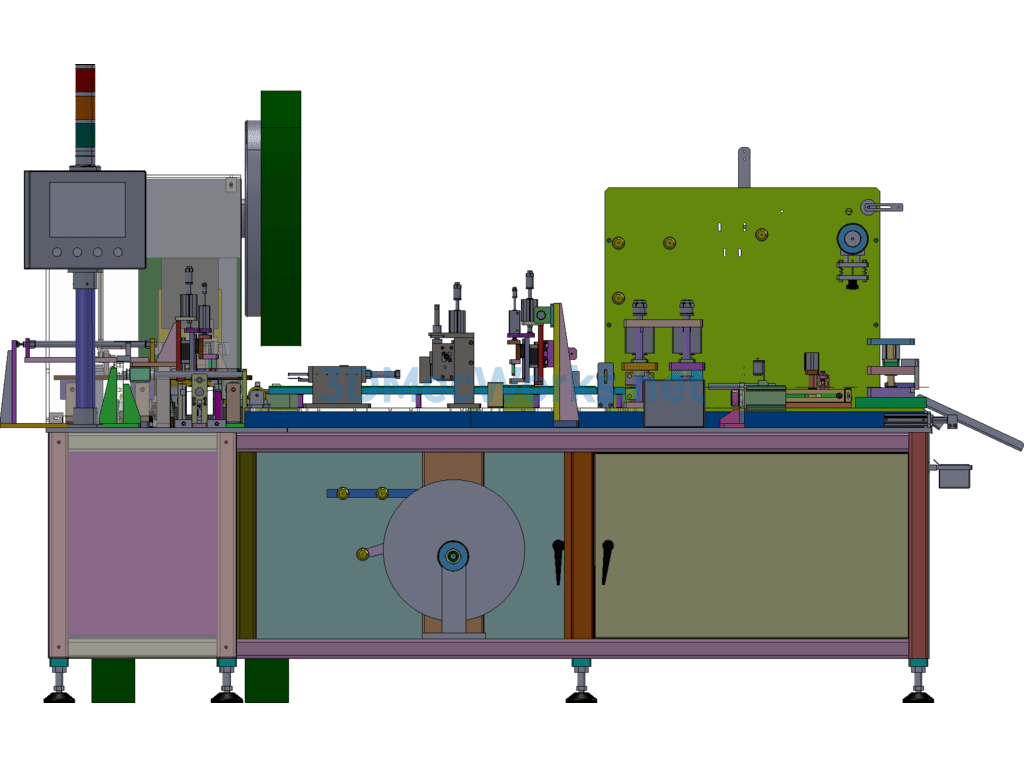

Automatic Blade Packaging Machine (Non-standard Equipment for Blade Packaging) 3D Model. Very detailed model drawings, main file: SCCPZ02.00-00 Assembly Drawing.SLDASM
This equipment automatically retrieves materials via a manipulator, uses a magnetic synchronous belt to align positions neatly, and utilizes a packaging belt for conveying transmission to achieve heat pressing, hole punching, segmentation, and material retrieval. Design Challenges: Design of the punching die, automatic alignment for material retrieval, neat feeding via synchronous belt, hole punching die. Creative Points: Use of a magnetic strip and packaging belt as a conveying platform (with a stepping mechanism).
