The bin-type palletizer is primarily used for stacking products such as cartons and turnover boxes.
The main structure consists of an XYZ pick-and-place device, a rotating platform, a product conveyor line, etc.

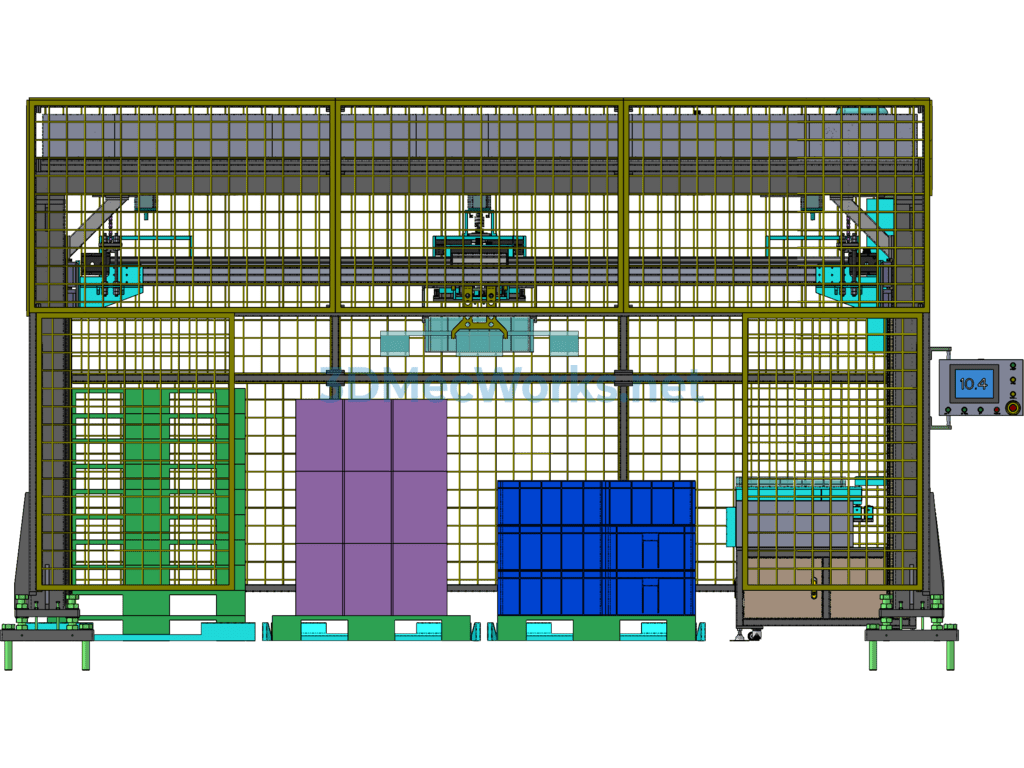

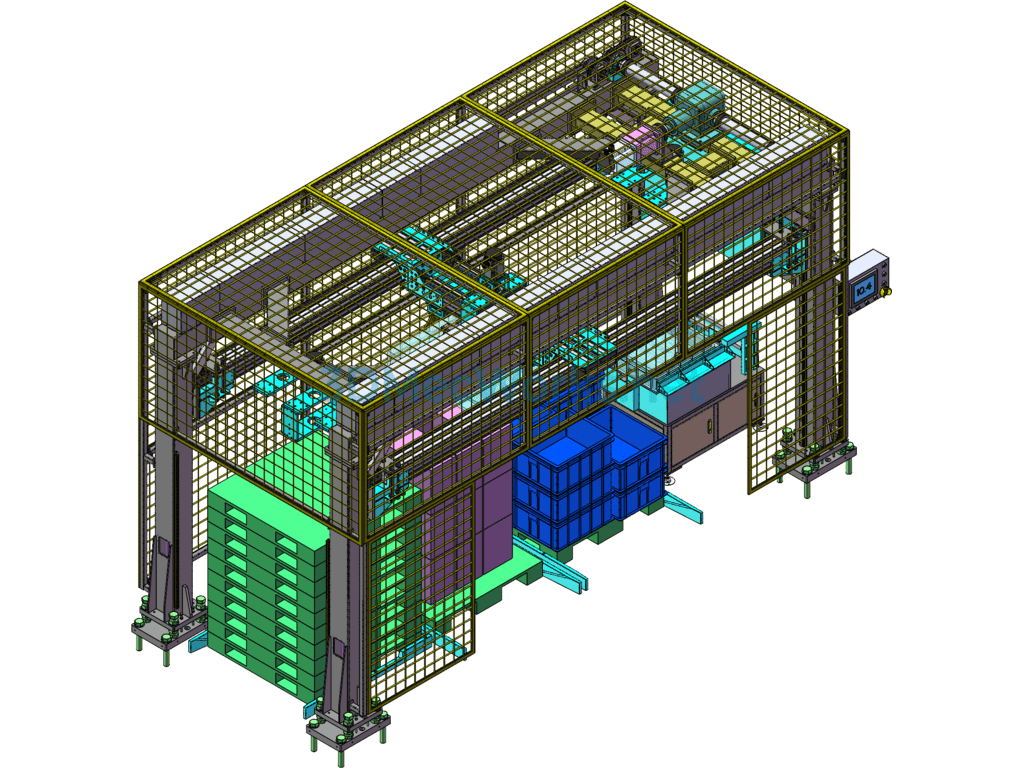

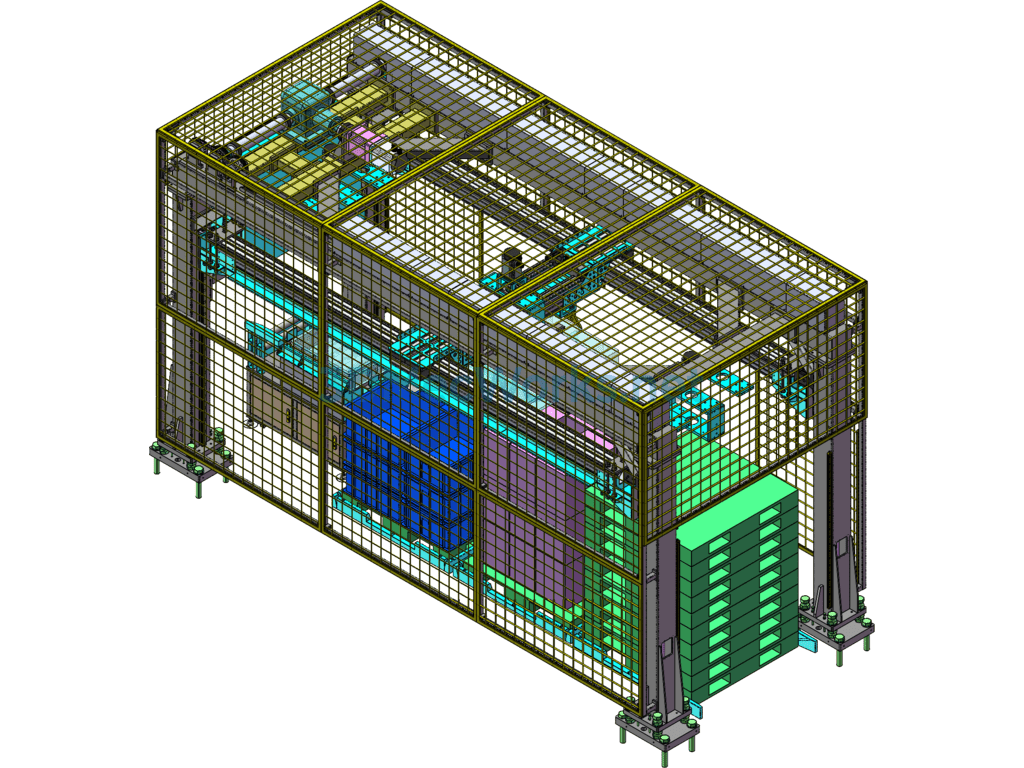

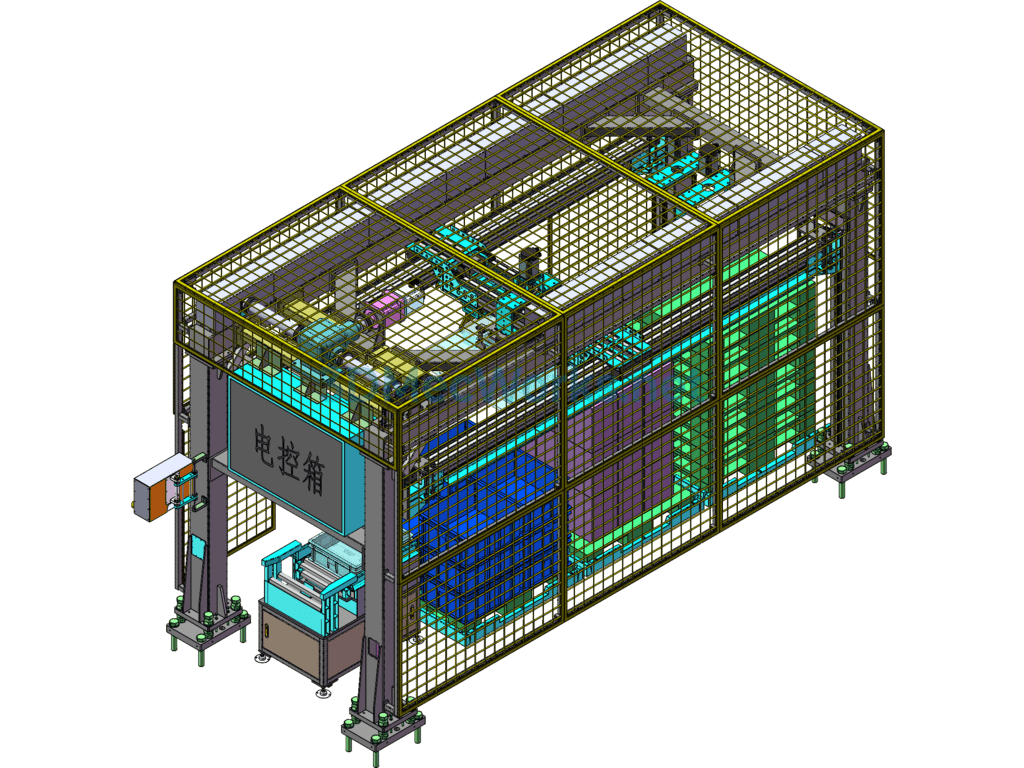

The bin-type palletizer is detailed with SolidWorks 3D drawings.
The equipment has been put into production.
