Bent Pipe Hydraulic Fixture Assembly Drawing

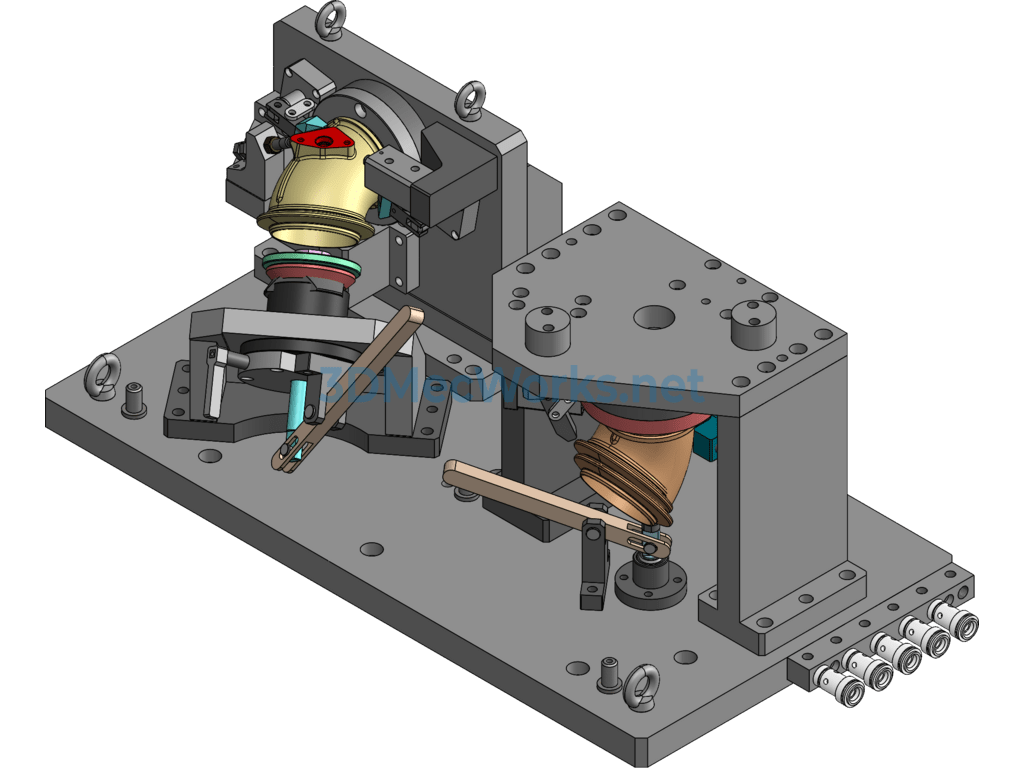

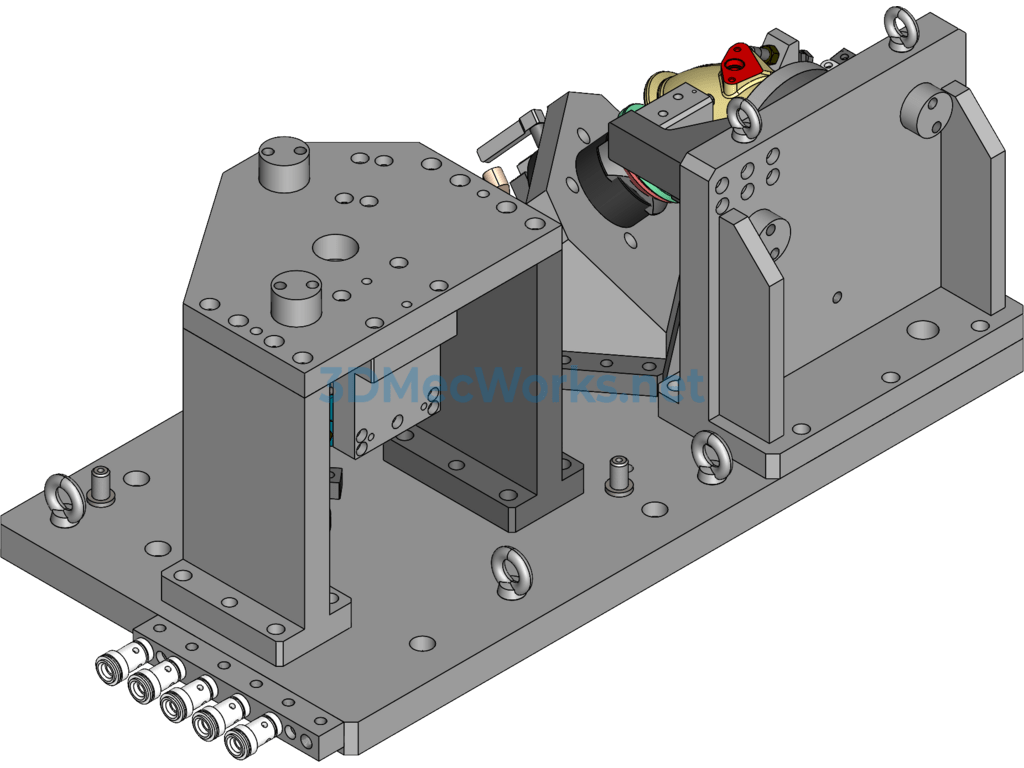

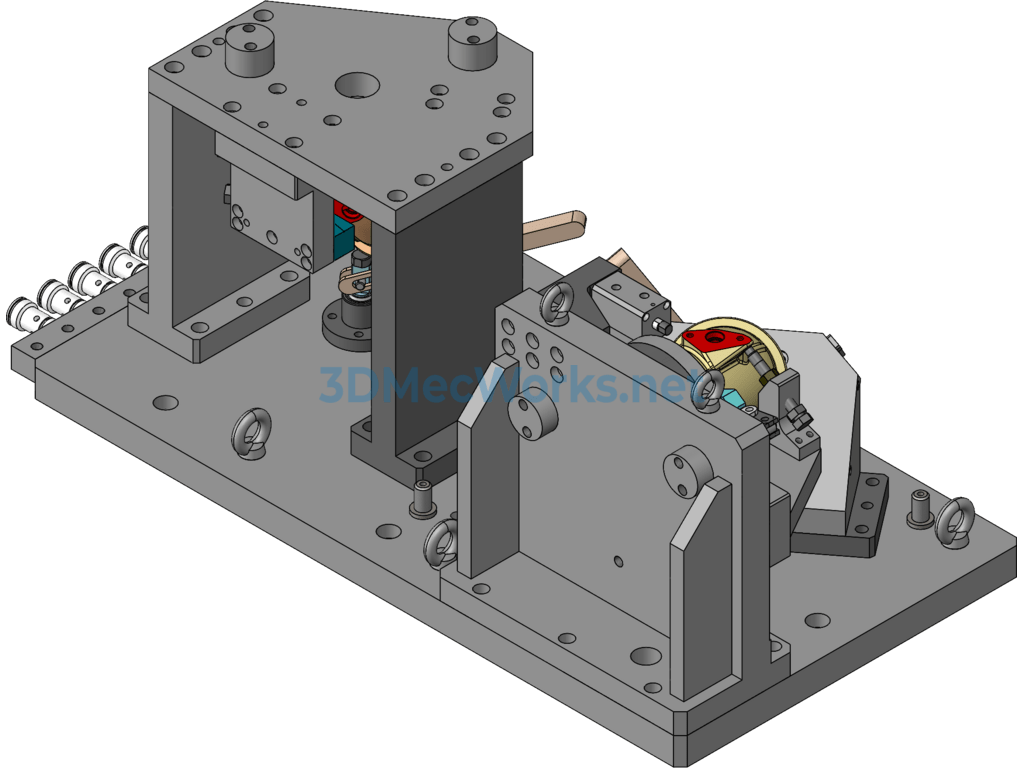

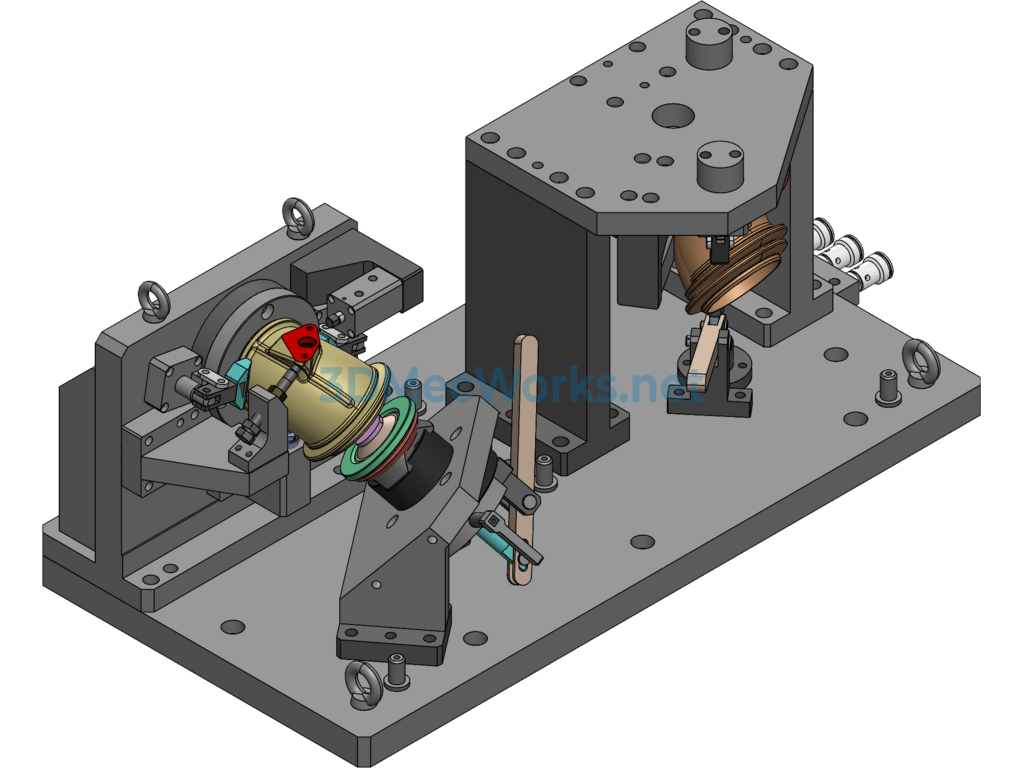

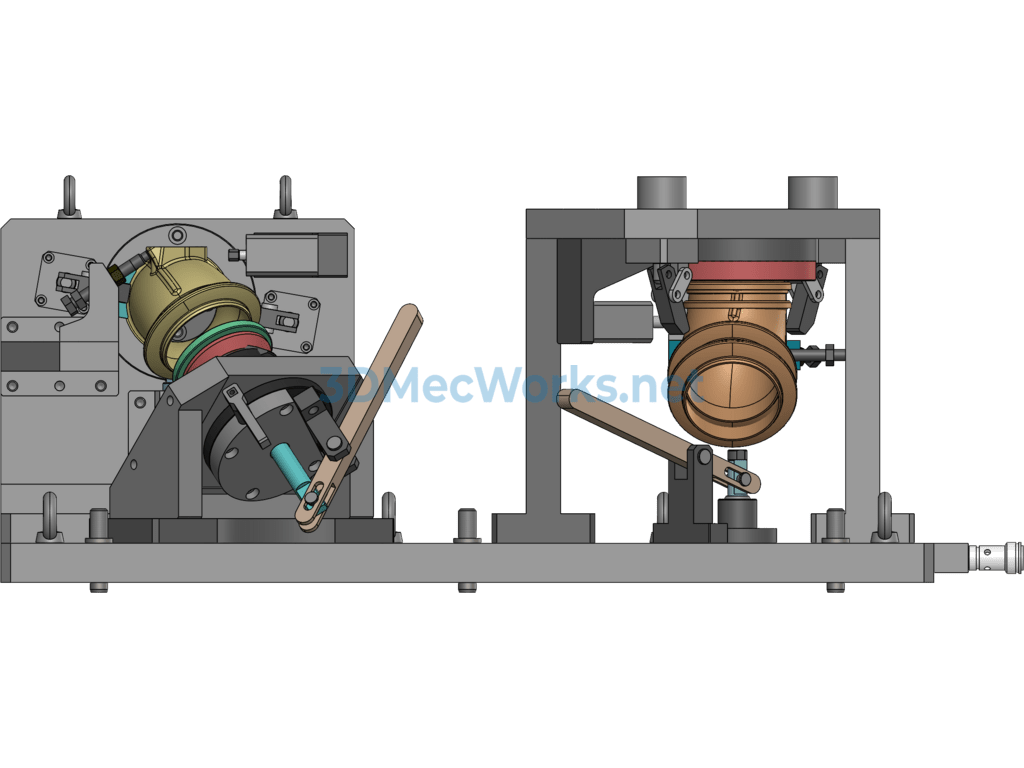

The image shows the assembly drawing of a pipe bending hydraulic fixture, compatible with the CMV-850A machine tool, with a workbench size of 950X500. This fixture uses a workpiece center positioning and an angular orientation for the outer shape. The weight of the fixture is approximately 350KG.
Specification: Bent Pipe Hydraulic Fixture Assembly Drawing
|
