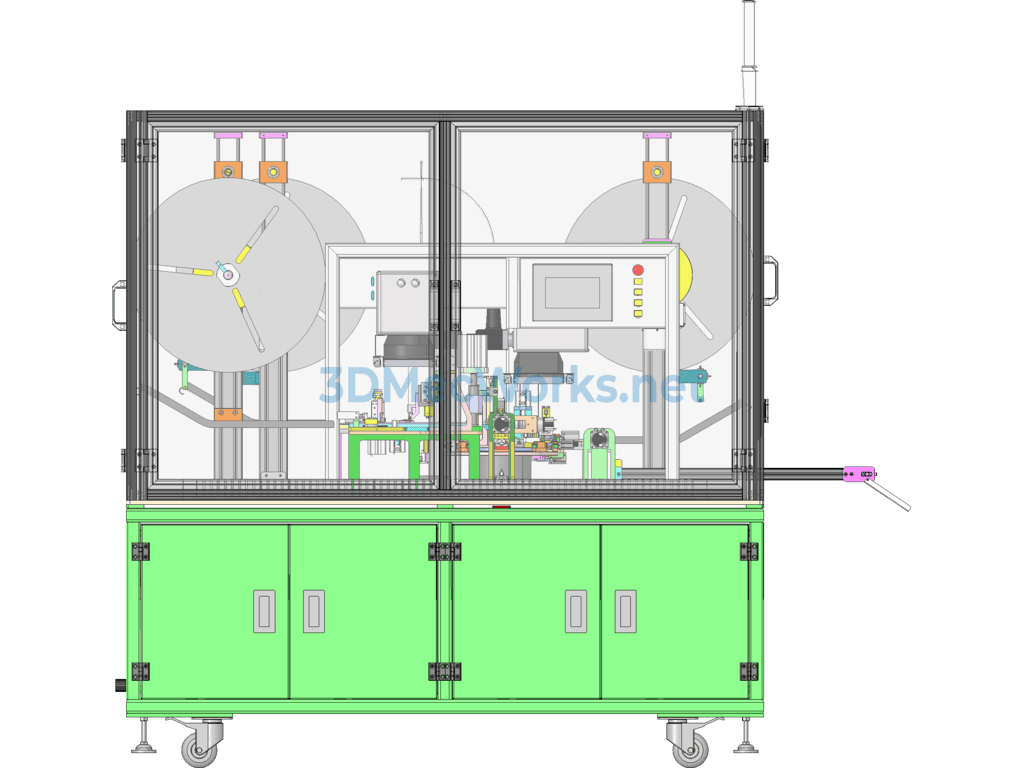

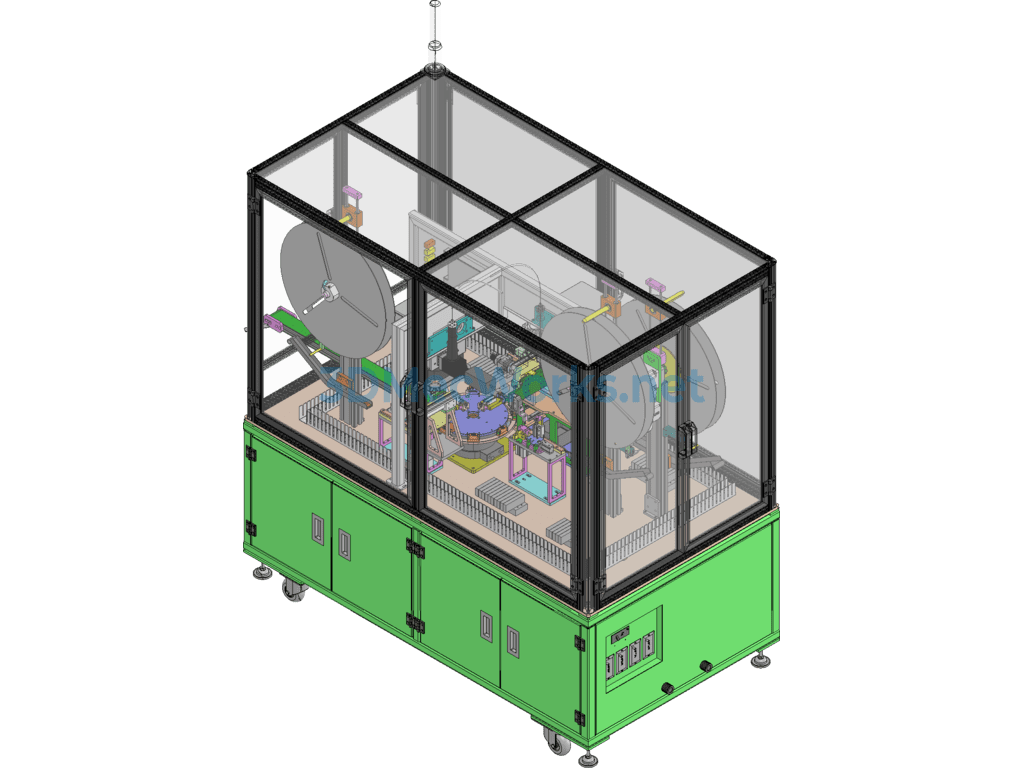

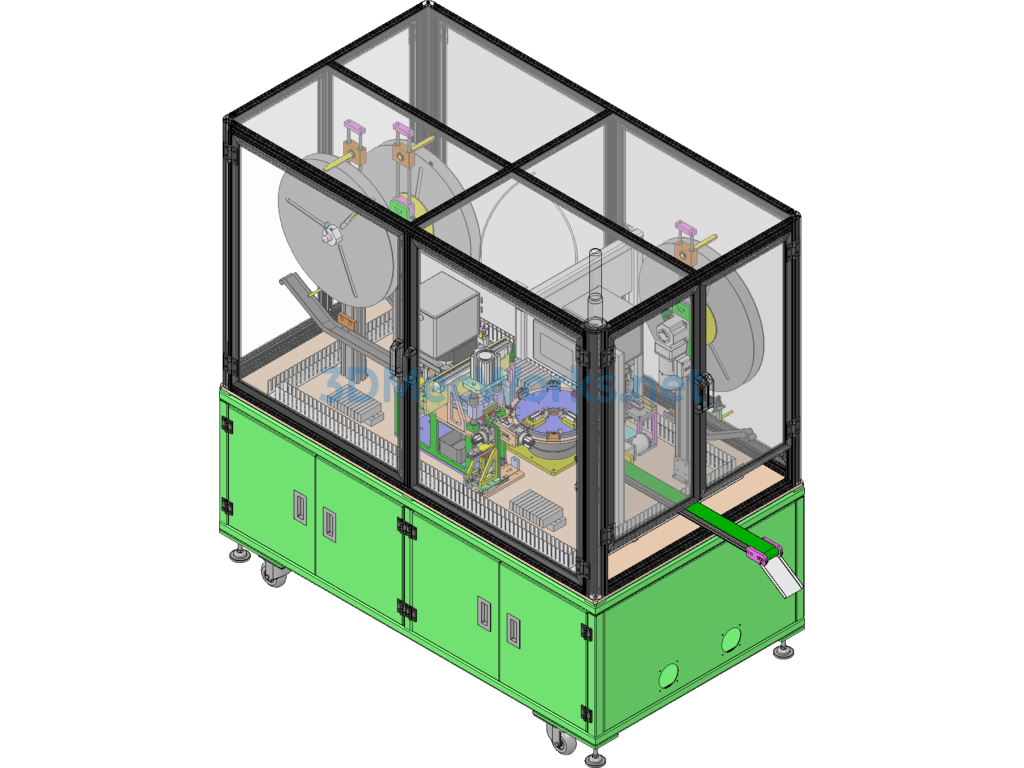

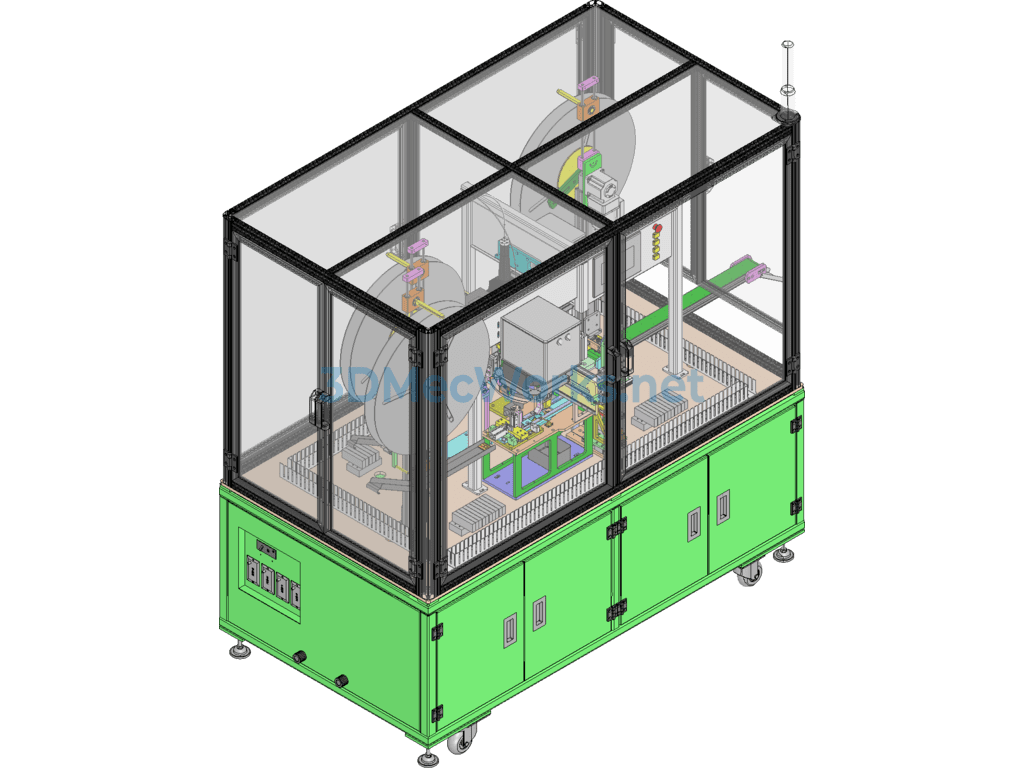

Bending And Laser Welding Equipment (Including DFM, BOM) - SolidWorks - Free Download

Automation Bending Laser Welding Equipment Action Process:
1. The tray is manually loaded onto the turntable inside the equipment for positioning;
2. The module picks up the product and places it into the jig on the return line;
3. The jig is fed to the labeling station through the circulation line;
4. The labeling machine discharges, and the labeling module absorbs and applies the label;
5. After labeling is completed, the line circulates to the unloading and grabbing module, which unloads and stores it in the warehouse. When full, it alerts the operator to unload.
=====Comments from the reviewer=======
The BOM is not closely related to this equipment and can be ignored.
