Belt Conveyor Line

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

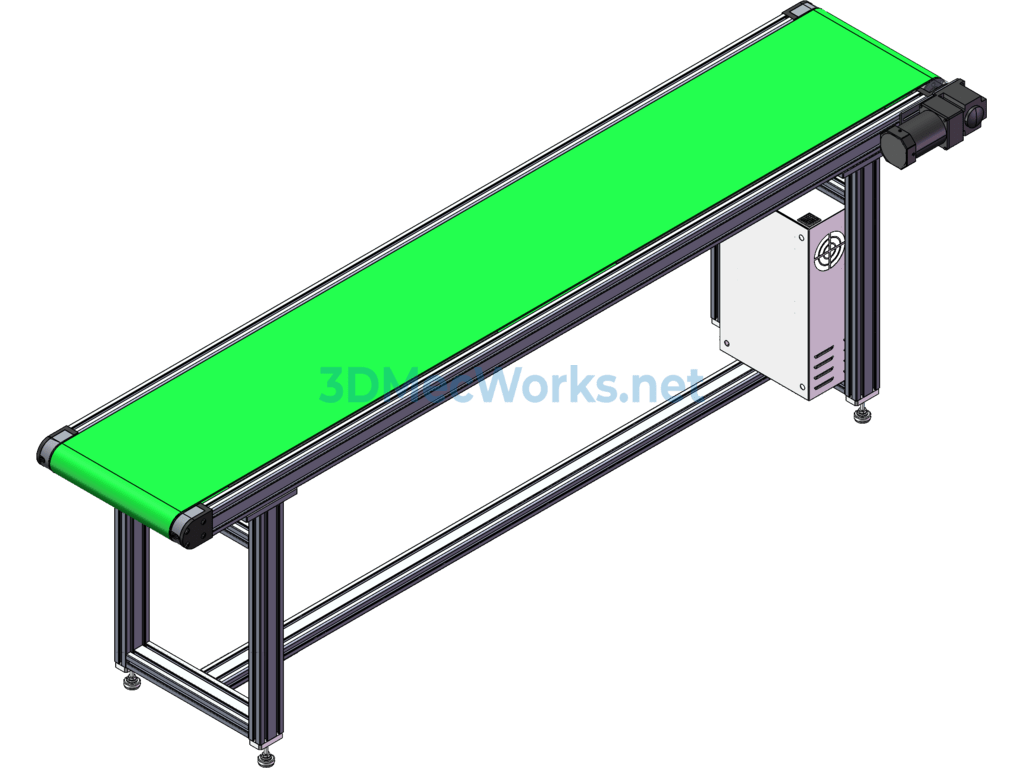

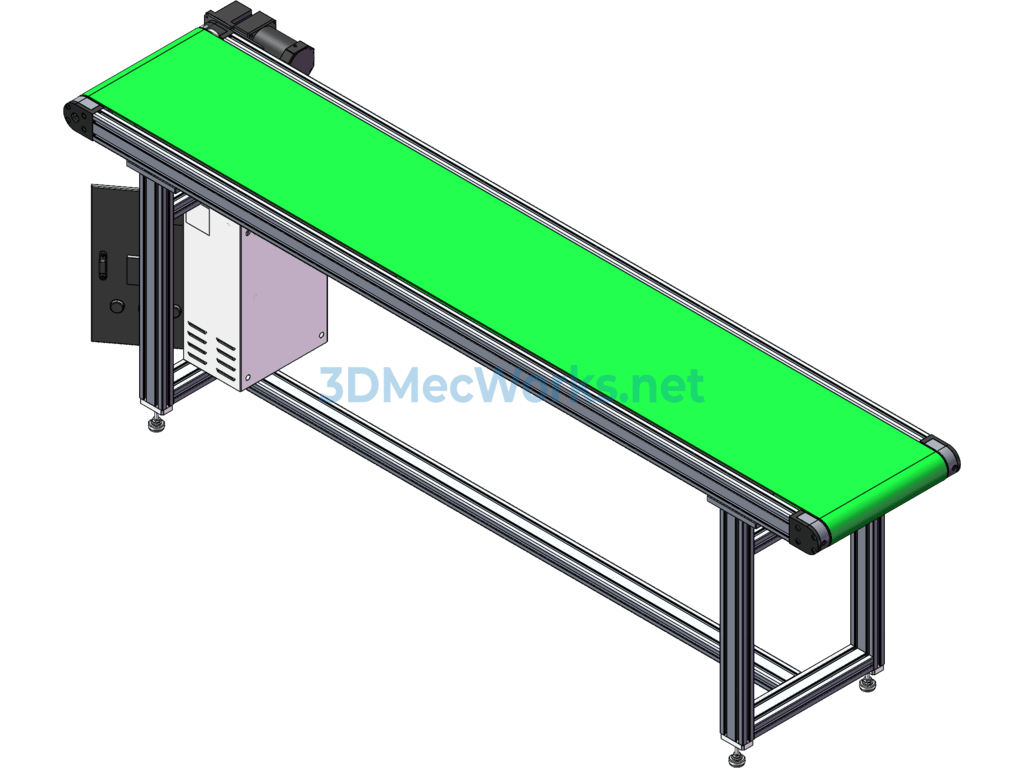

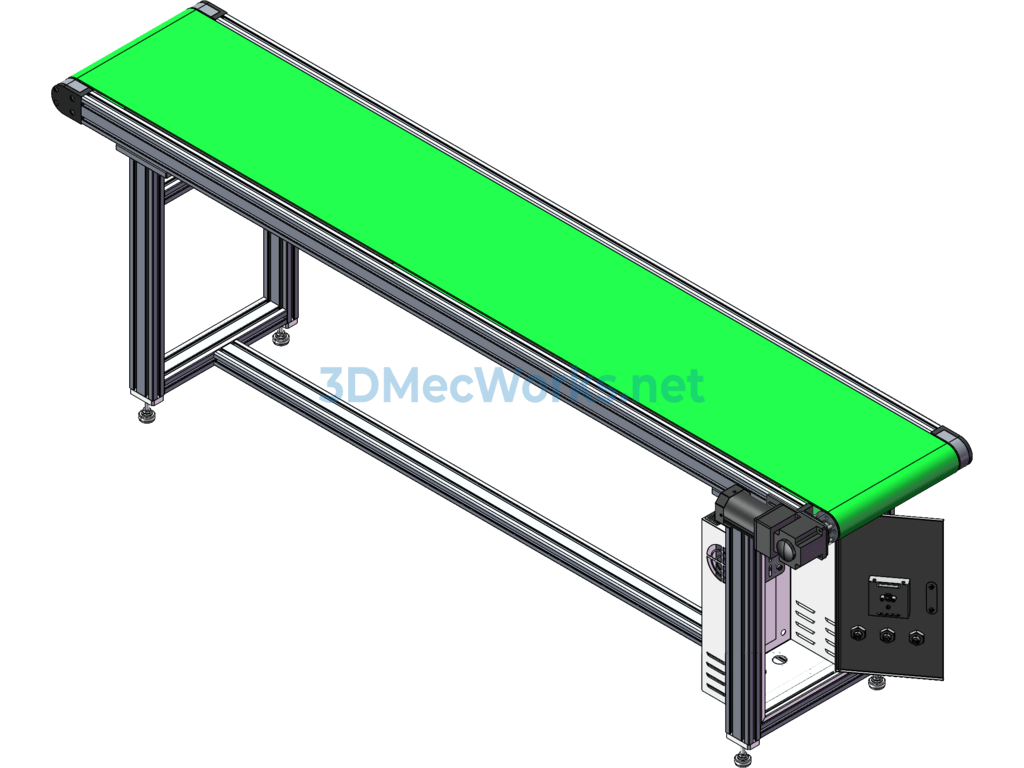

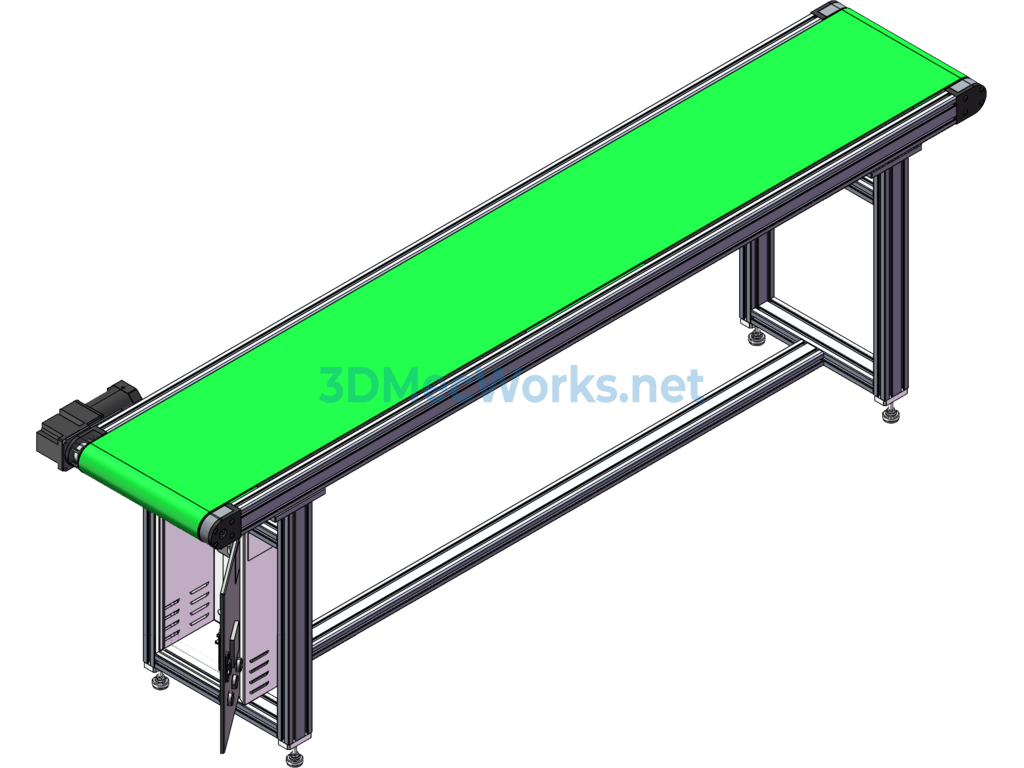

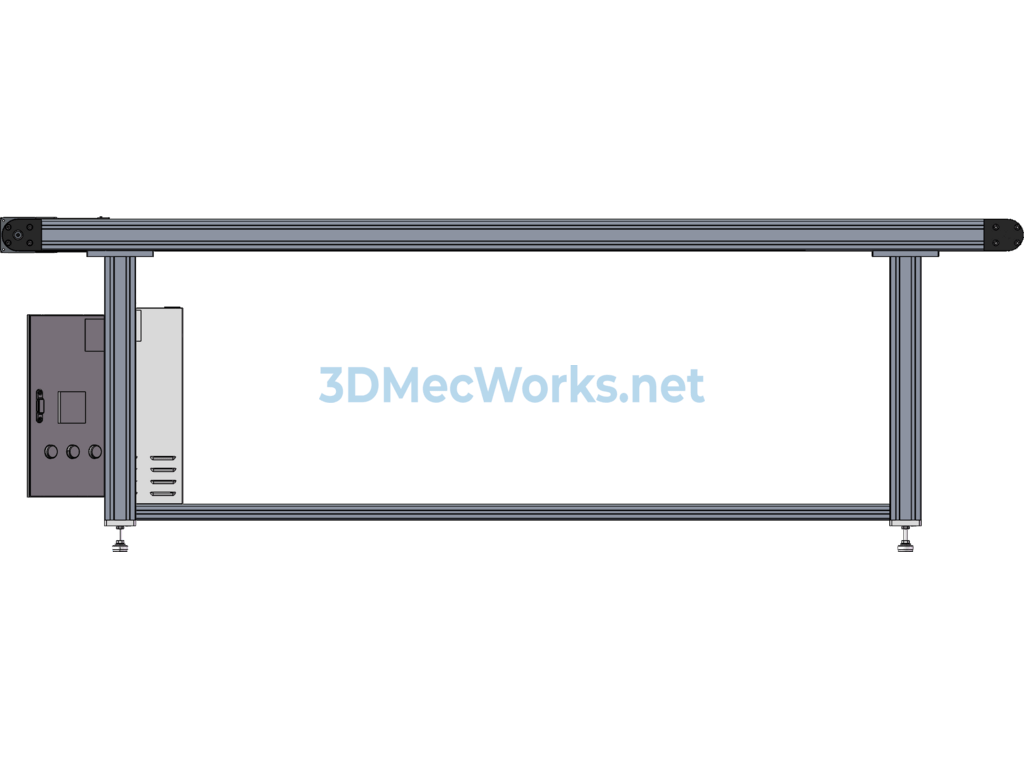

This product is a simple belt conveyor line, primarily composed of profiles. The end adjustment plates and bearing seats are all standard components. The total length of the product is 2.4m, suitable for transition areas on the production line. The motor is a right-angle geared motor with an attached speed controller. The overall structure of the machine is simple and lightweight.

Specification: Belt Conveyor Line

Design Software

Editable

,

File Formats

,

Industry Application

Sharing Level

Version
