Bellows Fittings Assembly Machine - SolidWorks - Free Download

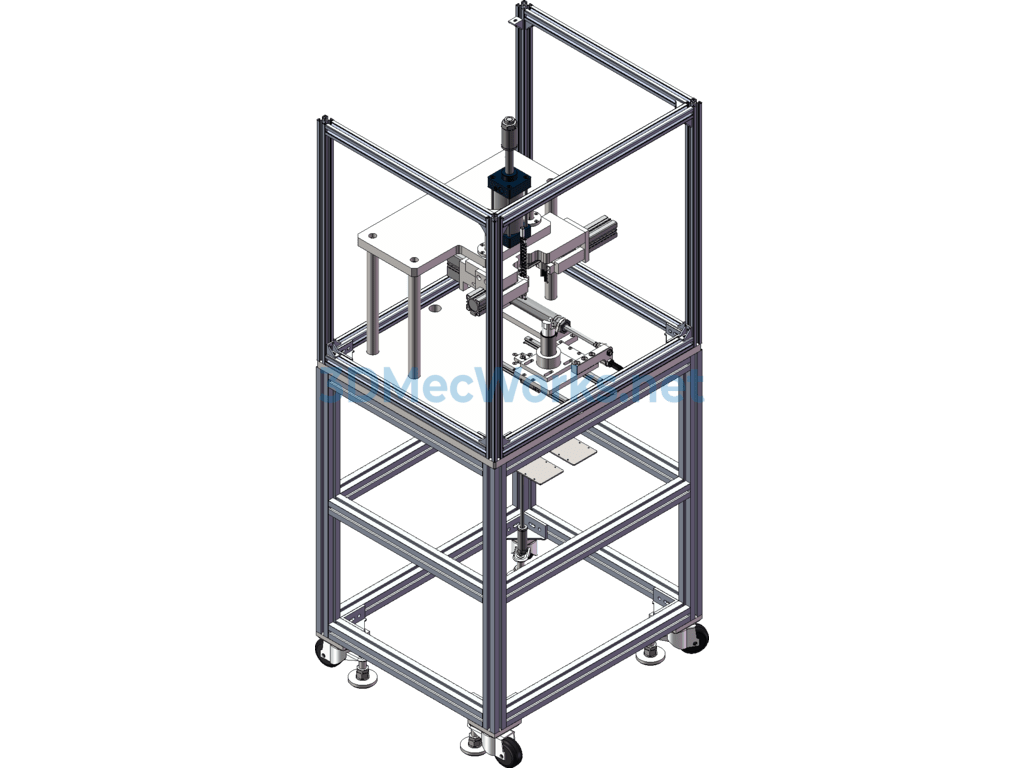

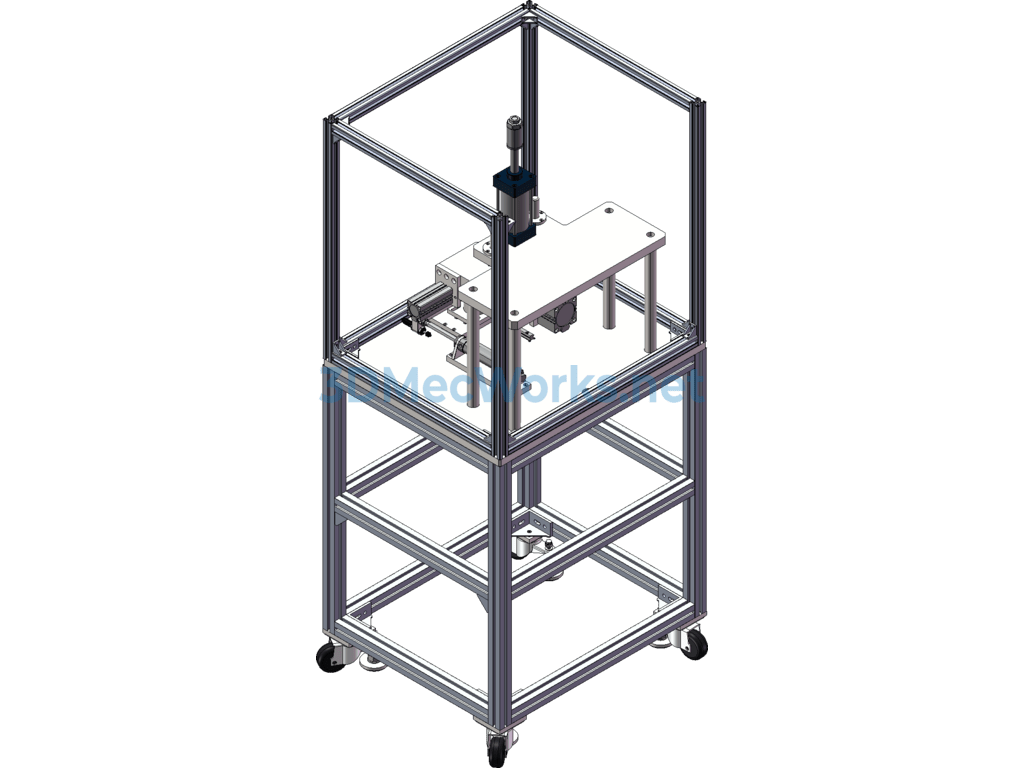

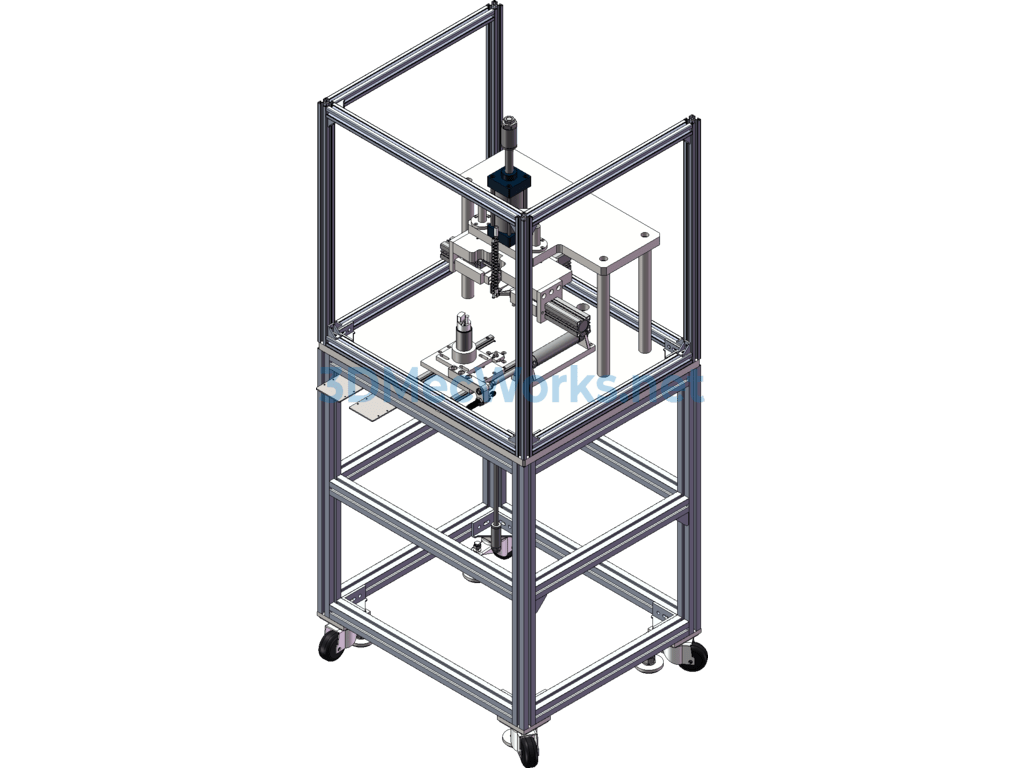

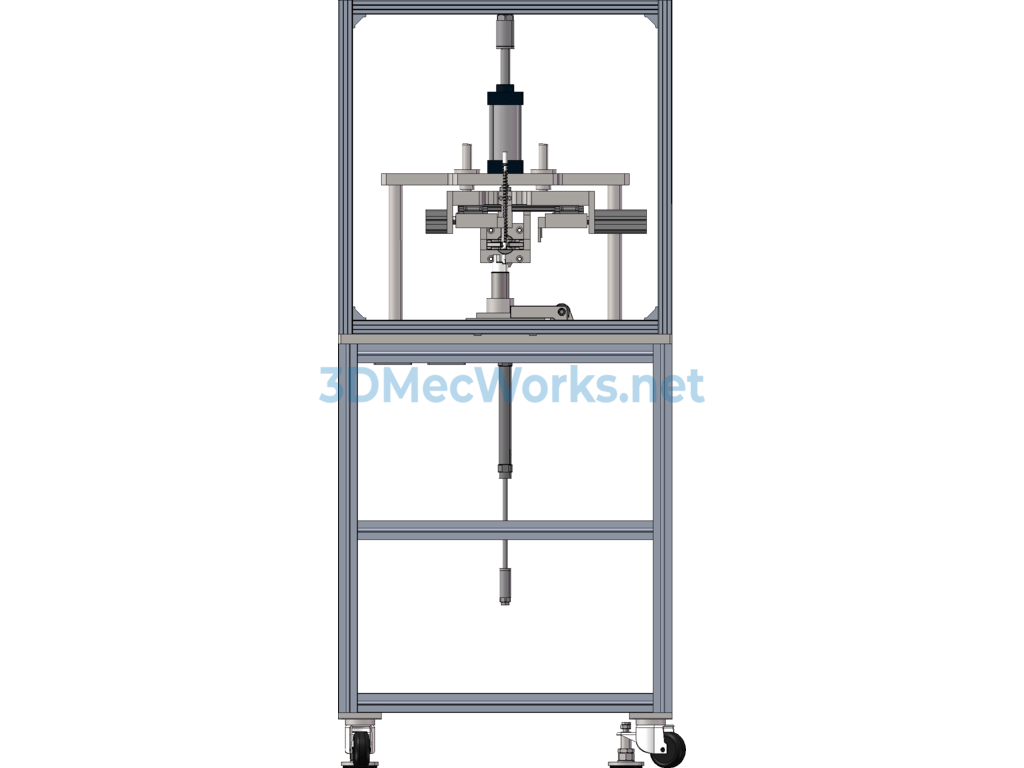

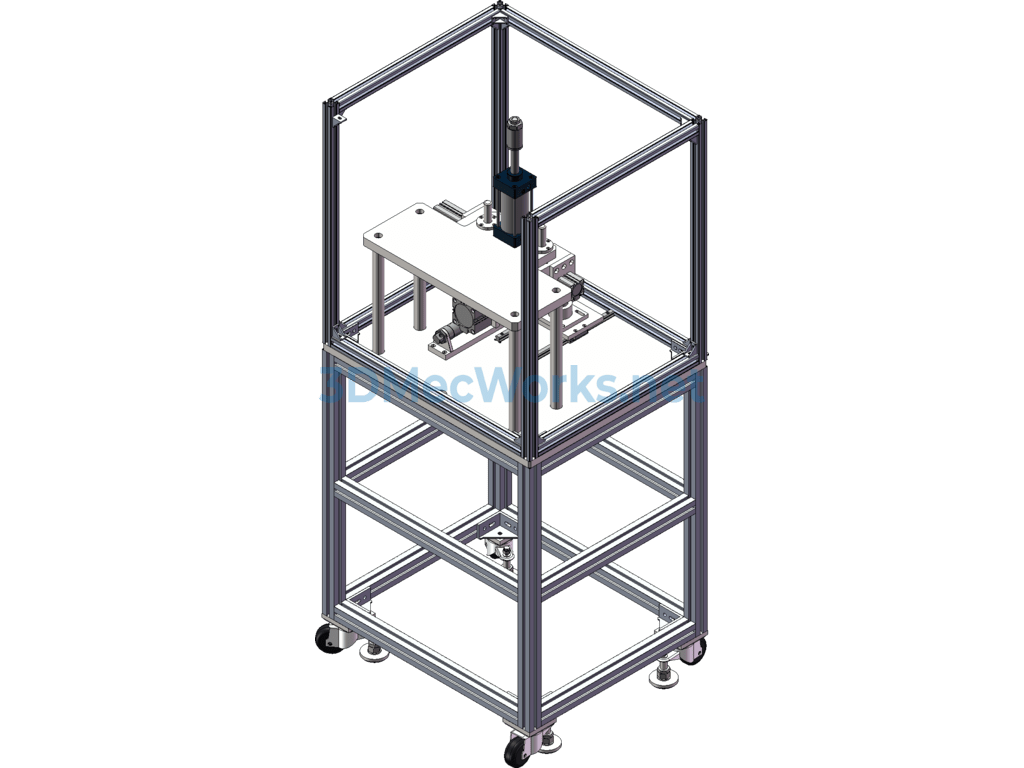

Automatic Oil Pipe Installation Machine, the type of oil pipe is bellows, used for guiding liquids, original design drawings, a patent has been applied for, and the drawings have been used in actual production. The equipment consists of five parts: automatic pipe lowering structure, automatic pipe feeding structure, automatic clamping mechanism, pressing to position structure, and installation buckle. The working principle is: using the distribution structure to achieve orderly automatic delivery of one oil pipe at a time, then using the feeding structure to send it to the desired installation position for pressing, and finally installing the buckle. The drawings have high reference value, and everyone is welcome to download.
