Bearing E-Ring Integrated Assembly Machine

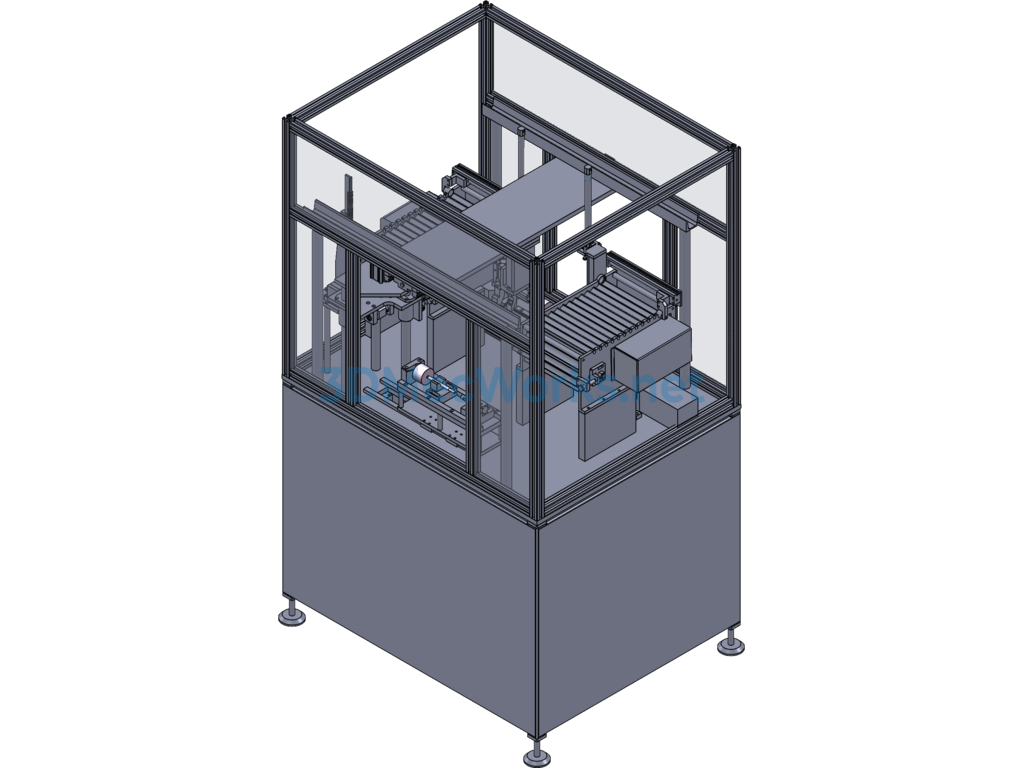

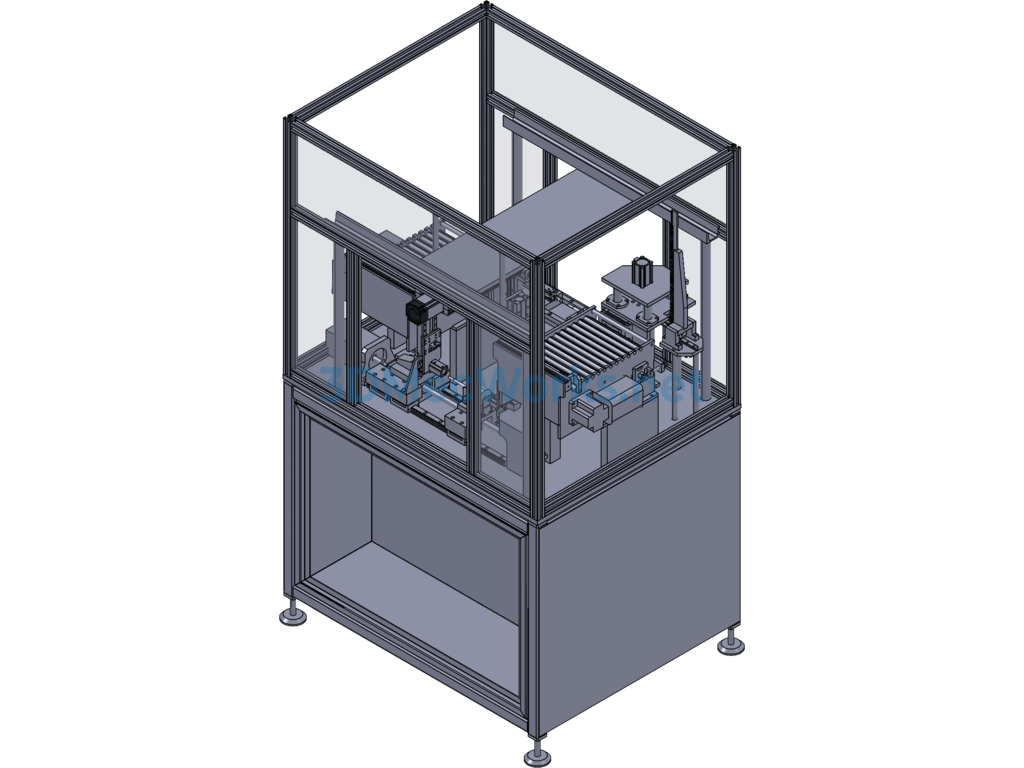

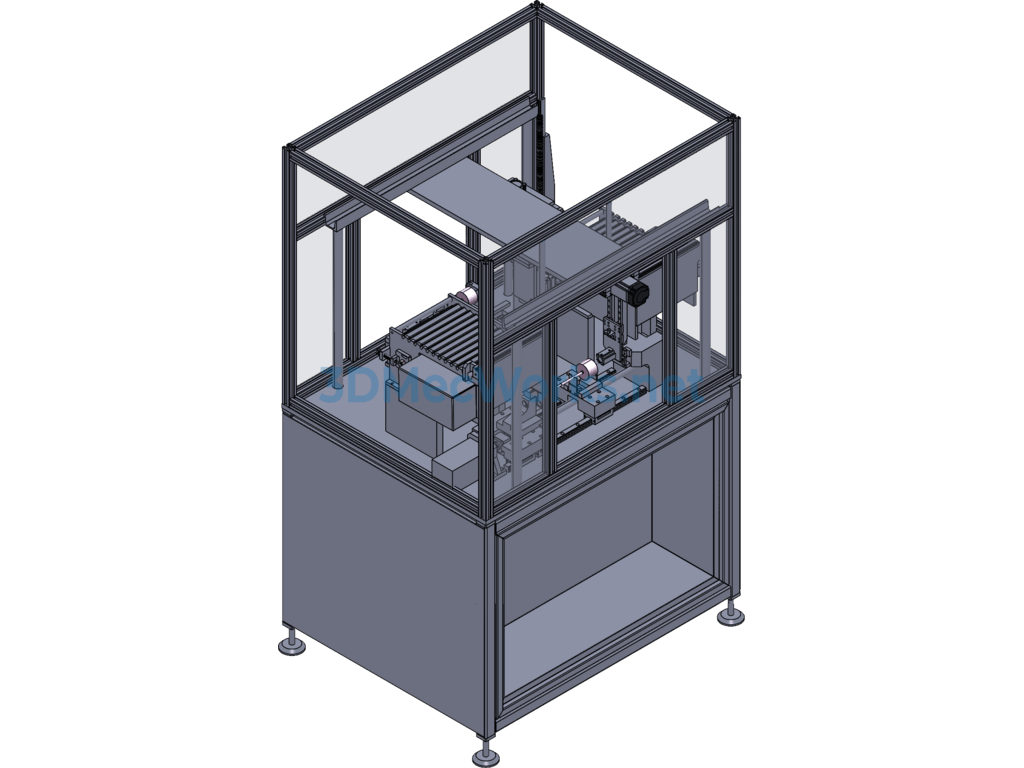

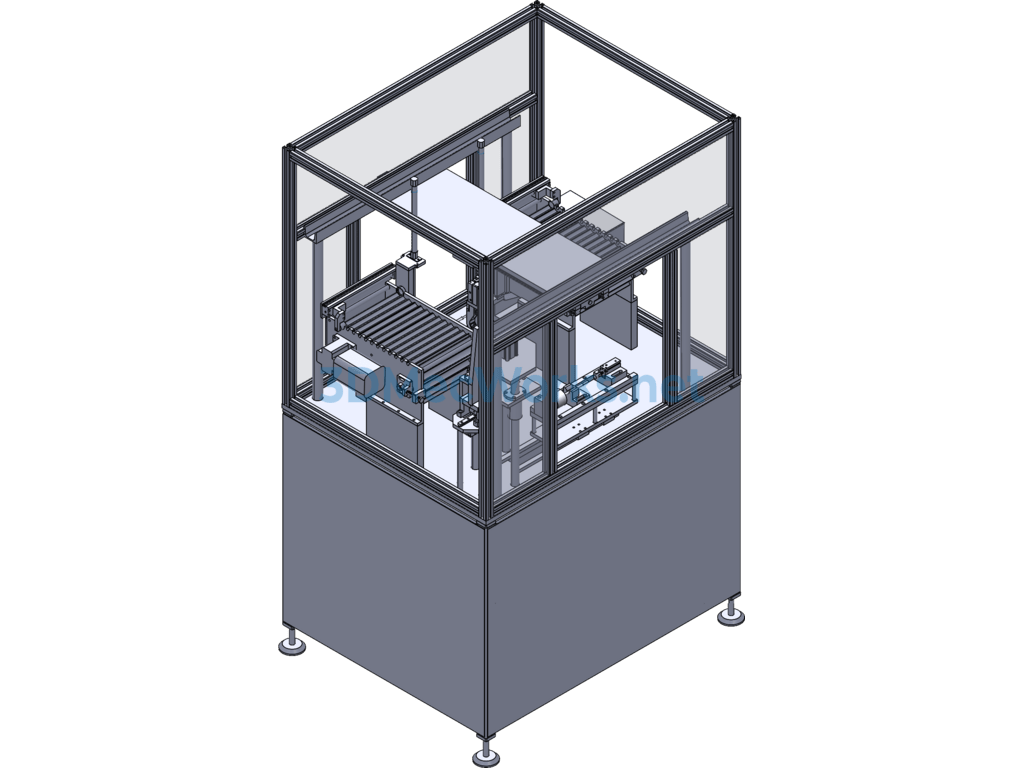

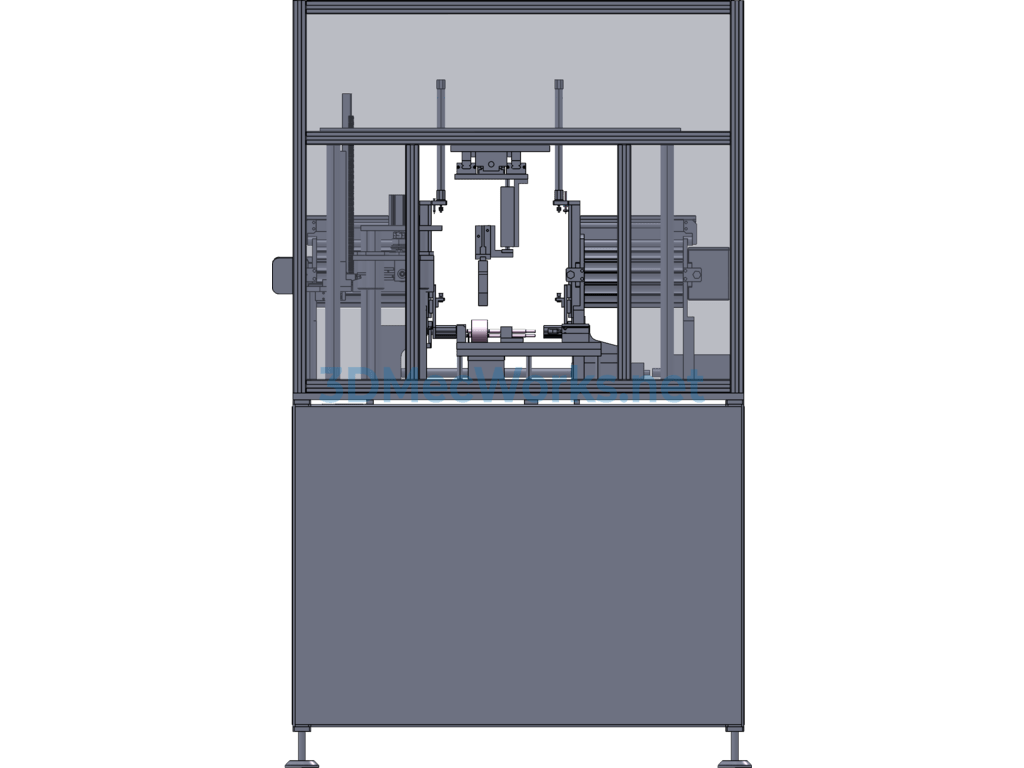

Bearing E-ring Integrated Assembly Machine: This is an assembly machine used for motor rotors. It is now a mature product and is being produced by Panasonic. The structure is compact and the layout is reasonable. The electrical schematics are not detailed in the diagrams. The mechanical structure of the bearing automatic assembly machine is detailed, with all parts complete and high efficiency. The cylinders and air grippers are all selected from SMC. The model creation is realistic and contains parameters. You are welcome to download it.
