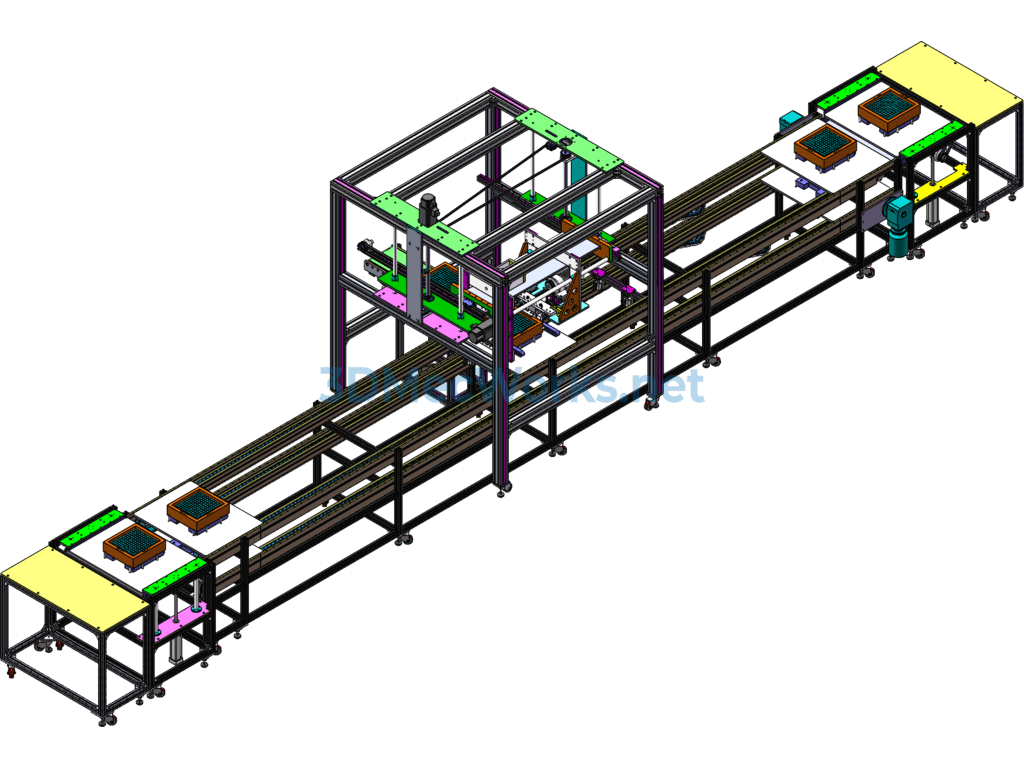

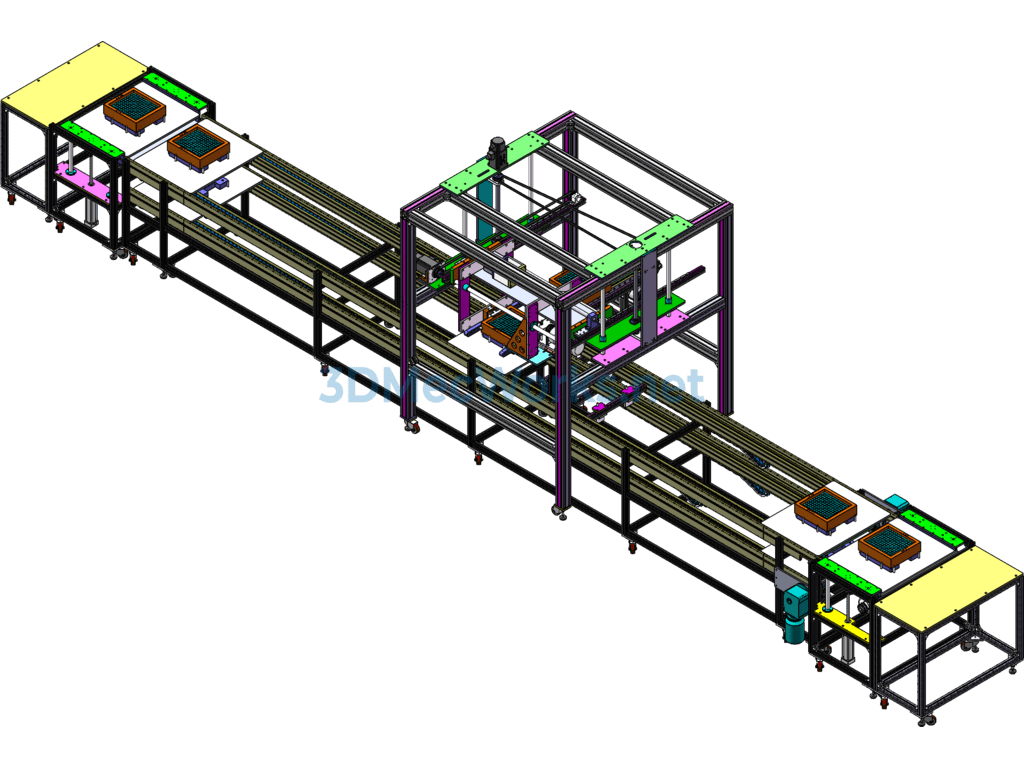

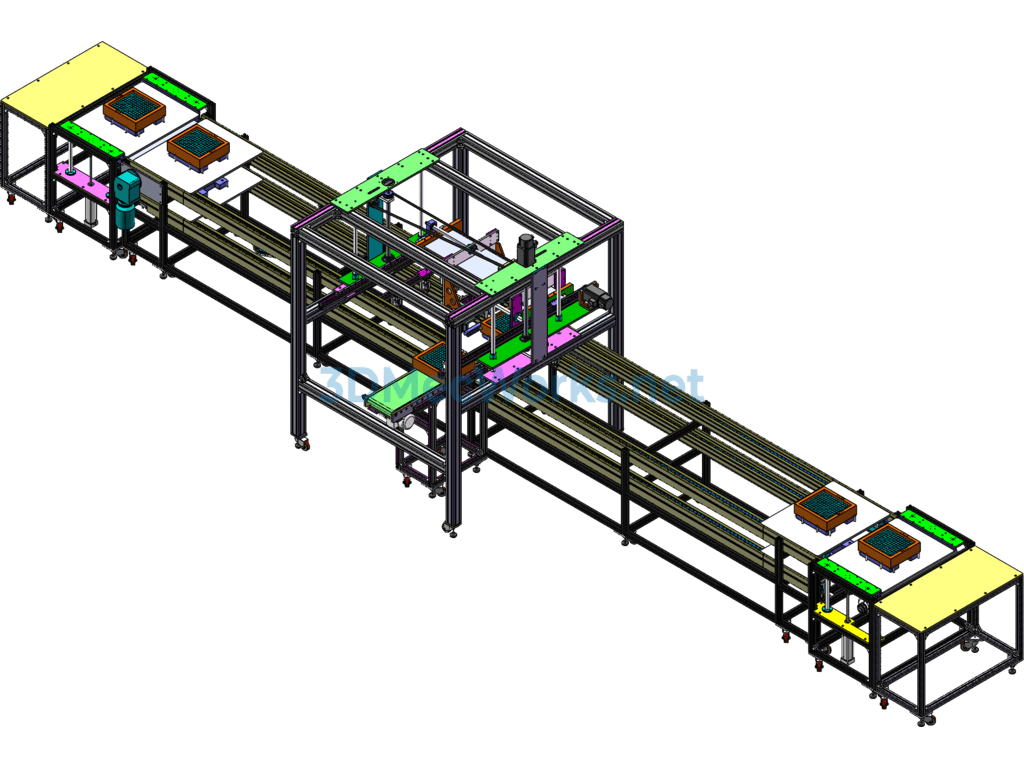

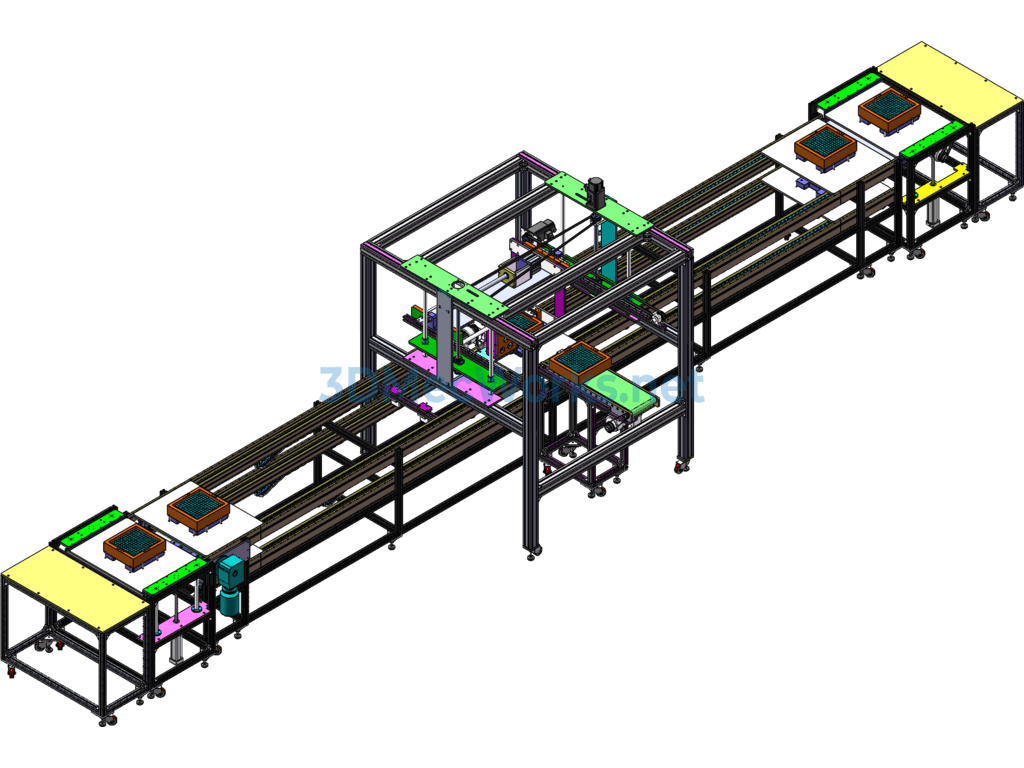

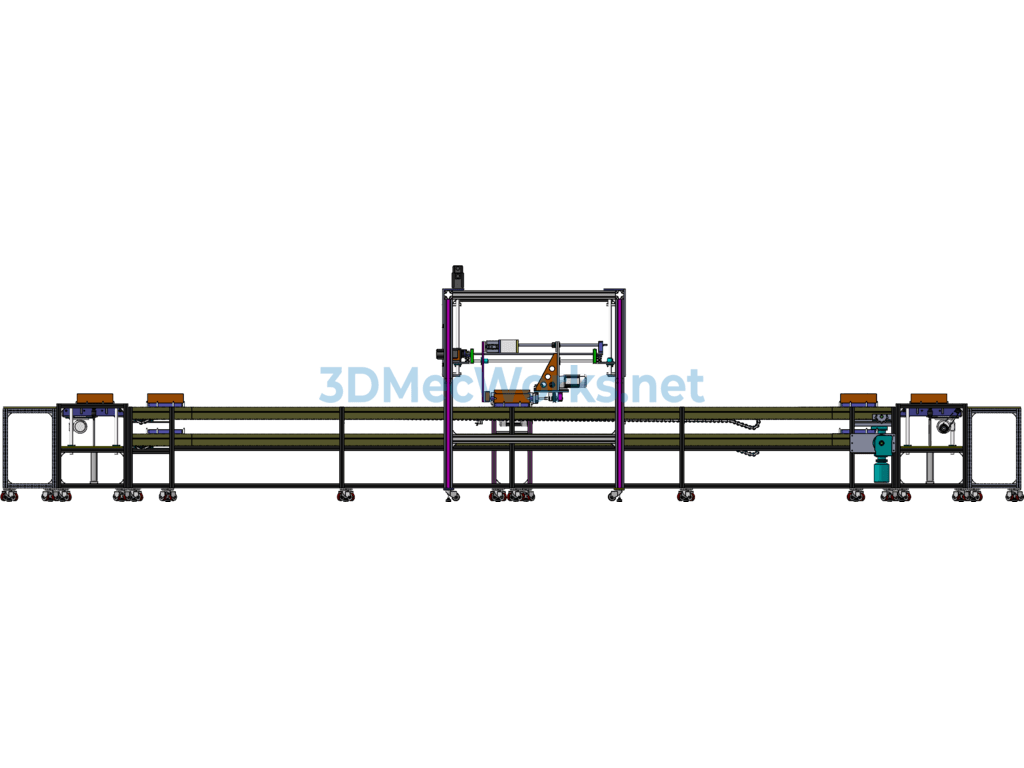

Battery Pack Welding and Feeding Line System

Equipment Description:
1. Battery pack welding and feeding line;
2. Battery pack composed of 18650 batteries;
3. Each battery pack weighs about 70Kg;
4. Welding equipment for battery pack electrodes

A. The battery pack carrier uses an up-and-down circulation form;
B. Both sides of the battery pack are welded. After welding the first side, it exits,
and the flip mechanism automatically flips the battery pack to weld the electrodes on the other side;
C. Material input and output are manual, while the rest is fully automated with intelligent feeding.
