Battery Electrode Sheet Weighing and Sorting Machine

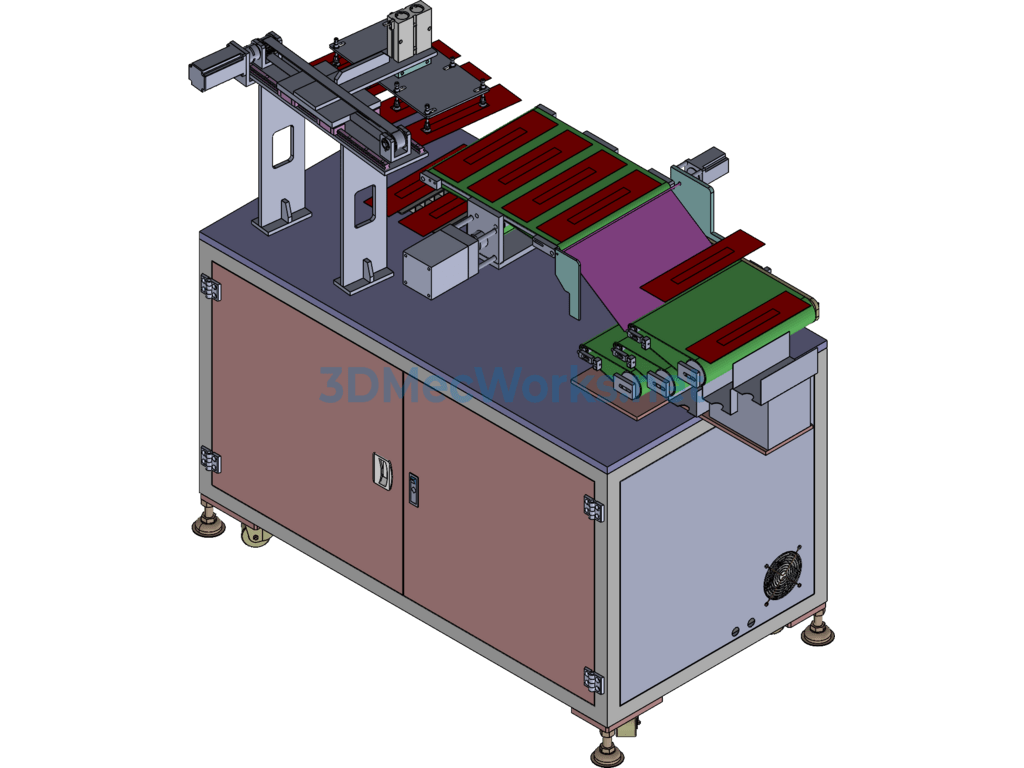

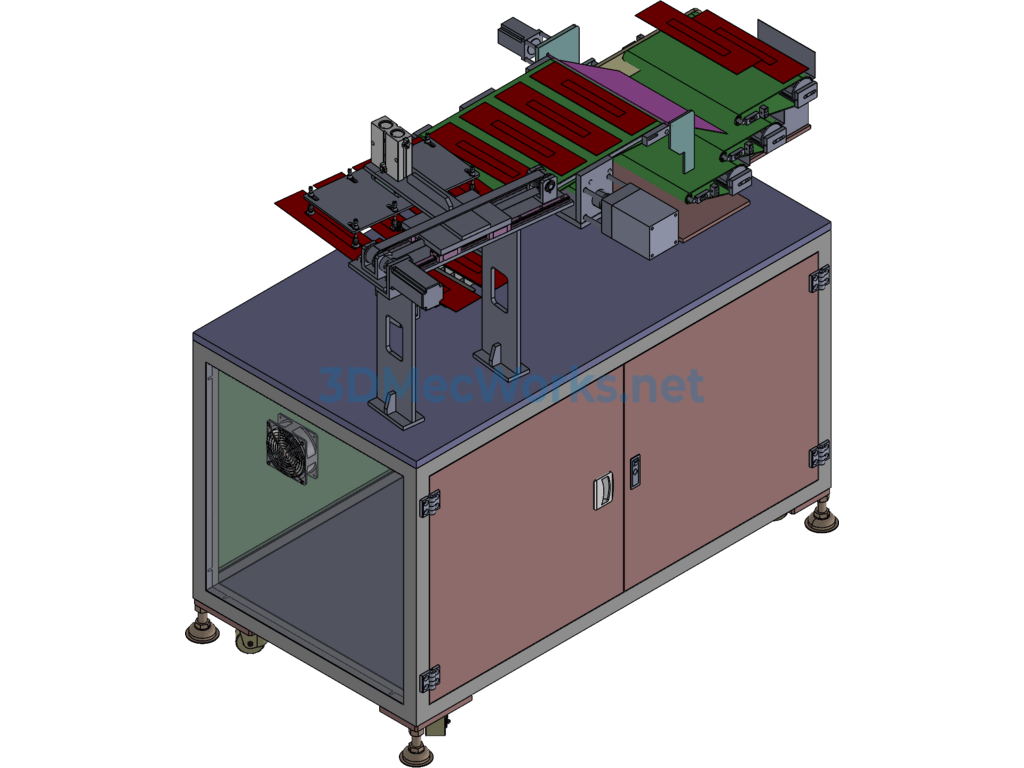

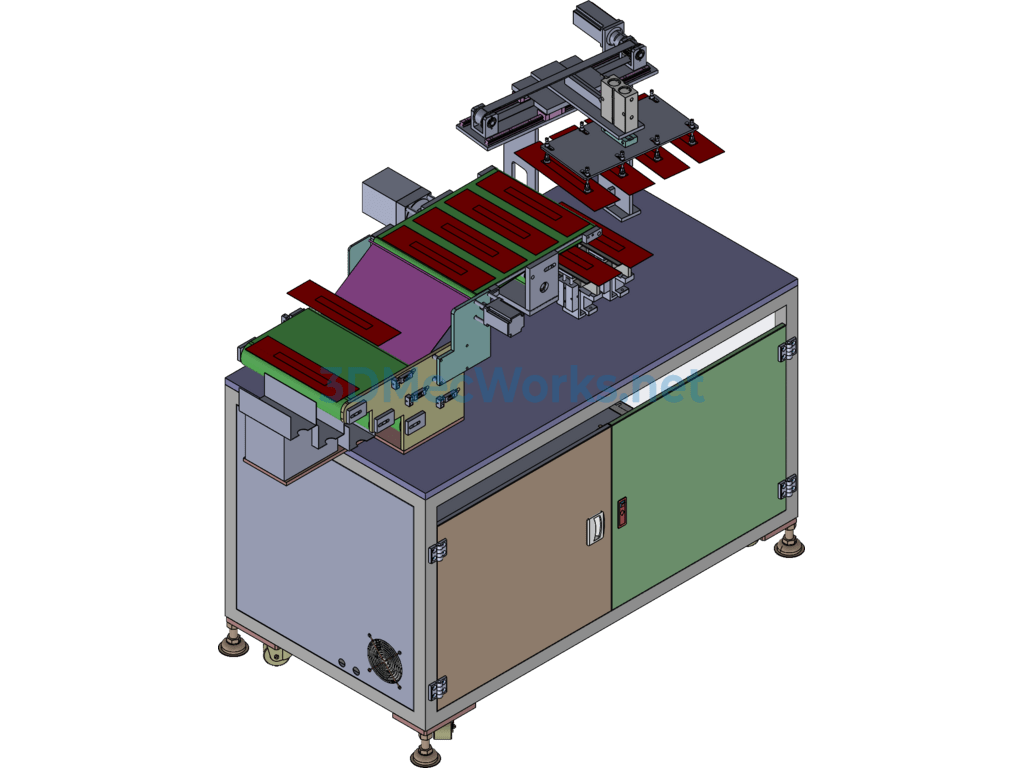

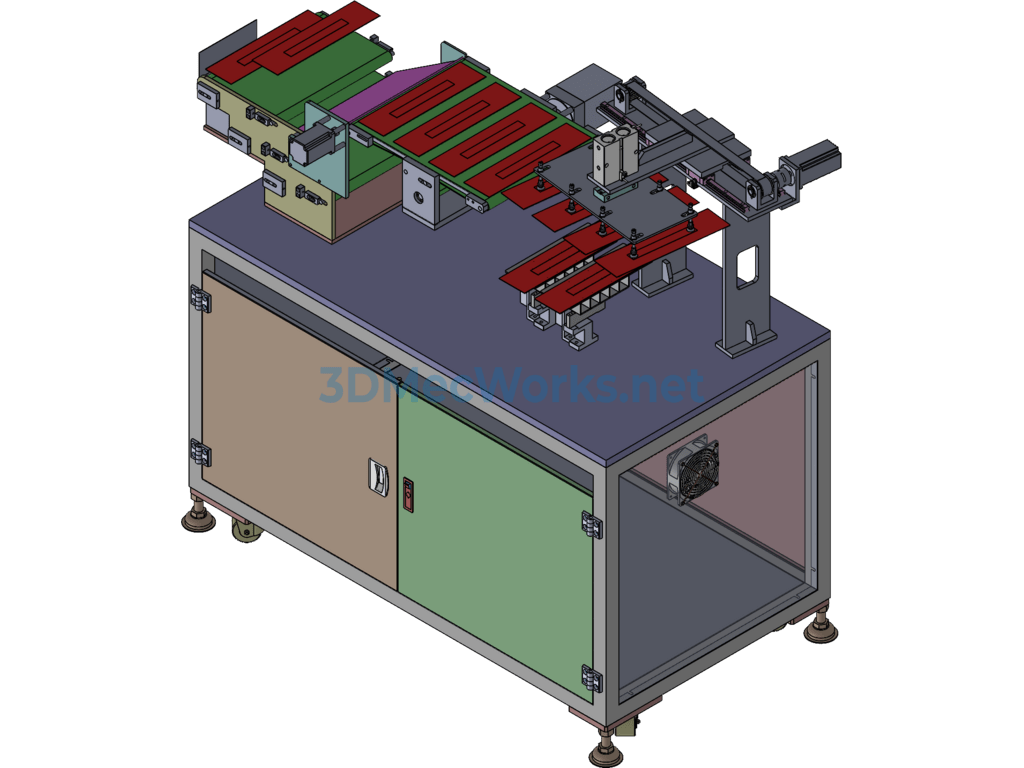

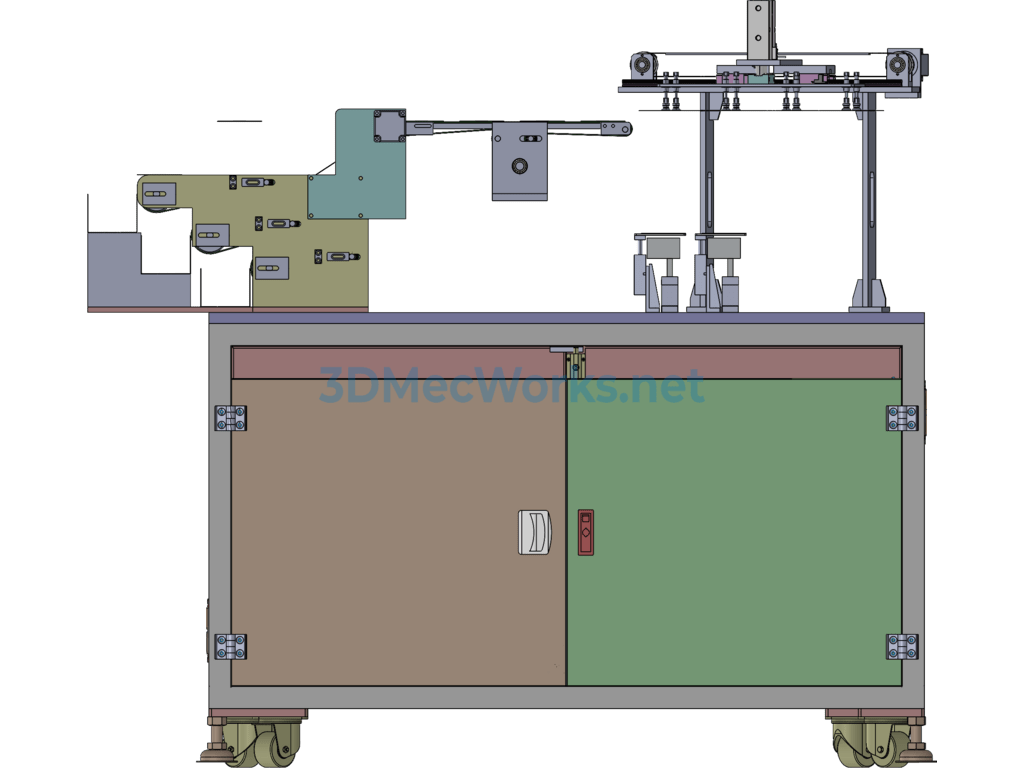

3D model of a pole piece weighing and sorting machine. This device is used for the weighing and automatic sorting of battery pole pieces. Designed using SOLIDWORKS2012, the source files have features for all parts, making it easy for you to use, reference, and modify. The overall structure is clear, and the parts are complete, making it an ideal teaching material for design reference or study. Feel free to download.

The weighing and sorting of battery pole pieces involves a linear module, consisting of a synchronous belt slide rail and a servo motor, to move the pneumatic gripper up, down, left, and right. After weighing the pole pieces on an electronic scale, a motor-driven, rotatable sorting board sends the pole pieces to the respective positions on a three-layer conveyor belt line, followed by automatic stacking.
