Battery Electrode Sheet Cutting Machine/large Sheet Cutting Machine

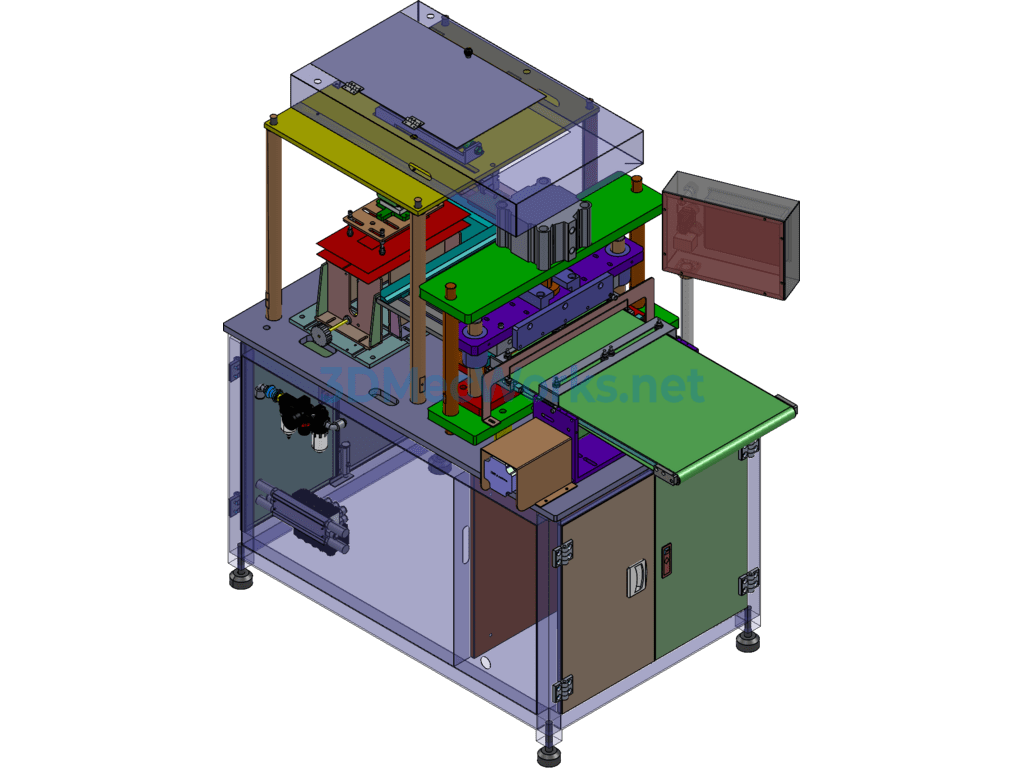

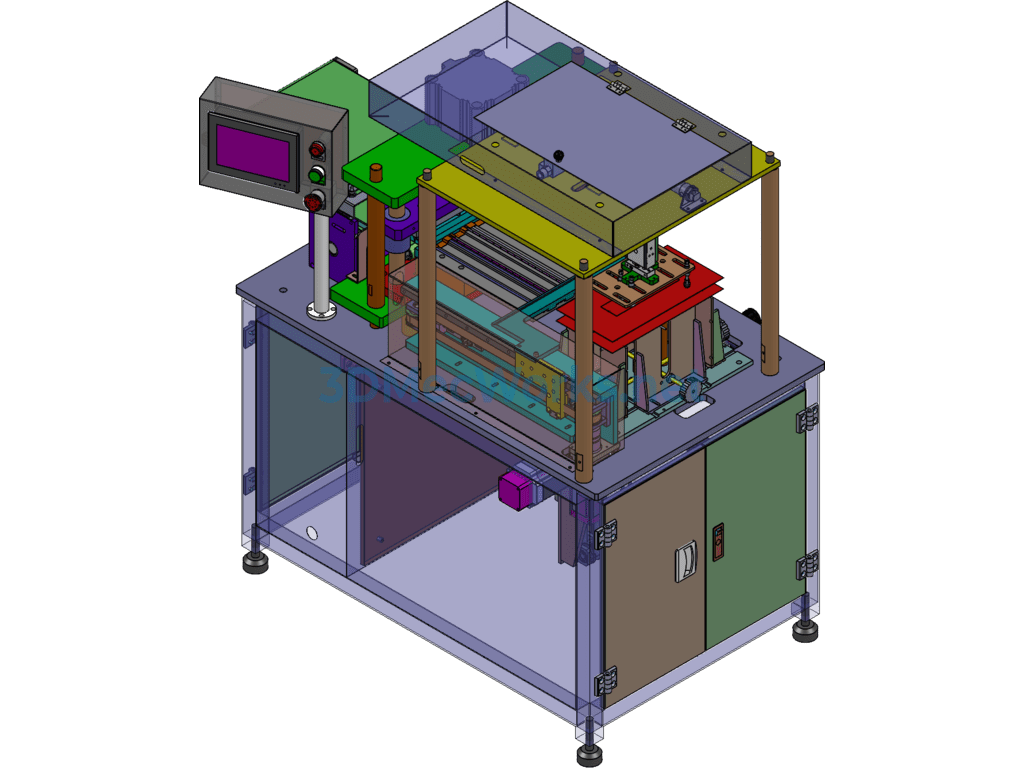

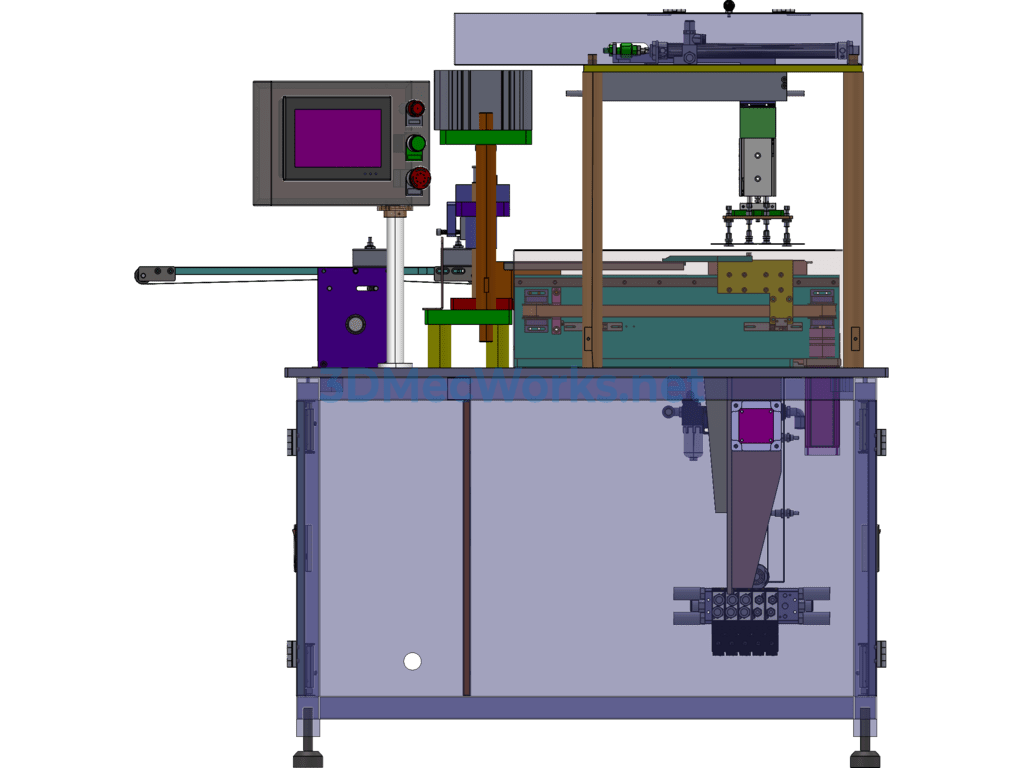

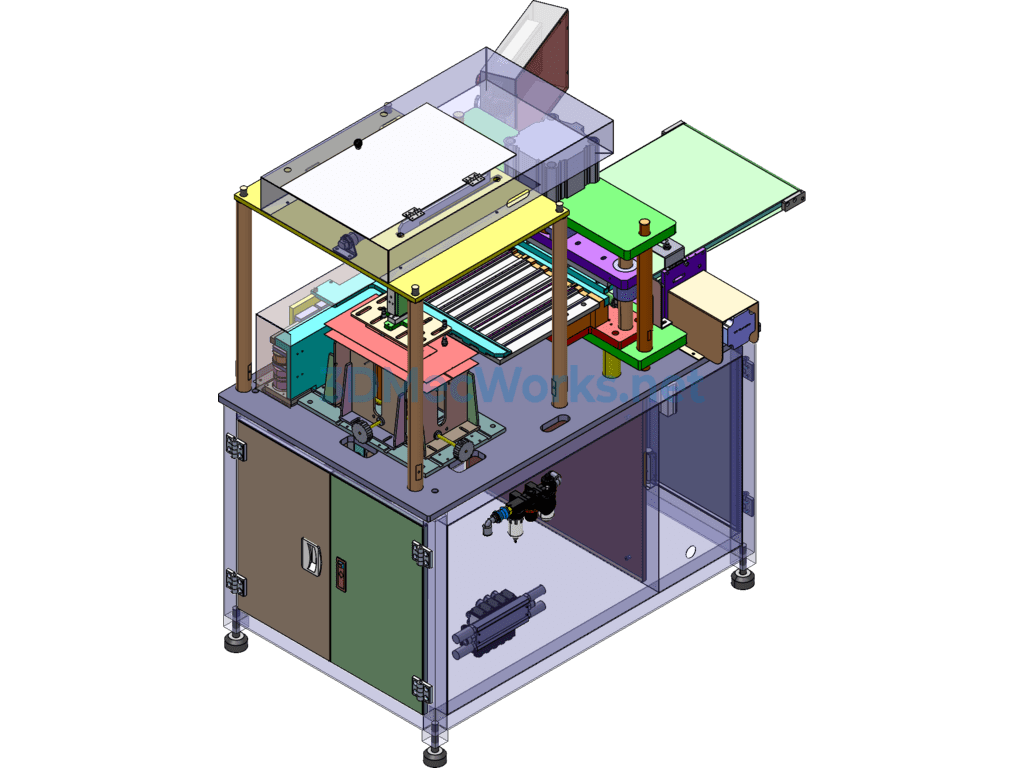

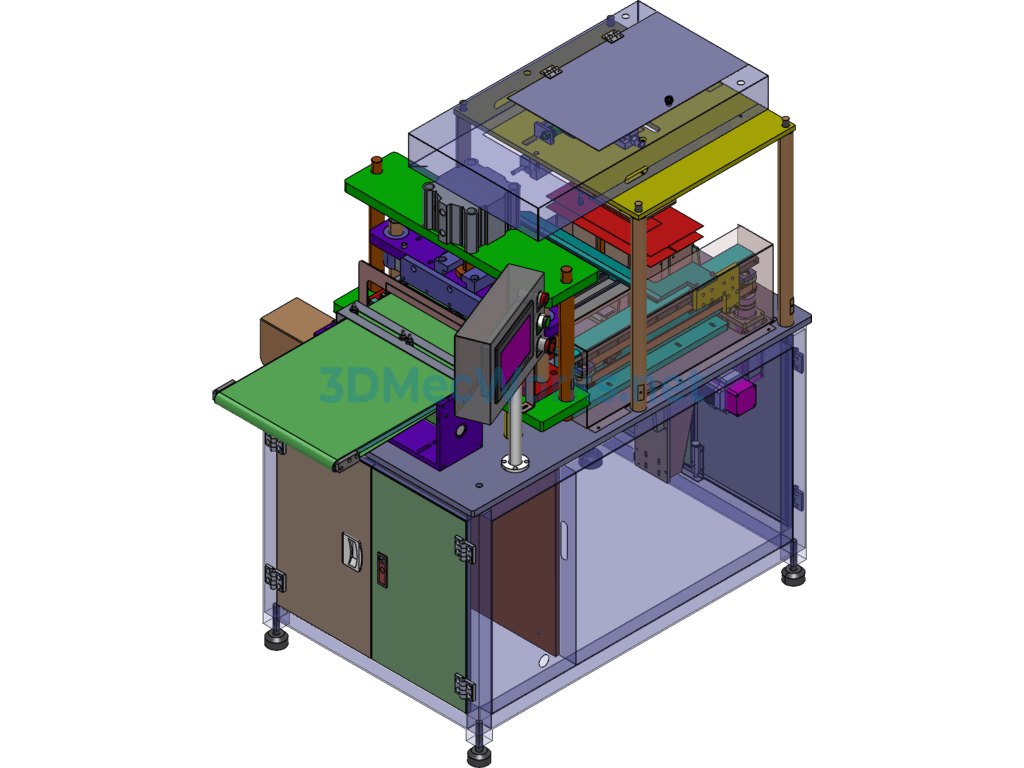

Battery Tab Cutting Machine/Sheet Cutter, a type of sheet cutting machine, is designed for cutting battery tabs. This equipment cuts the coated and powdered tabs into the required shapes and dimensions. Designed using SOLIDWORKS, all parts in the source file have features that facilitate easy reference and modification for your use. The overall structure is clear, and the parts are complete, making this an ideal resource for design reference or learning.

This sheet cutting machine equipment is suitable for nickel-metal hydride and lithium battery tabs and is part of the post-process after the continuous coil coating and calendering. It cuts the tabs into the required sizes and can simultaneously cut multiple sheets automatically. This diagram includes both 3D and 2D drawings, verified machines, and engineering drawings, allowing for direct processing using the diagrams. It is also an ideal resource for reference and learning.
